Decodificador de audio analógico de 2 canales con POE habilitado para Dante
Receive high-quality audio over a Dante network and output it as analog audio using a compact, PoE-powered decoder

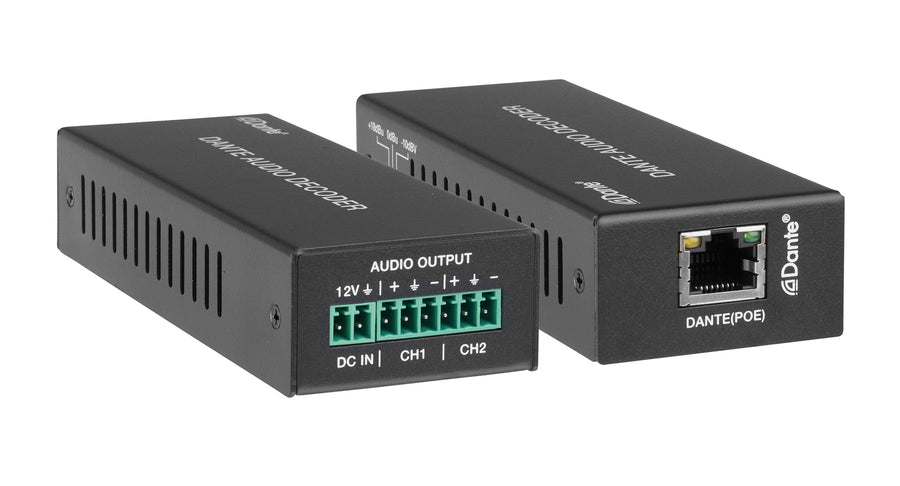

The KanexPro AUD-DTE-DCODE is a Dante®-enabled 2-channel analog audio decoder built on the Dante Ultimo solution. It receives Dante® digital audio from the network and outputs two-channel balanced or unbalanced analog audio via a 6-pin Phoenix connector, delivering clean line-level signal directly to amplifiers, powered speakers, and mixers in installed AV environments.
A 3-position GAIN switch (+18dBu, 0dBu default, -10dBv) matches output level to destination equipment. Powered by PoE or DC 12V via Phoenix connector, it installs at any point in the audio signal chain without additional power supplies.
- Converts Dante® 2CH digital audio to balanced/unbalanced analog output via 6-pin Phoenix connector
- 3-level output gain switch: +18dBu, 0dBu (default), −10dBv
- Dante® audio sampling: 44.1kHz, 48kHz, 96kHz @ 24-bit; AES67 RTP compatible
- Configurable Dante® device latency via Dante® Controller software
- Installation-grade Phoenix connector output — screw-terminal field wiring, no pigtails
- Dual power: PoE IEEE 802.3af Class 0 or DC 12V via 2-pin Phoenix connector
- Metal enclosure, compact 120×47×26mm form factor for concealed or rack-room install
| Input | 1× Dante® RJ45 (PoE), PCM 2CH 44.1/48/96kHz @ 24-bit |
| Output | 1× 6-pin Phoenix 3.81mm (CH1+/-/GND, CH2+/-/GND) balanced/unbalanced |
| Output Gain | +18dBu / 0dBu (default) / -10dBv (3-position GAIN switch) |
| Power Input | 1× 2-pin Phoenix 3.81mm (DC 12V) |
| Network | 100Mbps | Up to 100m (CAT6/CAT6A) |
| Control | Dante® Controller | AES67 RTP compatible |
| Power | PoE IEEE 802.3af Class 0 | DC 12V (2-pin Phoenix) | 1.32W max |
| Dimensions | 120 × 47 × 26mm | 186g | Metal, Black |
| Weight | 0.41 lbs |
| Temperature | Operating: 0°C–40°C | Storage: -20°C–60°C | 20–90% RH |
| Package Contents | |
|---|---|
| 1× Dante 2CH Analog Audio Decoder | |
| 1× 6-pin Phoenix Male Connector (3.81mm pitch) | |
| 1× 2-pin Phoenix Male Connector (3.81mm pitch) | |
| 1× User Manual | |
