KanexPro
SKU: AVO-IPSDV-4K
UPC:
No se pudo cargar la disponibilidad de retiro

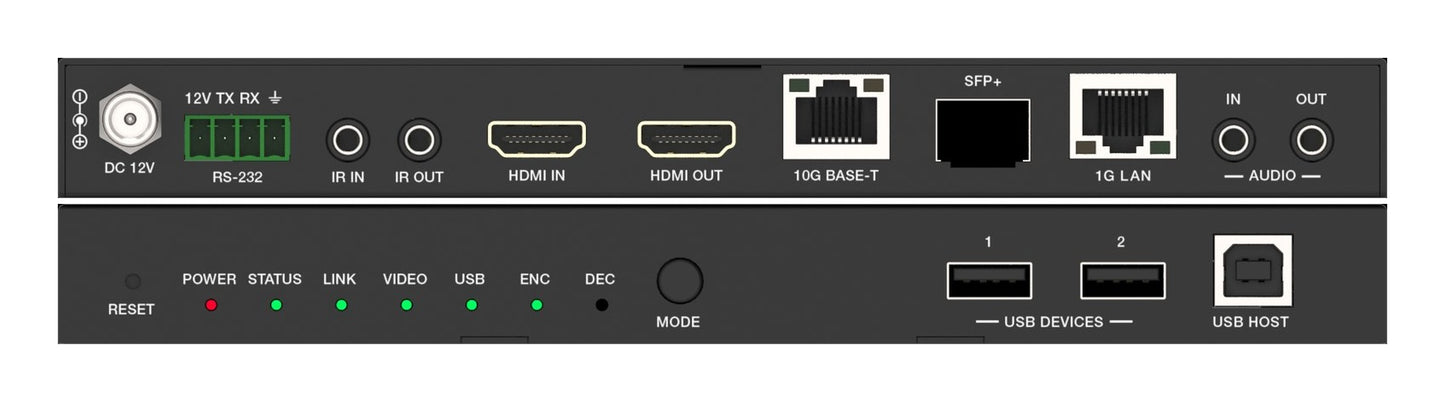

4K60 SDVoE AV over IP Transceiver — Switchable ENC/DEC New
Zero-Frame Latency, Full Dolby/DTS Audio, Copper & Fiber, USB KVM & 9×9 Video Wall over 10G
The AVO-IPSDV-4K brings SDVoE uncompressed 4K60 4:4:4 to the AVO AV over IP lineup — delivering zero-frame latency, full Dolby TrueHD/Atmos and DTS:X audio, and instant seamless switching over a 10G managed network. A single transceiver unit switches between encoder and decoder mode via a front-panel button or API, with both copper 10G BASE-T and 10G SFP+ fiber ports active simultaneously for maximum deployment flexibility.
Supports video wall up to 9×9, multiview up to 25 windows, USB 2.0 KVM, bidirectional IR, RS-232, CEC routing, HDMI loop out, and analog audio bidirectional transmission. A dedicated 1G LAN port carries the H.264/H.265 secondary stream for device preview and secondary data. Managed by the AVO-IPCTL-SDV controller. Dante audio can be added as a custom option.
- SDVoE uncompressed 4K@60Hz 4:4:4 — HDMI 2.0b, HDCP 2.2, 18Gbps
- Zero-Frame latency operating mode — instant, imperceptible switching
- Switchable ENC/DEC — one unit serves as encoder or decoder via front-panel MODE button (hold 5 sec) or API
- 10G BASE-T copper (RJ45) + 10G SFP+ fiber — both active, priority configurable
- Dedicated 1G LAN port for secondary stream (H.264/H.265) and secondary data
- Full HDMI audio: LPCM, Dolby TrueHD, Dolby Atmos, Dolby Digital/Plus/EX, DTS, DTS-HD Master, DTS:X, DTS-96/24, DSD
- Bidirectional analog audio — 3.5mm AUDIO IN + AUDIO OUT on both encoder and decoder
- HDR10, Dolby Vision, HLG, 3D support
- Video wall up to 9×9 (81 displays) — multiview up to 25 windows
- Seamless switching — no black screen, tearing, or interruption
- USB 2.0 KVM — USB HOST (encoder) + 2× USB DEVICE (decoder) — keyboard, mouse, U Disk
- Bidirectional IR + RS-232 + CEC routing control
- HDMI loop out in encoder mode
- H.264/H.265 secondary stream for portable device preview (configurable VLAN & parameters)
- PoE 802.3at PD or DC 12V/2.5A — ~13.5W
- 6U rack: up to 10 units — 1U rack: up to 4 units
- Works with AVO-IPCTL-SDV (CTL100D) controller — Dante audio add-on available
| Specification | |
|---|---|
| Technical | |
| Protocol | SDVoE (Software Defined Video over Ethernet) |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Network Bandwidth | 10G |
| Max Resolution | 4K@60Hz 4:4:4 (uncompressed) |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Color Depth | Full color-depth |
| Latency | Zero-Frame latency operating mode |
| HDR Support | HDR, HDR10, HDR10+, Dolby Vision, HLG, 3D |
| HDMI Audio | LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master, DSD, DTS:X |
| Analog Audio | Stereo analog IN + OUT (3.5mm) — bidirectional between encoder and decoder |
| Secondary Stream | H.264/H.265 configurable — VLAN tagging supported — via dedicated 1G LAN port |
| Video Wall | Up to 9×9 (81 displays) |
| Multiview | Up to 25 windows |
| Transmission Distance | 100m (CAT6A/7) / 90m (CAT6) |
| ESD Protection | Human body model: ±8kV (air-gap) / ±4kV (contact) |
| Connection | |
| Video Input | 1× HDMI IN (Type A) |
| Video Output | 1× HDMI OUT (loop in ENC / decoded output in DEC) |
| Audio | 1× Audio IN (3.5mm) | 1× Audio OUT (3.5mm) |
| Network | 1× 10G BASE-T (RJ45) | 1× 10G SFP+ (fiber) | 1× 1G LAN (RJ45, secondary stream) |
| USB | 1× USB 2.0 HOST (Type B) | 2× USB 2.0 DEVICE (Type A) |
| IR | 1× IR IN (3.5mm) | 1× IR OUT (3.5mm) |
| Control | 1× RS-232 (4-pin 3.81mm Phoenix, 12V supply) | CEC routing | MODE button |
| Control & Power | |
| Mode Switching | Hold front-panel MODE button 5 seconds, or via API/controller |
| Control Methods | IR, RS-232, TCP/IP, Web GUI | CEC routing |
| Controller | AVO-IPCTL-SDV / CTL100D (sold separately) |
| Power | PoE 802.3at PD or DC 12V/2.5A locking (CE/FCC/UL) |
| Power Consumption | ~13.5W |
| Physical | |
| Housing / Color | Metal enclosure, Black |
| Dimensions (W×D×H) | 8.03″ × 5.28″ × 0.85″ (204 × 134 × 21.5mm) |
| Net Weight | 1.53 lbs (693g) |
| Power Supply | AC100–240V 50/60Hz, DC 12V/2.5A (US/EU, CE/FCC/UL) |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -4–140°F (-20–60°C) |
| Humidity | 20–90% RH (non-condensing) |
| Rack Mounting | 6U rack: up to 10 units | 1U rack: up to 4 units |
| Package Contents | |
| 1× | AVO-IPSDV-4K Transceiver |
| 1× | 12V IR receiver cable (1.5m) |
| 1× | IR blaster cable (1.5m) |
| 1× | 4-pin 3.81mm Phoenix connector |
| 1× | DC 12V/2.5A locking power adapter |
| 2× | Mounting ears |
| 4× | Machine screws (KM3×6) |
| 1× | User manual |
