The KanexPro CR-KEY10R is a standalone programmable wall keypad designed to replace expensive proprietary control processors in conference rooms, classrooms, training centers, and exhibition spaces. Built on a Linux-based ARM Cortex-A7 platform with 256MB RAM, it delivers multi-protocol room automation — RS232, RS485, IR, relay, and TCP/IP — from a single flush-mount US 2-Gang wall panel, eliminating the need for a separate control processor or proprietary software.

Featuring 10 programmable buttons and a precision knob with LED feedback for real-time volume or level control, the CR-KEY10R integrates 4× RS232, 1× RS485, 2× IR output, 2× relay, and 2× configurable I/O ports. Powered via PoE or DC 5V, it supports TCP/IP, UDP, HTTP, and WebSocket protocols over its 100Mbps Ethernet port. The magnetic aluminum front panel is field-swappable in black or white, and button labels are customizable for any room configuration. Programming is handled through EASYAccomplish software with web GUI access for network configuration.

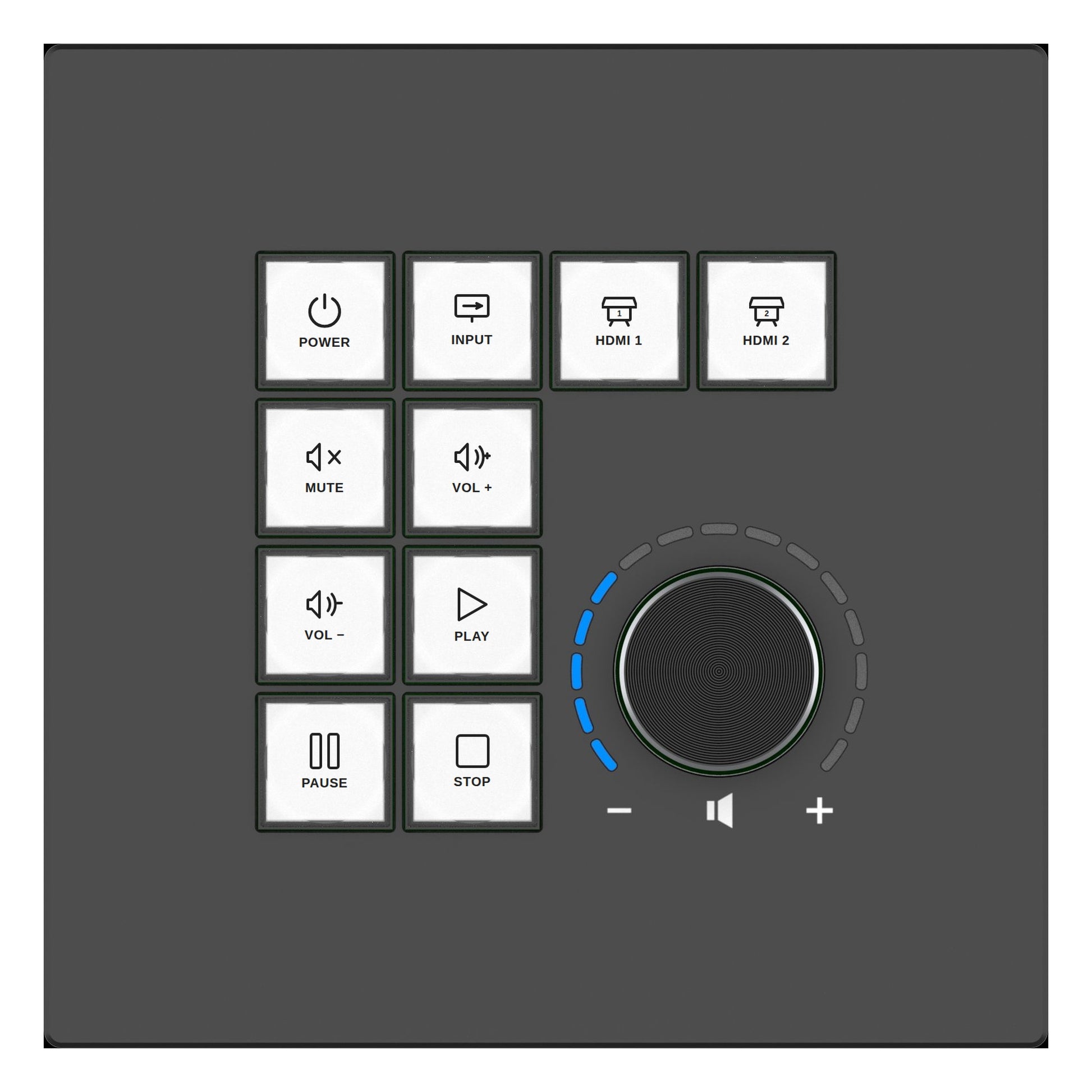

10 programmable buttons with light status feedback and 1 programmable knob with blue LED progress ring
4-channel RS232 and 1-channel RS485 bidirectional serial ports with configurable baud rates (2400–115200 bps)
2-channel IR output ports supporting 20KHz–60KHz wideband infrared control
2-channel isolated low-voltage relay ports (2A 30VDC / 0.3A 125VAC) for lighting, screens, and curtain control
2-channel configurable I/O ports for digital signal input or 5V output (50mA max)
100Mbps Ethernet with PoE support — TCP/IP, UDP, HTTP, and WebSocket protocols for network-based device control
Linux OS on ARM Cortex-A7 (1.2GHz, 256MB RAM/ROM) — standalone operation with no external processor required
Magnetic aluminum front panel (black or white) with customizable button labels — field-swappable without rewiring
Programmable via EASYAccomplish software with web GUI for network settings — US 2-Gang / CN 120 wall box installation

Specification
Technical
CPU	ARM Cortex-A7, 1.2GHz
Operating System	Linux
RAM	256MB
Flash Memory	256MB
ESD Protection	IEC 61000-4-2: ±8kV (air-gap) / ±4kV (contact)
Control
Programmable Buttons	10 buttons with light status feedback
Programmable Knob	1 knob with blue LED progress indicator
Programming Software	EASYAccomplish (downloadable)

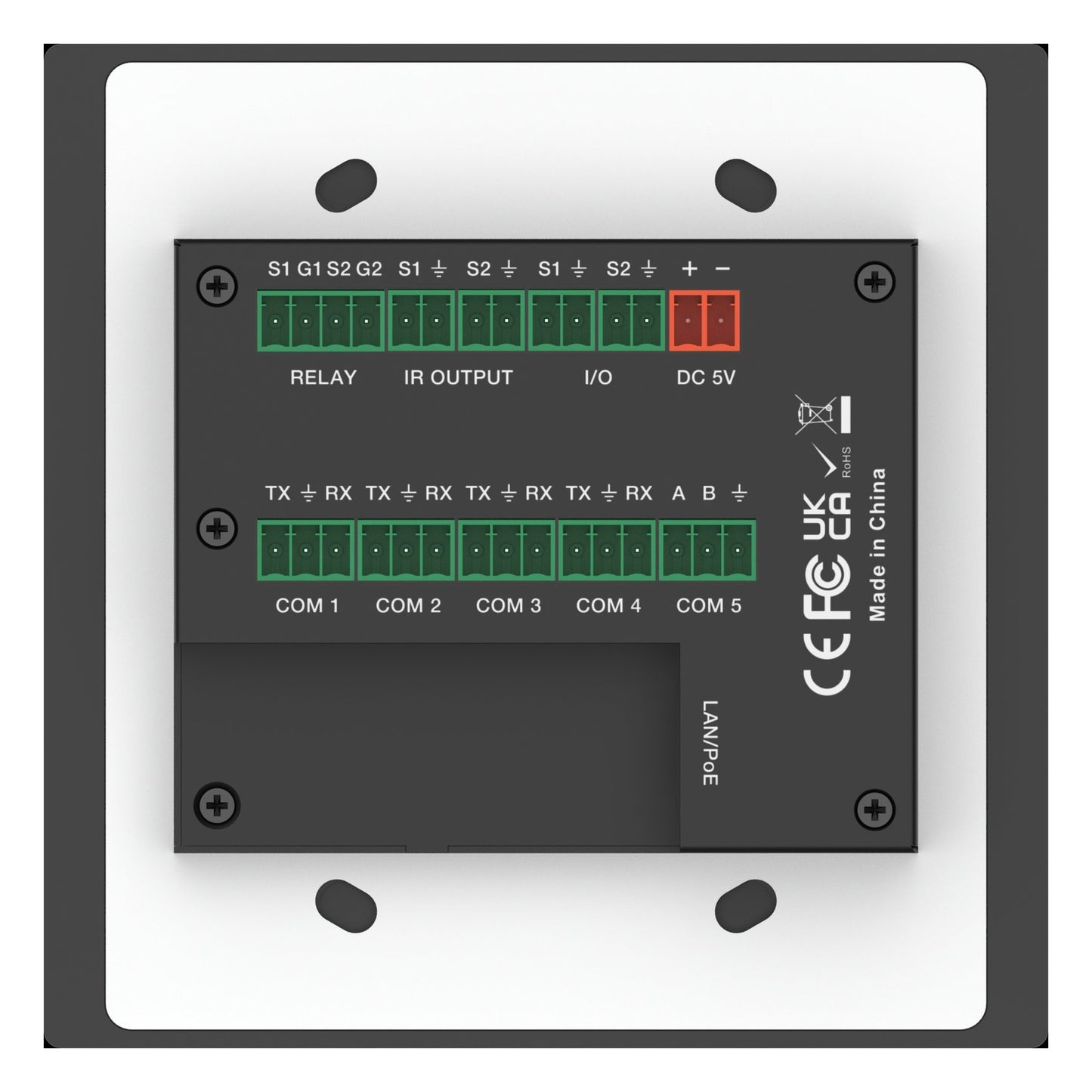

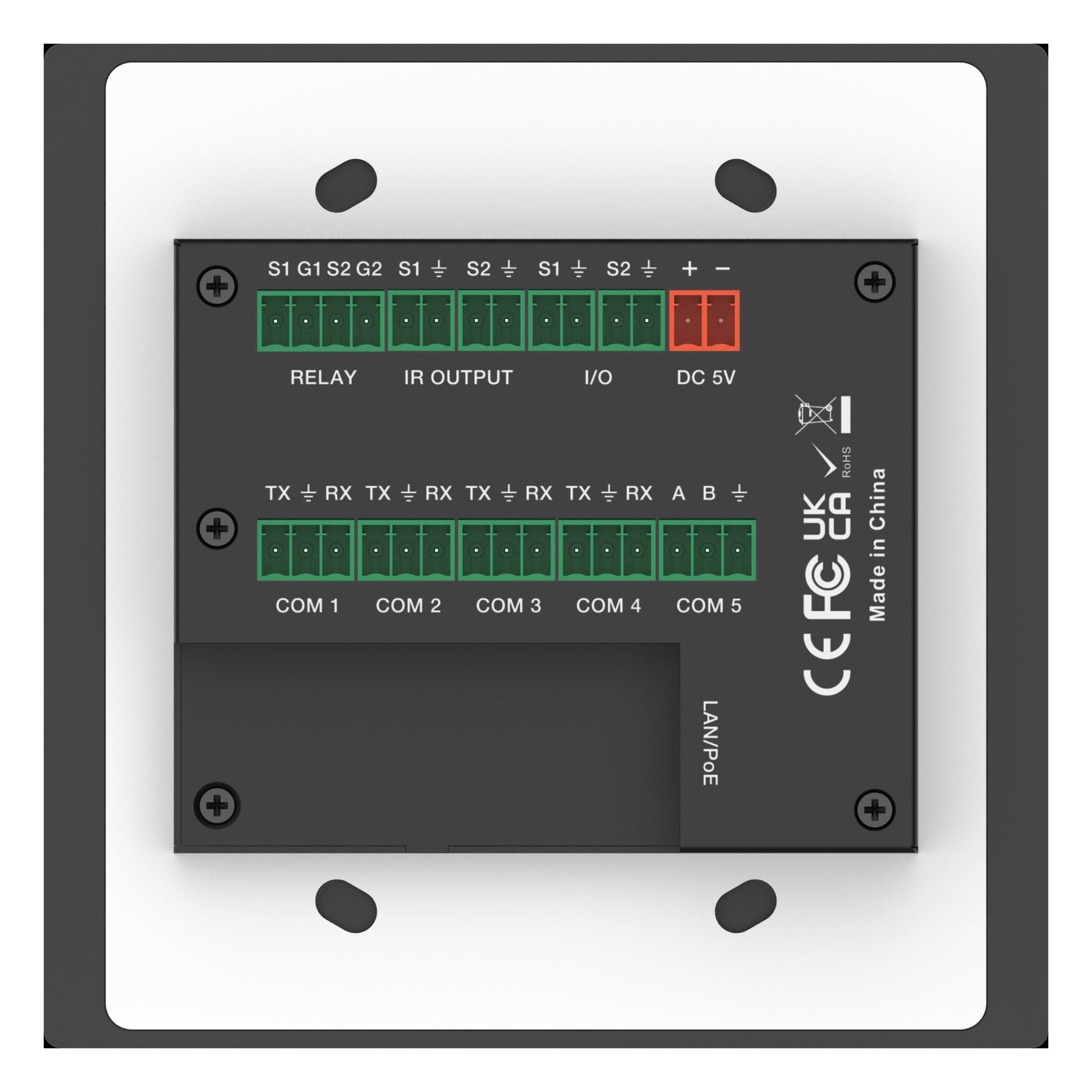

Connection
COM 1/2/3/4 (RS232)	4× 3-pin phoenix connector, bidirectional, 2400–115200 bps
COM 5 (RS485)	1× 3-pin phoenix connector, bidirectional, 2400–115200 bps
IR Output	2× 2-pin phoenix connector, 20KHz–60KHz carrier
Relay	2× 2-pin phoenix connector, normally open, 2A 30VDC / 0.3A 125VAC
I/O	2× 2-pin phoenix connector, configurable input (24V) / output (5V 50mA)
LAN/PoE	1× 10/100M Ethernet RJ45, PoE supported
DC 5V	1× 2-pin phoenix connector
USB	1× USB Type-C (system debug)
Mechanical
Dimensions	4.57″ × 4.57″ × 1.42″ (116 × 116 × 36mm)
Weight	0.86 lbs (391g)
Housing	Front: Aluminum alloy; Rear: Metal enclosure
Color	Front: Black/White (optional); Rear: Black
Installation	US 2-Gang / CN 120 standard cassette box
Front Panel	Magnetic aluminum, field-swappable
Power
Power Supply	DC 5V/1A or PoE
Power Consumption	<5W
Environmental
Operating Temperature	32°F–104°F (0°C–40°C)
Operating Humidity	20%–80% RH, non-condensing
Storage Temperature	-4°F–140°F (-20°C–60°C)
Storage Humidity	10%–90% RH, non-condensing
Certifications	CE, FCC, UKCA
Package Contents
1×	Programmable Control Keypad
5×	3-pin 3.5mm Phoenix Connector (male)
1×	4-pin 3.5mm Phoenix Connector (male)
4×	2-pin 3.5mm Phoenix Connector (male)
1×	2-pin 3.81mm Phoenix Connector (male)
4×	Wall Mounting Screws
1×	User Manual
