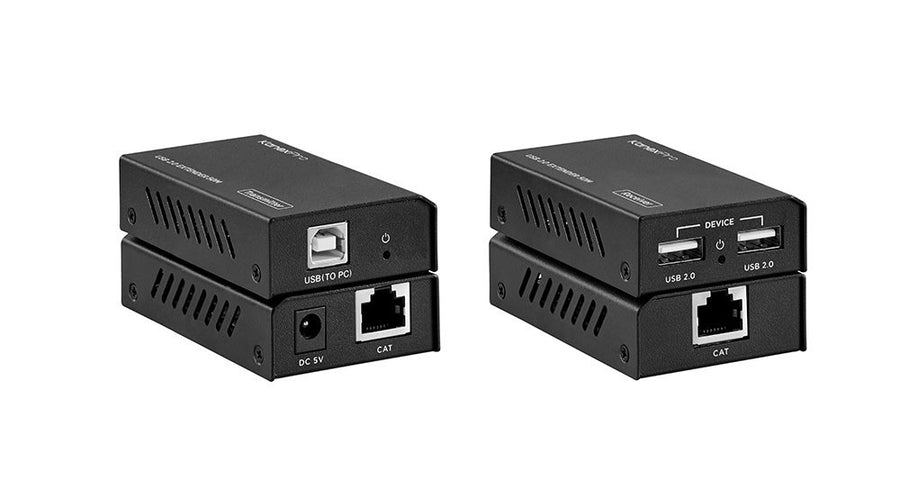

Extensor USB 2.0 sobre Cat6 50 Metros
480Mbps Plug-and-Play Extension to 164ft for Webcams, Printers & HID Devices — No Drivers Required
The KanexPro EXT-USB250M extends USB 2.0 at 480Mbps up to 50 meters (164ft) over a single Cat5e/6 cable — delivering two USB-A ports at the remote end for webcams, touch screens, printers, HID devices, and USB hubs. The Transmitter draws power directly from the host USB-B port, while the Receiver uses a compact 5V/1A adapter. Completely plug-and-play with no driver installation required.
Designed for smaller conference rooms, classrooms, and digital signage environments where 164ft of USB reach is sufficient, the EXT-USB250M is the compact, cost-effective entry point in the KanexPro USB extender range. Backward compatible with USB 1.1 and backed by KanexPro’s 3-year parts and labor warranty.
- Ultra Slim 165ft. (50m) USB 2.0 extender
- Simple plug and play, no driver or setting installation required
- Supports USB 2.0 protocol, transmission rate up to 480Mbps
- Features one USB-B port input in transmitter
- Features two USB 2.0 ports outputs on the receiver
- Transmitter bus-powered from host USB-B port — no external power adapter required at TX end
- Receiver powered by included 5V/1A adapter
- Note: transmission distance up to 40m for some USB 2.0 hubs
- ESD protection: ±8kV Air-gap discharge, ±4kV Contact discharge
- Compact design for easy and flexible installation
- Backed by KanexPro 3-Year Parts and Labor Warranty
| Specification | Value |
|---|---|
| Technical | |
| USB Protocol | USB 2.0 |
| Transmission Rate | Up to 480Mbps |
| Transmission Distance | 50m / 164ft over Cat5e/6 (Note: up to 40m for some USB 2.0 hubs) |
| ESD Protection | ±8kV Air-gap discharge, ±4kV Contact discharge |
| Connections — Transmitter | |
| Input | 1× USB [USB-B, Female] |
| Output | 1× CAT [RJ45, Female] |
| Power | Bus-powered via USB-B host port — no external adapter required |
| Connections — Receiver | |
| Input | 1× CAT [RJ45, Female] |
| Output | 2× USB [USB-A, Female] |
| Power | DC 5V/1A (included adapter) |
| Mechanical | |
| Housing | Metal Enclosure · Black |
| Dimensions | TX / RX: 82mm (W) × 49mm (D) × 20mm (H) |
| Weight | TX / RX: 100g each |
| Power & Environment | |
| Power Supply | TX: Bus-powered (USB-B) · RX: Input AC 100–240V 50/60Hz, Output DC 5V/1A |
| Power Consumption | Transmitter: 0.7W · Receiver: 1W |
| Operating Temp | 0°C – 40°C / 32°F – 104°F |
| Storage Temp | -20°C – 60°C / -4°F – 140°F |
| Relative Humidity | 20–90% RH (non-condensing) |
| Package Contents | |
| 1× | USB 2.0 Extender (Transmitter) |
| 1× | USB 2.0 Extender (Receiver) |
| 1× | USB Cable (USB-B Male to USB-A Male, 1m) |
| 1× | 5V/1A Power Adapter |
| 1× | User Manual |
