Extensor USB-C sobre HDBaseT 3.0 de 18 Gbps (70 m)
Single-Cable USB-C Video, Data, and Power Extension over CAT6A with 4 USB 2.0 Device Ports
The KanexPro EXT-USBCPD4K-70M bridges USB-C laptops and remote displays over a single CAT6A/7 cable, delivering 4K60 4:4:4 video, USB 2.0 peripheral access, and up to 100W device charging — all via HDBaseT 3.0. Purpose-built for BYOD conference rooms, classrooms, and collaboration spaces, this extender eliminates the cable clutter and adapter chains that plague USB-C-to-display installations by converging video, data, and power into one HDBaseT link up to 70 meters.
The transmitter accepts a USB-C source with DP Alt Mode (v1.2a) and passes uncompressed 4K60 4:4:4 video at 18Gbps, along with HDR, HDR10+, Dolby Vision, and HLG. A dedicated CHARGE port enables 100W USB-C PD to keep laptops powered during extended sessions. The receiver outputs HDMI 2.0b to the display and provides four USB 2.0 device ports for cameras, keyboards, mice, and storage. RS-232 pass-through and bidirectional 24V PoC simplify system integration and installation.
- HDBaseT 3.0 extender with USB-C input supporting DP Alt Mode (v1.2a) for video, USB 2.0 data, and power delivery
- 18Gbps video bandwidth with uncompressed 4K60 4:4:4 (8-bit) up to 40m and 4K30 4:4:4 (8-bit) up to 70m over CAT6A/7
- USB-C Power Delivery up to 100W via dedicated CHARGE port on the transmitter
- HDMI 2.0b output on receiver with HDCP 2.3 compliance for secure content playback
- HDR, HDR10+, Dolby Vision, and HLG pass-through for full dynamic range support
- Four USB 2.0 device ports on the receiver (3× USB-A, 1× USB-C) with 5V/1A per port
- RS-232 signal pass-through and API command control via SERVICE port for room automation
- Bidirectional 24V PoC — power either TX or RX, the other unit powers over the CAT cable
| Specification | |
|---|---|
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 18 Gbps |
| Video Resolution | Up to 4K@60Hz (4:4:4 8bit) |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12-bit |
| HDR Formats | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats | LPCM 2.0/5.1/7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X |
| USB Compliance | USB 2.0 |
| ESD Protection | IEC 61000-4-2: ±8kV (air-gap) & ±4kV (contact) |
| Transmission Distance | 4K60Hz (4:4:4 8bit): up to 130ft/40m • 4K30Hz (4:4:4 8bit): up to 230ft/70m • USB 2.0: up to 230ft/70m (CAT6A/7) |
| Connection — Transmitter | |

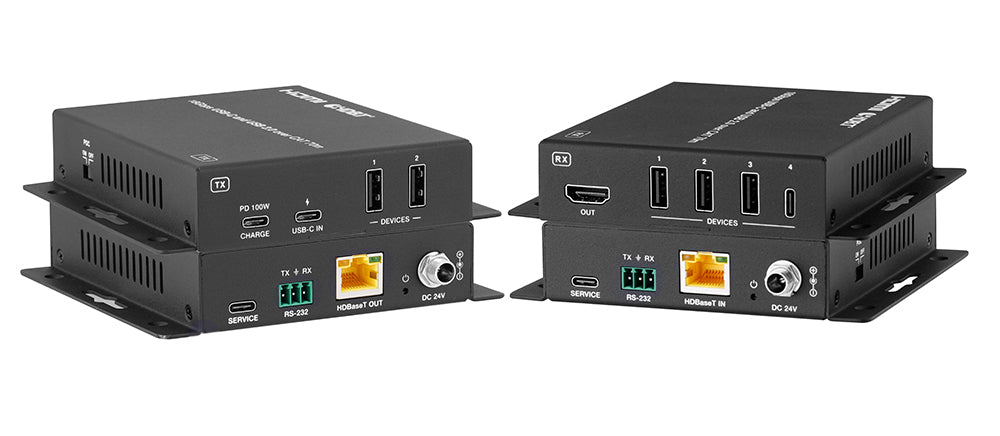

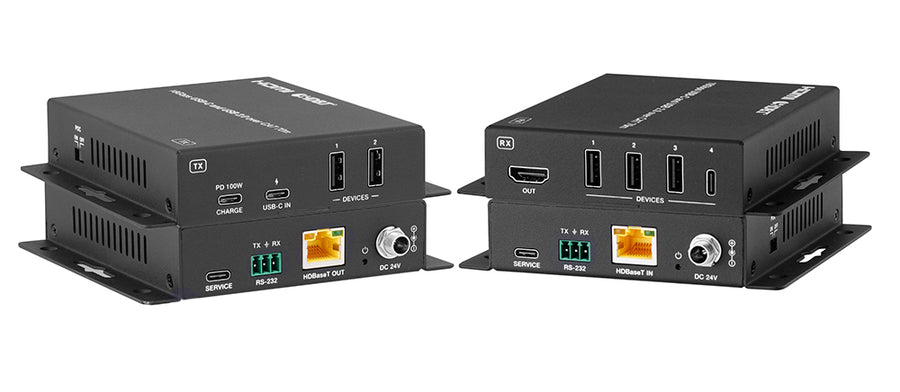

| Front Panel | 1× CHARGE [USB-C] • 1× USB-C IN [USB-C] • 2× USB 2.0 DEVICES [USB-A] |
| Rear Panel | 1× SERVICE [USB-C] • 1× RS-232 [3-pin phoenix] • 1× HDBaseT OUT [RJ45, 24V PoC] • 1× DC 24V |
| Side Panel | 1× PoC ON/OFF [DIP switch] |
| Connection — Receiver | |
| Front Panel | 1× HDMI OUT [HDMI Type A] • 1× USB 2.0 DEVICES [USB-C] • 3× USB 2.0 DEVICES [USB-A] |
| Rear Panel | 1× SERVICE [USB-C] • 1× RS-232 [3-pin phoenix] • 1× HDBaseT IN [RJ45, 24V PoC] • 1× DC 24V |
| Side Panel | 1× PoC ON/OFF [DIP switch] |
| Mechanical | |
| Housing | Metal Enclosure, Black |
| Dimensions | TX/RX: 120mm (W) × 113mm (D) × 25.5mm (H) |
| Weight | TX: 353g • RX: 352g |
| Power Supply | AC 100–240V 50/60Hz → DC 24V/2.7A |
| Power Consumption | TX/RX with full USB devices: 51.36W • Without USB devices: 10.08W |
| Operating Temp | 32–104°F / 0–40°C |
| Storage Temp | −4–140°F / −20–60°C |
| Operating Humidity | 20–80% RH (non-condensing) |
| Storage Humidity | 10–90% RH (non-condensing) |
| Package Contents | |
| 1× | Transmitter (TX) |
| 1× | Receiver (RX) |
| 2× | 3-pin 3.5mm Phoenix Connector (male) |
| 1× | 24V/2.7A Desktop Power Supply |
| 1× | User Manual |
