Conmutador de presentación 4×2 sin interrupciones con USB-C, extensión HDBT y audio Dante® DSP
4K60 4:4:4 Multiview Switcher with USB-C 60W PD, USB 3.2 KVM, Dante® Audio & HDBaseT 3.0
Resellers, installers, schools and businesses. Approval is usually the same working day.

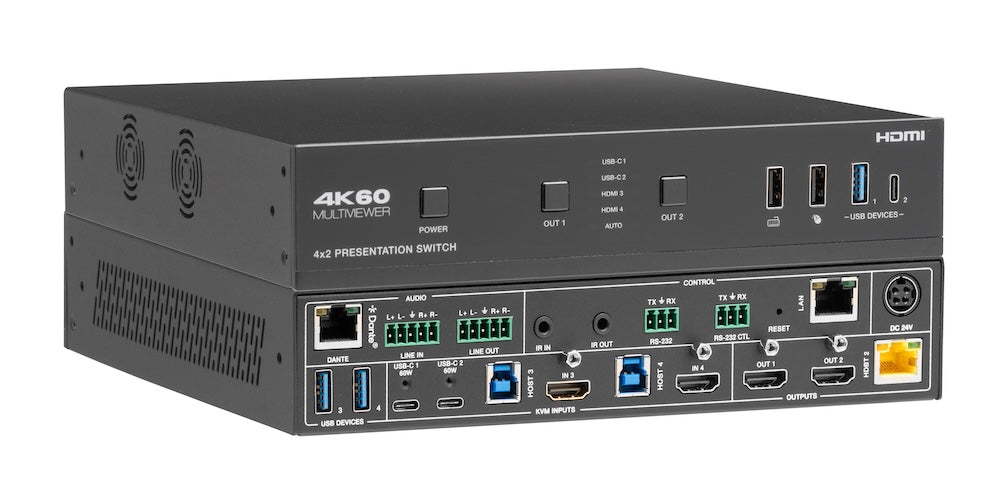

Seamless 4K60 presentation switching with multiview, USB-C connectivity, KVM control, and HDBaseT 3.0 extension — in a single half-rack unit. The KanexPro SW-4X2PS-70M is a 4×2 seamless presentation switch that routes four video sources (2× USB-C, 2× HDMI) to two HDMI outputs plus one HDBaseT 3.0 output at resolutions up to 4K@60Hz 4:4:4 with HDCP 2.3 compliance.
Multiple multiview display modes (PIP, PBP, Triple, Quad, Custom) allow simultaneous viewing of up to four sources on a single screen. USB-C inputs deliver DisplayPort Alt Mode A/V, USB 3.2 Gen 1 data, and 60W power delivery. Built-in audio DSP with Dante® 2×2 I/O, USB 3.2 KVM switching with keyboard/mouse hotkeys, and HDBaseT 3.0 extension up to 70m complete an integrated conferencing and presentation solution. Control via front panel, IR remote, RS-232, TCP/IP, or Web GUI.
- Routes 2× USB-C and 2× HDMI sources to 2 HDMI outputs at up to 4K@60Hz 4:4:4 with HDCP 2.3 and 18 Gbps bandwidth
- Multiview display modes: Auto, Single, PIP, PBP, Triple, Quad, and 5 Custom layouts with seamless switching
- USB-C inputs support DP Alt Mode A/V, USB 3.2 Gen 1 (5 Gbps), 1G LAN passthrough, and 60W PD charging per port
- HDBaseT 3.0 output (mirrored with HDMI OUT 2) extends uncompressed 4K60 4:4:4 up to 40m or 1080p/4K30 up to 70m via CAT6A
- USB 3.2 KVM switching with keyboard and mouse hotkey support; USB 2.0 extension to receiver over HDBaseT
- Built-in audio DSP with mixing, matrixing, 31-band GEQ, volume, delay, and Dante® 2×2 audio I/O
- CEC and RS-232 display power control; advanced EDID management (17 modes); 8 preset scenes
- Control via front panel buttons, IR remote, RS-232, TCP/IP (Web GUI) — included HDBaseT receiver with PoE
| Specification | |
|---|---|
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.3 |
| DP Version | DP 1.4 |
| Video Bandwidth | 18 Gbps |
| Video Resolution | Up to 4K@60Hz 4:4:4 |
| Color Depth | 8/10/12-bit |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Audio Formats | USB-C/HDMI/HDBT: Digital audio, 32–192 kHz/24-bit, LPCM 2CH; LINE IN/OUT: Analog balanced/unbalanced 2CH; Dante®: LPCM 2CH, 44.1–96 kHz, 16/24-bit |
| USB Bandwidth | USB 3.2 Gen 1 up to 5 Gbps |
| Network Bandwidth | LAN and USB-C: 1 Gbps; Dante®: 100 Mbps |
| ESD Protection | IEC 61000-4-2: ±8 kV (air-gap), ±4 kV (contact) |
| IR Level / Frequency | 12 Vp-p • Wideband 20K–60 KHz |
| Analog Audio | |
| TX Line Input Level (Max) | 8.2 dBu (2 Vrms) • Input Impedance: 10KΩ |
| TX Line Output Level (Max) | Balanced: 8.2 dBu (2 Vrms) • Unbalanced: 2.2 dBu (1 Vrms) • Output Impedance: 330Ω |
| RX Line Output Level (Max) | Balanced: 8.2 dBu (2 Vrms) • Unbalanced: 2.2 dBu (1 Vrms) • Output Impedance: 330Ω |
| Audio S/N Ratio | 93 dB @ 2 Vrms, 1 kHz A-weighted |
| Audio THD+N | <0.1% @ 0 dBV, 1 kHz |
| Frequency Response | +0.5 dB, −1 dB, 20 Hz to 20 kHz |
| Audio Delay | TX: 2/3/4/5/10 ms • RX: <1 ms • Sync: 0–50 ms |
| Connection — Transmitter | |
| Input | 2× HDMI IN [Type A, 19-pin] • 2× USB-C IN [Type C, 24-pin] • 1× LINE IN [5-pin phoenix] • 1× DANTE IN [RJ45] |
| Output | 2× HDMI OUT [Type A, 19-pin] • 1× HDBT OUT [RJ45, 48V PoE/PSE] • 1× LINE OUT [5-pin phoenix] |
| Control | 1× RS-232 [3-pin phoenix] • 1× RS-232 CTL [3-pin phoenix] • 1× LAN [RJ45] • 1× IR IN • 1× IR OUT [3.5mm] |
| USB | 2× USB 3.2 HOST [Type B] • 3× USB 3.2 DEVICES [Type A] • 2× USB 1.1 KVM [Type A] • 1× USB-C DEVICE |
| Connection — Receiver | |
| Input | 1× HDMI IN [Type A, 19-pin] • 1× HDBaseT IN [RJ45, 48V PoE/PD] |
| Output | 1× HDMI OUT [Type A, 19-pin] • 1× LINE OUT [5-pin phoenix] |
| Control | 1× RS-232 [3-pin phoenix] • 1× IR IN • 1× IR OUT [3.5mm] |
| USB | 1× USB HOST [Type B] • 2× USB DEVICES [Type A] • 1× SERVICE [Micro USB] |
| Mechanical | |
| Housing | Front panel: Aluminum; Rear case: Metal Enclosure |
| Color | Black |
| Dimensions (TX) | 220 mm (W) × 220 mm (D) × 44.5 mm (H) |
| Dimensions (RX) | 140 mm (W) × 105 mm (D) × 21.5 mm (H) |
| Weight | Transmitter: 1.78 kg; Receiver: 424 g |
| Power Supply | AC 100–240V 50/60 Hz → DC 24V/8A |
| Power Consumption | 170W (Max) |
| Operating Temperature | 32–104°F / 0–40°C |
| Storage Temperature | −40–140°F / −40–60°C |
| Operating Humidity | 20–80% RH (non-condensing) |
| Storage Humidity | 10–90% RH (non-condensing) |
| Transmission Distance | |
| HDBT 4K60 4:4:4 | Up to 132 ft / 40m (CAT6A F/FTP) |
| HDBT 1080p / 4K30 | Up to 230 ft / 70m (CAT6A F/FTP) |
| HDMI | Up to 9.8 ft / 3m |
| USB-C | Up to 9.8 ft / 3m |
| Package Contents | |
| 1× | 4×2 Seamless Presentation Switch (Transmitter) |
| 1× | HDBaseT Receiver |
| 1× | IR Blaster Cable (1.5m) |
| 1× | IR Wideband Receiver Cable (1.5m) |
| 3× | 3-pin 3.5mm Phoenix Connector |
| 3× | 5-pin 3.5mm Phoenix Connector |
| 4× | Mounting Ears |
| 8× | Machine Screws |
| 1× | 24V/8A Desktop Power Supply with AC Power Cord (1.5m) |
| 1× | IR Remote |
| 1× | Product Manual |
