4K60 HDMI & USB-C 2-Gang Wall Plate Extender Kit with USB 2.0 and 60W Charging, 100m
One USB-C Cable at the Table: Laptop Video, USB Camera and Mic, and 60W Charging to a Display Up to 100m over CAT6/6A - HDR, IR, RS-232, CEC and PoC

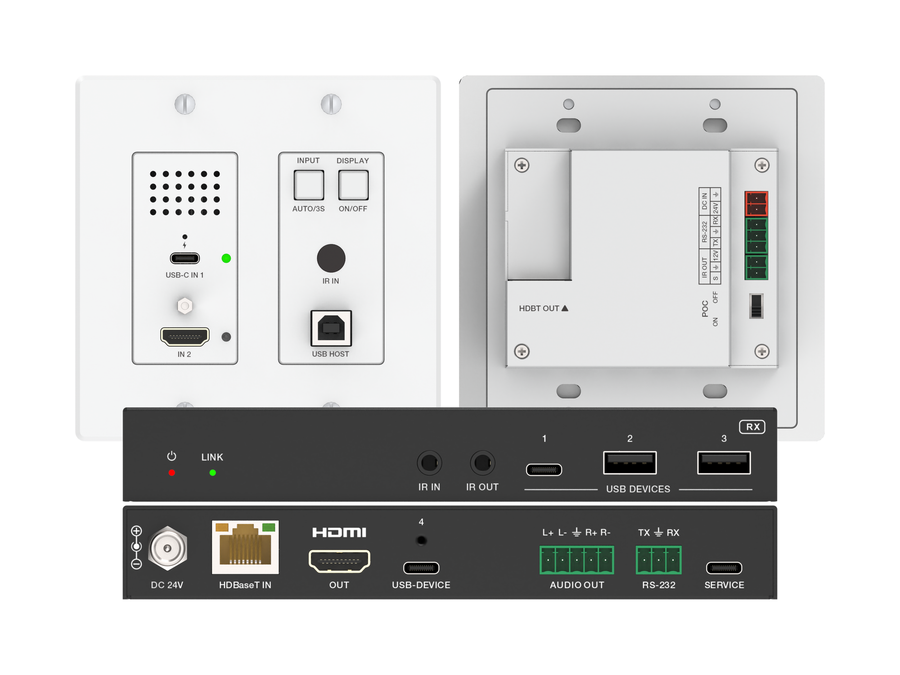

Puts one USB-C cable at the table that carries a laptop's 4K60 picture, USB 2.0 to the room's camera and audio devices, and up to 60W of charging, over a single CAT6/6A run of up to 100m to the display. The US 2-gang wall-plate transmitter takes a USB-C input and an HDMI input with automatic, manual and priority switching, and the HDBaseT 2.0 receiver at the display adds four USB 2.0 device ports, HDMI out and a balanced or unbalanced stereo audio output. It is built for bring-your-own-device and bring-your-own-meeting rooms where the camera, speakerphone and display sit away from the table.
Both inputs carry up to 4K60 4:4:4 with HDCP 2.3 and HDR10, HDR10+, Dolby Vision and HLG pass-through; the USB-C input runs DisplayPort 1.2a Alt Mode and charges the laptop at up to 60W when the wall plate has its own 24V supply. USB 2.0 travels at up to 255Mbps, enough for conference cameras, speakerphones, keyboards, mice and touch displays, and a USB host port at the plate gives an HDMI-connected computer the same devices. Bidirectional IR and RS-232, CEC pass-through and a DISPLAY ON/OFF button at the plate let the room be run from the table or a control system, and bidirectional PoC lets the one included 24V supply power both units.
- 2x1 HDMI and USB-C US 2-gang wall plate with HDBaseT 2.0, 4K60 to 100m (328 ft)
- 4K60 4:4:4 and USB 2.0 over a single CAT6/6A cable
- USB-C with DisplayPort 1.2a Alt Mode up to 4K60 4:4:4 (HDCP 2.3), USB 2.0 and up to 60W charging
- HDMI 2.0b input up to 4K60 4:4:4 (HDCP 2.3)
- Fast switching with automatic, manual and priority modes; auto switching detects signal and source 5V
- HDR, HDR10, HDR10+, Dolby Vision and HLG pass-through
- USB 2.0 high speed over HDBaseT 2.0 up to 255Mbps, to four device ports on the receiver
- USB HOST port at the wall plate, bound to the HDMI input
- Balanced and unbalanced audio de-embedding on the receiver
- EDID management and CEC pass-through
- IR pass-through and learning; RS-232 pass-through and API control
- Display on/off control via CEC, RS-232 or IR, from a button at the plate
- Bidirectional 24V PoC: when either end is powered, the other needs no supply (USB-C charging needs the supply at the wall plate)
| Video | |
| HDMI Compliance | HDMI 2.0b |
| DP Compliance | DisplayPort 1.2a (USB-C Alt Mode) |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 18Gbps |
| HDBaseT Bandwidth | HDBaseT 2.0 @ 7.2Gbps |
| Video Resolution | 640x480p60 to 4096x2160p60, including 3840x2160p23.98/24/25/29.97/30/50/59.94/60 |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12-bit |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio | |
| HDMI/USB-C Pass-Through | LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Analog Out (RX) | PCM 2CH; balanced up to 8.2dBu (2Vrms), unbalanced up to 2.2dBu (1Vrms) |
| Frequency Response | 20Hz to 20kHz (+/-0.5dB) |
| S/N Ratio / Dynamic Range | >90dB @ 0dBu, 1kHz, A-weighted |
| THD+N | <0.01% at +4dBu, 1kHz |
| USB and Charging | |
| USB | USB 2.0 high speed over HDBaseT 2.0, up to 255Mbps |
| USB-C Charging | Up to 60W, when the wall plate is powered by the 24V supply |
| Transmission and Control | |
| Distance | 4K60 up to 100m (328 ft) over CAT6/6A; HDMI/USB-C passive cable 3m (9.8 ft) |
| IR | Bidirectional pass-through and learning; 12Vp-p; broadband 20-60kHz |
| RS-232 | Bidirectional pass-through and API control |
| CEC | Pass-through; display on/off via CEC, RS-232 or IR |
| ESD Protection | IEC 61000-4-2: +/-8kV air-gap, +/-4kV contact |
| Wall Plate Transmitter | |

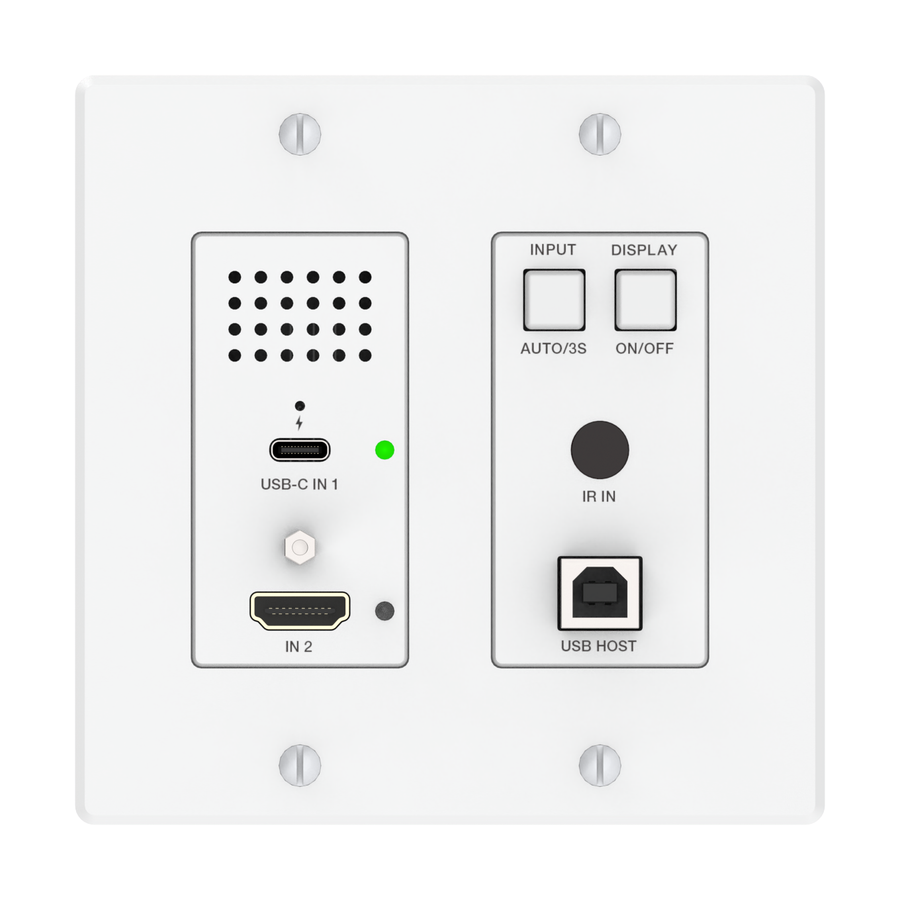

| Input | 1x HDMI IN (Type A); 1x USB-C IN (DP Alt Mode, USB 2.0, 60W PD) |
| Output | 1x HDBT OUT (RJ45, 24V PoC) |

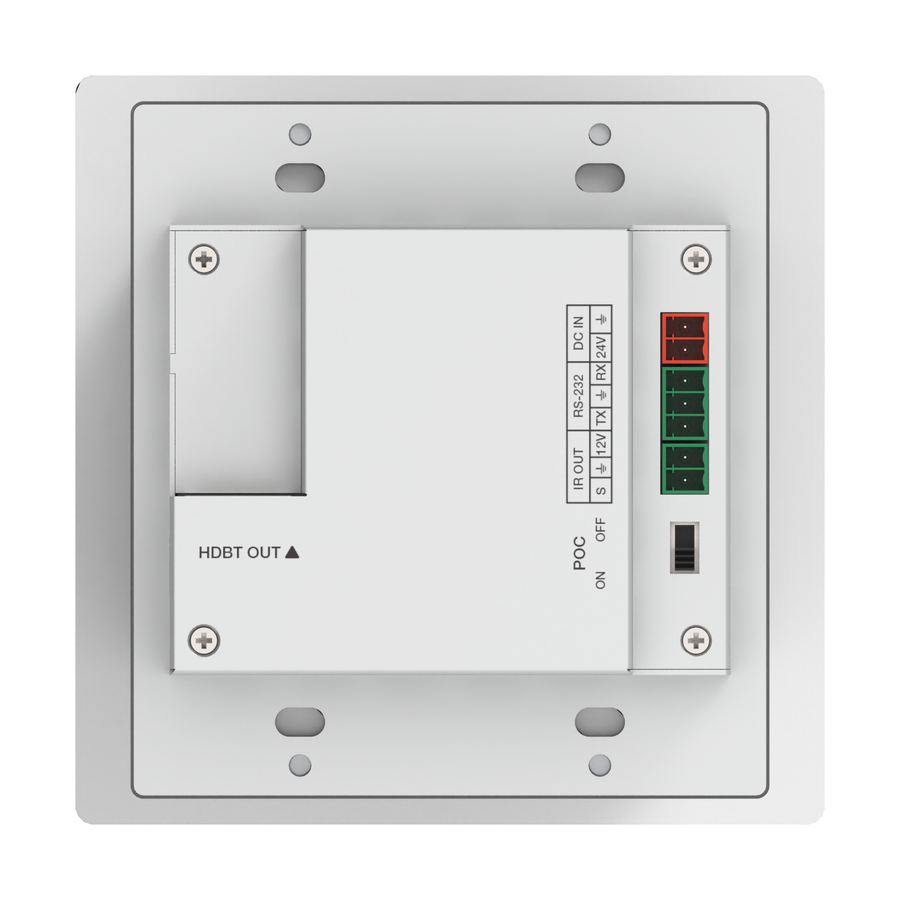

| Control | 1x RS-232 (3-pin Phoenix); 1x SERVICE (USB-C); 1x USB HOST (USB-B, bound to HDMI IN); IR IN window (learning); 1x IR OUT (2-pin Phoenix); INPUT and DISPLAY ON/OFF buttons; PoC ON/OFF switch |
| Power | DC IN 24V |
| Receiver | |
| Input | 1x HDBaseT IN (RJ45, 24V PoC) |
| Output | 1x HDMI OUT (Type A); 1x AUDIO OUT (5-pin Phoenix, balanced/unbalanced) |
| USB | 4x USB 2.0 device ports: 2x USB-C, 2x USB-A (5V/1A each) |
| Control | 1x RS-232 (3-pin Phoenix); 1x SERVICE (USB-C); 1x IR IN and 1x IR OUT (3.5mm) |
| Power | DC 24V |
| Power | |
| Power Supply | DC 24V/5A, one included |
| Power Consumption (max) | 111.8W with 60W USB-C charging (supply at the wall plate); 41.74W without charging |
| Mechanical | |
| Housing | Transmitter: aluminum front panel, iron back cover; Receiver: iron box |
| Color | Transmitter: white front, silver back; Receiver: black |
| Dimensions | Transmitter: 4.53" x 1.56" x 4.53" (115 x 39.5 x 115mm); Receiver: 6.30" x 3.54" x 0.91" (160 x 90 x 23mm) |
| Weight | Transmitter: 1.08 lbs (489g); Receiver: 1.16 lbs (524g) |
| Environmental | |
| Operating Temperature | 32F to 104F (0C to 40C) |
| Storage Temperature | -4F to 140F (-20C to 60C) |
| Humidity | Operating 20-80% RH; storage 10-90% RH, non-condensing |
| Package Contents | |
| In the box | 1x wall plate transmitter; 1x receiver; 1x 24V/5A desktop power supply; 1x IR blaster cable (1.5m); 1x IR receiver cable (1.5m); 1x 5V IR blaster cable (2-pin Phoenix); 2x 3-pin and 1x 5-pin 3.5mm Phoenix connectors; 2x mounting ears; 8x machine screws |
