Dante enabled 2-Channel Analog Audio Decoder with POE

Receive high-quality audio over a Dante network and output it as analog audio using a compact, PoE-powered decoder

1 1

KanexPro

SKU: AUD-DTE-DCODE

UPC: 813982023512

$299.95
View full details

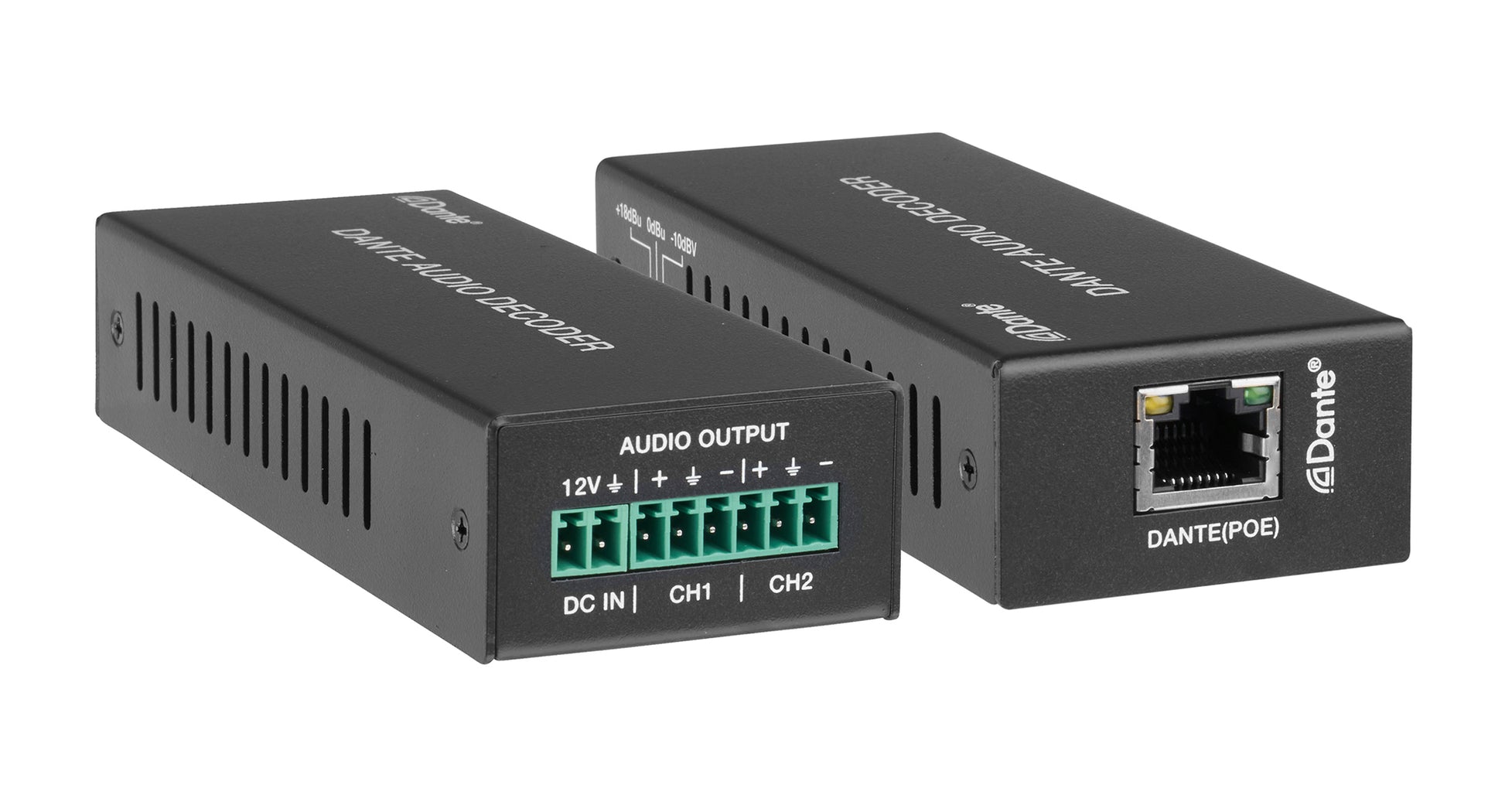

The KanexPro AUD-DTE-DCODE is a professional-grade 2-channel analog audio decoder designed for Dante audio-over-IP environments. Built with the Dante Ultimo chipset, this decoder receives digital audio from a standard LAN network and converts it to high-fidelity analog audio output. Ideal for commercial AV installations, it offers seamless integration, simplified setup through Power over Ethernet (PoE), and superior audio performance for a wide range of applications including conference rooms, media production, and educational facilities.

  • Dante Audio Network Compatibility

  • Uses AES67 RTP for interoperability with other Dante-enabled and networked audio devices.

  • Analog Audio Output

  • Balanced and unbalanced outputs via 6-pin Phoenix connector.

  • Adjustable Input Gain

  • Selectable input gain settings: +18dBu, 0dBu (default), and -10dBV.

  • High-Resolution Audio

  • Supports PCM 2.0 audio at 44.1kHz, 48kHz, and 96kHz with 24-bit resolution.

  • Power Options

  • Dual power input: 12V DC or IEEE802.3af PoE (Class 0).

  • Low-Latency Performance

  • Configurable latency settings: 1.0ms, 2.0ms, or 5.0ms.

  • Simple Control & Configuration

  • Managed via Dante Controller software for easy routing and system management.

Connection

Input

1x DANTE [RJ45 connector, POE]

1x PWR [2-pin phoenix, 3.81mm]

Output

1x AUD [6-pin phoenix, 3.81mm]

Mechanical

Housing

Metal Enclosure

Colour

Black

Dimensions

120mm[W] x 47mm[D] x 26mm[H]

Weight

186g

Power Consumption

1.32 Watt

Power Supply

DC input: 12V

POE input: IEEE802.3af Class 0

Operation Temperature

 32 - 104°F / 0 - 40°C

Storage temperature

-4 - 140°F / -20 - 60°C

Relative Humidity

20 - 90% RH (no condensation)

Technical

Video Network Bandwidth

100M

Audio Formats

PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit

Transmission Distance

100m (CAT6/6A)

Frequency Response

20Hz to 20kHz

Control Method

Dante Controller

Encoding

PCM 16, 24, 32

Latency

5.0, 2.0, 1.0 msec

Sample Rate

44.1K, 48K, 88.2K, 96K

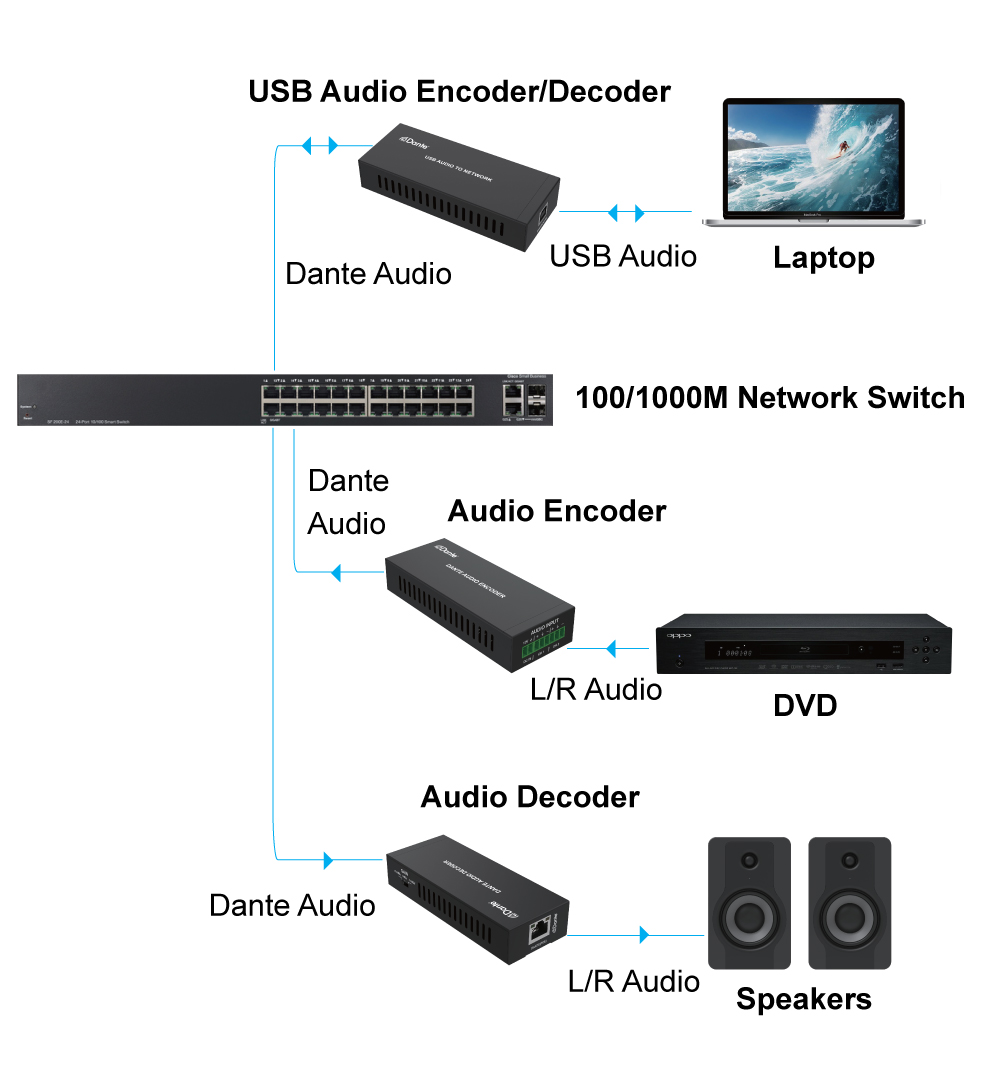

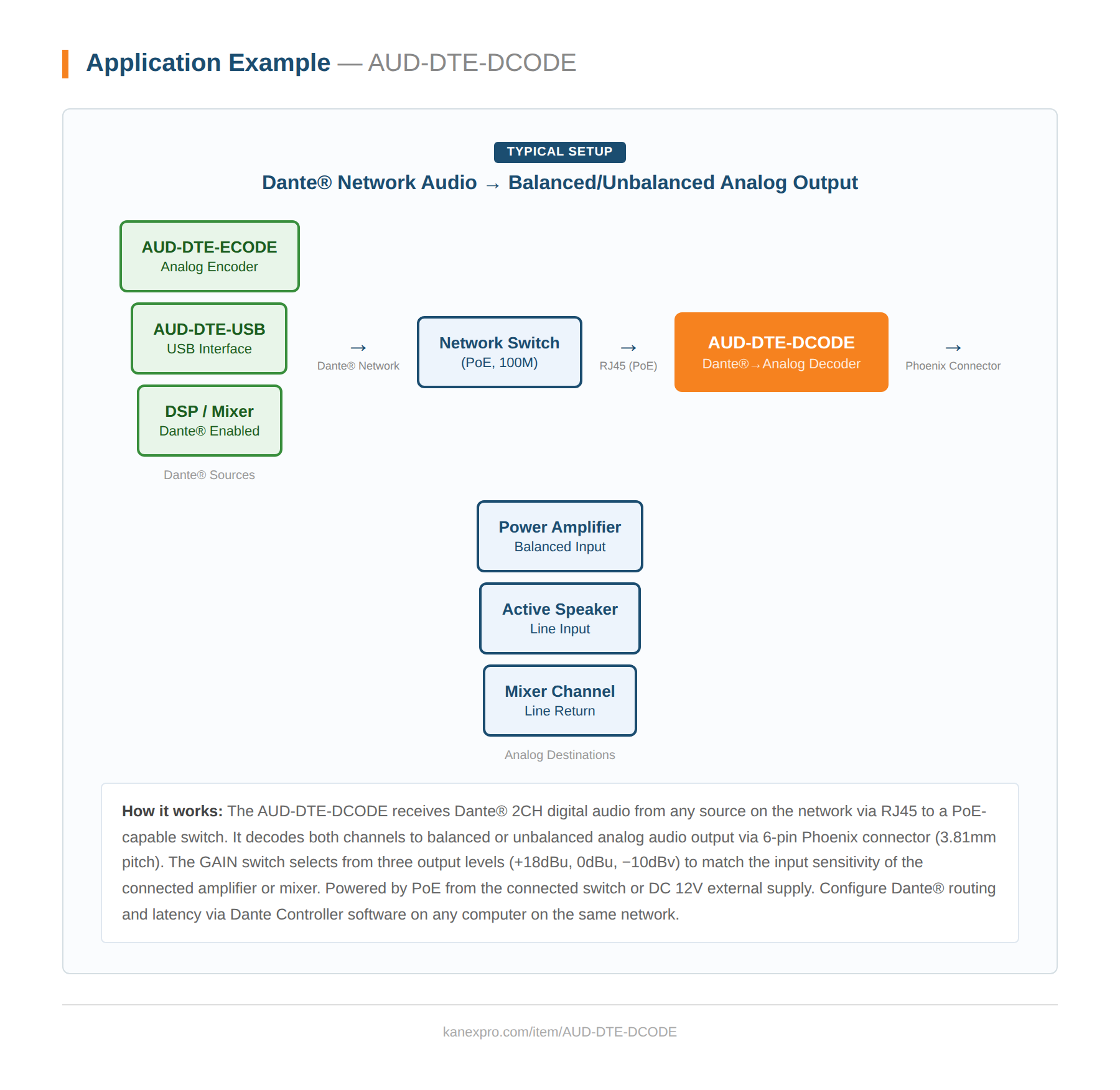

Product Diagram

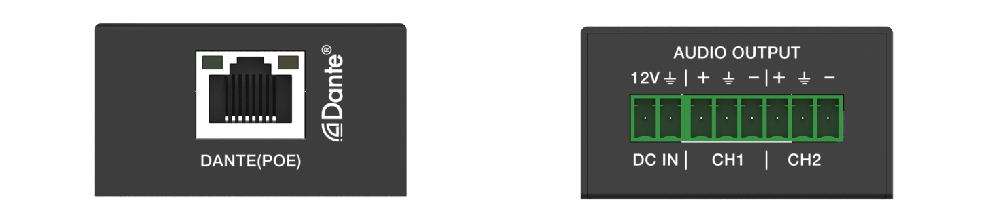

Product Panel
