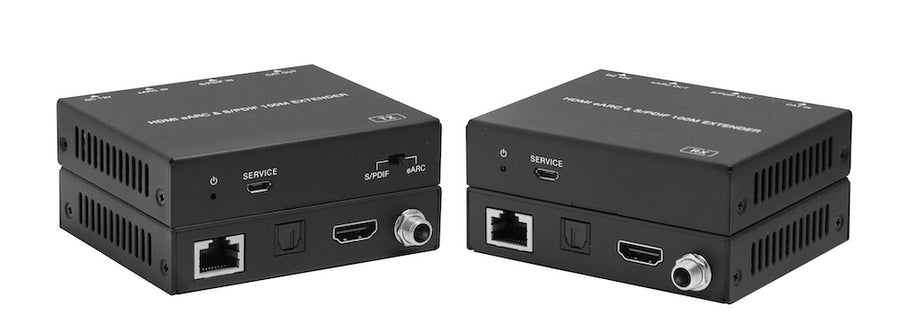

HDMI eARC w/ SPDIF Audio over CAT Extender 100m POC

Long-Range ARC Audio Transmission Over a Single CAT6 Cable

    1 0

    KanexPro

    SKU: AUD-EXT-EARC100M

    UPC: 813982023956

    $299.95
    View full details

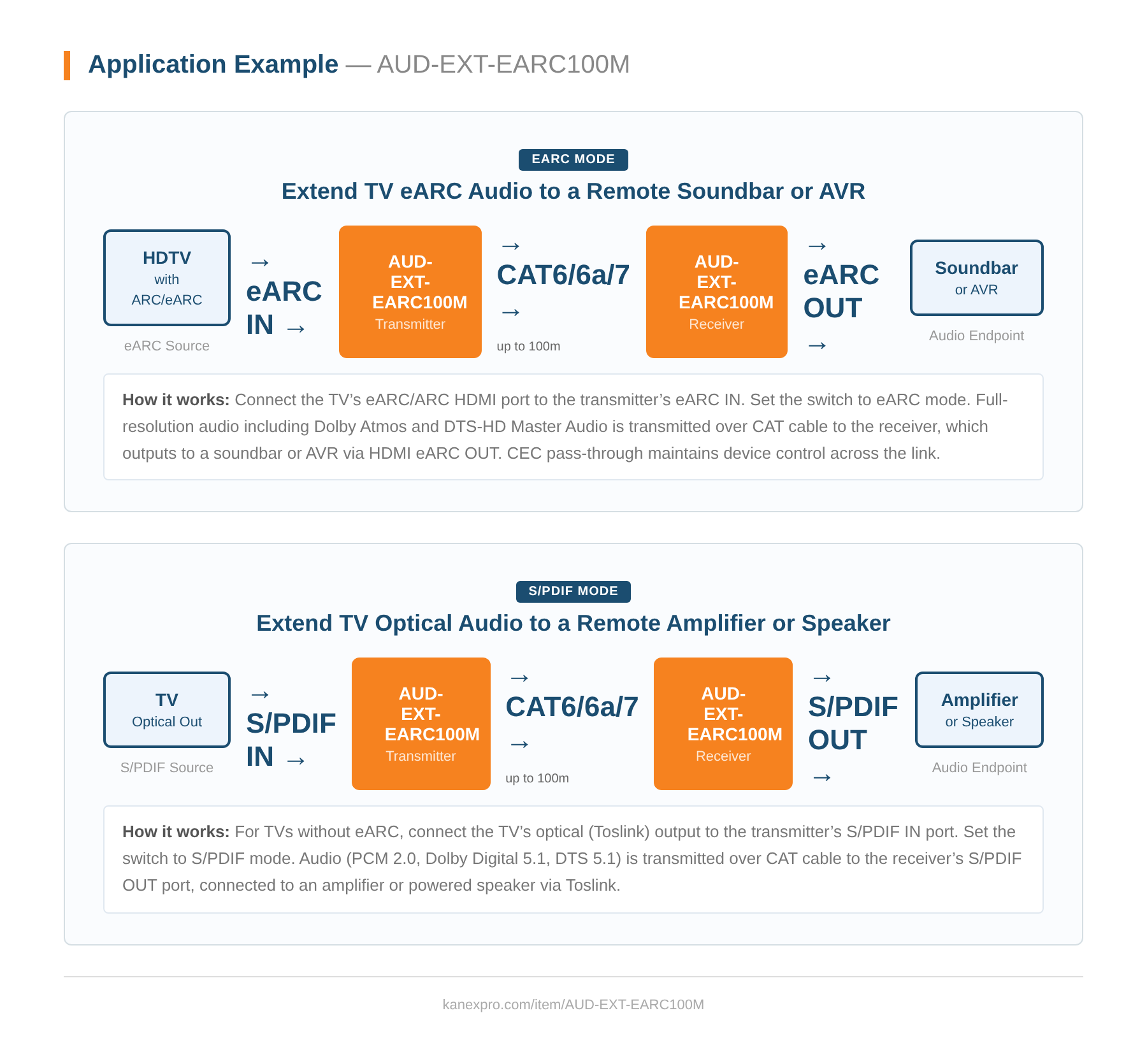

    The KanexPro AUD-EXT-EARC100M is a compact HDMI audio extender that transmits both eARC (Audio Return Channel) and S/PDIF optical digital audio up to 100 meters (328 feet) over a single CAT5e/6/7 cable. It’s designed for sending high-quality TV audio—whether through HDMI eARC or S/PDIF—from a display back to an amplifier, AVR, or distributed audio system.

    This plug-and-play extender supports leading formats including Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and LPCM up to 7.1 channels. The extender features CEC pass-through in eARC mode and provides full bi-directional Power over Cable (PoC), making it a clean and efficient solution for home AV, commercial AV, and multi-room audio environments.

      ?  Extends HDMI ARC/eARC or S/PDIF Optical audio up to 100?m (328?ft) over CAT cable
    ?  Supports Dolby Atmos, Dolby TrueHD, DTS-HD MA, LPCM 7.1
    ?  S/PDIF channel supports PCM 2.0, Dolby 5.1, DTS 5.1
    ?  ARC supports full CEC pass-through
    ?  Automatic mode selection via DIP switch
    ?  Power over Cable (PoC) – only one side needs external power
    ?  Compact, easy-to-integrate TX/RX kit
    ?  Ideal for TVs with or without HDMI ARC support

    Supported Audio Formats

    eARC: PCM 2.0/5.1/7.1ch, DD, DD+, DTS, Dolby TrueHD, DTS-HD MA, Dolby Atmos



    ARC: PCM 2.0CH, Dolby 5.1CH, DTS 5.1CH



    S/PDIF: PCM 2.0CH, Dolby 5.1CH, DTS 5.1CH

    Transmission Distance

    100m/328ft

    ESD Protection

    Human-body Model: ±8kV (Air-gap discharge),

    ±4kV (Contact discharge)

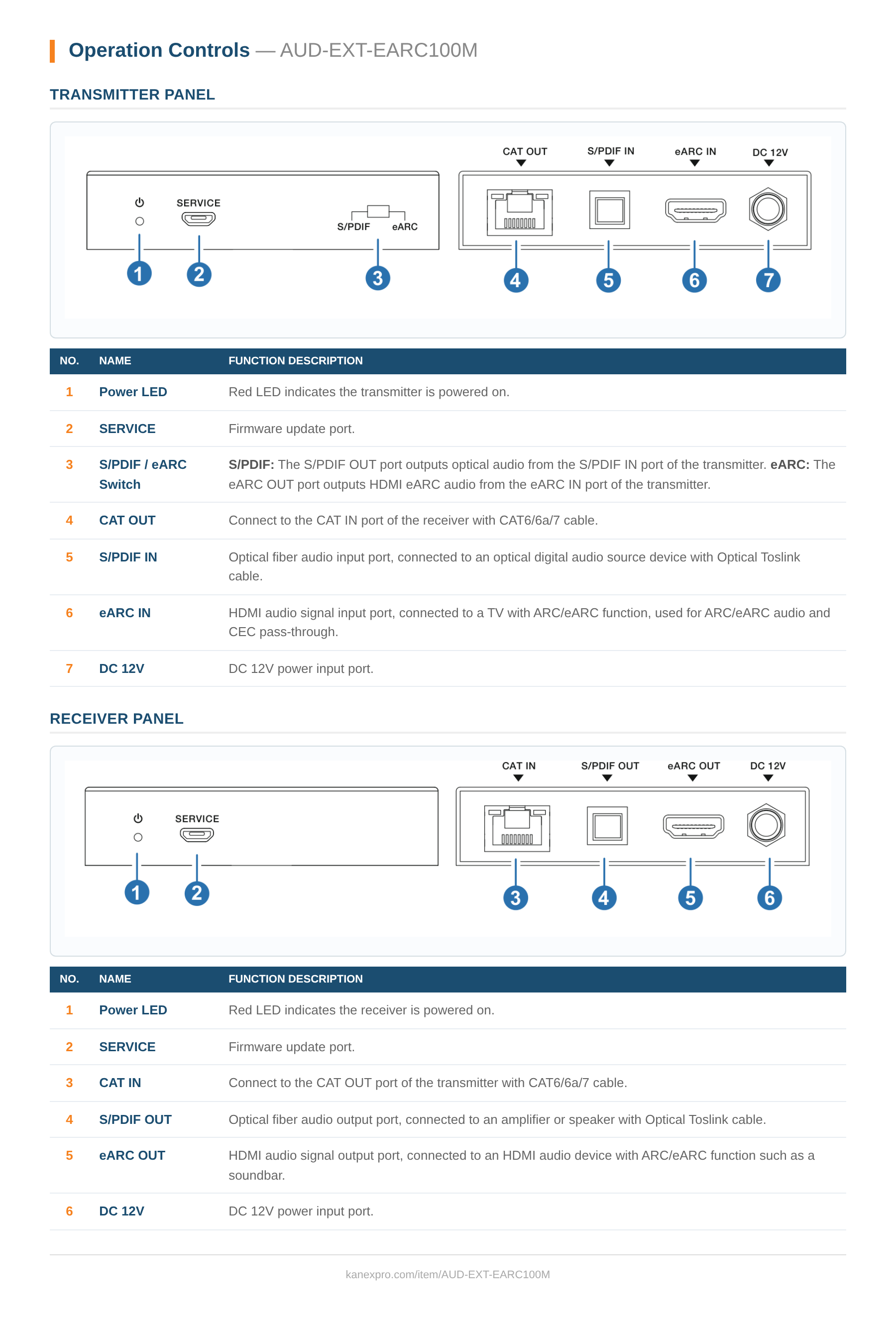

    Transmitter

    Input: 1 x S/PDIF IN [Optical Audio Jack]

    Output: 1 x eARC IN [HDMI Type A, 19-pin female]

                 1 x CAT OUT [RJ45, female]

    Control: 1 × SERVICE

    Receiver

    Input: 1x CAT IN [RJ45, female]

    Output: 1 x S/PDIF OUT [Optical Audio Jack]

                 1 x eARC OUT [HDMI Type A, 19-pin female]

    Control: 1 SERVICE

    Housing

    Metal Enclosure

    Colour

    Black

    Dimensions

    Transmitter/Receiver: 90mm (W) × 72mm (D) × 20mm (H)

    Weight

    Transmitter/Receiver: 184g

    Power Supply

    Input: AC 100~240V 50/60Hz
    Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified)

    Power Consumption

    5.65W (Max)

    Operation Temperature

    0°C ~ 40°C / 32°F ~ 104°F

    Storage Temperature

    -20°C ~ 60°C / -4°F ~ 140°F

    Relative Humidity

    20 -90% RH (no condensation)
