KanexPro
SKU: CBL-AOCUSBC-05M
UPC: 813982023437
$299.95
Couldn't load pickup availability

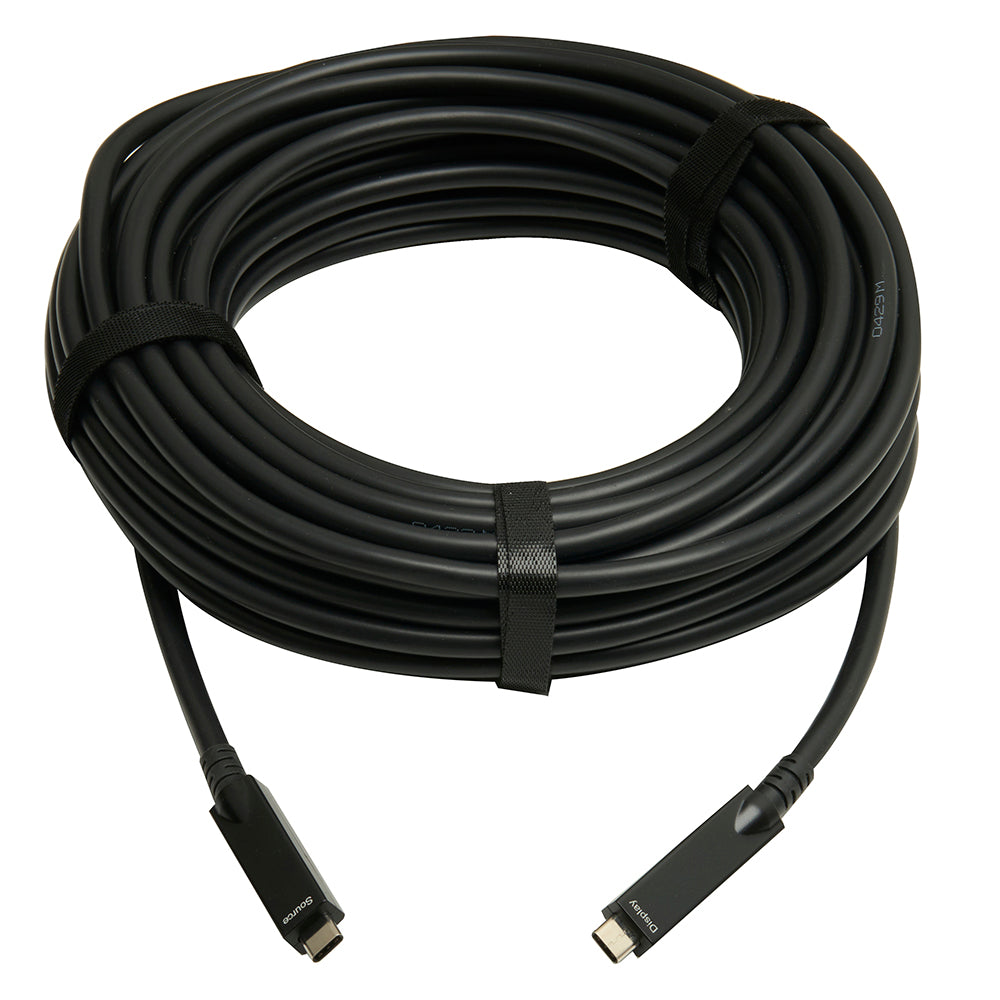

Adaptive USB-C 3.2 Gen2 Active Optical Cable - 5M
4-Lane DP 2.1 | USB 3.2 10Gbps | PD 60W | Adaptive Mode | 3-Year Warranty
KanexPro Adaptive USB-C 3.2 Gen2 Active Optical Cables are the first full-featured USB-C AOC solution that simultaneously delivers DisplayPort video, USB 3.2 10Gbps data, and PD 60W charging over runs of 5, 10, or 15 meters. An embedded switching chip automatically selects the optimal lane configuration — no firmware, no configuration, completely plug-and-play.

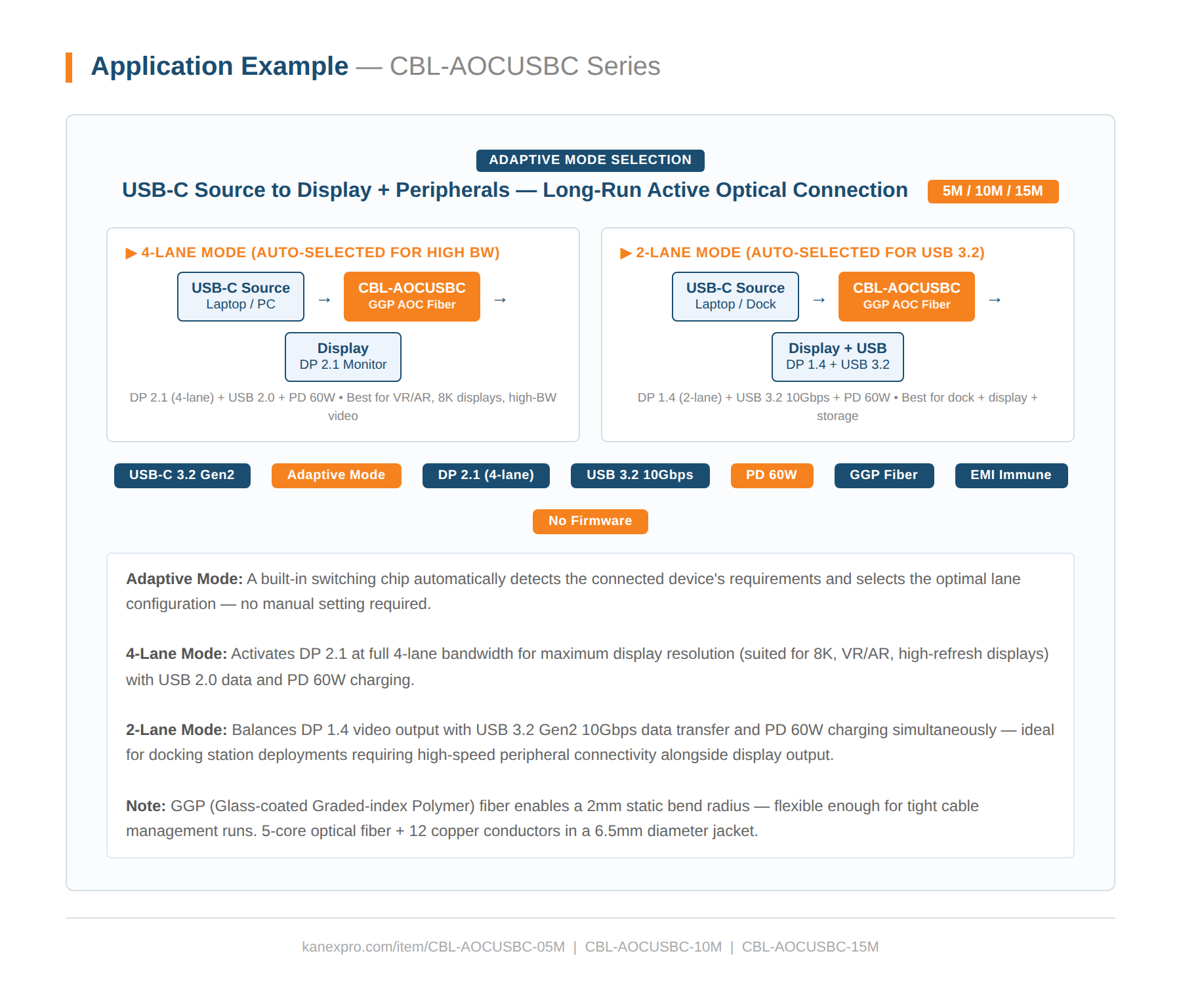

In 2-lane mode: DP 1.4 video + USB 3.2 Gen2 10Gbps data + PD 60W charging simultaneously. In 4-lane mode: DP 2.1 (4-lane) for maximum display bandwidth + USB 2.0 + PD 60W. GGP fiber construction enables a 2mm static bend radius with 5-core optical + 12-copper hybrid in a 6.5mm diameter cable — EMI-immune, flexible, and backward compatible with USB 2.0/1.1. Backed by KanexPro's 3-year warranty.
- Adaptive mode: auto-selects 4-lane DP 2.1 + USB 2.0, or 2-lane DP 1.4 + USB 3.2 10Gbps based on device needs
- PD 60W (20V/3A) charging in both modes — video, data, and charging simultaneously
- DP 2.1 (4-lane) supports up to 8K@60Hz or 4K@144Hz; DP 1.4 (2-lane) up to 4K@60Hz
- USB 3.2 Gen2 10Gbps data transfer (2-lane mode); backward compatible with USB 2.0/1.1
- Supports 4-lane DP 2.1 and USB 2.0
- Supports 2-lane DP 1.4 and USB 3.2 10Gbps

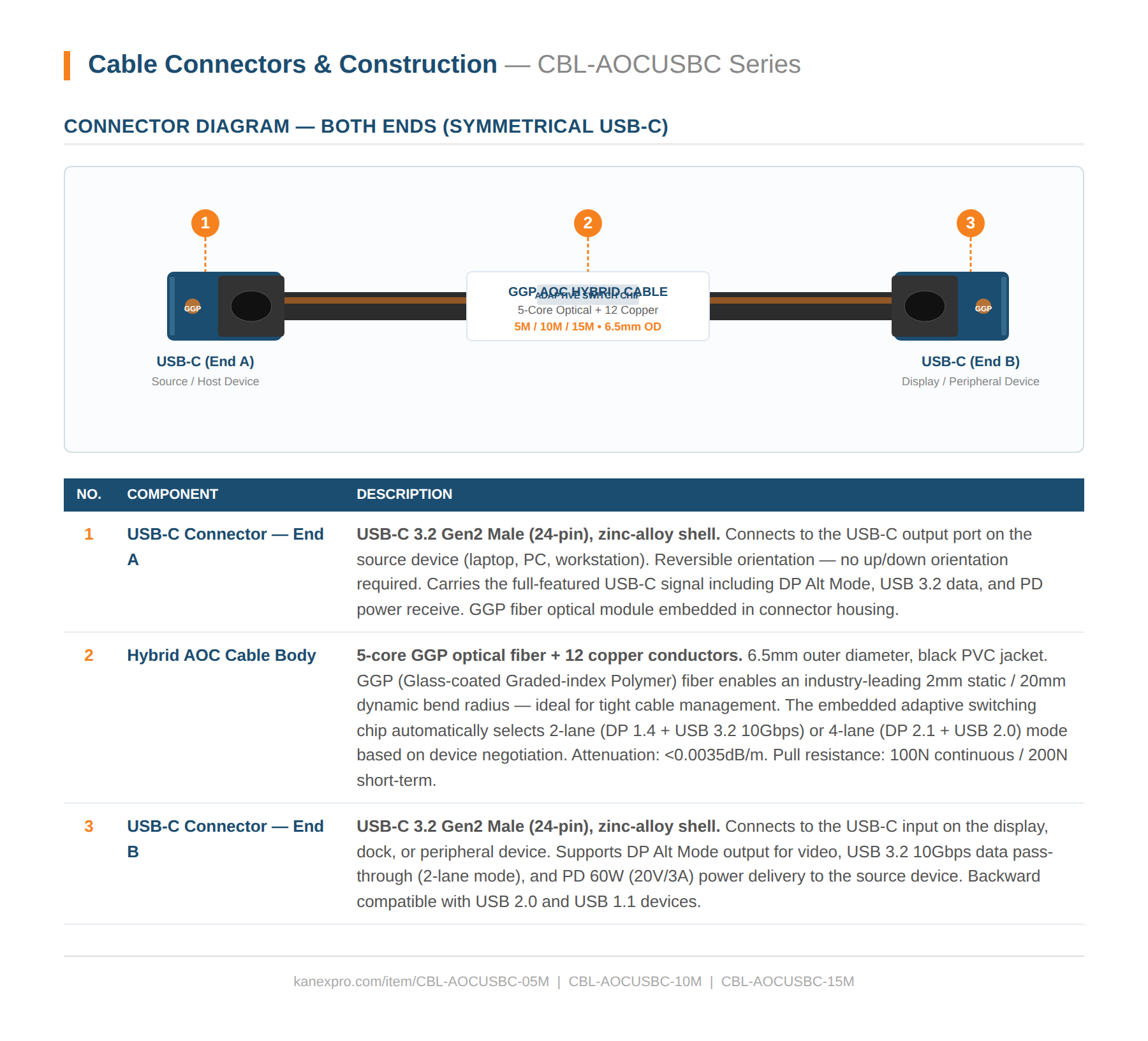

- GGP fiber — 2mm static / 20mm dynamic bend radius; 5-core optical + 12-copper hybrid; 6.5mm OD
- EMI/RFI immune; attenuation less than 0.0035dB/m; pull resistance 100N/200N
- Plug and play — no firmware, no configuration; zinc-alloy connector shell
- Operating temperature 0 to 50 degrees C; storage -40 to 70 degrees C
| Specification | Value |
|---|---|
| Type and Mode | |
| Type | USB-C 3.2 Gen2 Full-featured AOC |
| Adaptive Modes | 4-Lane: DP 2.1 + USB 2.0 + PD 60W | 2-Lane: DP 1.4 + USB 3.2 10Gbps + PD 60W |
| Max Resolution | 4-Lane: 8K@60Hz | 2-Lane: 4K@60Hz |
| Max Transfer Rate | 10Gbps USB 3.2 Gen2 (2-lane mode) |
| Power Delivery | PD 60W (20V/3A) |
| Construction | |
| Cable Length | 5 meters (16 ft.) |
| Connector | USB-C Male both ends, zinc-alloy shell |
| Cable Structure | 5-core GGP optical fiber + 12 copper conductors |
| Cable Diameter | 6.5mm |
| Outer Jacket | Black PVC |
| Optical and Mechanical | |
| Attenuation | Less than 0.0035dB/m |
| Bend Radius Dynamic/Static | 20mm / 10mm |
| Pull Resistance | 100N long-term / 200N short-term |
| Environmental | |
| Operating Temperature | 0 to 50 degrees C |
| Storage Temperature | -40 to 70 degrees C |
