6" Widescreen Touch Panel with Knob, RS232/RS485 & PoE New

Android 11 Programmable AV Controller with 1440×720 Display, Dual Serial & Optional Wi-Fi/Bluetooth — 86 Box

  • 6" Widescreen Touch Panel with Knob, RS232/RS485 & PoE
1 1

KanexPro

SKU: CR-TOUCH6R

UPC:

View full details

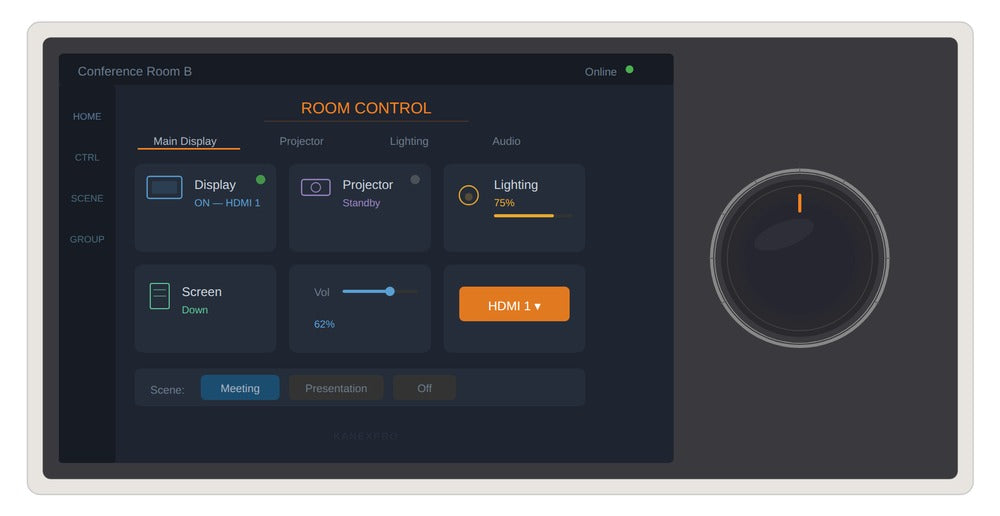

The KanexPro CR-TOUCH6R is a 6-inch widescreen capacitive touch panel with integrated programmable knob, running Android 11 for advanced AV room control. Powered by a quad-core ARM Cortex-A55 at 1.8GHz with 4GB DDR4 RAM and 32GB eMMC, it combines a 1440×720 customizable graphical interface with a physical knob for tactile volume and dimming control.

The CR-TOUCH6R features both RS232 and RS485 serial ports, 100Mbps Ethernet with PoE, and optional Wi-Fi/Bluetooth, 4-array microphone, stereo speakers, light/distance sensor, and temperature/humidity sensor. Programming is handled through EASYAccomplish software for Windows, Mac, and iOS. For US installations, a surface-mount 86 box adapter or retrofit plate would be needed since US standard gang boxes have different screw spacing.

  • 6-inch 1440×720 widescreen capacitive touchscreen with customizable graphical interface
  • Programmable knob for tactile volume, dimming, or level control
  • Android 11 on quad-core ARM Cortex-A55 (1.8GHz) with 4GB DDR4 RAM and 32GB eMMC
  • 1× RS232 and 1× RS485 serial ports with configurable baud rates (2400–115200 bps)
  • 100Mbps Ethernet with PoE — TCP/IP, HTTP, UDP, and WebSocket protocols
  • Optional Wi-Fi (2.4G+5G) / Bluetooth 5.4, 4-array microphone, stereo speakers
  • Optional light/distance sensor and temperature/humidity sensor
  • Standard 86 box wall-mount; dual-mode: standalone controller or user terminal
  • Programmable via EASYAccomplish (Windows, Mac, iOS) with web GUI
Specification
Technical
CPUQuad-core ARM Cortex-A55, 1.8GHz
Operating SystemAndroid 11
RAM4GB DDR4
Flash Memory32GB eMMC
Display6″ 1440×720 (2:1) capacitive touchscreen
Knob1× programmable knob
ESD ProtectionIEC 61000-4-2: ±8kV air / ±4kV contact
Connection
RS2321× 3-pin phoenix, 2400–115200 bps
RS4851× 3-pin phoenix, 2400–115200 bps
LAN/PoE1× 10/100M Ethernet RJ45, PoE
Power1× 2-pin phoenix, 24V DC
Debug1× Micro USB
Optional Modules
Wi-Fi / BluetoothWi-Fi (2.4G+5G) / Bluetooth 5.4
Microphone4-array microphone input
SpeakersDual stereo speaker output
SensorsLight/distance sensor, temperature/humidity sensor
Mechanical
Dimensions8.11″ × 3.39″ × 2.05″ (206 × 86 × 52mm)
Weight0.71 lbs (321g)
HousingPlastic (front and rear)
ColorScreen: Black; Front: Grey; Rear: Black
InstallationStandard 86 box (UK/CN). For US installations, a surface-mount 86 box adapter or retrofit plate would be needed since US standard gang boxes have different screw spacing.
Power
Power Supply24V DC/1A or PoE
Power Consumption10W
Environmental
Operating Temperature32°F–104°F (0°C–40°C)
Operating Humidity20%–80% RH, non-condensing
Storage Temperature-4°F–140°F (-20°C–60°C)
Storage Humidity10%–90% RH, non-condensing
Package Contents
1×Programmable Touch Panel
2×3-pin 3.81mm Phoenix Connector (male)
1×2-pin 3.81mm Phoenix Connector (male)
1×Wall Mounting Bracket (pre-installed)
2×Bracket Fixing Screws
1×User Manual

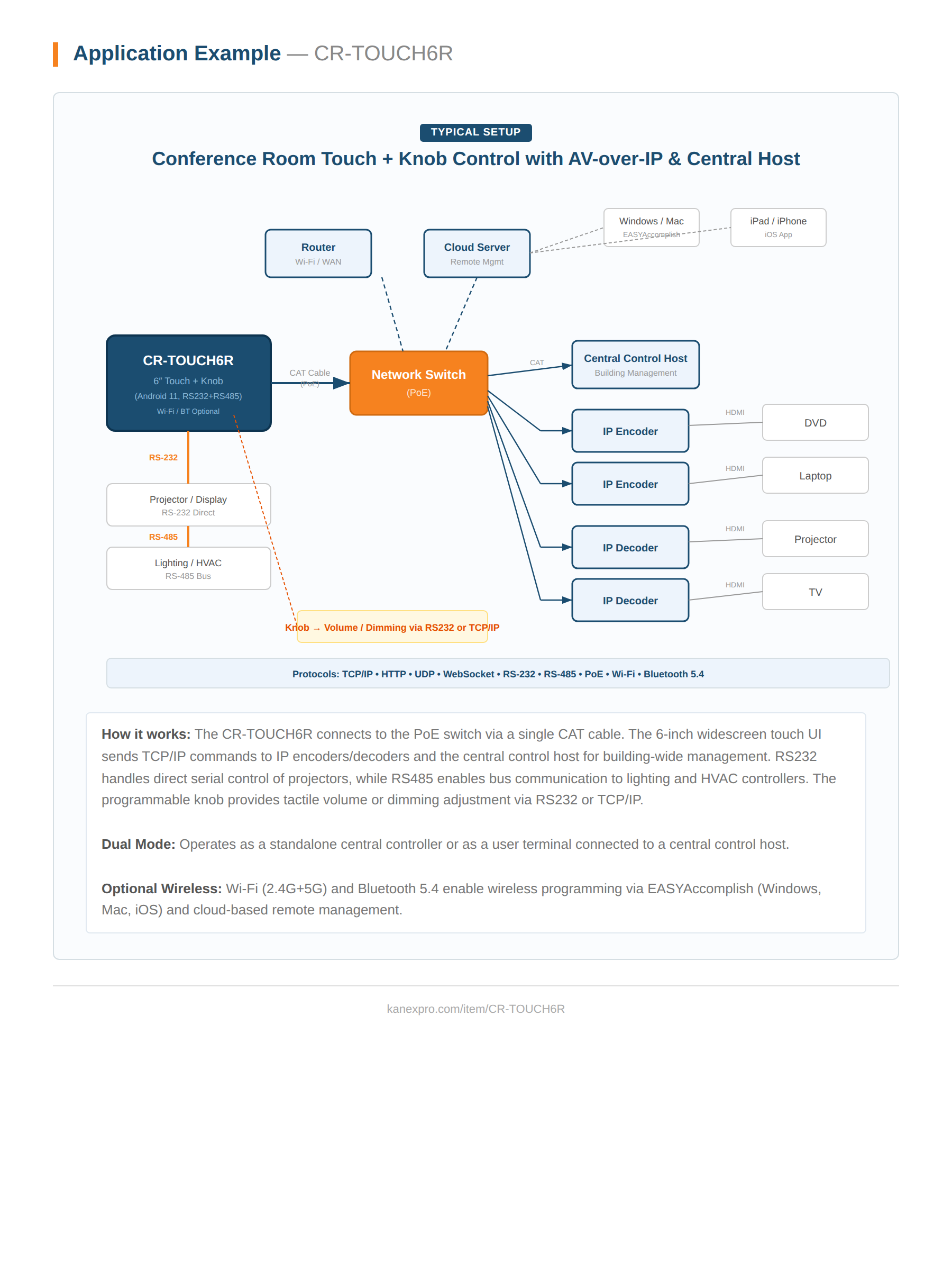

Product Diagram

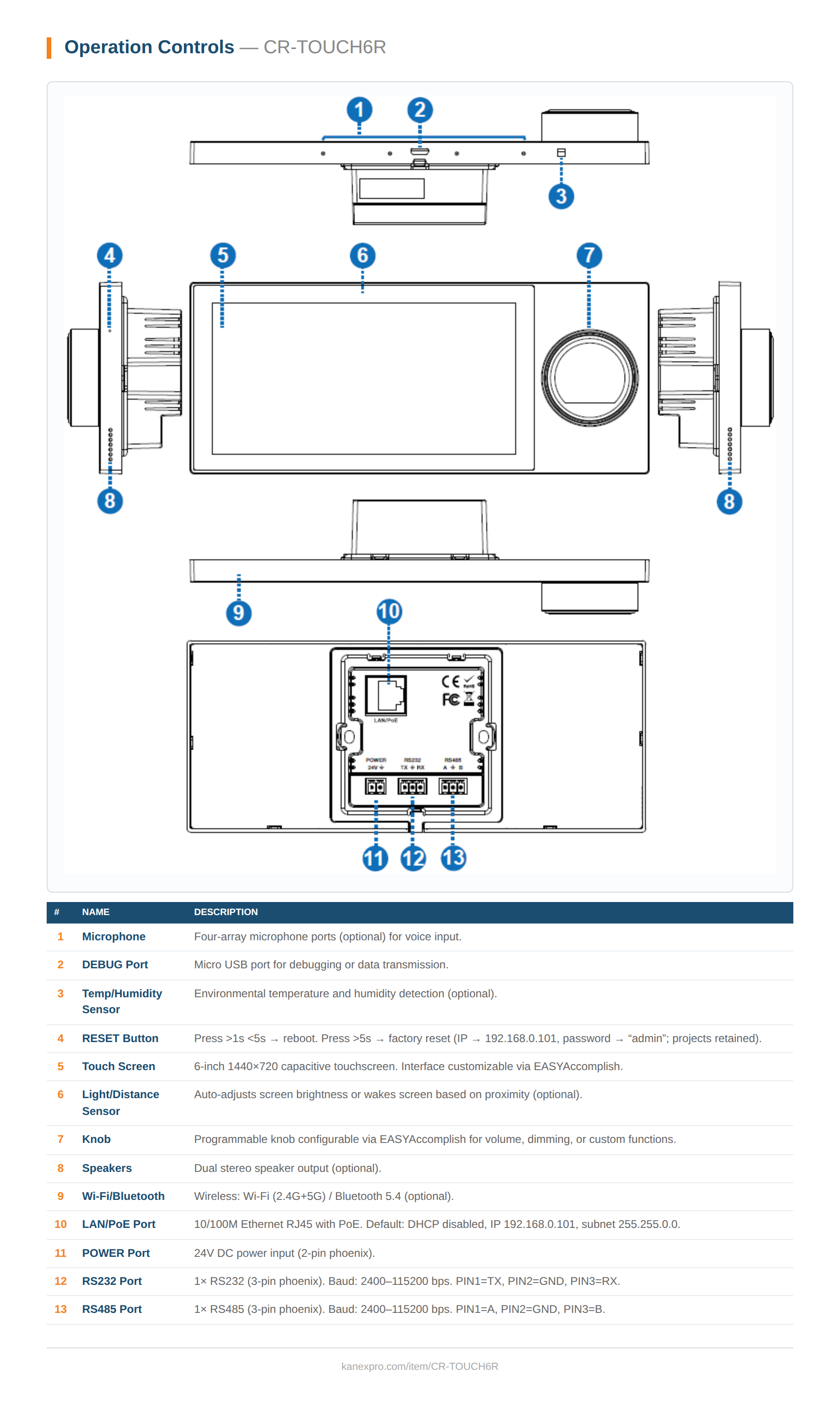

Product Panel
