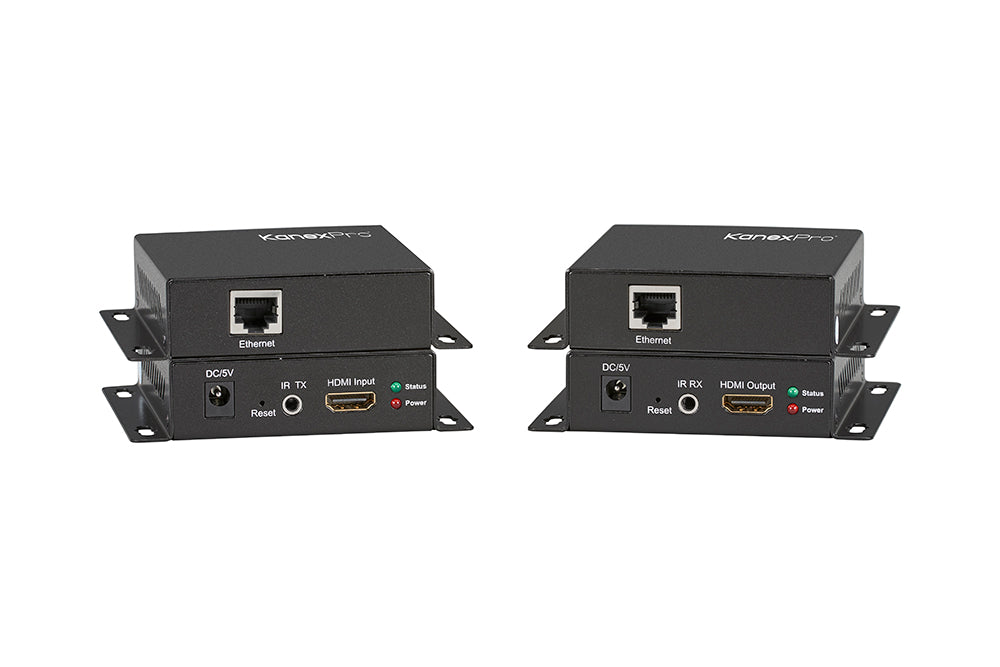

NetworkAV™ HDMI over IP Encoder/Decoder Kit — 120M 1080p

The EXT-AVIP120M delivers a simple and cost-effective path to HDMI distribution over IP — extending full HD 1080p/60 HDMI signals up to 120m (394 ft) over a single UTP CAT5e/6 cable using MJPEG compression. The included encoder/decoder kit supports point-to-point, point-to-many, and many-to-many configurations over standard TCP/IP network infrastructure, with no proprietary switching hardware required for basic deployments.

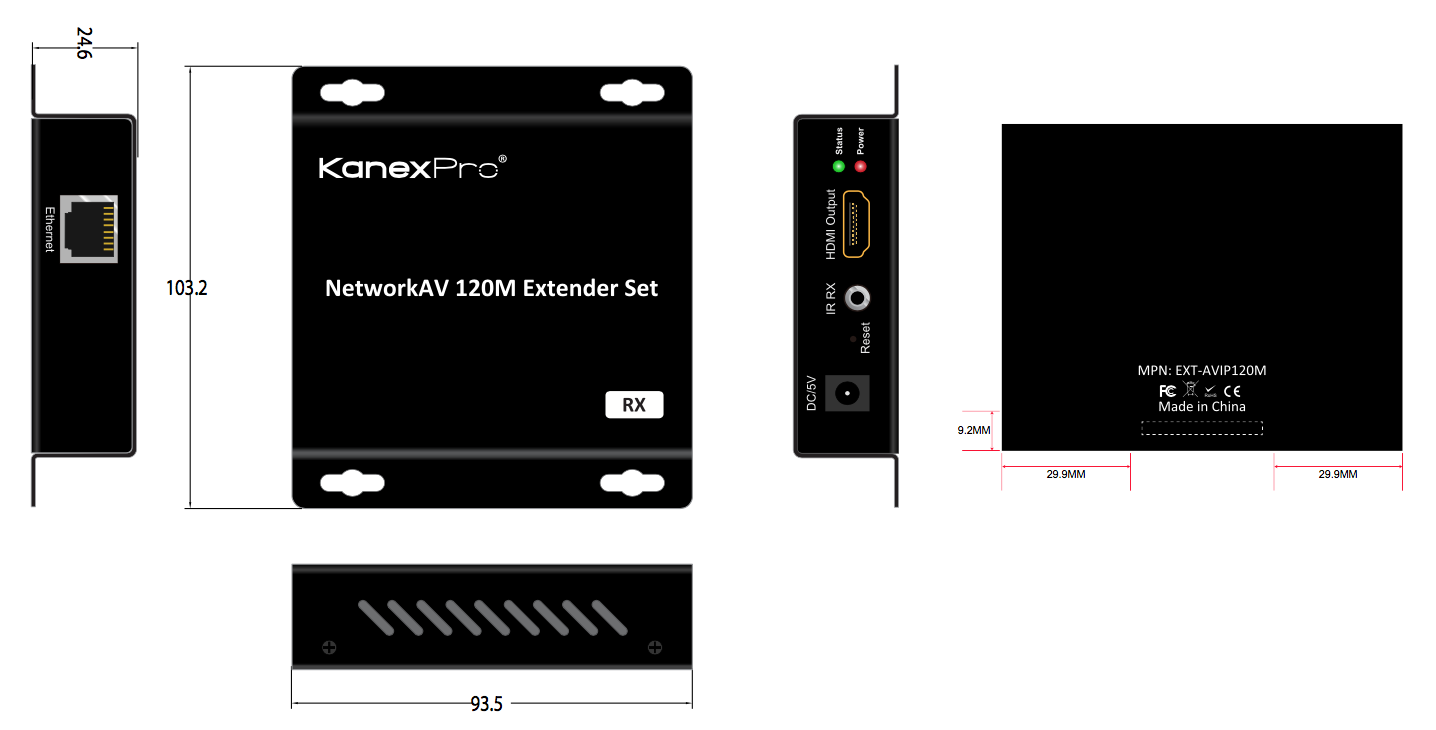

Built into a compact metal enclosure with integrated mounting ears, the EXT-AVIP120M is well suited for classrooms, lobbies, digital signage networks, and corporate AV systems where 1080p distribution is needed without the cost or complexity of a dedicated AV matrix. IR pass-through and an embedded HTTP server for IP configuration are included. For larger many-to-many deployments, VLAN configuration and a compatible 10G switch are required.

• Extends 1080p HDMI signals up to 120m (394 ft) over a single UTP CAT5e/6 cable
• Includes both encoder (TX) and decoder (RX) — complete kit, no additional hardware required for point-to-point

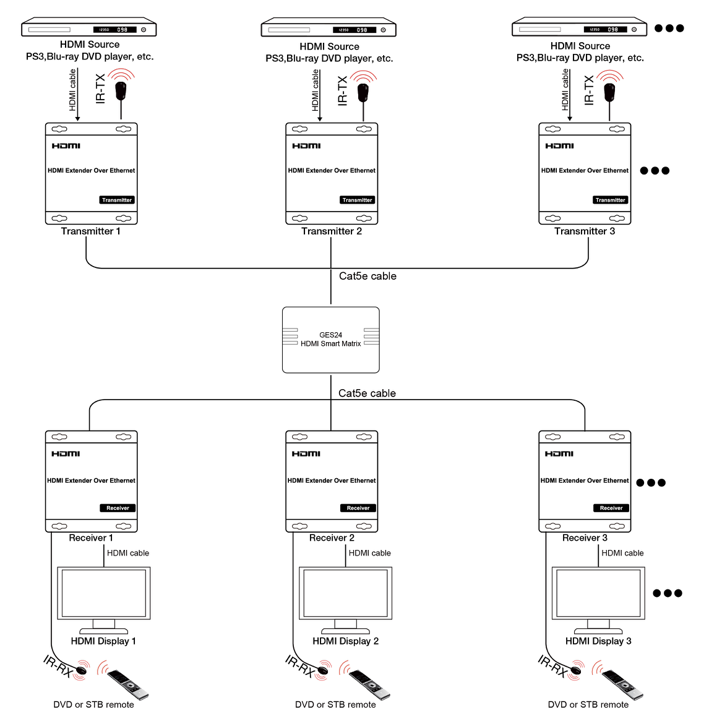

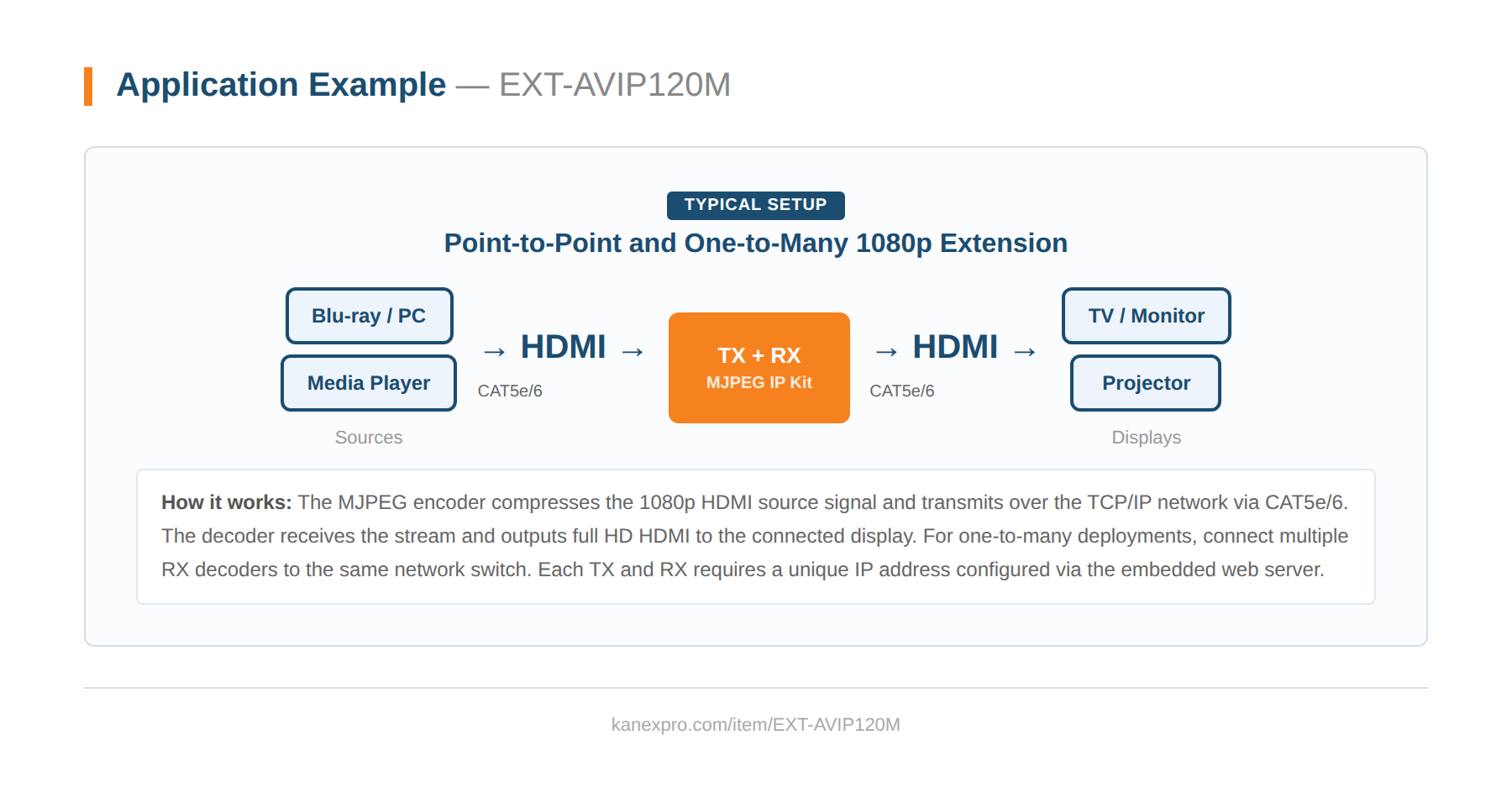

• MJPEG compression — supports point-to-point, point-to-many, and many-to-many network configurations
• Cascadable via 10G Ethernet switches for large-scale many-to-many deployments
• Wideband IR pass-through 38–56kHz for remote source control
• Embedded HTTP server for IP configuration via web browser — no software installation required
• HDCP compliant; supports TCP/IP protocol
• Metal enclosure with integrated rack-mount ears and 5V DC power supplies included
