NetworkAV™ 1080p HDMI over IP Receiver — 120M Add-On

The EXT-AVIP120MRX adds display endpoints to any EXT-AVIP120M-based NetworkAV system — decoding full HD 1080p/60 HDMI signals from a remote encoder over IP and delivering them to a display via a single UTP CAT5e/6 cable up to 120m (394 ft). Sold separately from the kit, this standalone decoder allows integrators to scale multi-display installations without purchasing additional transmitters.

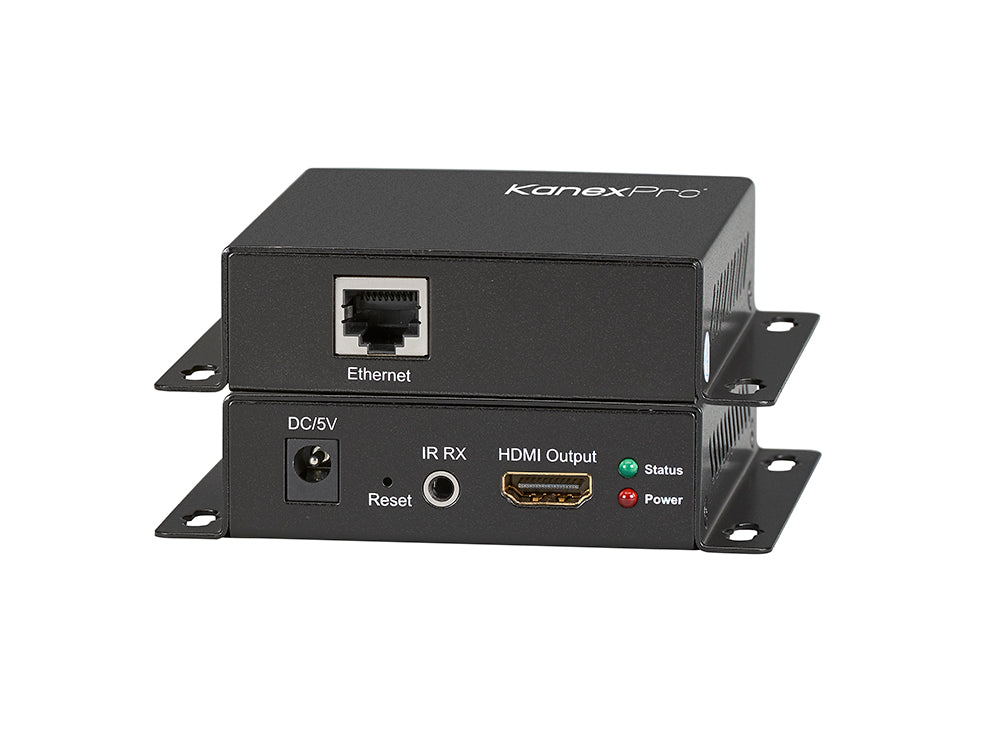

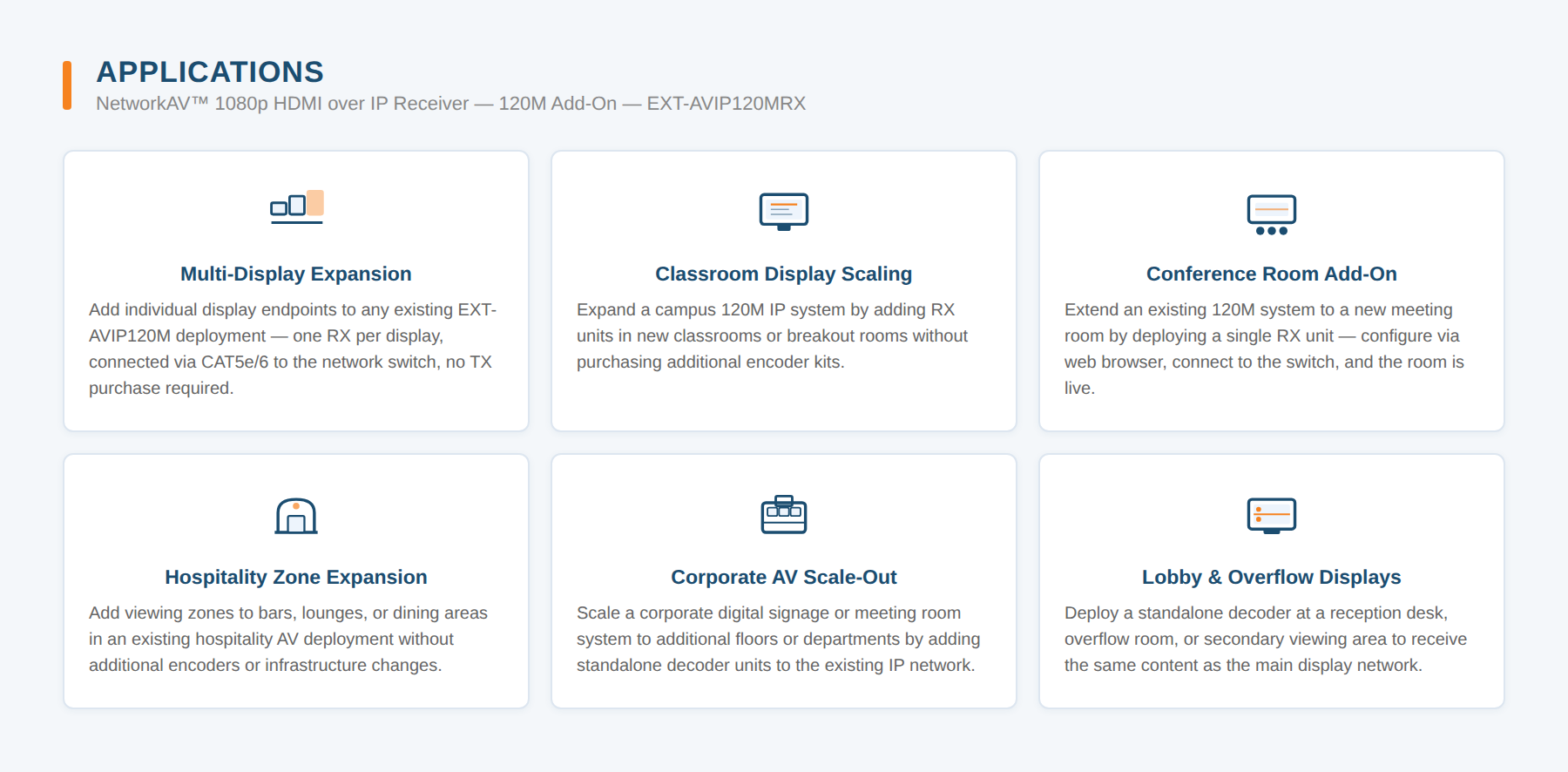

The EXT-AVIP120MRX shares the same compact metal enclosure, mounting ears, IP configuration interface, and IR pass-through capabilities as the EXT-AVIP120M kit receiver — making it a direct add-on for existing deployments. Compatible with point-to-many and many-to-many topologies, it supports cascaded 10G switch configurations for large-scale display networks in signage, education, and commercial AV applications.

• Standalone HDMI over IP decoder — expands any EXT-AVIP120M system to additional display endpoints

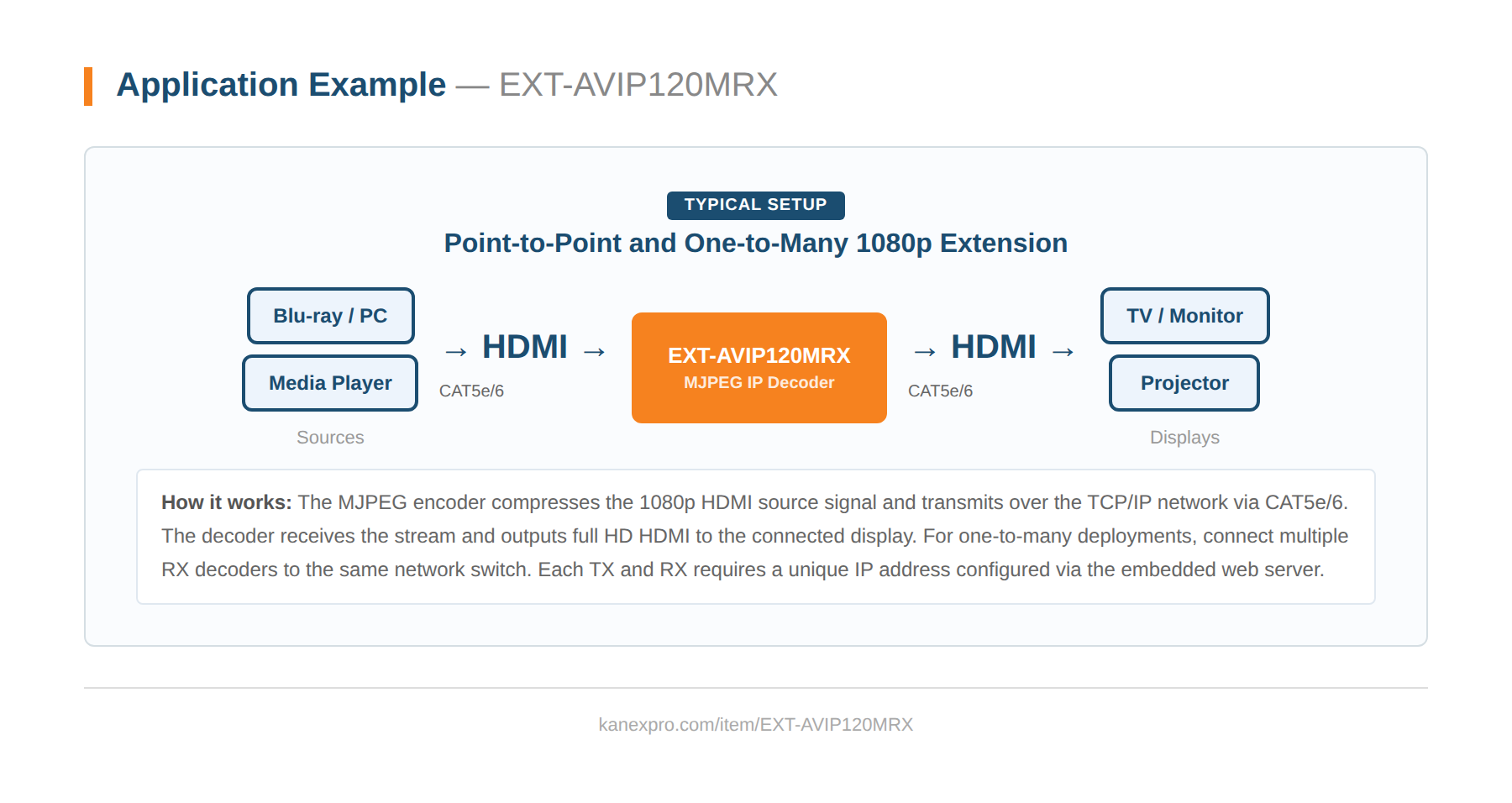

• Decodes 1080p HDMI signals from a remote encoder over IP — up to 120m (394 ft) over single UTP CAT5e/6

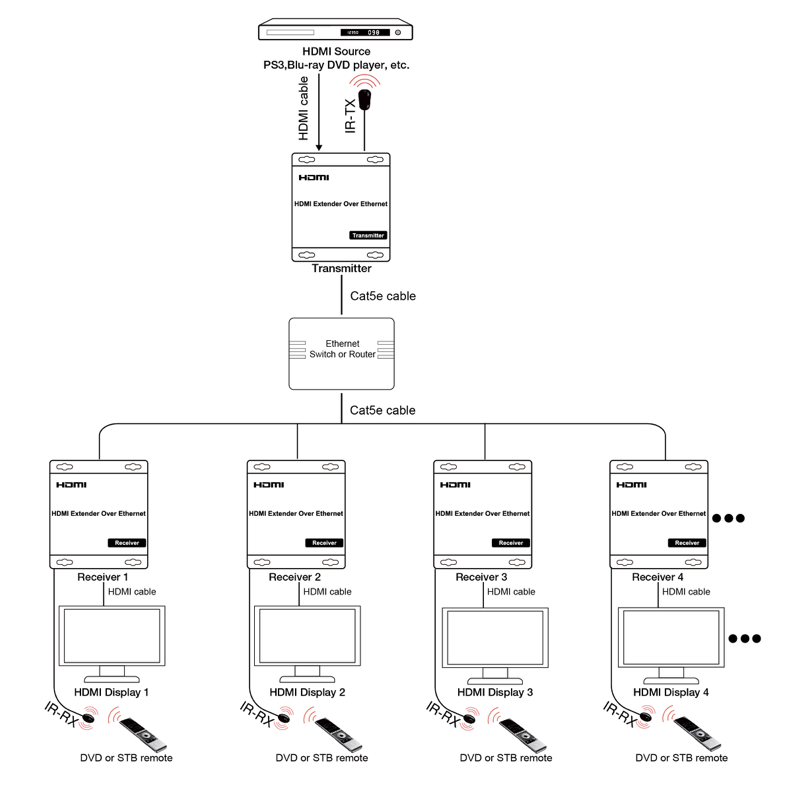

• Supports point-to-many and many-to-many network configurations
• Cascadable via 10G Ethernet switches for large-scale display networks
• Wideband IR pass-through 38–56kHz for remote source control

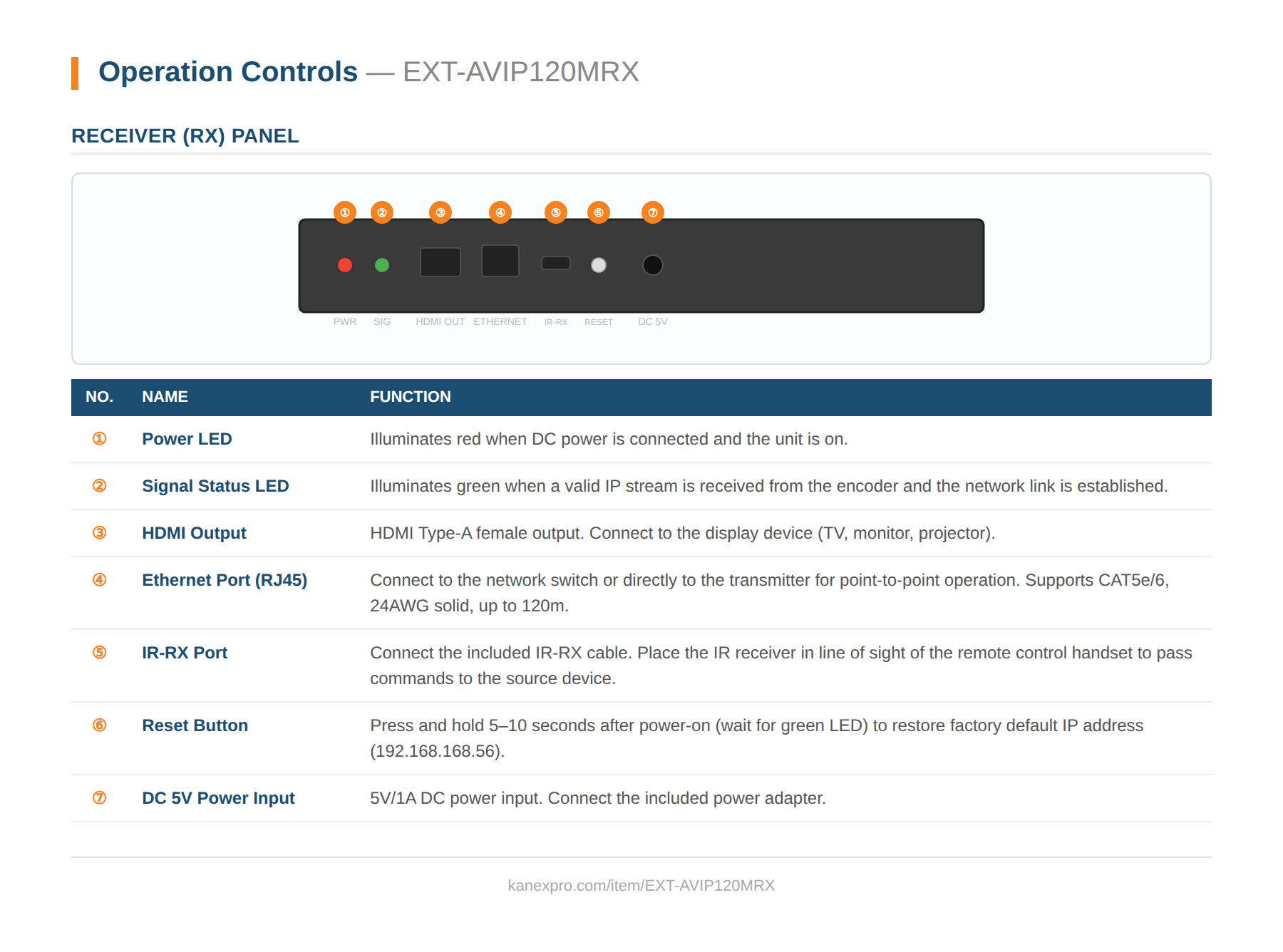

• Embedded HTTP server for IP address configuration via web browser

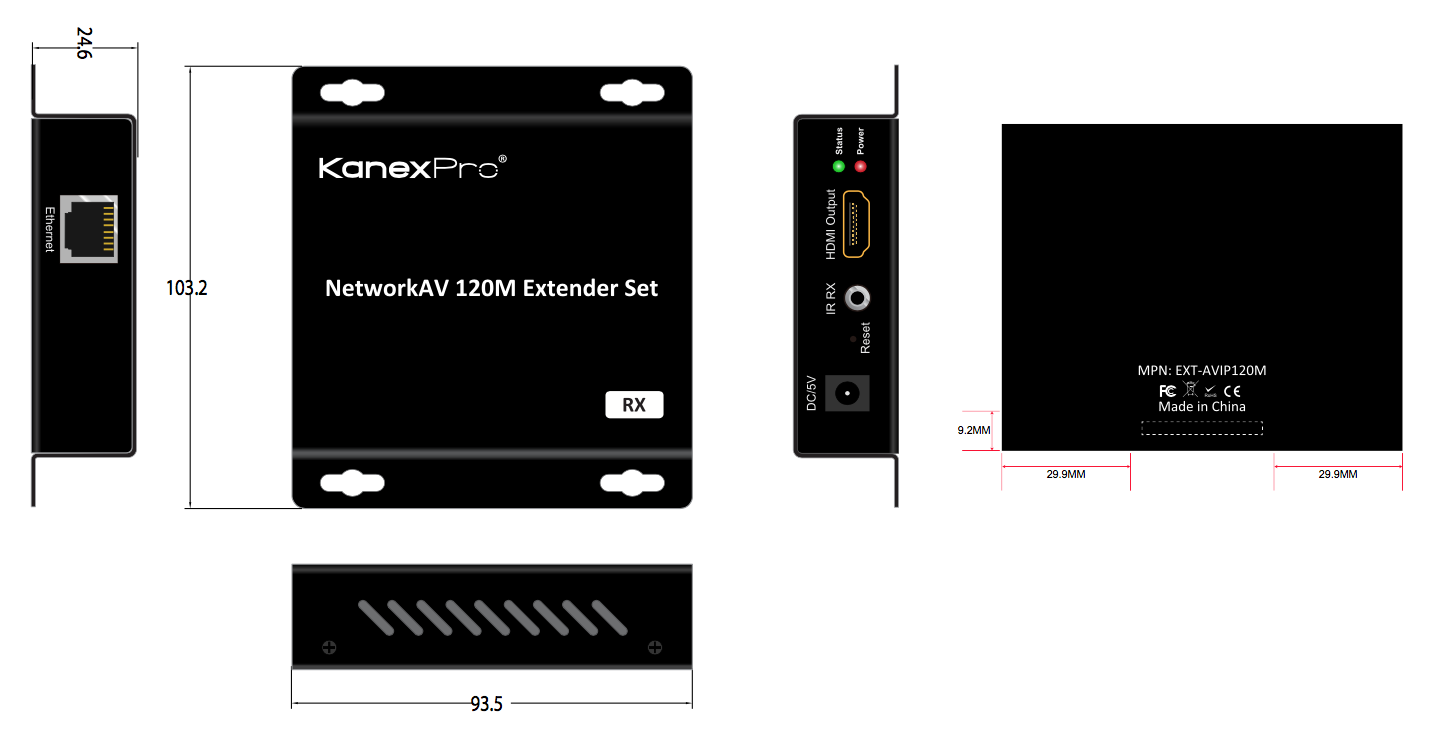

• Metal enclosure with integrated mounting ears and 5V DC power supply included
