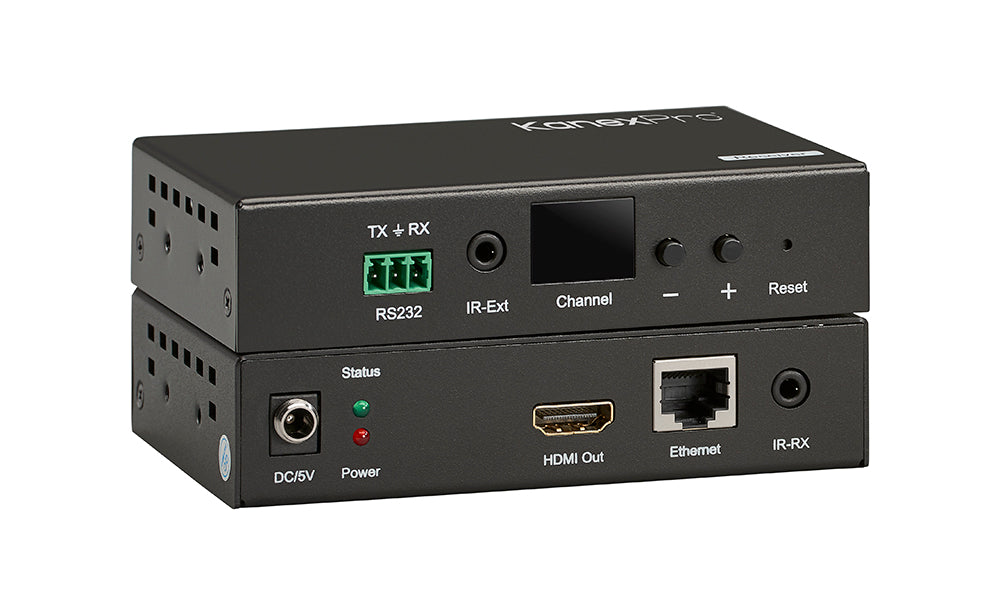

NetworkAV™ H.264 HDMI Receiver over IP with PoE & RS-232

The EXT-AVIPH264RX decodes H.264-compressed 1080p HDMI streams from any EXT-AVIPH264TX transmitter on the same IP network, delivering full HD video and audio to a display over a single CAT5e/6 cable up to 394 ft (120m). PoE support eliminates the need for a local power outlet, making it ideal for ceiling-mounted or hard-to-reach display locations.

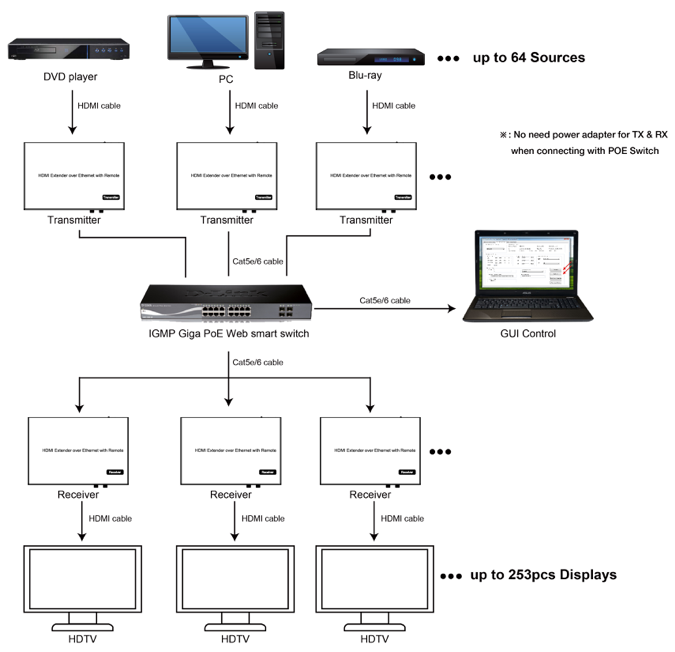

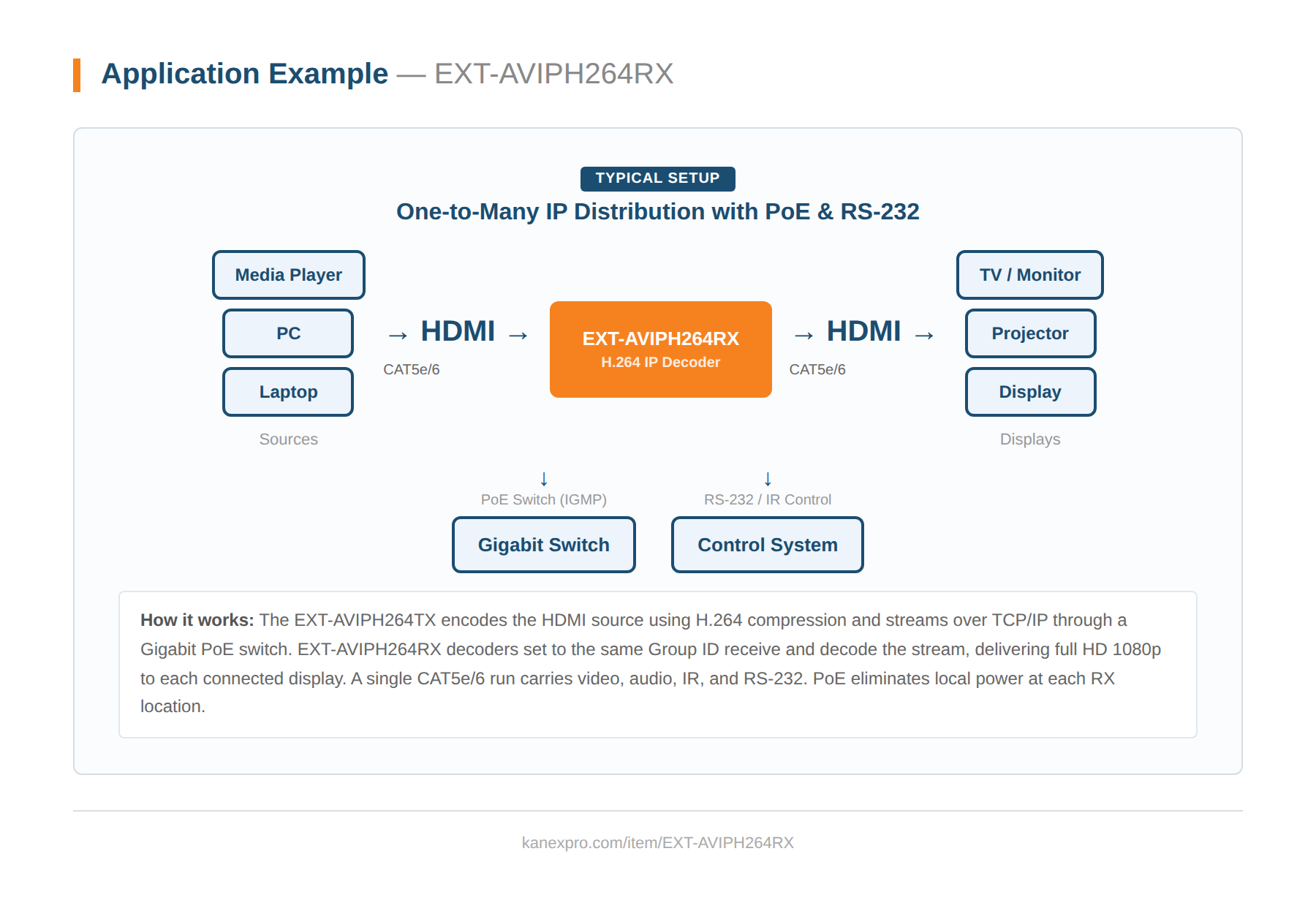

Integrators can add EXT-AVIPH264RX units to any existing NetworkAV H.264 system to scale to any number of displays without rewiring. Group ID selection via remote controller or web browser enables any receiver to tune to any transmitter on the network, supporting flexible multi-source, multi-display AV distribution in corporate, retail, and digital signage environments.

• Decodes H.264 IP streams to full HD 1080p HDMI output — up to 394 ft (120m) over a single CAT5e/6 cable
• Add-on receiver — expand any EXT-AVIPH264TX system to any number of displays
• Dual power input: 802.3af PoE compliant + DC 5V (no power adapter required when using PoE switch)
• Group ID source selection (00–63) via IR remote controller or web browser
• Bidirectional RS-232 pass-through up to 115,200 baud — 8 baud rate presets
• Wideband IR pass-through 38–56kHz for remote source control
• HDCP compliant — compatible with protected content sources
