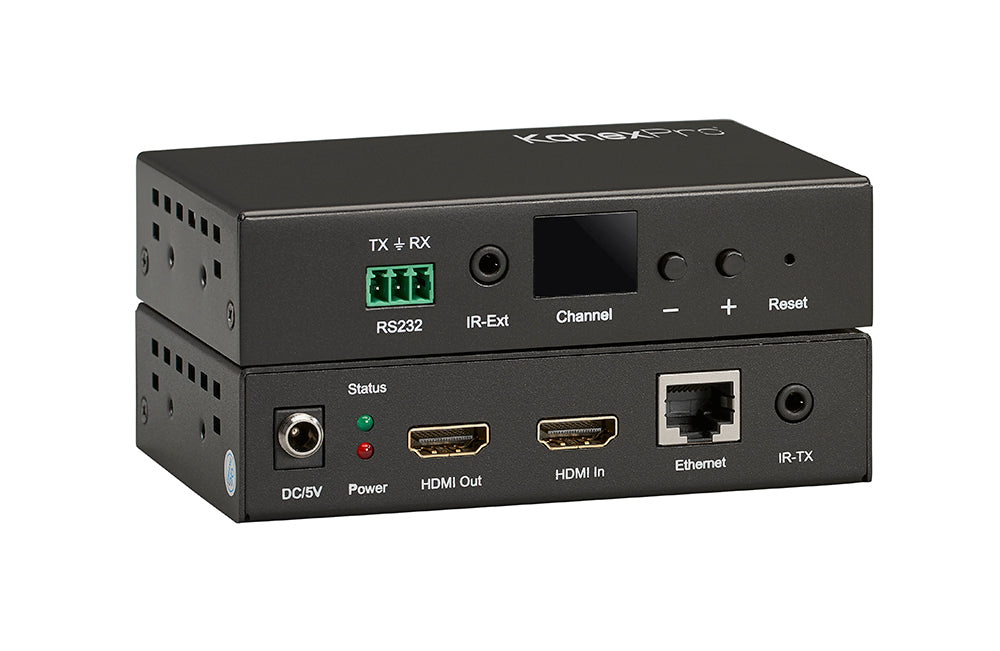

NetworkAV™ H.264 HDMI Transmitter over IP with PoE & RS-232

The EXT-AVIPH264TX eliminates dedicated AV cabling for multi-display installations by encoding and transmitting full HD 1080p HDMI signals over a standard Ethernet network up to 394 ft (120m) using H.264 compression over TCP/IP. A single CAT5e/6 run carries video, audio, IR control, and RS-232 — with PoE eliminating the need for a local power outlet at the transmitter.

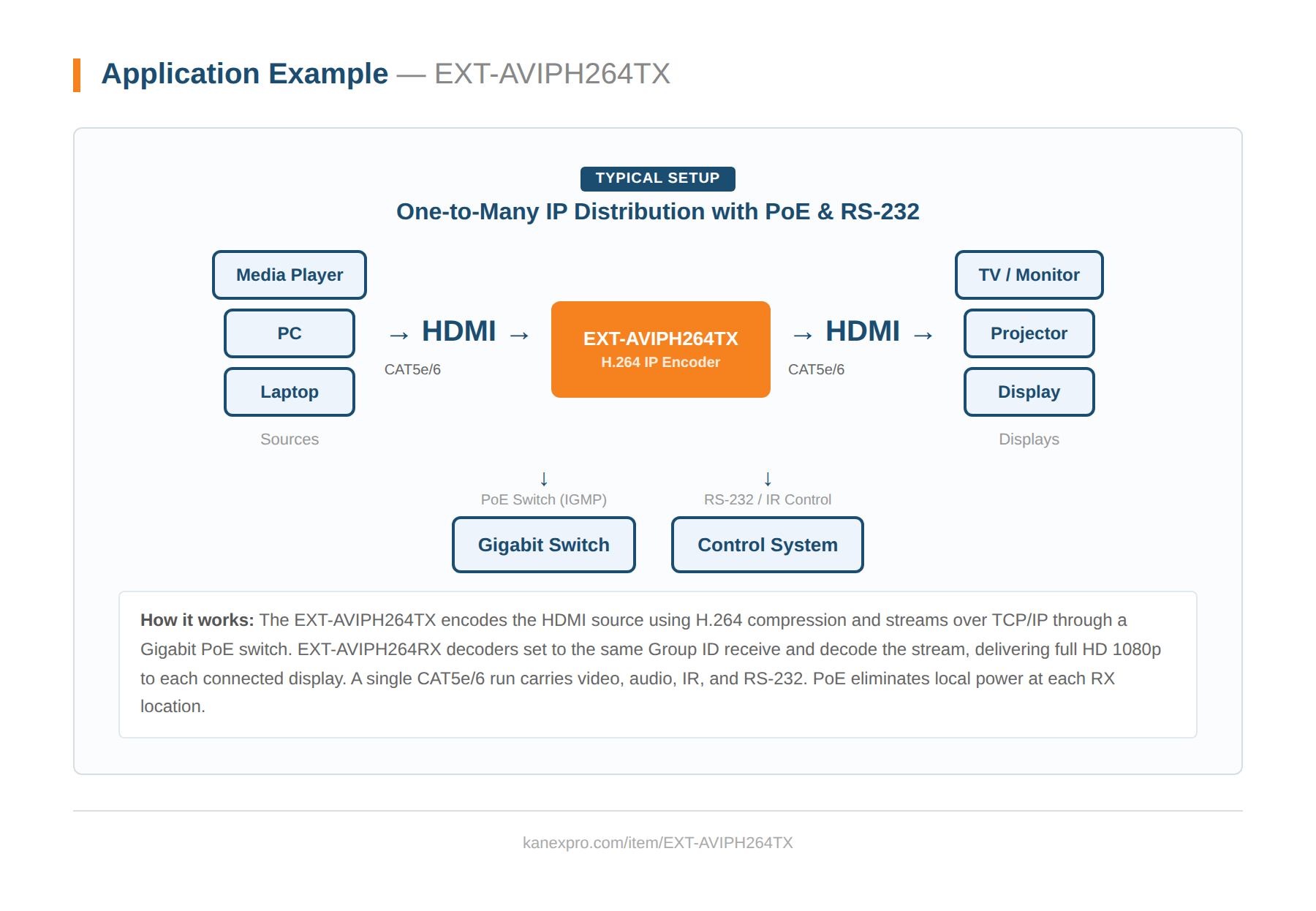

Designed for integrators deploying digital signage, corporate AV, and multi-zone display systems, the EXT-AVIPH264TX supports point-to-point, one-to-many, and many-to-many topologies over a managed Gigabit switch. Group ID selection via remote controller or web browser allows source-switching without recabling, and the HDMI loopthrough output keeps a local display active at the source.

• Encodes and transmits pure 1080p HDMI signals up to 394 ft (120m) over a single CAT5e/6 cable
• H.264 compression over TCP/IP — 15 Mbps streaming bit rate, LPCM audio at 48kHz
• Dual power input: 802.3af PoE compliant + DC 5V (no power adapter required when using PoE switch)

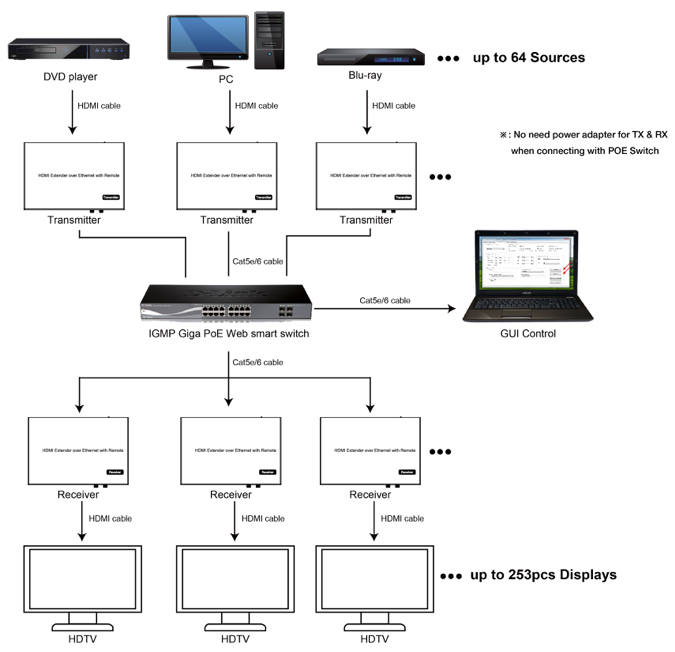

• Supports point-to-point, one-to-many, and many-to-many configurations — up to 64 TX / 255 RX nodes
• Group ID source switching (00–63) via IR remote controller or web browser
• Bidirectional RS-232 pass-through up to 115,200 baud — 8 baud rate presets
• Wideband IR pass-through 38–56kHz for remote source control at the display location
• HDMI loopthrough output for simultaneous local display at the transmitter
