HDMI Extender over Cat5e/6 - 70M (1080p) / 40M (4K@30Hz)

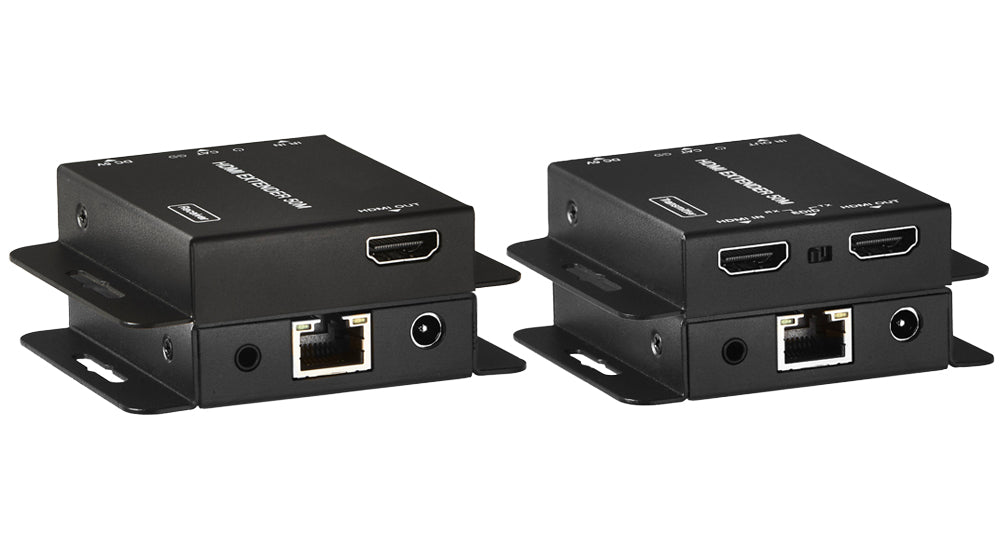

The KanexPro EXT-HD50C is a compact HDMI extender transmitter-receiver kit that extends HD signals up to 70 meters (230 ft.) at 1080p, or 40 meters at 4K@30Hz, over a single Cat5e/6 cable. The transmitter includes an HDMI loop-out for local monitoring or cascading to additional extender units.

A selectable EDID copy function lets the TX read EDID from either the local loop-out display or the remote receiver display, ensuring the source always outputs at the correct resolution. Dolby TrueHD, DTS-HD Master Audio, and PCM 7.1 audio pass-through are supported. Bi-directional IR control with included blaster kits, ultra-slim 16.5mm chassis, and KanexPro's 3-year warranty complete the package.

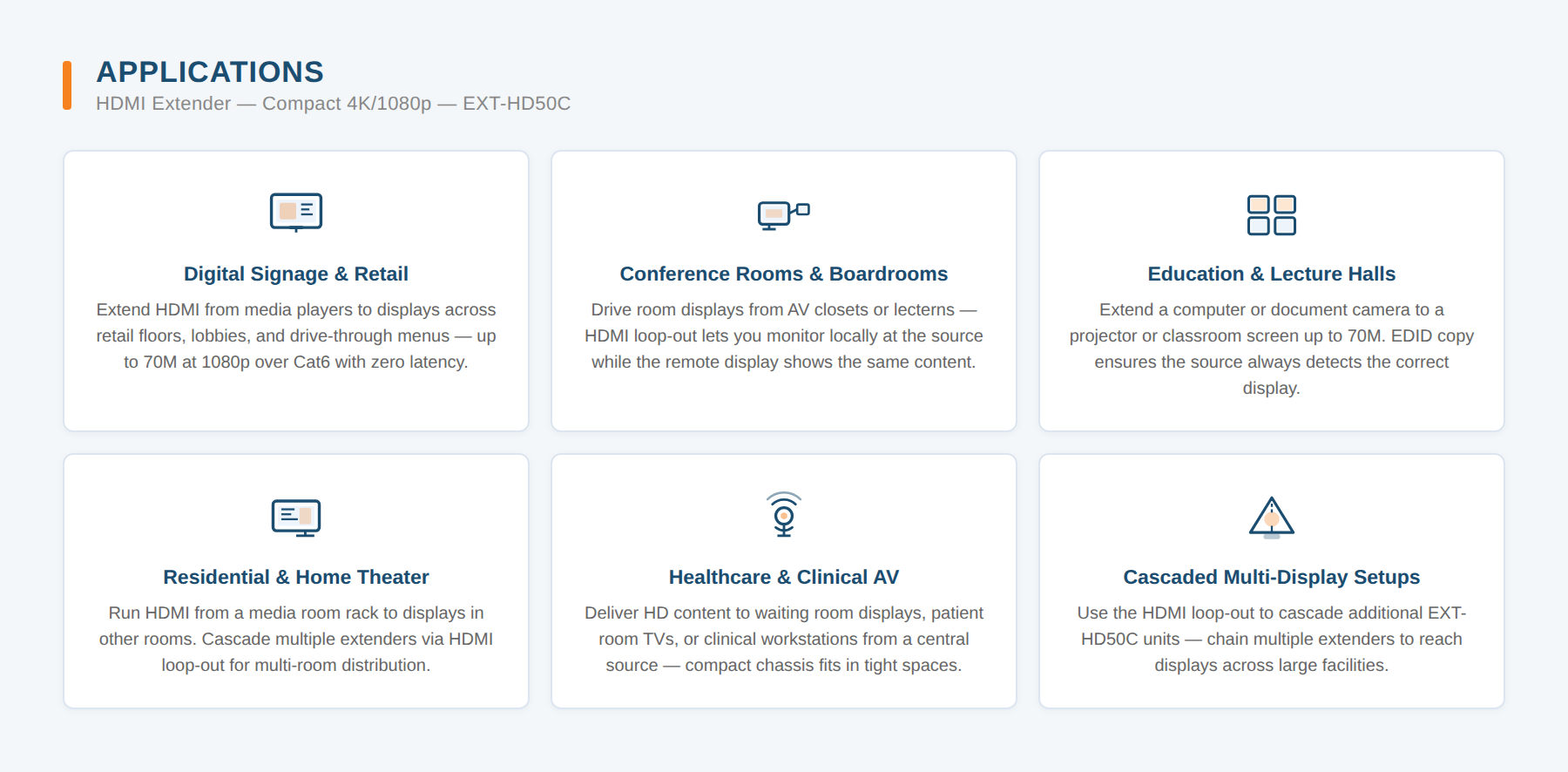

Applications: Digital signage, conference rooms, education, healthcare, residential multi-room, and cascaded multi-display installations.

• Extends HDMI up to 70M (230 ft.) at 1080p over Cat6 — 40M at 4K@30Hz

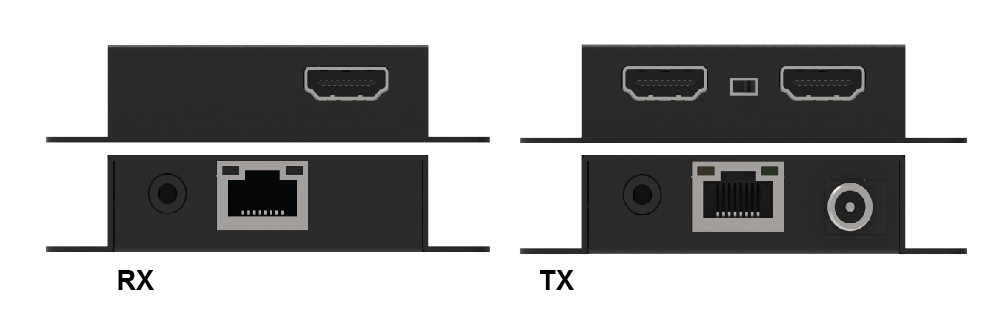

• HDMI loop-out on TX for local confidence monitor or cascaded extender
• EDID copy function — selectable local (loop-out display) or remote (RX display) mode
• 4K@30Hz support — Cat6: 40M / Cat5e: 35M; 1080p: Cat6 70M / Cat5e 60M
• Dolby TrueHD, DTS-HD Master Audio, PCM 7.1 audio pass-through
• Bi-directional IR control — IR TX/RX blaster kits included
• HDMI 1.4 and HDCP 1.4 compliant — 10.2Gbps bandwidth
• Ultra-slim compact chassis: 79.5x69x16.5mm — 132g TX / 130g RX
• DC 5V/1A — included power adapters; 3-year KanexPro warranty
