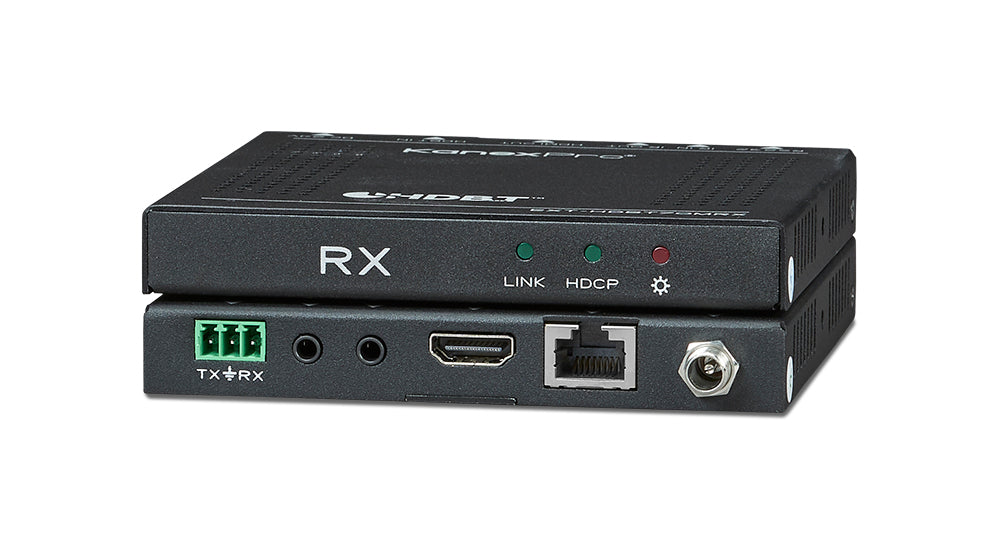

UltraSlim 4K/60 HDMI Receiver 70M

Extend 4K/60 up to 40m with bi-directional IR, RS-232 & PoH

1 1

KanexPro

SKU: EXT-HDBT70MRX

UPC: 813982021372

$262.45
View full details

The KanexPro EXT-HDBT70MRX is an HDCP 2.2 compliant receiver – extender consisting of one HDMI output one Ethernet input and IR + RS-232 controls. It uses technology to transmit uncompressed, high-resolution 1080p/ 4K signals from transmitter to the receiver via a CAT5e/CAT6a cable at up to 70/40m.Supports 4K/60Hz with 4:2:0. Moreover, EXT-HDBT70M supports CEC, bi- directional RS232 & IR control, and bi-directional PoH (power over HDBaseT) function.

Applications

Ideal for use in digital signage applications, healthcare AV, control rooms, educational facilities, airports, commanding centers and home theater.

Please note: use a CAT6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.

  • UltraSlim point-to-point HDMI Receiver over HDBaseT
  • Extend full HD 1080p up to 70m
  • Extend 4K/60 up to 40m
  • Supports Ultra HD 4K@24/30/60 Hz resolutions &
  • PC resolutions from 1080p/60@48bit
  • 4K/60Hz w/ 4:2:0
  • Bi-directional PoH (power over HDBaseT)
  • Bi-directional RS-232 & IR control
  • HDCP 2.2 and EDID compliant
  • Bandwidth 10.2 Gbps
  • IR input/output - embedded over CATx extension
  • Dolby TrueHD & DTS Master Audio ready
  • Supports uncompressed audio - LPCM
  • Backed by KanexPro 3-year parts and labor warranty

Please note: use a CAT6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.

** Power supply not included in the box, to order, please use SKU # EXT-PSU2



Input Signal

  • (1) HDMI, (1) IR; (1) RS232

Input Connector

  • (1) HDMI female; (1) 3.5mm mini jack;
  • (1) 3p captive screw connector

Output

  • (1) RJ-45, (1) IR, (1) RS232

Output Connector

  • (1) RJ-45; (1) 3.5mm mini jack;
  • (1) 3-pin captive screw connector

Audio

  • (1) Digital audio,transmit through HDMI audio

Receiver

Input Signal

  • (1) IR; (1) RJ-45; (1) RS232

Input Connector

  • (1) 3.5mm mini jack; (1) RJ-45; (1) 3p captive screw connector

Output

  • (1) HDMI
  • (1) IR
  • (1) RS232

Output Connector

  • (1) HDMI female
  • (1) 3.5mm mini jack
  • (1) 3-pin captive screw connector

General

Resolution Range:

  • 640x480@60Hz~4K×2K@30Hz

Transmission Mode

  • HDBaseT

Transmission Distance

  • 1080p ≤ 70m; 4Kx2K ≤ 40m

Bandwidth: 10.2Gbps

HDMI Standards -  Supports HDMI1.4 and HDCP2.2

Impedance: 75Ω

Temperature: 0~ 50 C

Humidity: 10% ~ 90%

External Power Supply

  • Input: 100VAC~240VAC, 50/60Hz;
  • Output: DC 24V, 1.25A

Power Consumption

  • 14w (max)

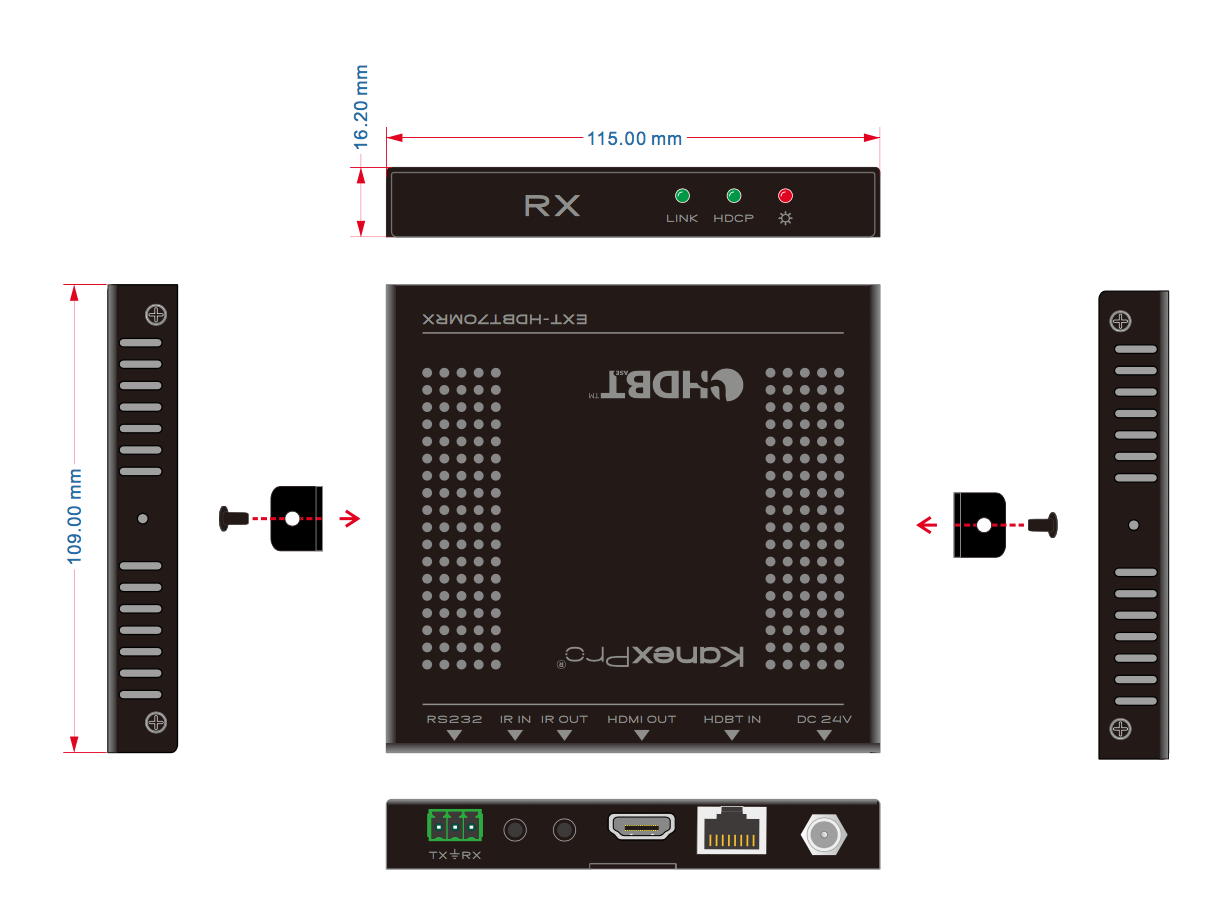

Dimensions (W*H*D): 115mmx16.2mm x109mm

Net Weight:

  • Receiver: 196g (0.43 lbs)

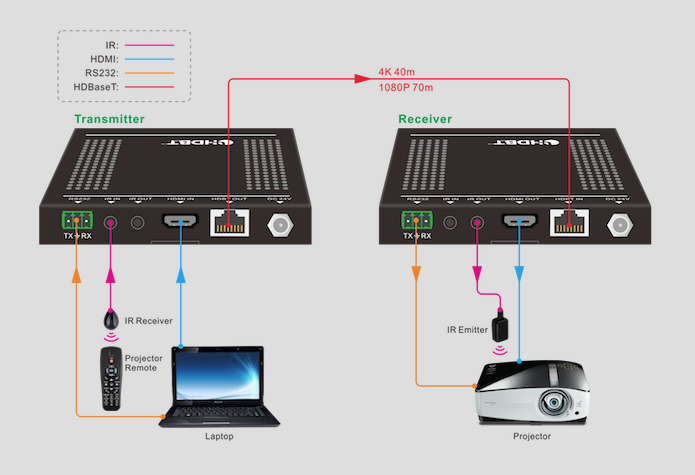

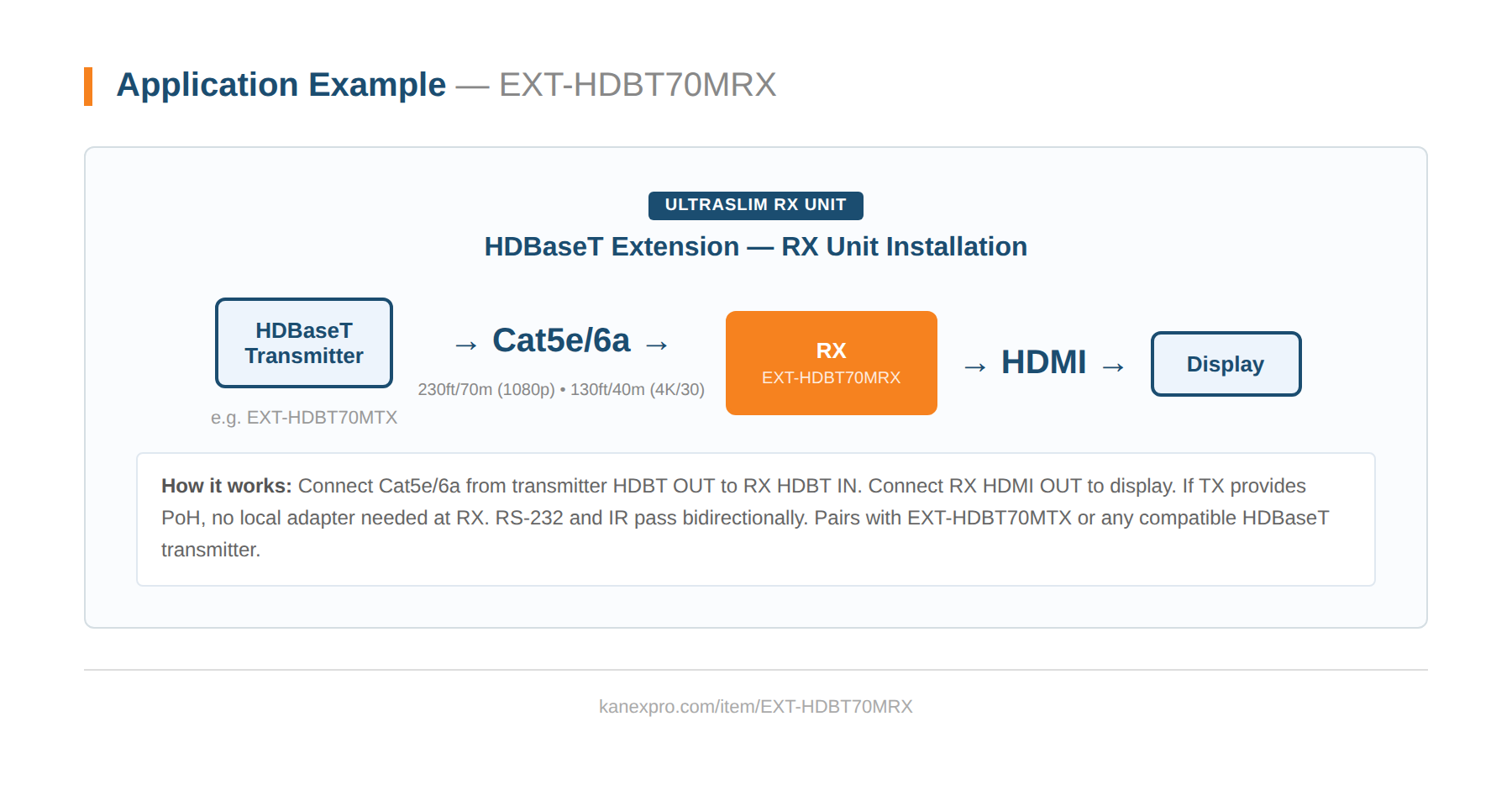

Product Diagram

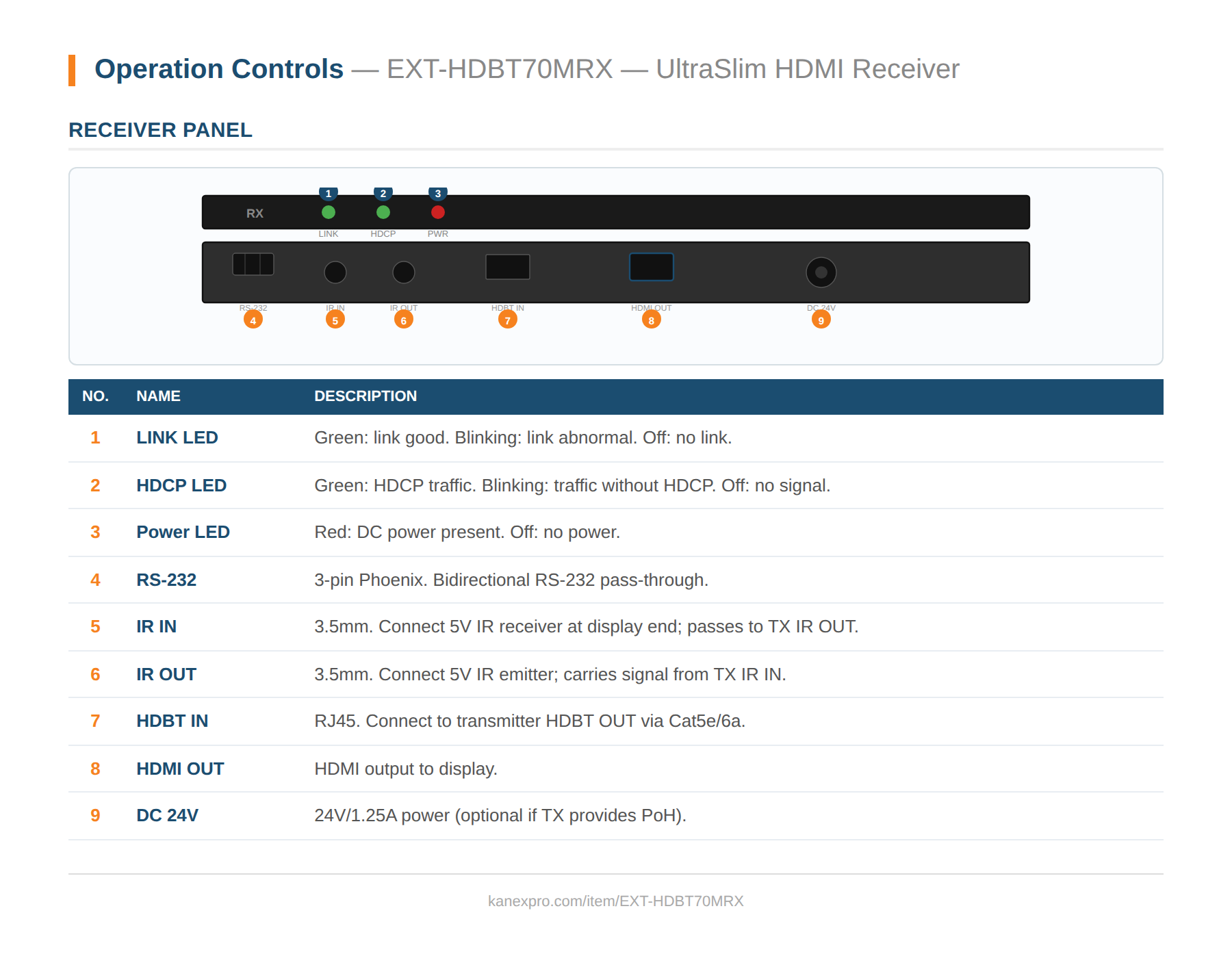

Product Panel
