UltraSlim 4K/30 HDMI Transmitter 70M

Name: UltraSlim 4K/30 HDMI Transmitter 70M
Brand: KanexPro
SKU: EXT-HDBT70MTX

Extend 4K/30 up to 40m with bi-directional IR, RS-232 & PoH

1 1

KanexPro

SKU: EXT-HDBT70MTX

UPC: 813982021365

$209.96 $262.45 Save 20%

View full details

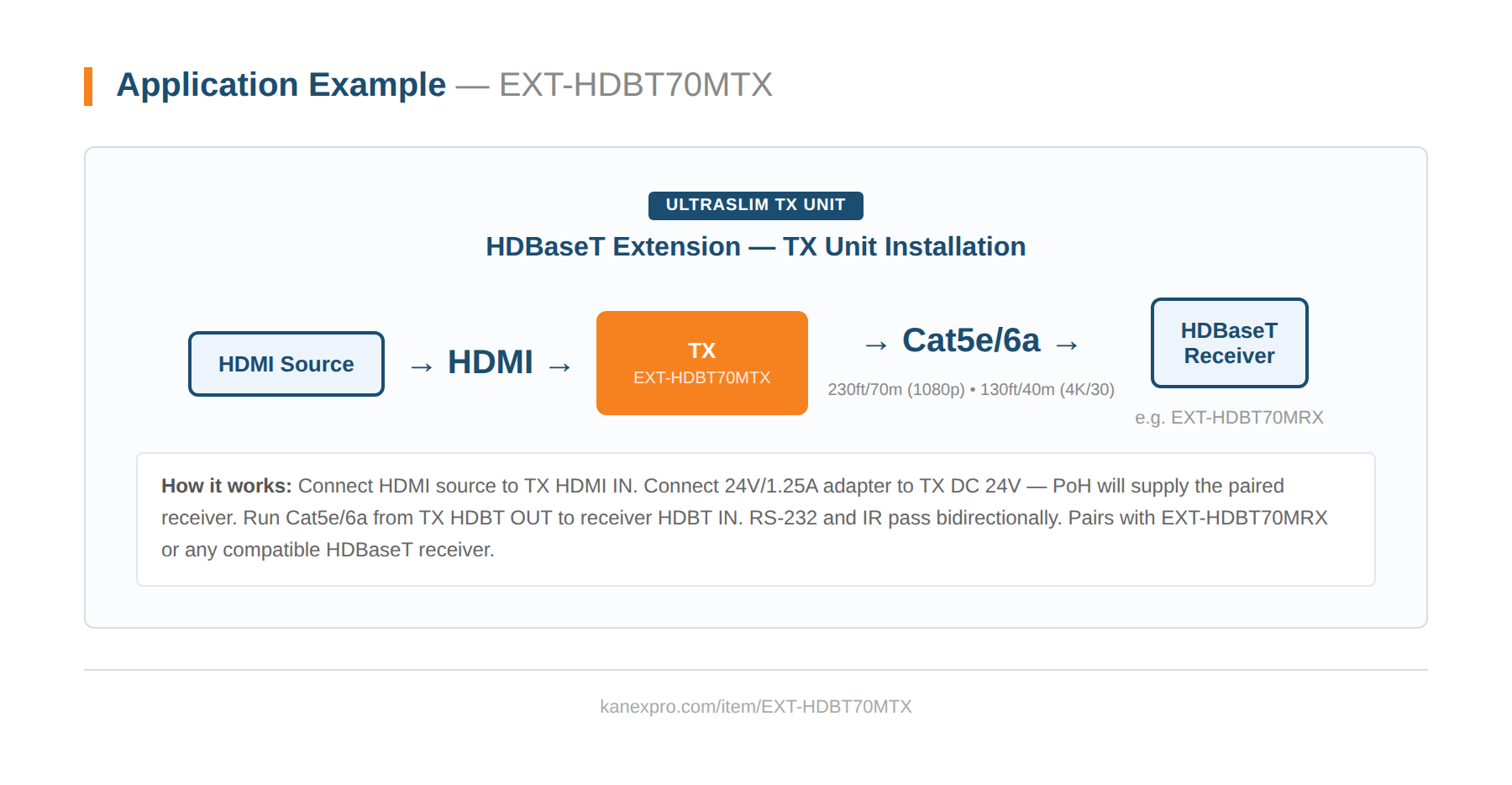

UltraSlim HDBaseT transmitter unit for point-to-point HDMI extension up to 230ft / 70m at 1080p or 130ft / 40m at 4K/30 over a single Cat5e/6a cable. The EXT-HDBT70MTX is HDCP 2.2 compliant and supports bidirectional PoH, RS-232, and IR pass-through — pairing with the EXT-HDBT70MRX receiver or a compatible HDBaseT receiver for flexible matrix and point-to-point installations.

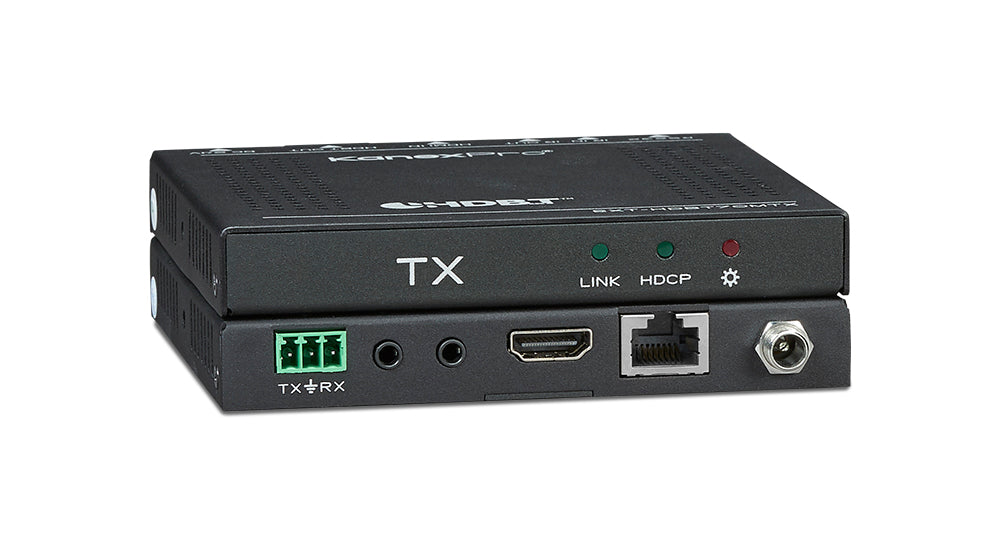

The UltraSlim metal enclosure with mounting ears allows installation behind displays, in lecterns, or anywhere space is limited. LED indicators for LINK, HDCP, and Power provide instant connection status. Sold as TX unit only — receiver sold separately.

UltraSlim HDBaseT transmitter — TX unit only, pairs with EXT-HDBT70MRX or compatible HDBaseT receiver
Supports 1080p up to 230ft / 70m and 4K/30 up to 130ft / 40m over single Cat5e/6a
HDMI 1.4 and HDCP 2.2 compliant — 10.2Gbps bandwidth
Bi-directional PoH — powers RX over HDBaseT cable when adapter connected to TX
Bi-directional RS-232 and IR pass-through
CEC pass-through

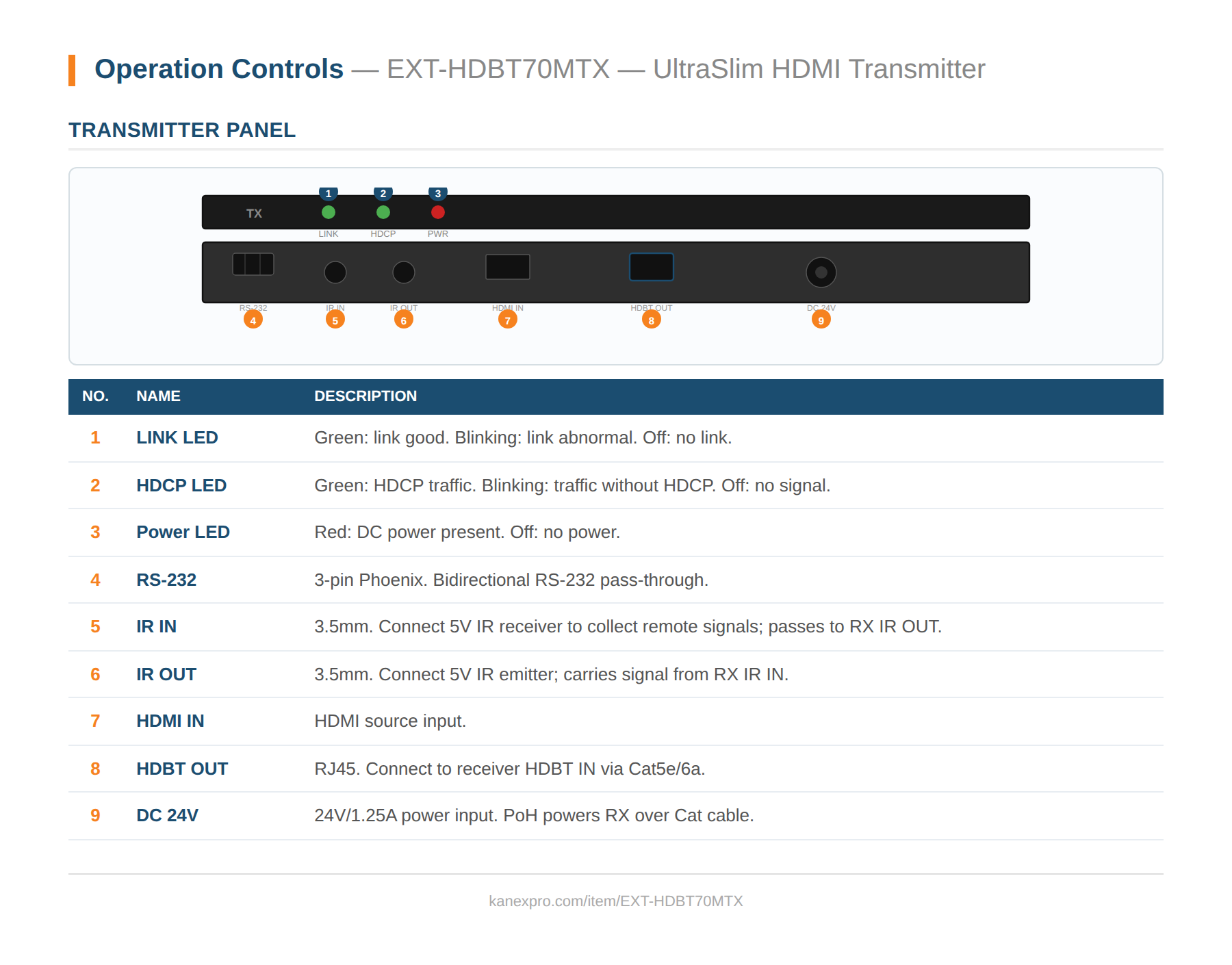

LED indicators: LINK, HDCP, Power
Compact metal enclosure with mounting ears

Technical
HDMI Standard	HDMI 1.4 / HDCP 2.2
Bandwidth	10.2Gbps
Max Resolution	4K×2K@30Hz (130ft/40m); 1080p@60Hz (230ft/70m)
Connection — Transmitter
Input	1× HDMI [female]; 1× 3.5mm IR IN; 1× 3-pin Phoenix RS-232
Output	1× RJ-45 HDBT OUT; 1× 3.5mm IR OUT; 1× 3-pin Phoenix RS-232
Mechanical

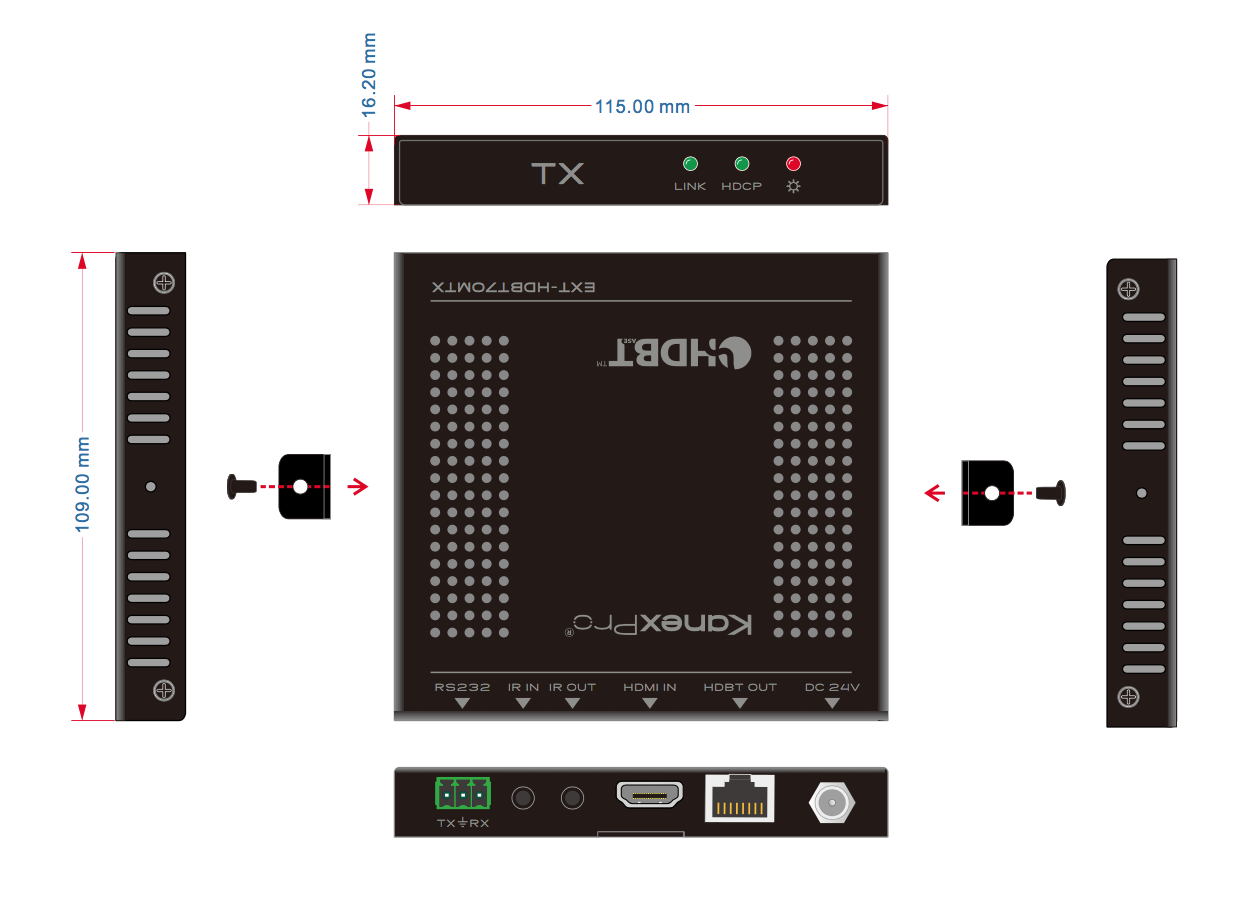

Dimensions	4.53″ (W) × 0.64″ (H) × 4.29″ (D) / 115 × 16.2 × 109mm
Weight	0.43 lbs (193g)
Power Supply	AC 100–240V ? DC 24V/1.25A; PoH bidirectional; 14W max
Operating Temp	32–122°F / 0–50°C
Package Contents
1× TX unit, 2× Mounting Ears, 4× Mounting Screws, 4× Plastic Cushions, 1× RS-232 Cable, 1× IR Emitter, 1× 24V/1.25A Power Adapter, 1× User Manual
