KanexPro 4K60Hz HDMI Cascading Extender Kit over Cat6 70M

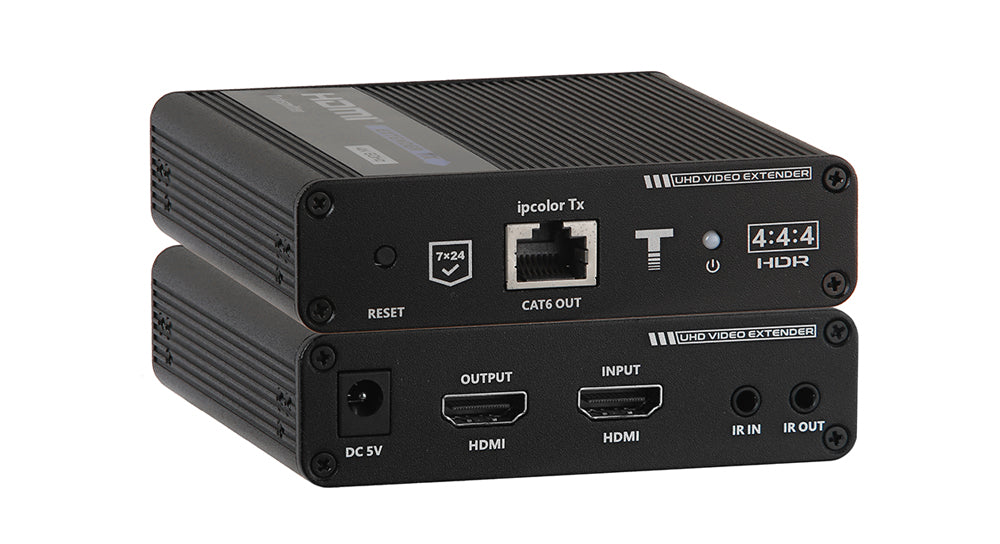

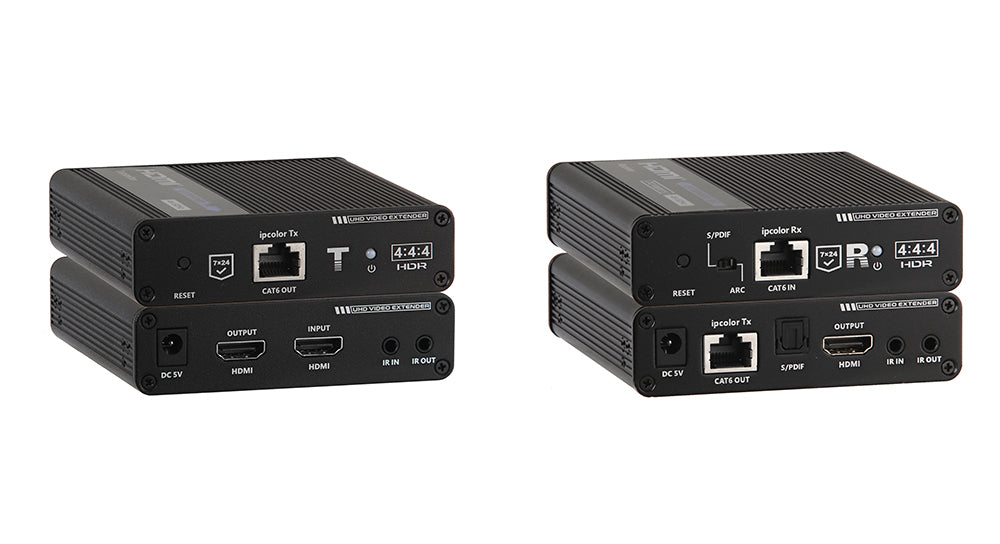

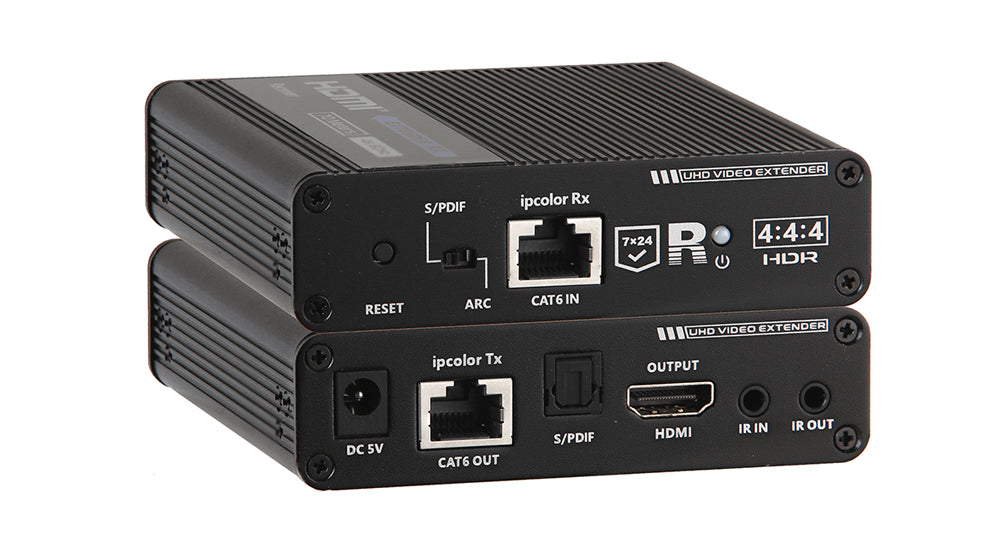

The KanexPro EXT-HDMICAS70M cascading HDMI extender includes a transmitter and receiver units, allows for HDMI signals to be transmitted up to 70 meters at 4K resolution. The cascading feature supports up to 10 additional receivers, the system can cascade and share content to displays of varying resolutions with the built-in auto adapt feature. This is ideal in situations where the same content needs to be distributed across several displays or projectors.  This is perfect for outdoor advertising, monitor systems, home entertainment and conference room solutions.

Applications:

Ideal for use in digital signage applications, healthcare AV, control rooms, educational facilities, airports, commanding centers and home theater.

Note: Use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.

• Zero Latency
• Supports transmission distance up to 230ft. (70m)

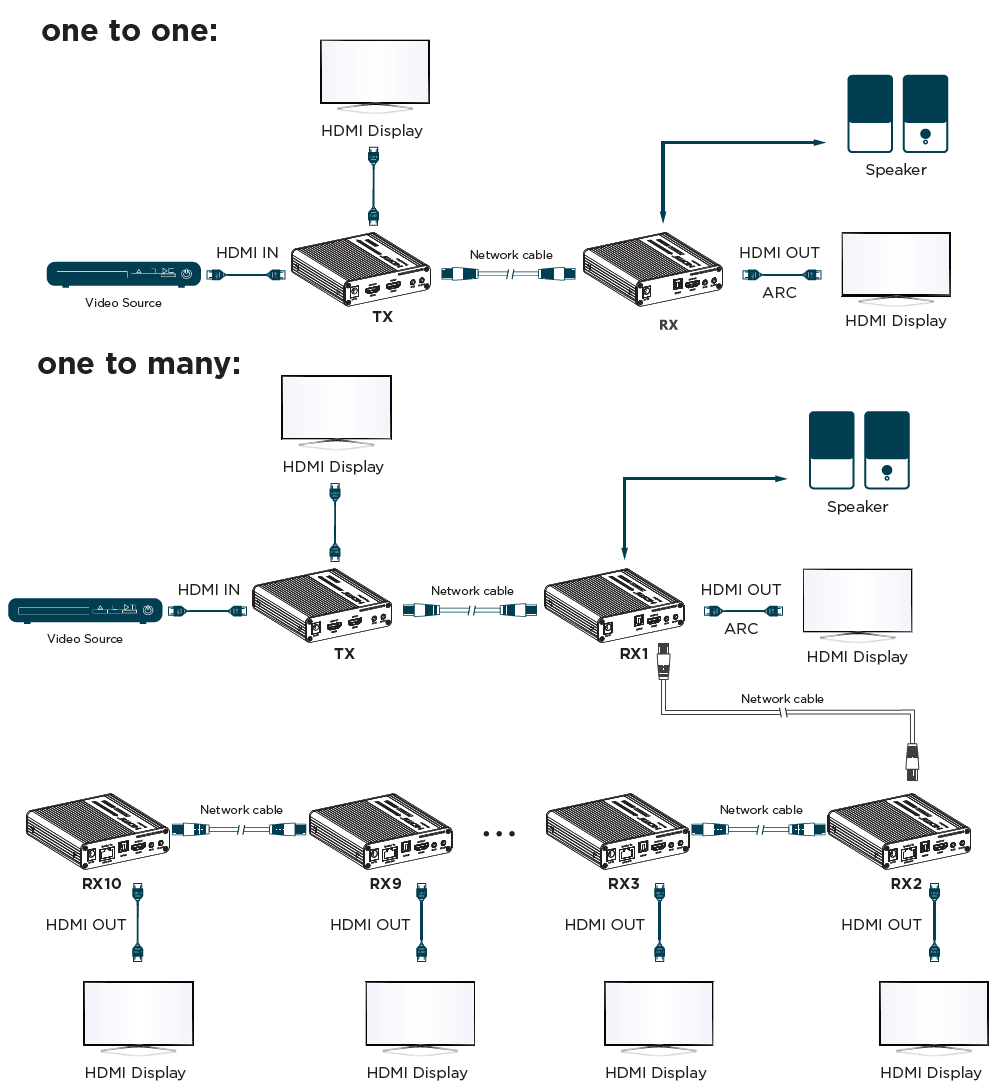

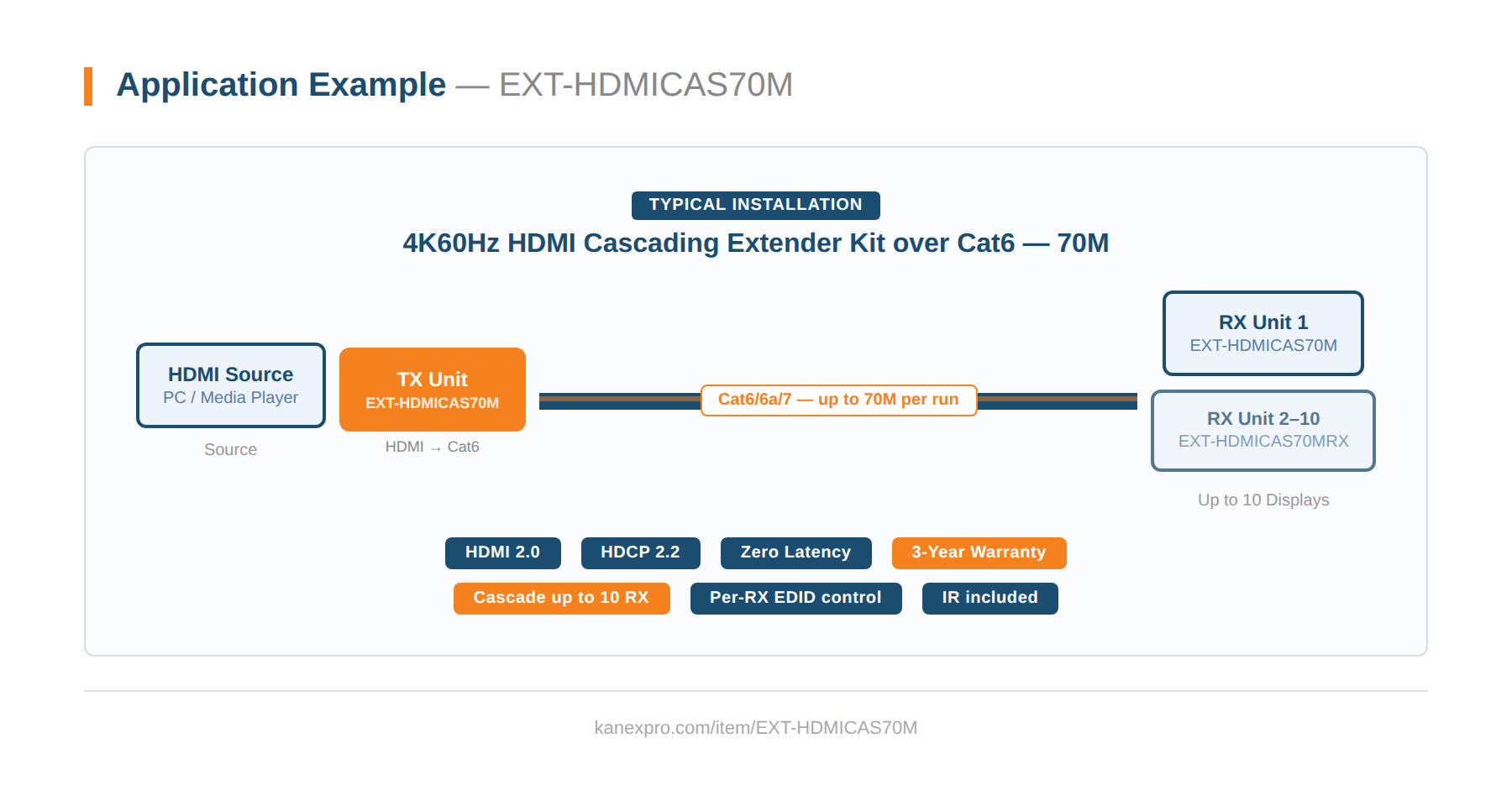

• Cascade up to 10 additional receivers
• Receiver units can individually manage display resolution and EDID
• Supports HDR(YUV 4:4:4)
• Supports UHD 4K (4K x 2K @ 60Hz)
• IR bi-directional Pass through 20-60KHz (kits included)
• HDCP 2.2 & EDID support for multiple displays
• Simple set up with zero configuration
• Compact design for flexible installations
• Support ARC S/PDIF digital audio de-embedded outputs
• Backed by KanexPro's 3 Year limited warranty
