HDBaseT 100M Extender with Ethernet Switch
Extend 4K HDMI, IR, RS-232 & LAN over a Single CAT6 Cable up to 330ft

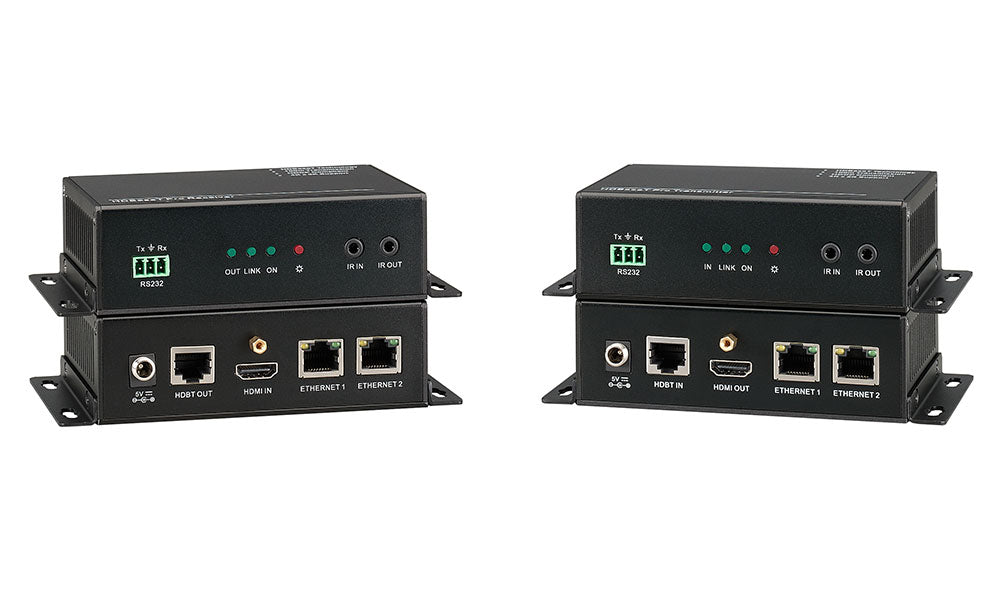

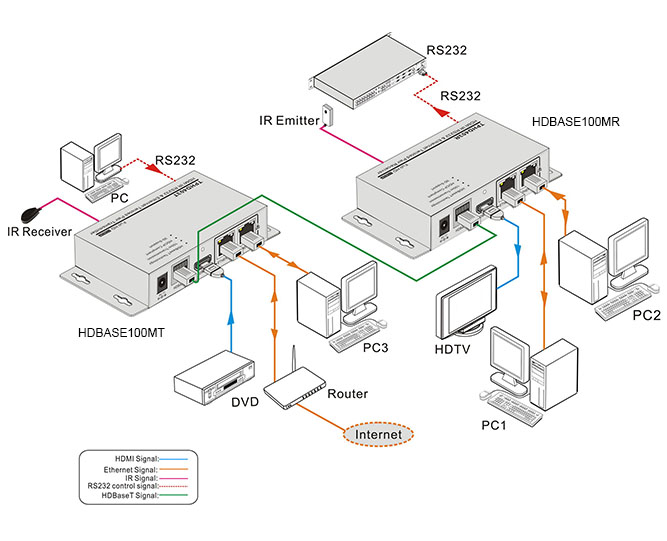

The KanexPro HDBASE100ME is a professional HDBaseT transmitter-receiver kit that extends Ultra HD 4K HDMI, multi-channel audio, bidirectional IR, RS-232 control, and 10/100 Ethernet over a single CAT6 cable up to 330 feet (100 meters). Unlike standard extenders, the HDBASE100ME integrates a 2-port Ethernet switch on both the transmitter and receiver, enabling direct network connectivity for devices at both ends — eliminating the need for additional switches or cable runs. Built in rugged aluminum enclosures with locking HDMI and power connectors, this extender is designed for reliable, long-term deployment in commercial AV installations.
- Extends 4K HDMI signals up to 330ft (100m) over a single CAT6 cable using HDBaseT technology
- Integrated 2-port Ethernet switch on both TX and RX for LAN access at source and display locations
- Supports resolutions from 480i to Ultra HD 4K, including 1080p/60 and 3D
- Bidirectional IR pass-through for remote control of source or display devices
- RS-232 serial control for integration with third-party control systems
- Multi-channel audio support including Dolby TrueHD, DTS Master Audio, and uncompressed LPCM
- HDCP, CEC, and EDID compliant for broad device compatibility
- Front-panel LED indicators for link status, HDCP authentication, and power
- Locking HDMI and DC power connectors in aluminum enclosures with included mounting ears
| Video | |
|---|---|
| Video Standard | HDMI 1.4 |
| Resolution | 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 3D, 4K |
| Bandwidth | 10.2 Gbps |
| HDCP | Supported |
| CEC | Supported |
| EDID | Supported |
| Audio | |
| Audio Format | Dolby TrueHD, DTS Master Audio, LPCM (uncompressed) |
| Audio Transmission | Embedded over HDMI / HDBaseT |
| Transmitter I/O | |
| HDMI Input | 1× HDMI (female, locking) |
| HDBaseT Output | 1× RJ-45 |
| Ethernet | 2× RJ-45 (10/100 Mbps switch) |
| IR | 1× 3.5mm In, 1× 3.5mm Out |
| RS-232 | 1× 3-pin captive screw (bidirectional) |
| Receiver I/O | |
| HDMI Output | 1× HDMI (female, locking) |
| HDBaseT Input | 1× RJ-45 |
| Ethernet | 2× RJ-45 (10/100 Mbps switch) |
| IR | 1× 3.5mm In, 1× 3.5mm Out |
| RS-232 | 1× 3-pin captive screw (bidirectional) |
| Extension | |
| Technology | HDBaseT |
| Max Distance | 330 ft (100m) |
| Cable Requirement | CAT5e / CAT6 (shielded recommended) |
| Cable Termination | TIA/EIA T568A or T568B (straight-through) |
| Network | |
| Ethernet Speed | Adaptive 10/100 Mbps, full/half duplex |
| Ethernet Ports | 2 per unit (TX and RX) |
| Performance | |
| Gain | 0 dB – 10 dB @ 100 MHz |
| SNR | >70 dB @ 100 MHz (100m) |
| THD | <0.005% @ 1 kHz |
| Return Loss | <-30 dB @ 5 kHz |
| Differential Phase Error | ±10° @ 135 MHz (100m) |
| Signal Level | 0.3V – 1.45V p-p |
| Impedance | 75O |
| Mechanical | |

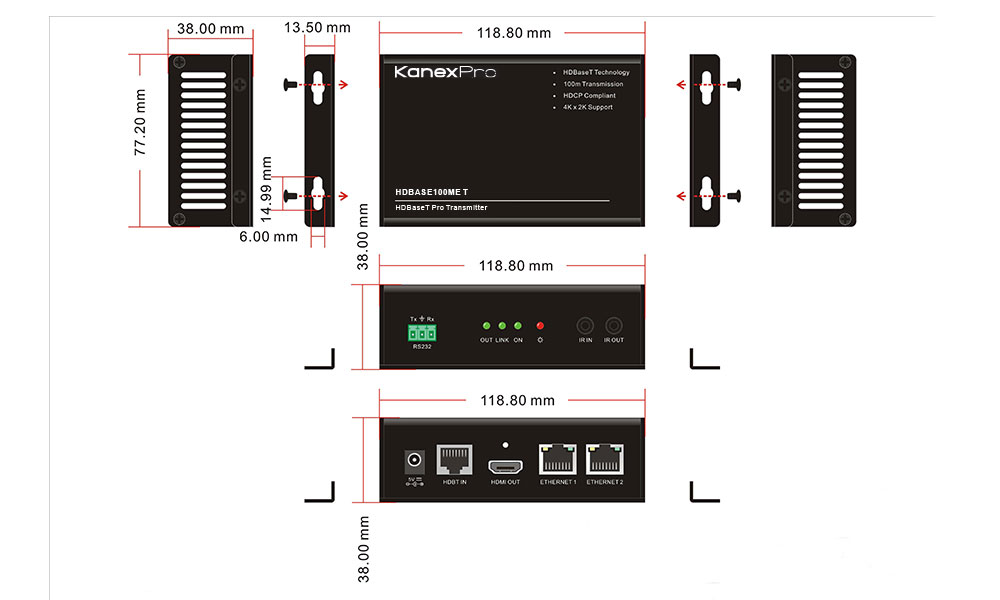

| Chassis (each) | W3.30" × H1.18" × D5.27" |
| Weight (each) | 1 lb |
| Enclosure | Aluminum with separate mounting ears |
| Power | |
| Power Supply | DC 5V / 3A adapter (included, one per unit) |
| Power Consumption | 6.5W (per unit) |
| Power Connector | Locking barrel |
| Environmental | |
| Operating Temperature | -20°C to +60°C |
| Humidity | 10% – 90% (non-condensing) |
| Package Contents | |
| 1× HDMI Pro Transmitter | |
| 1× HDMI Pro Receiver | |
| 4× Mounting ears | |
| 2× DC 5V/3A power adapters | |
| 2× IR emitters | |
| 2× IR receivers | |
| 2× RS-232 cables | |
| 8× Screws (3×6mm) | |
| 1× User manual | |
