4×2 HDMI 2.0 Matrix Switcher with WebGUI, Telnet & RS-232 Control

Basic 4×2 HDMI matrix switchers offer front panel and IR control — but commercial integrators increasingly require IP-based management for remote operation, diagnostics, and control system integration. The KanexPro HDMX42-18G delivers a full three-interface control suite — WebGUI, Telnet, and RS-232 — alongside front panel and IR, giving integrators complete flexibility to manage the unit from any network-connected device or third-party control system.

Supporting 4K@60Hz 4:4:4 with 18Gbps bandwidth and HDCP 2.2 compliance, the HDMX42-18G routes any of four HDMI sources to two independent displays at full 4K fidelity. Apple HDCP mode allows non-HDCP content from Apple and similar devices to display on non-HDCP screens without signal loss. Seven EDID presets — including sink-learned and resolution-specific options — handle mixed source and display environments. Compact half-rack form factor fits cleanly into any AV furniture or rack install.

• HDMI 2.0 and HDCP 2.2 compliant — 18Gbps / 600MHz bandwidth

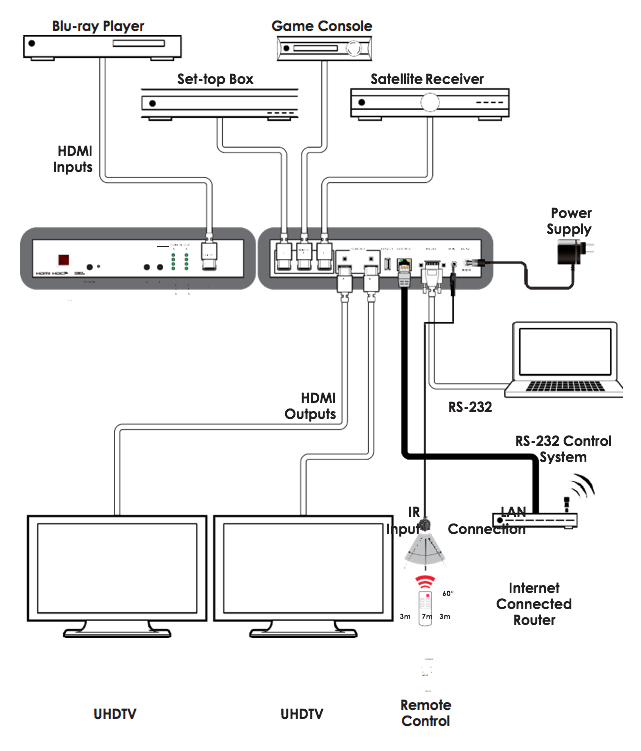

• Routes 4 HDMI inputs to 2 independent HDMI outputs at up to 4K@60Hz 4:4:4

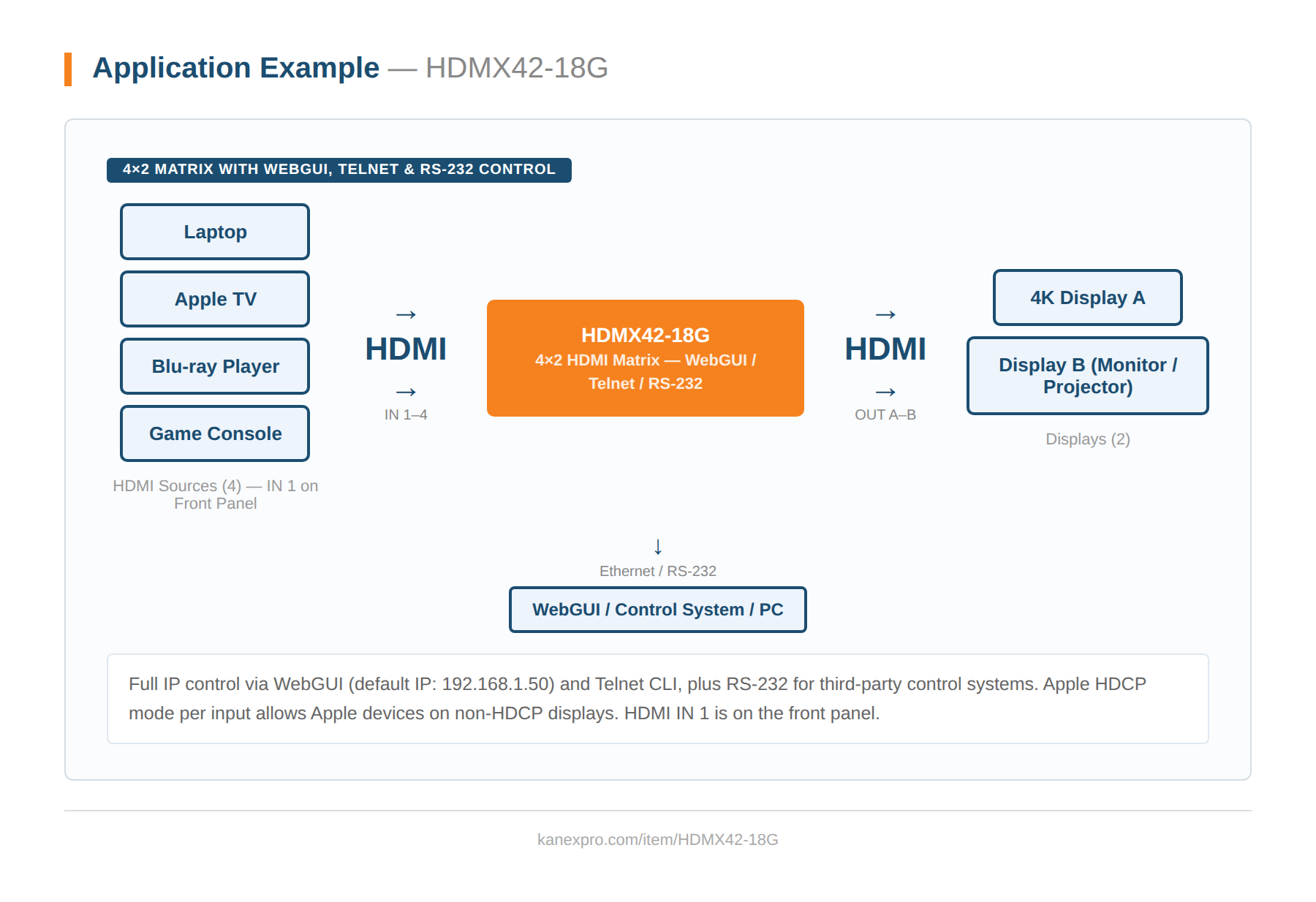

• WebGUI control — full routing, EDID, HDCP, naming, and network settings via browser
• Telnet control — CLI access for scripting and control system integration
• RS-232 control (115200 baud) — full command set for third-party control system integration
• Apple HDCP mode per input — allows non-HDCP content from Apple devices on non-HDCP displays
• EDID management: 7 presets (SINK A/B, 720P, 1080P, 4K_3G, 4K_Y420, 4K_6G) — ALL or per-input APPOINT mode

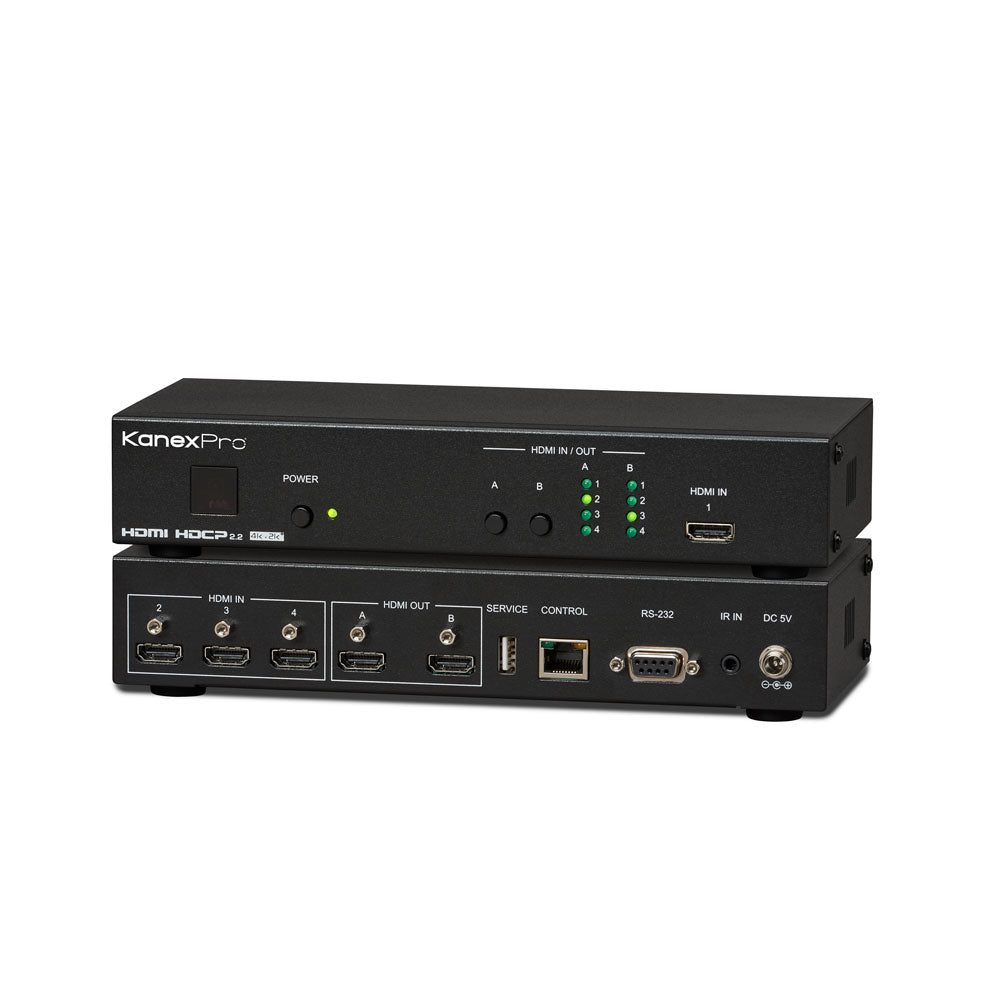

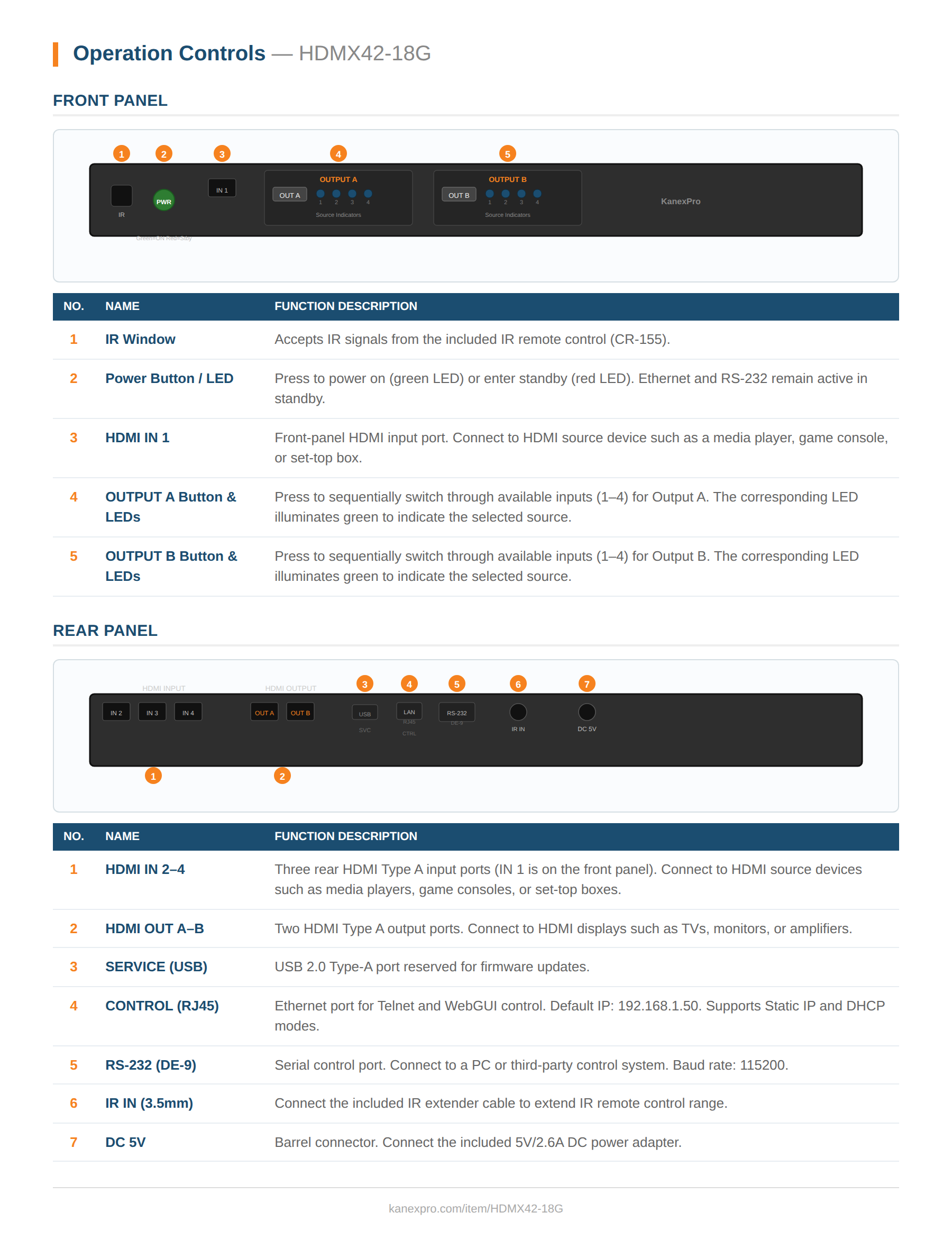

• Front panel button control with green/red power LED and source indicator LEDs
• IR remote control (CR-155) with IR extender cable included
• HDMI IN 1 accessible from front panel; HDMI IN 2–4 on rear
