4×2 HDMI 2.0 Matrix Switcher with Optical & Analog Audio Extraction

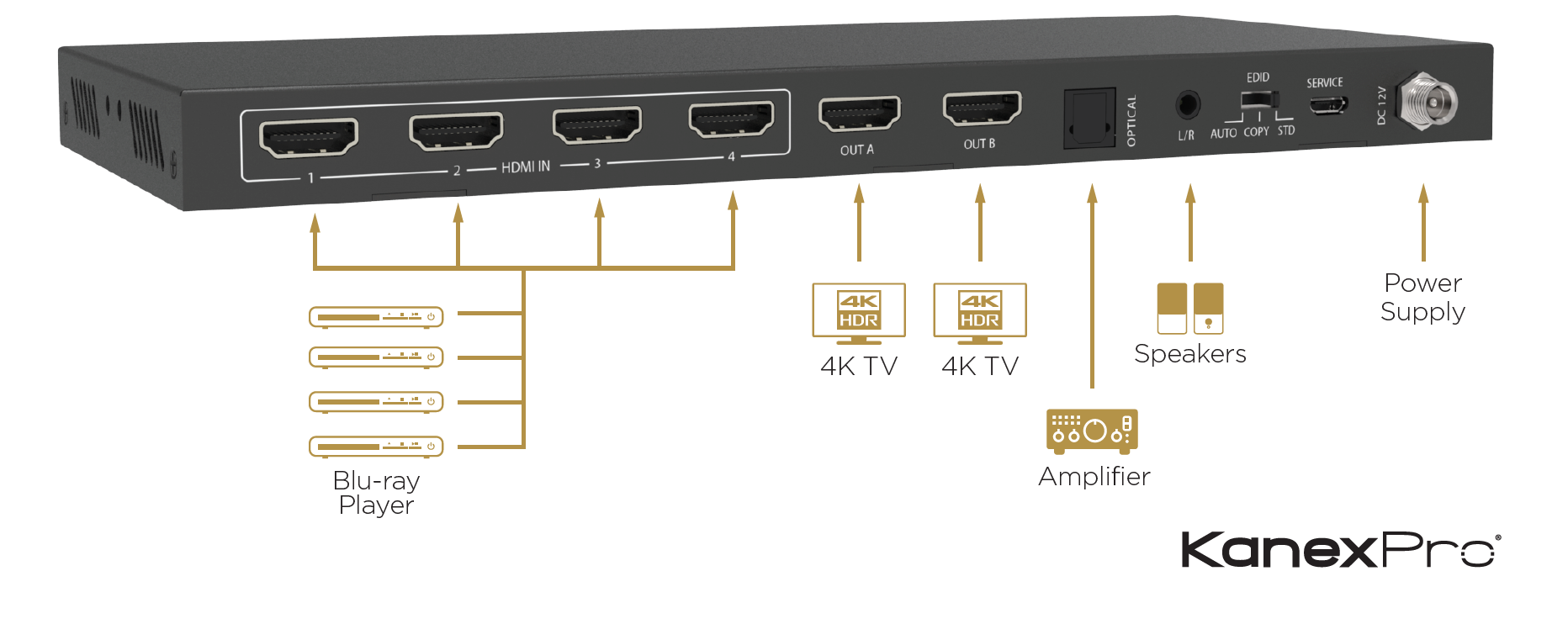

Most 4×2 HDMI matrix switchers route video without addressing the audio — leaving integrators to add separate audio extractors for every zone. The KanexPro HDMX42A-18G solves that directly: it routes any of four 18Gbps HDMI sources to two independent displays while simultaneously extracting audio via optical Toslink (S/PDIF) and analog L/R outputs — no external extractors required.

Compliant with HDMI 2.0 and HDCP 2.2/1.4, the HDMX42A-18G supports 4K@60Hz 4:4:4 with Dolby Vision, HDR10+, and HLG pass-through across both outputs. Per-output 4K?1080p downscaling allows mixed-resolution display environments without additional hardware. ARC support extracts return audio from connected ARC-enabled TVs to the optical output. Three-position EDID management (AUTO/COPY/STD) and front panel + IR control make it a compact, integrator-friendly solution for education, hospitality, and conference room installations.

• HDMI 2.0, HDCP 2.2/1.4, and DVI 1.0 compliant — 18Gbps bandwidth

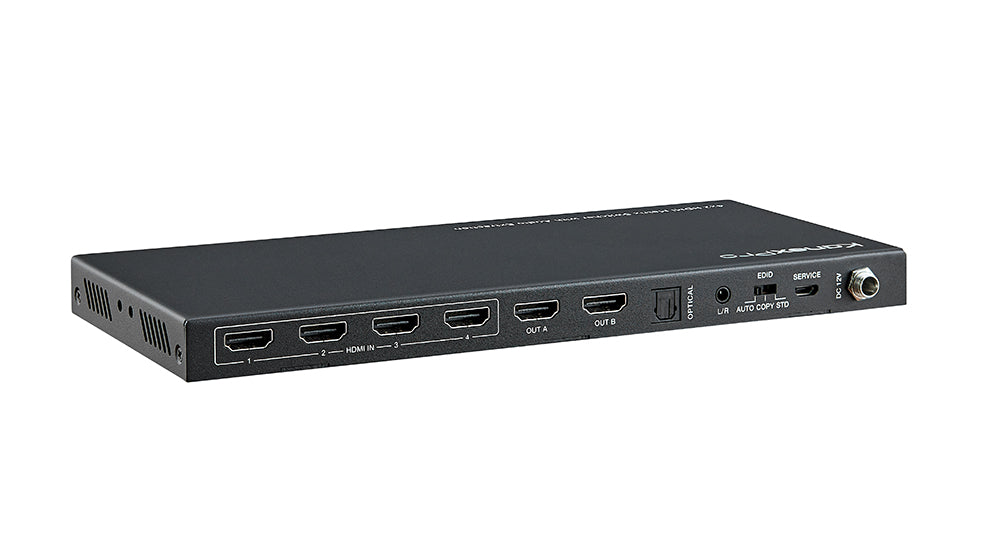

• 4 HDMI inputs, 2 HDMI outputs — independently routed
• Video resolution up to 4K@60Hz YCbCr 4:4:4 — Dolby Vision, HDR10+, HLG pass-through
• Audio extraction via optical Toslink (S/PDIF) and analog L/R (3.5mm) outputs
• HDMI audio pass-through: PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DSD
• ARC (Audio Return Channel) — extracts TV return audio to optical output; mutes analog L/R when active
• Per-output 4K→1080p downscaling on both HDMI outputs

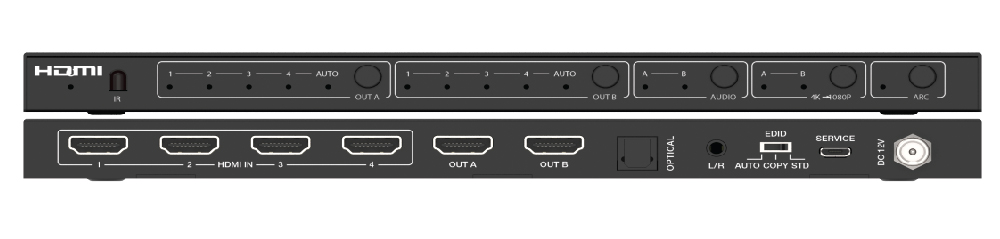

• EDID management: AUTO / COPY / STD (3-position rear DIP switch)

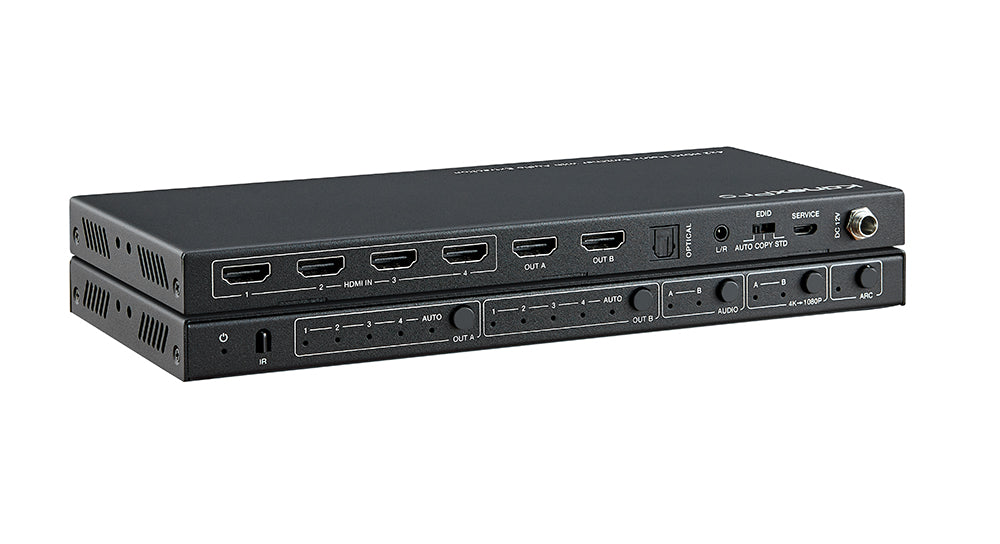

• Control via front panel buttons and IR remote
