HD Audio Matrix Switcher 8x8 | 4K 60Hz Audio | Kanexpro Audio

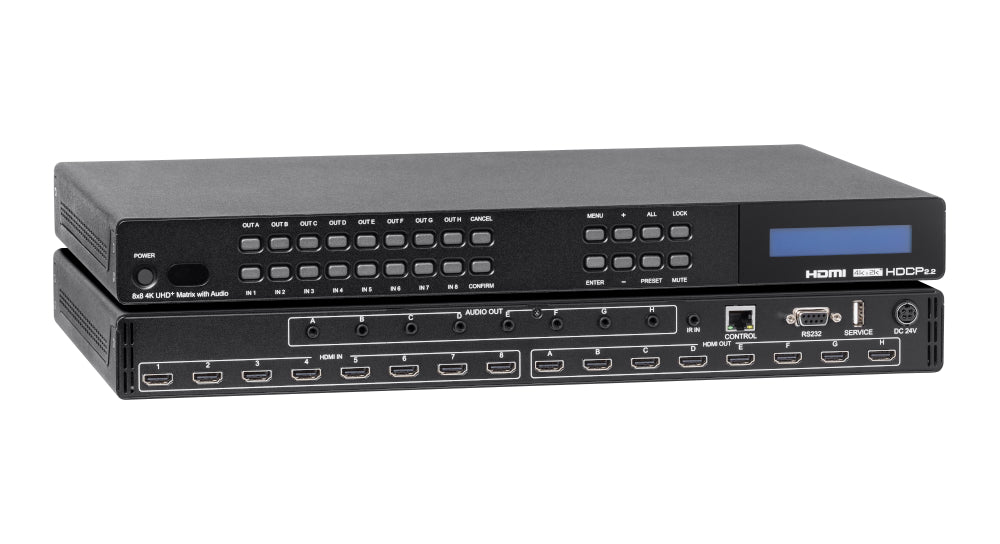

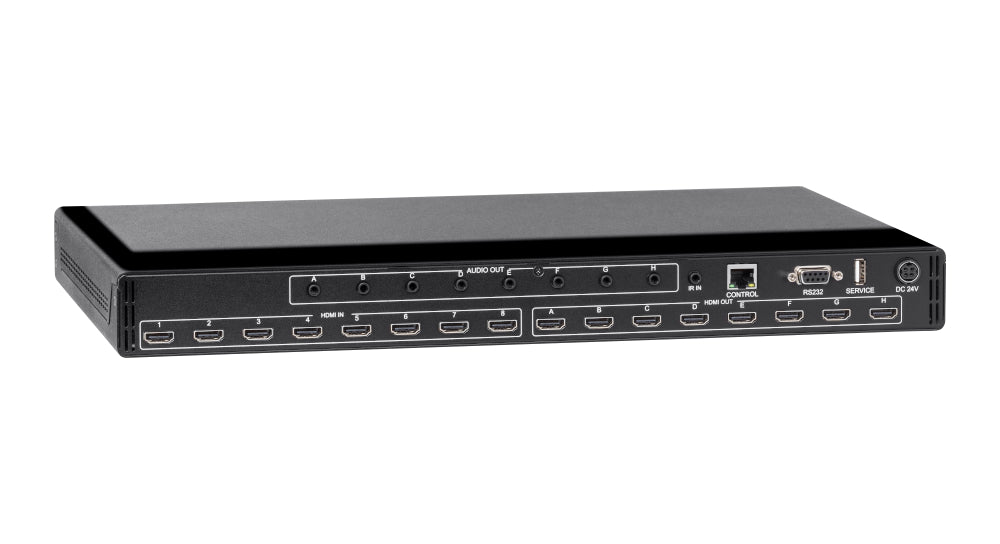

The KanexPro HDMX88A-18G is a professional 8-input, 8-output HDMI matrix featuring HDCP 2.2 with the latest HDMI 2.0 specifications supporting ultra HD resolutions up to 4K @60Hz. This matrix switcher supports switching speeds to less then 0.2 seconds. The matrix can be fully controlled via RS-232, IR and Web based GUI using Ethernet where end-users can switch, control and manage the matrix using graphical and visual indicators right from the computer or touch-panel.

Industry Standard HDCP 2.2 & 4K/60Hz

HDCP 2.2 authentication is present at all times on this matrix ensuring proper handshake of the protected content. It also maintains resolutions up to 4K UHD 3840x2160@24, 25,30, 50 or 60Hz and 2560x1080@60Hz displaying 21:9 aspect ratios. 1920 x 1200 or full HD 1080p/60 is a standard for all our matrix switchers.

Applications:

The KanexPro HDMX88A-18G matrix switcher is ideal for numerous commercial applications such as military, medical and government audio-video environments, where swift and reliable switching of high-resolution HDMI signal is critical to meet pixel-by-pixel needs.

• Cross-switch 8HDMI inputs to 8 HDMI outputs with 4K @60Hz
• Distribute 4Kx2K@60Hz signal up to 5m via HDMI port
• Supports standard 1080p & WUXGA resolutions up to 2560x1080@60Hz
• 2 Channel analog audio outputs on each HDMI output channel
• HDR, DolbyVision & HDCP 2.2 Compliant
• Smart EDID DIP switch for proper display output
• Supports latest High Speed HDMI 2.0 specifications
• Supports Dolby Digital, DTS, DTS-HD
• Control thru front-panel keys, IR, RS-232 & Web based GUI
• Front-panel LCD screen provides real-time I/O connection status
• Expedient firmware upgrade thru Micro USB port
• 1U (19") rack mountable aluminum enclosure
• Universal RS-232 code compatible with any 3rd party control systems
• Locking HDMI & Power supply
• Internal Universal power for worldwide compatibility
