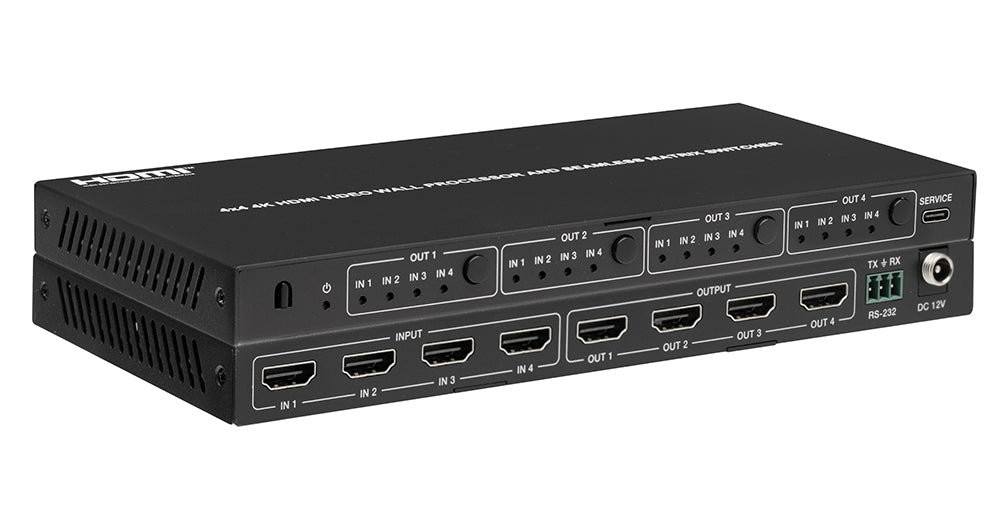

4K 4×4 Seamless Matrix & Video Wall Processor New

Most 4×4 matrix installations require a separate video wall processor — adding cost, rack space, and a second device to configure and control. The KanexPro MMX-4X4VW eliminates that by combining true 4×4 HDMI matrix switching with an integrated video wall processor in a compact half-rack unit, letting integrators route any of four sources to any of four displays while composing 2×2, 4×1, or 1×4 video wall layouts from a single device.

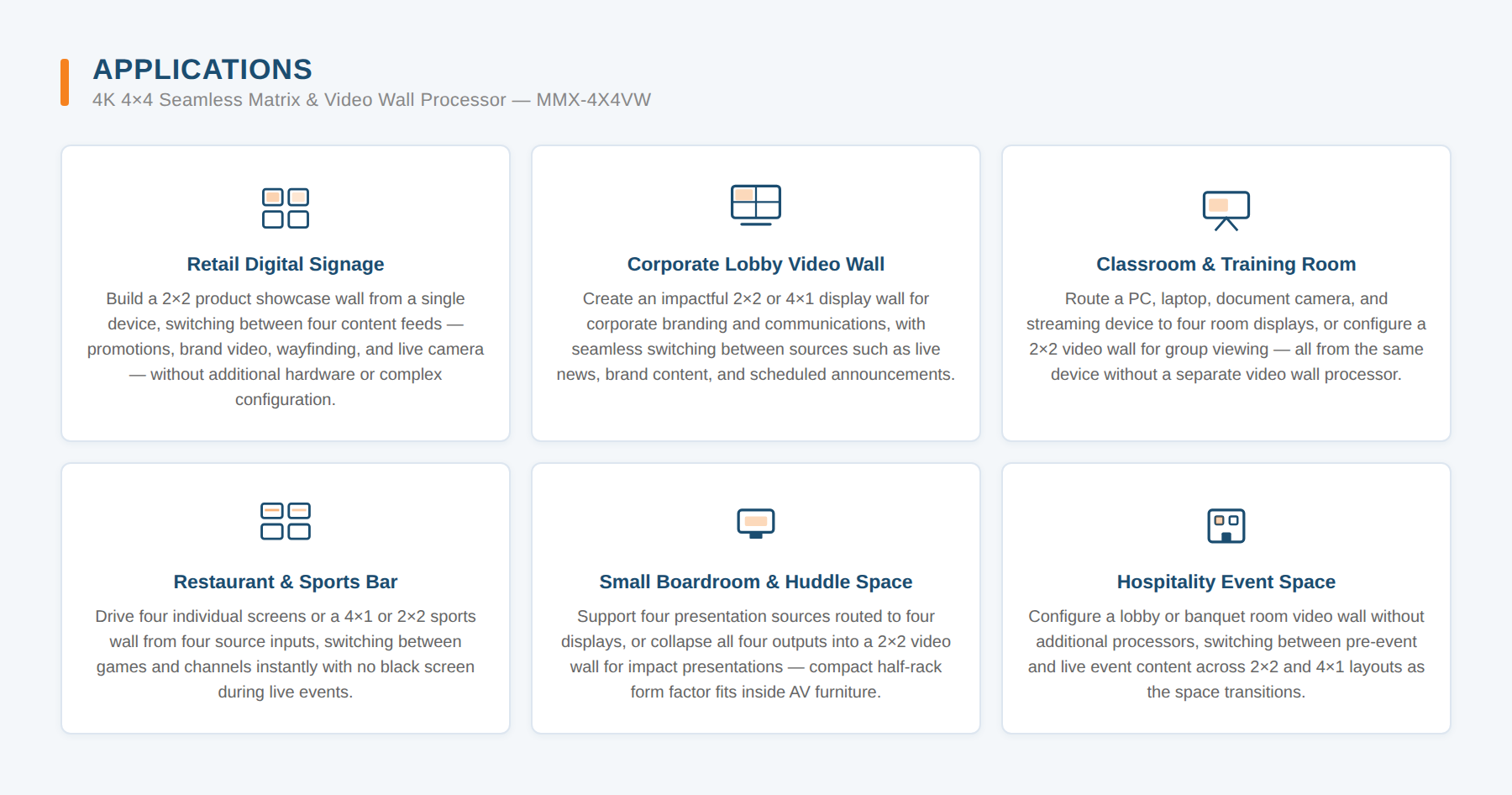

Seamless switching with no delay or image loss keeps transitions clean in live environments. Independent output scaling on all four channels ensures compatibility across mixed-resolution display installations without additional scalers. Control is straightforward — front panel buttons, IR remote, or RS-232 — making the MMX-4X4VW equally at home in a classroom, retail signage deployment, small boardroom, or hospitality venue where simplicity matters.

• True 4×4 matrix switching — any of four HDMI sources independently routed to any of four displays with no delay or image loss
• Integrated video wall processor supports 2×2, 4×1, and 1×4 display configurations — no separate processor needed
• Seamless switching with no signal interruption or black screen between source transitions
• Independent output scaling on all four channels — upscale or downscale to 1080p, 720p, 1920×1200, or 4K@30Hz per output
• HDCP 1.4 compliant — supports protected content from any HDMI 1.4b source up to 4K@30Hz
• Audio pass-through via HDMI — LPCM 2.0/5.1, Dolby Digital/DD+, DTS 2.0/5.1
• Multiple control options — front panel push buttons, IR remote, and RS-232 for third-party control system integration
• Compact half-rack form factor (220×105×19mm) — low-profile install in rack or AV furniture
