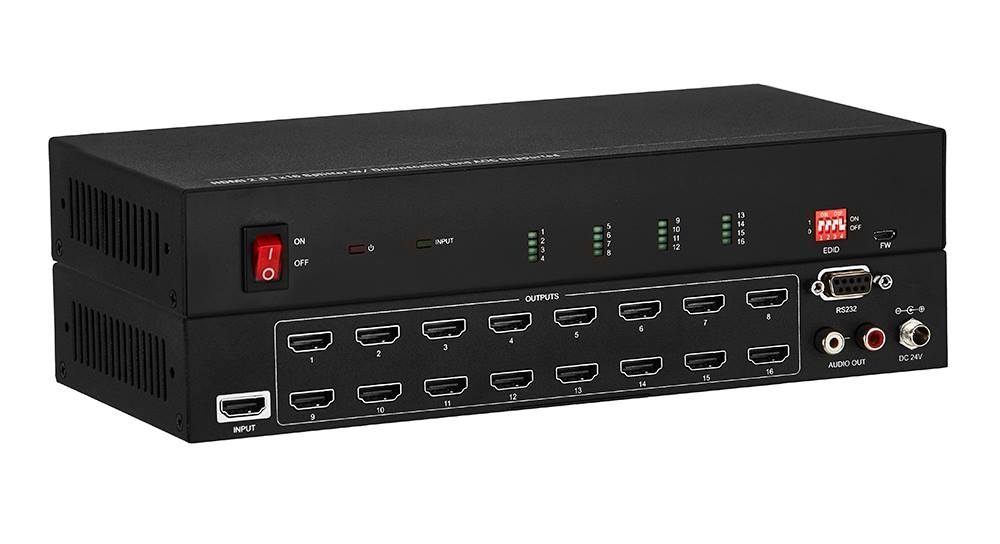

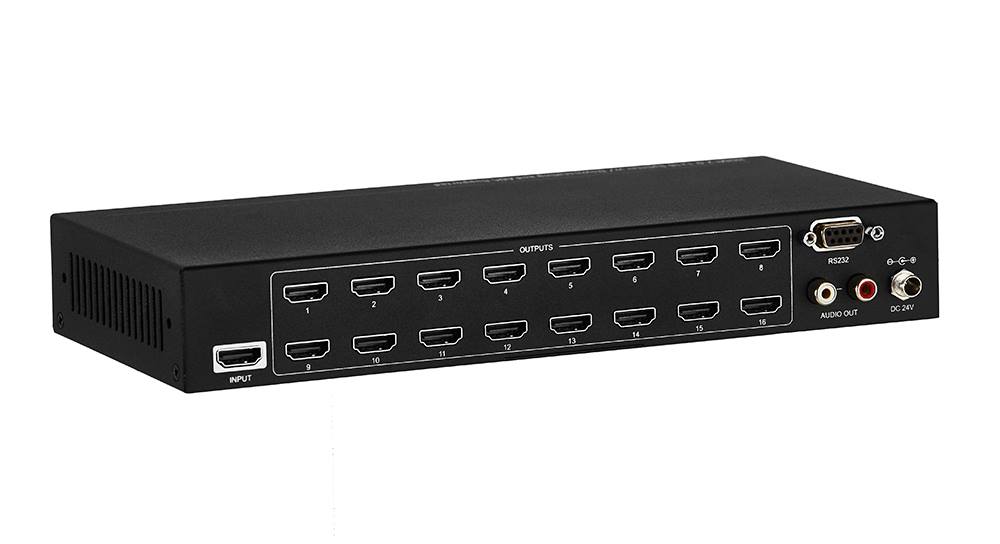

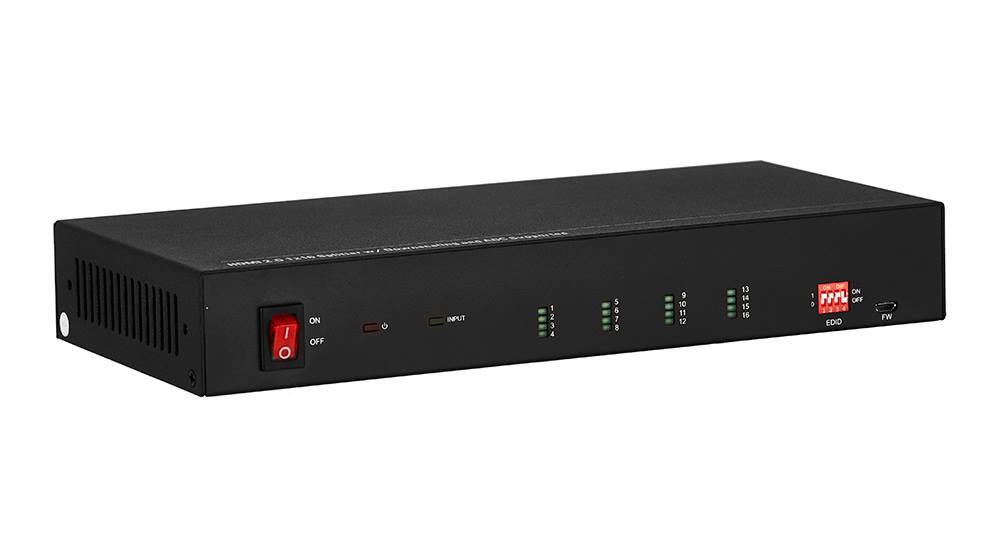

1x16 HDMI 2.0 Splitter with Downscaling

Split HDMI video 16 different ways

1 3

KanexPro

SKU: SP-1X16SL18G

UPC: 813982022713

$419.95
View full details

The KanexPro 1x16 HDMI 2.0 Splitter with Downscaling is an installer-friendly, lightweight HDMI splitter that distributes one HDMI input into eight outputs supporting uncompressed 4K UHD resolutions as well as video resolution down-scaling, the 4K input can be automatically downscaled to 1080p output for compatibility with 1080p displays.

The distribution amplifier fully conforms to the latest High Speed HDMI specifications with HDCP 2.2. This professional HDMI splitter is optimized for distributing HDMI video and embedded multi-channel digital audio to multiple display environments such as residential or digital signage markets, airports, shopping malls and medical imaging markets.



Industry Standard HDCP 2.2 & 4K/60



HDCP 2.2 authentication is present always on this splitter ensuring proper handshake of the protected content. It also maintains resolutions up to 4K- 4096x2160@24, 30, 50 or 60Hz, 3840x2160@24, 25,30, 50 or 60Hz and 2560x1080@60Hz displaying 21:9 aspect ratios. 1920 x 1200 or full HD 1080p/60 is a standard for all our splitters.

Applications:

Perfect for house of worship centers, retail stores and restaurant applications where one HDMI device can be distributed to Sixteen (16) displays.





Professional Performance





Built to commercial standards, KanexPro products offer premium features like locking power connectors, metal enclosures, and passive cooling designs which are a must for long term reliable and stable installations.





  1. Restaurants/ Sports bars/Lounges:Share a single video source with displays in various locations within single or multiple spaces.
  2. Entertainment Spaces:Share a single cable box or source amongst multiple displays in an outdoor patio, dining area, or entertainment hall.
  3. Reduce Complexity:An all-in-one splitter system reduces the complexity and the number of cables and components needed for a system with multiple displays or projectors of varying resolutions.

  • Supports HDMI V2.0 and the video resolution up to 4K@60Hz 4:4:4.

  • HDMI input supports HDCP 2.2 and the outputs support HDCP1.4.

  • Compatible with HDMI AOC cables, provides up to 5V 200mA power on each output.

  • Supports video resolution down-scaling, the 4K input can be automatically degraded to 1080p output for compatibility with 1080p display.

  • 18Gbps high bandwidth.

  • Advanced EDID management: multiple preset and user defined allowed.

  • Built-in equalizer for signal enhancement to avoid signal attenuation in transmission.

  • Backed by KanexPro's 3 Year limited warranty

Video

Input

(1) HDMI

Input Connector

(1) Type-A female HDMI

Input Video Resolution

Up to 4K@60Hz 4:4:4 8bit, HDR10, Dolby Vision

Output

(16) HDMI

OutputConnector

(16) Type-A female HDMI

Output Video Resolution

Up to 4K@60Hz 4:4:4 8bit, HDR10, Dolby Vision, supports 4K to 1080p down-scaling.

HDMI Output

Supports up to 5V100mA power for AOC cable.

HDMI Standard

V2.0

HDCP Version

2.2

HDMI Audio Signal

LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through.

Analog Audio Output

Output

(1) AUDIO

Output Connector

(1) RCA (L+R)

Frequency Response

20Hz~20kHz, ±1dB

Max output level

2.0Vrms ± 0.5dB. 2V=16dB headroom above-10dBV (316mV) nominal consumer line level signal

THD+N

< 0.05%, 20Hz~20kHz bandwidth, 1kHz sine at 0dBFS level (or max level)

SNR

> 80dB, 20Hz~20kHz bandwidth

Crosstalk isolation

< -80dB, 10kHz sine at 0dBFS level (or max level before clipping)

L-R level deviation

< 0.05dB, 1kHz sine at 0dBFS level (or max level before clipping)

Output load capability

1Kohm and higher (supports 10x paralleled 10Kohm loads)

Noise Level

- 80dB

Control Part

Control Port

(1) EDID Switch, (1) FW, (1) RS232

Control Connector

(1) 4-pin DIP switch, (1) Micro-USB, (1) Female DB9

General

Bandwidth

18Gbps

Operation Temperature

-5?~ +55?

Storage Temperature

-25?~ +70?

Relative Humidity

10%-90%

External Power Supply

Input: AC 100~240V, 50/60Hz; Output: 24V DC 1.25A

Power Consumption

26W (Max)

Dimension(W*H*D)

268mm x 40mm x 125mm

Net Weight

1.14KG√
