4K60 1×8 HDMI Distribution Amplifier over CAT6 — 150m/492ft
Extend One Source to Eight Receivers with HDR, HDCP 2.2, PoC & Balanced Audio Extraction

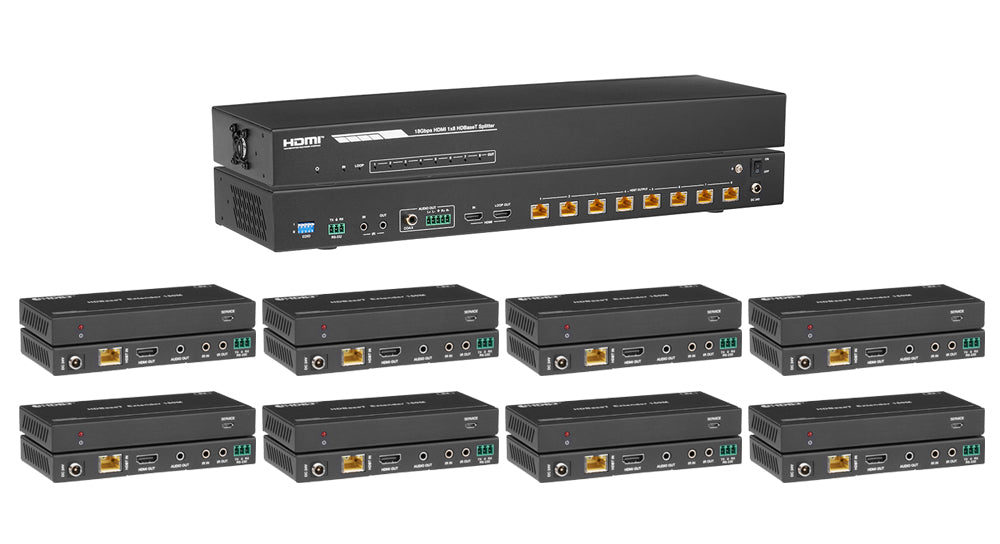

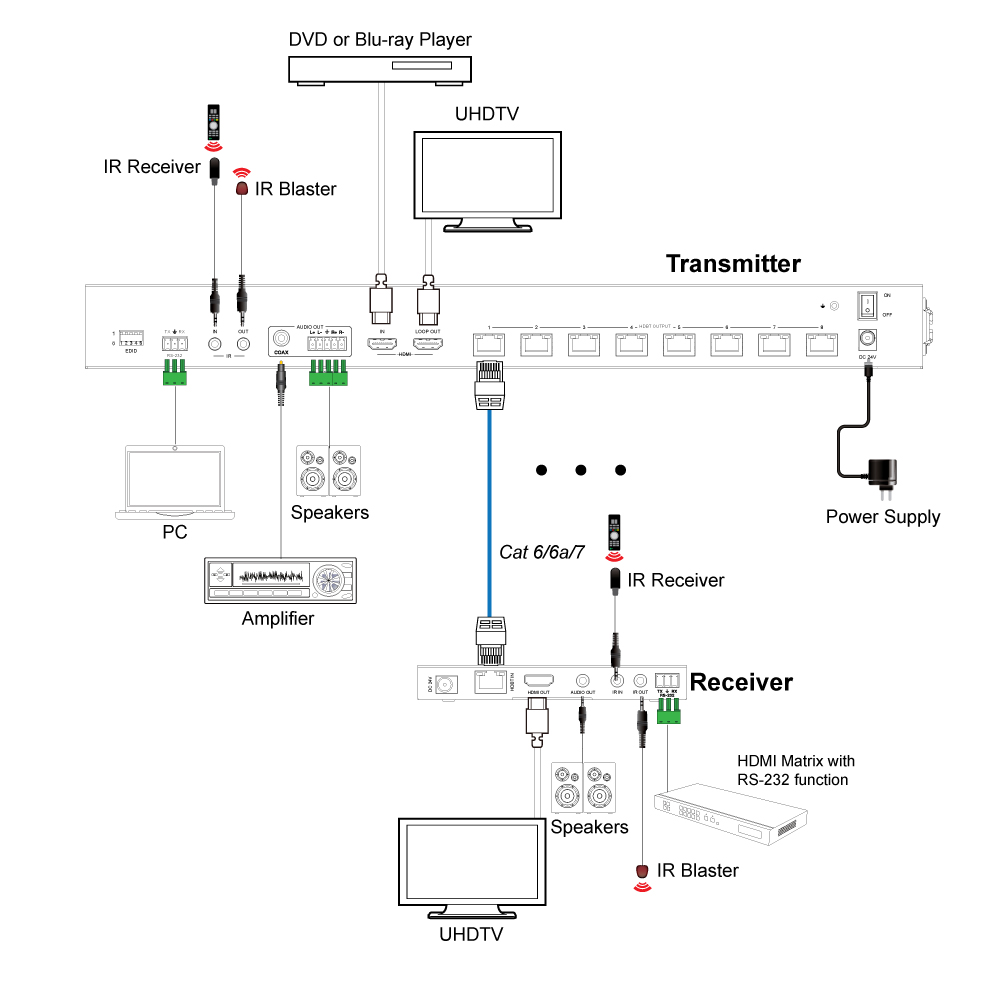

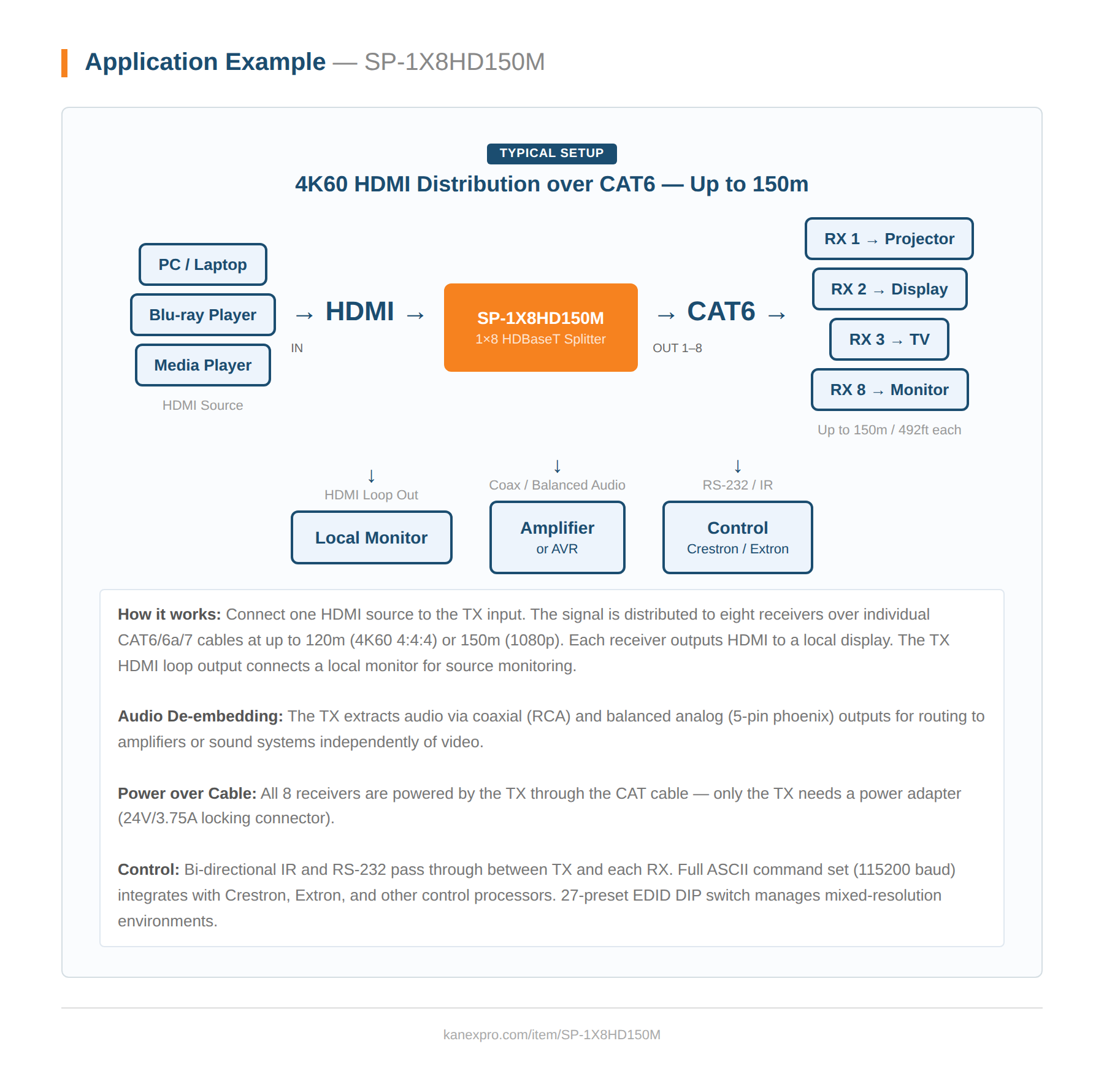

Distributes one 4K60 4:4:4 HDMI source to eight displays over CAT6 at distances up to 120m (4K) or 150m (1080p) — eliminating the need for repeaters, fiber converters, or separate power supplies at each endpoint. The SP-1X8HD150M ships as a complete TX/8×RX kit with Power over Cable, bi-directional IR, RS-232 pass-through, and both coaxial and balanced analog audio de-embedding on the transmitter.
Built for large-scale commercial AV installations in campuses, convention centers, houses of worship, and hospitality venues, the 1U rack-mountable kit supports HDMI 2.0b with HDCP 2.2/1.x compliance, HDR/HDR10+/HLG/Dolby Vision pass-through, and up to 7.1-channel HD audio including Dolby TrueHD and DTS-HD Master Audio. A 27-preset EDID DIP switch plus full ASCII command control via RS-232 simplify integration with Crestron, Extron, and other control processors.
- HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K2K@60Hz 4:4:4
- Support HDR, HDR10+, HLG and Dolby Vision
- Support up to 7.1CH HD audio pass-through
- Support digital and analog audio de-embedded output
- Extend the signal transmission distance up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable
- Support 1 HDMI input, 1 HDMI loop output and 8 Premium Extender outputs
- IR, RS-232 routed to Premium Extender output
- Advanced EDID management
- Support one-way POC function (only from transmitter to receiver)
- Compact design for easy and flexible installation
| Specification | Value |
|---|---|
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2/1.x |
| Video Bandwidth | 594 MHz / 18 Gbps |
| Video Resolution | Up to 4K2K@60Hz 4:4:4 |
| Color Depth | 8/10/12-bit |
| Color Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| HDR Formats | HDR, HDR10+, HLG, Dolby Vision |
| HDMI Audio | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, TrueHD, DD+, DTS-ES, DTS-HD MA, DTS-HD HRA, DTS-X |
| Coaxial Audio | PCM 2.0, Dolby Digital/Plus, DTS 2.0/5.1 |
| Analog Audio | PCM 2.0CH |
| ESD Protection | ±8kV (air-gap) / ±4kV (contact) |

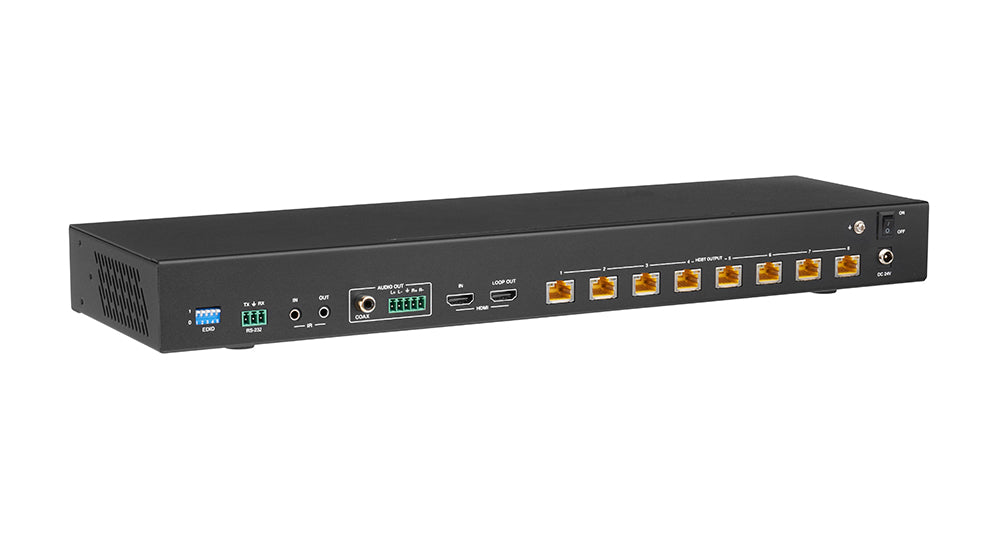

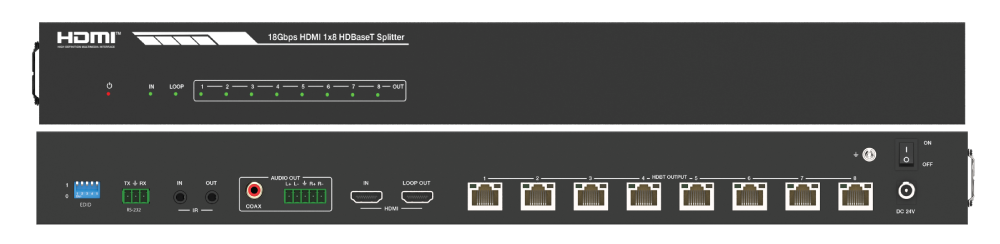

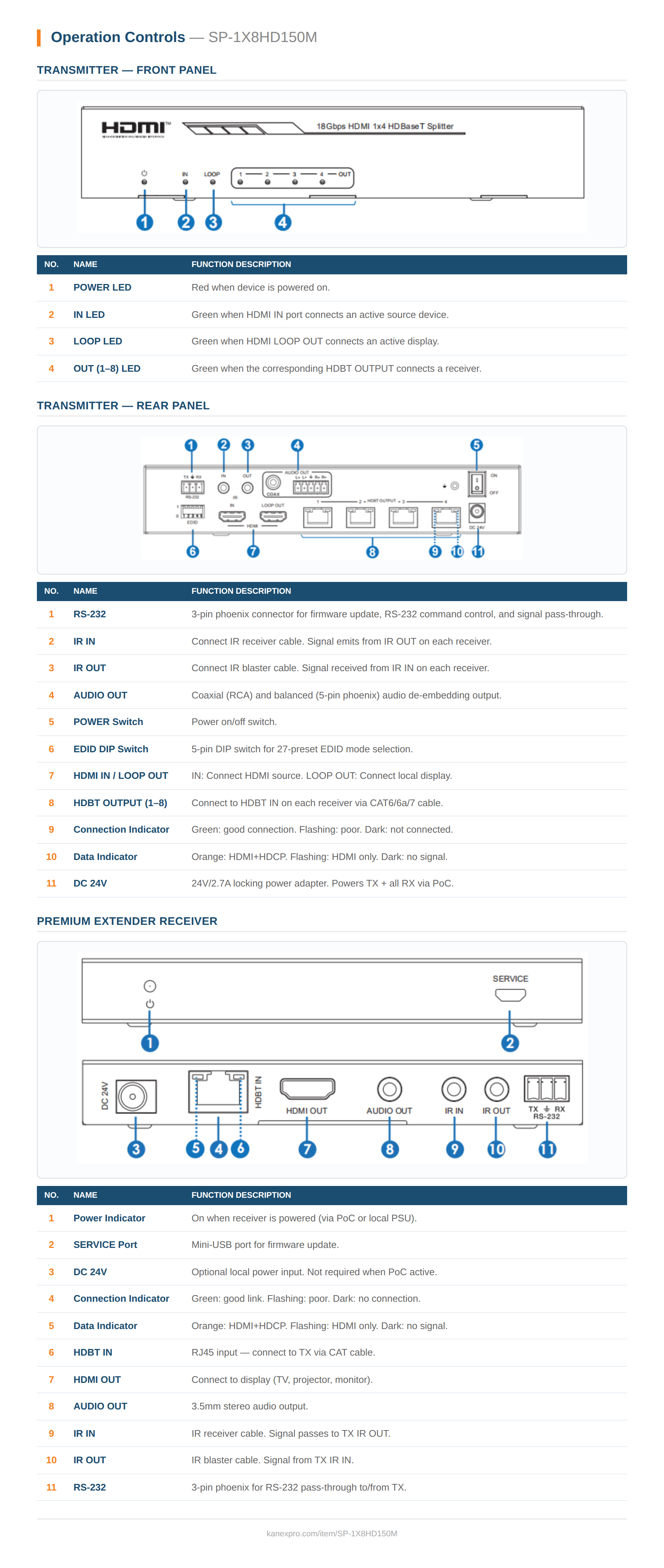

| Connection — Transmitter | |
| Input | 1× HDMI Type A (19-pin female) |
| Output — HDMI | 1× HDMI Type A (19-pin female) — Loop Out |
| Output — HDBaseT | 8× Premium Extender OUT (RJ45) |
| Audio — Coaxial | 1× Coaxial Audio OUT (RCA) |
| Audio — Balanced | 1× L/R Audio OUT (5-pin phoenix connector) |
| Control — RS-232 | 1× RS-232 (3-pin phoenix connector) |
| Control — EDID | 1× EDID DIP switch (5-pin) |
| Control — IR | 1× IR IN (3.5mm), 1× IR OUT (3.5mm) |
| Connection — Receiver (×8) | |
| Input | 1× CAT6 IN (RJ45, 8-pin female) |
| Output — HDMI | 1× HDMI Type A (19-pin female) |
| Output — Audio | 1× Audio OUT (3.5mm stereo mini-jack) |
| Control — IR | 1× IR IN (3.5mm), 1× IR OUT (3.5mm) |
| Control — RS-232 | 1× RS-232 (3-pin phoenix connector) |
| Service | 1× Mini-USB (firmware update) |
| Extension Distance | |
| 4K2K@60Hz | Up to 120m / 394ft over CAT6/6a/7 |
| 1080p@60Hz | Up to 150m / 492ft over CAT6/6a/7 |
| Mechanical | |
| Housing | Metal Enclosure, Black |
| TX Dimensions | 440mm (W) × 130mm (D) × 40mm (H) |
| RX Dimensions | 140mm (W) × 65mm (D) × 18mm (H) |
| TX Weight | 1.62kg |
| RX Weight | 246g |
| Power | |
| Power Supply | Input: AC 100–240V 50/60Hz, Output: DC 24V/3.75A (locking connector) |
| Power Consumption | 35W |
| PoC | One-way, transmitter to receivers |
| Environment | |
| Operating Temperature | 0°C – 40°C / 32°F – 104°F |
| Storage Temperature | -20°C – 60°C / -4°F – 140°F |
| Relative Humidity | 20–90% RH (non-condensing) |
| Certifications | |
| Regulatory | CE, FCC, UL |
| Package Contents | |
| Included | 1× TX Splitter, 8× RX Receivers, 9× IR Blaster Cable (1.5m), 9× IR Receiver Cable (1.5m), 9× 3-pin Phoenix Connector, 1× 5-pin Phoenix Connector, 18× Mounting Ears, 1× 24V/3.75A DC Locking Power Adapter, 1× User Manual |
