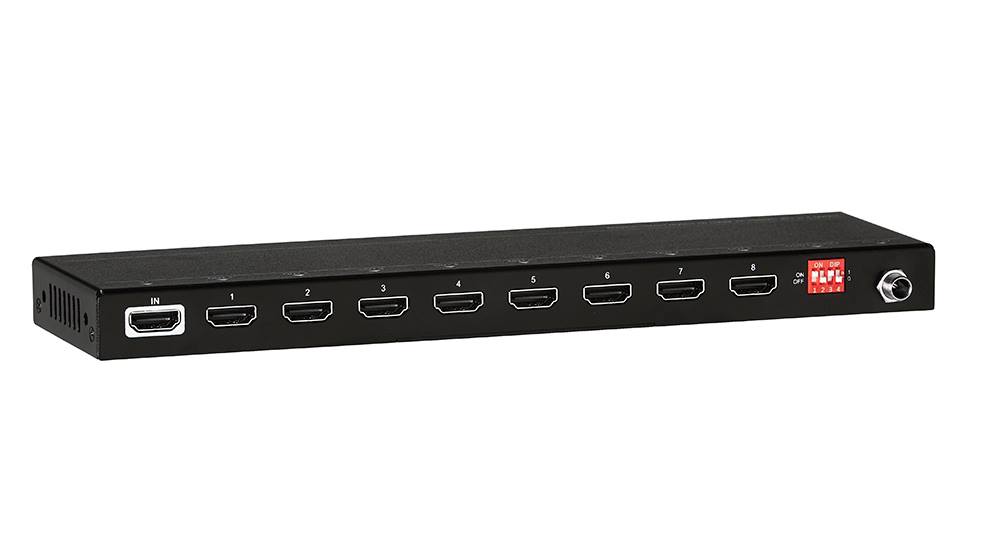

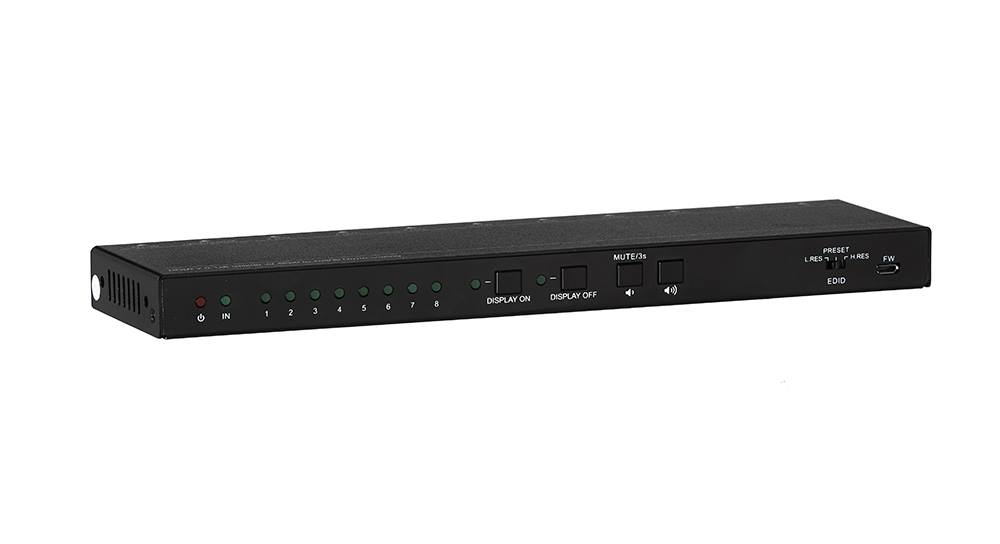

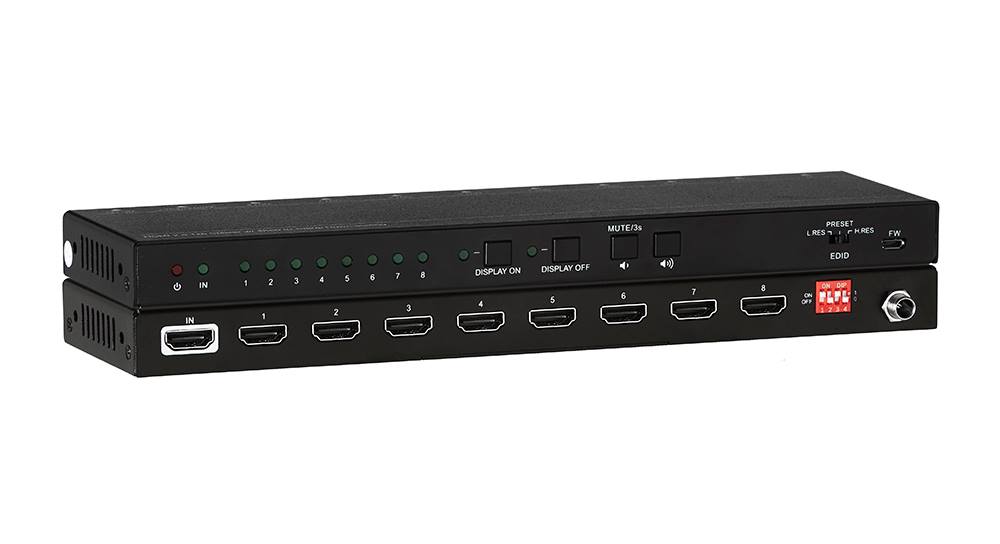

1x8 HDMI 2.0 Splitter with Downscaling

The KanexPro 1x8 HDMI 2.0 Splitter with Downscaling is an installer-friendly, lightweight HDMI splitter that distributes one HDMI input into eight outputs supporting uncompressed 4K UHD resolutions as well asvideo resolution down-scaling, the 4K input can be automatically downscaled to 1080p output for compatibility with 1080p displays.

The distribution amplifier fully conforms to the latest High Speed HDMI specifications with HDCP 2.2. This professional HDMI splitter is optimized for distributing HDMI video and embedded multi-channel digital audio to multiple display environments such as residential or digital signage markets, airports, shopping malls and medical imaging markets.

Industry Standard HDCP 2.2 & 4K/60

HDCP 2.2 authentication is present always on this splitter ensuring proper handshake of the protected content. It also maintains resolutions up to 4K- 4096x2160@24, 30, 50 or 60Hz, 3840x2160@24, 25,30, 50 or 60Hz and 2560x1080@60Hz displaying 21:9 aspect ratios. 1920 x 1200 or full HD 1080p/60 is a standard for all our splitters.

Applications:

Perfect for house of worship centers, retail stores and restaurant applications where one HDMI device can be distributed to eight displays.

Professional Performance

Built to commercial standards, KanexPro products offer premium features like locking power connectors, metal enclosures, and passive cooling designs which are a must for long term reliable and stable installations.

1. Restaurants/ Sports bars/Lounges:Share a single video source with displays in various locations within single or multiple spaces.
2. Entertainment Spaces:Share a single cable box or source amongst multiple displays in an outdoor patio, dining area, or entertainment hall.
3. Reduce Complexity:An all-in-one splitter system reduces the complexity and the number of cables and components needed for a system with multiple displays or projectors of varying resolutions.

• Supports HDMI V2.0 and the video resolution up to 4K@60Hz 4:4:4.

• HDMI input supports HDCP 2.2 and the outputs support HDCP1.4.

• Compatible with HDMI AOC cables, provides up to 5V 200mA power on each output.

• Supports video resolution down-scaling, the 4K input can be automatically degraded to 1080p output for compatibility with 1080p display.

• 18Gbps high bandwidth.

• Advanced EDID management: multiple preset and user defined allowed.

• Built-in equalizer for signal enhancement to avoid signal attenuation in transmission.

• Backed by KanexPro's 3 Year limited warranty
