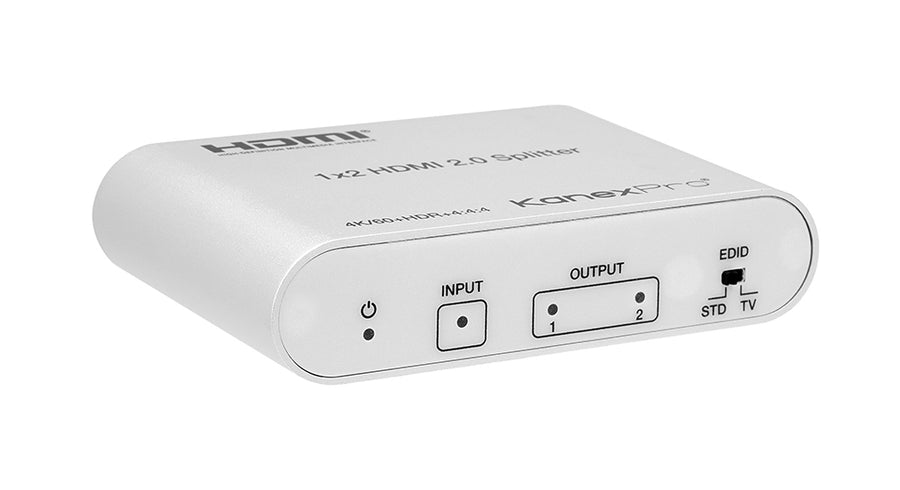

4K HDMI 1x2 Splitter with HDCP2.2

The 4K HDMI 1x2 Splitter with HDCP2.2 is a purpose-built splitter that lets you drive two displays from a single HDMI source without compromising picture quality or audio fidelity. Built for modern home theaters, conference rooms, and signage setups, this compact device delivers cinema-grade 4K resolutions, robust HDCP protection, and intelligent EDID handling to ensure every screen shows its best possible image.

Why this 1x2 HDMI splitter stands out

Designed for reliability and simplicity, it split-quivers one high-definition signal to two displays while preserving the integrity of video and audio streams. Key advantages include:

• HDCP2.2 compliance ensures compatibility with the latest 4K streaming services and devices while protecting content.
• Smart EDID Control with an EDID selector optimizes resolutions for each connected display, so both screens render the brightest colors and sharpest detail without manual tweaking.
• Wide resolution support covers 480i through 1080p50/60, plus 4Kx2K at 30Hz with 24-bit RGB and YCbCr 4:4:4/4:2:2, and 4Kx2K at 60Hz with 12-bit YCbCr 4:2:0, plus VGA through UXGA for legacy devices.
• Two HDMI outputs allow simultaneous display on two screens, ideal for multi-monitor workstations, split-screen demos, or dual-display home theater layouts.
• Front-panel LED indicators provide at-a-glance status for input and output signals, making diagnostics quick and straightforward.
• Low power, robust build with a 5V DC, 1A external power supply and a nominal consumption of 2W, suitable for desk or rack setups.

What it enables in real-world setups

Imagine streaming a 4K movie from a source player to your living room TV while simultaneously feeding a second display for a live monitoring or gaming HDMI feed. Or deploy it in a conference room to mirror a single presenter’s content on a main screen and a secondary display for attendee-facing notes, without reconfiguring color spaces or risking signal dropouts. The EDID selector ensures each display presents the optimal resolution, even when screen capabilities differ. And because it’s HDCP2.2 compliant, you can trust it with current 4K blu-ray players, streaming boxes, and premium media players.

Intended for: home theater enthusiasts, corporate conference rooms, digital signage deployments, and multi-display enthusiasts who demand stable 4K distribution without sacrificing clarity or color accuracy.

Technical overview (quick reference)

• Signal Input/Outputs: 1 x HDMI input; 2 x HDMI outputs
• HDMI standard: High Speed HDMI Spec 2.0a compatible
• HDCP: HDCP 2.2 compliant
• Resolutions supported: 480i ~ 1080p50/60; 4Kx2K @30Hz (24-bit RGB, YCbCr 4:4:4 & 4:2:2); 4Kx2K @60Hz (12-bit YCbCr 4:2:0); VGA ~ UXGA
• EDID: Built-in Smart EDID Control with EDID Selector for optimal resolutions
• DDC: Input DDC Signal 5 Volts p-p (TTL)
• Power: External 5V DC, 1A power supply; ~2W consumption
• Regulatory: FCC, CE, UL approvals
• Operating environment: 0°C to 40°C (32°F to 104°F); storage -20°C to 60°C
• Dimensions: 2.52" (W) x 6.10" (D) x 0.67" (H); Weight: 180 g

What’s included

• HDMI 1x2 Splitter
• 5V, 1A Power Supply
• Operation Manual

With the 4K HDMI 1x2 Splitter with HDCP2.2, you’re not just splitting a signal—you’re optimizing it for a dual-display environment. It’s the practical, installer-friendly solution for delivering high-fidelity 4K content across two displays without compromise.
