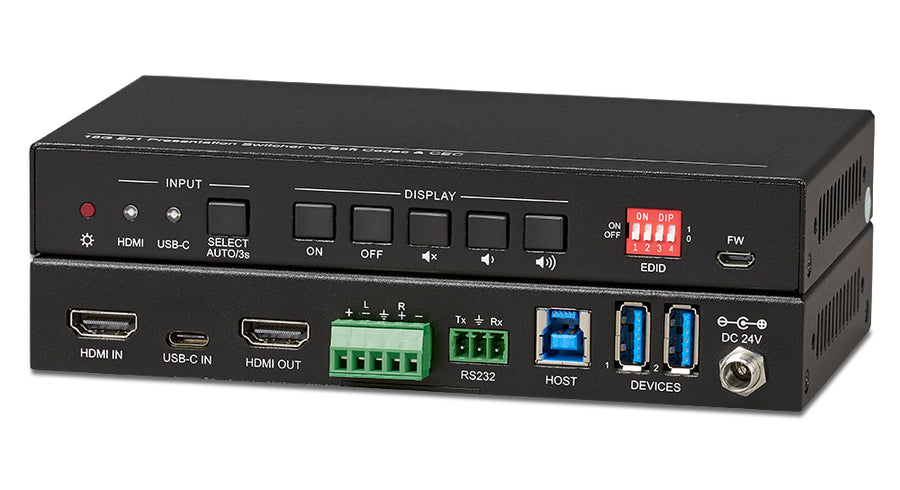

Kanexpro Auto Switcher | 2-Input Collaboration System

The KanexPro SW-2X14KUSBC switcher addresses the everincreasing need to connect USB-C based laptops, tablets, and other devices in conference rooms and small huddle rooms. The SW-2X14KUSBC is intelligently designed to auto-switch between two devices. It supports video resolution up to 4K@60Hz 4:4:4 8-bit, 2K@60

USB-C Charging for MacBooks, Tablets and Laptops

The 2X1 switcher allows USB-C charging on the input port up to 60 Watts for MacBook Pro, iPad, or slimport based laptops while you collaborate in huddle rooms.

Audio and USB 3.0 for SOFTCODEC & Peripheral Sharing

The switcher supports stereo and multichannel audio on the HDMI inputs. In addition to the audio embedded in the HDMI output stream, the audio is simultaneously de-embedded to a balanced analog audio output. It also supports device extension by providing one type-B USB 3.0 port for host connection to a PC, and two type-A USB ports for HID devices such as camera, microphone, keyboard for instant conferencing.

Auto-Switching Enabled

The switcher features multiple methods of control. When in the AUTO mode, the switcher will automatically switch to the first detected source device. When the active source is removed, the switcher will switch to the lowest numbered input. The switcher can be manually controlled by the front panel buttons and RS232 command. CEC allows the display device can be controlled by the front panel buttons and RS232 CEC

Applications:

The low-profile design with auto-switching capability enable discreet placement in lecterns, beneath tables in smaller conference rooms, huddle rooms and smart classrooms and is perfect for on-the-spot conferencing using Skype, Lync, Zoom and much more apps.

• A true 4K/60, 2x1 auto-switcher with HDMI 2.0 and USB-C inputs
• Intelligent Automatic switching
• Provides charging on USB-C port up to 60W perfect for MacBook & iPads
• Controllable via front panel buttons & RS232C
• Built-in EDID management
• 4Kx2K@60Hz 4:4:4, HDR 10, Dolby Vision & HDCP 2.2.
• Provides USB data (USB 3.0/2.0) and 4K video transmission on USB-C port.
• Balanced analog audio for audio de-embedding.
• Peripheral units (e.g. microphone and camera) can be connected by type-A USB (USB 3.0/2.0) ports and automatically switched along with HDMI and USB-C input as USB DEVICES for corresponding HOST.
• Smart EDID management capable for various applications and customized setting.
• Control via front panel buttons
• Handles CEC & RS- 232 commands for display control such as, (ON, OFF, MUTE, VOL+, VOL -)
• Low profile, perfect for lecterns, small to medium sized huddle rooms
• International, locking power supply
• Backed by KanexPro 3 year parts and labor warranty

Whats inlcuded in the box:

• 1x SW-2X14KUSBC Switcher
• 2x Mounting Ears with 4 Screws
• 4x Plastic Cushions
• 1x 5-pin Terminal Block
• 1x RS232 Cable (3-pin terminal block to DB9)
• 1x Power Adapter / cord (24V DC, 2.71A)
• 1x User Manual
