3x1 HDMI Switcher with 4K Support

Perfect for Home Theater which requires multiple switching

1 1

KanexPro

SKU: SW-HD3X14K

UPC: 813982020009

$25.16 $31.45 Save 20%
View full details

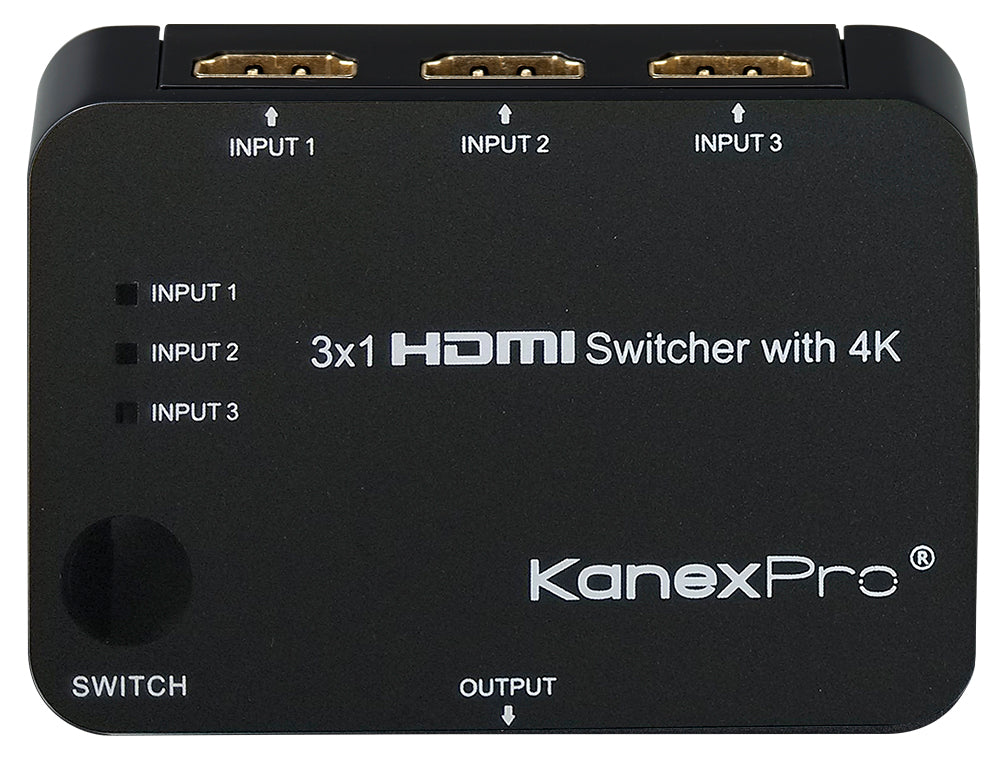

The KanexPro 3x1 HDMI Switcher is a compact three input to one output switch providing 4K ultra-HD resolutions. It is a simple switcher designed to connect three HDMI sources such as Apple TV, Blu-ray, PS4 or Xbox one to your 4K, HDTV or a projector. Perfect for home theater and pro-sumers looking to connect HDMI based devices to an Ultra-HDTV.

Note: This product uses ultra-low power to connect therefore no need to connect to a power supply. It does include a USB to barrel cable which allows you to power an external 5V DC device by using an available computer USB port.

  • Rapidly switch between 3 inputs to one output
  • Supports resolutions up to 4K@30Hz
  • Full HD 1080p & 1920x1200
  • HDCP and EDID Compliant
  • Supports all 3D formats
  • Ultra-low power consumption, does not require a power supply
  • Switch using a manual button or included IR remote
  • Supports High Speed HDMI Specifications - (Deep color, HD lossless audio formats & Lip Sync)
  • Audio support: Dolby TrueHD, DTS-HD Master Audio 7.1ch
  • Supports uncompressed audio such as LPCM and compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
  • Front-panel LED’s for input/ output signal presence
  • Ultra compact design
  • IR / Remote control included

Signal Input/Outputs:

  • Input DDC Signal: 5 Volts p-p (TTL)
  • Input & Output Signal: High Speed HDMI Spec 1.4a

Operating Frequency: Vertical Frequency Range: 50/60Hz

Video Amplifier Bandwidth: 2.95 Gbps per Channel

Resolutions:

  • (HDTV) Interlaced (50&60Hz): 480i, 576i, 1080i
  • Progressive (50&60Hz): 480p, 576p, 720p, 1080p & 4K@30Hz

IR specs: Input Ports: 5 HDMI Female ports, IR Receive port

Power Requirements:

  • Power Consumption: 0.2W
  • (Optional)External Power Supply: 5V DC @ 2A

Regulatory Approvals:

  • Converter Unit: FCC, Ce, UL
  • Power Supply: UL, Ce, FCC

Environment Operating Temperature:

  • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
  • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F

Dimensions: W 3.0" x D 2.0" x H1.70"

Weight: 1.80 ounces

Warranty: Limited 1-Year Parts & Labor

Package Contents:

  • HDMI 1.4 3x1 Switcher
  • Remote control IR Receive Extend cable
  • Operation Manual

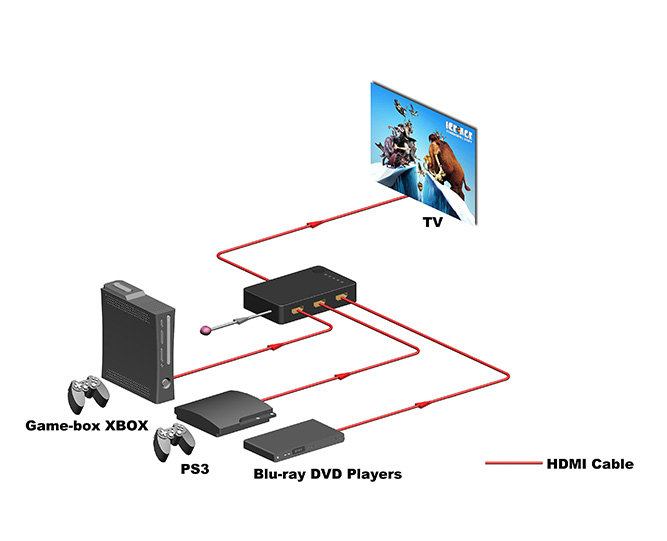

Product Diagram

No panel image available.
