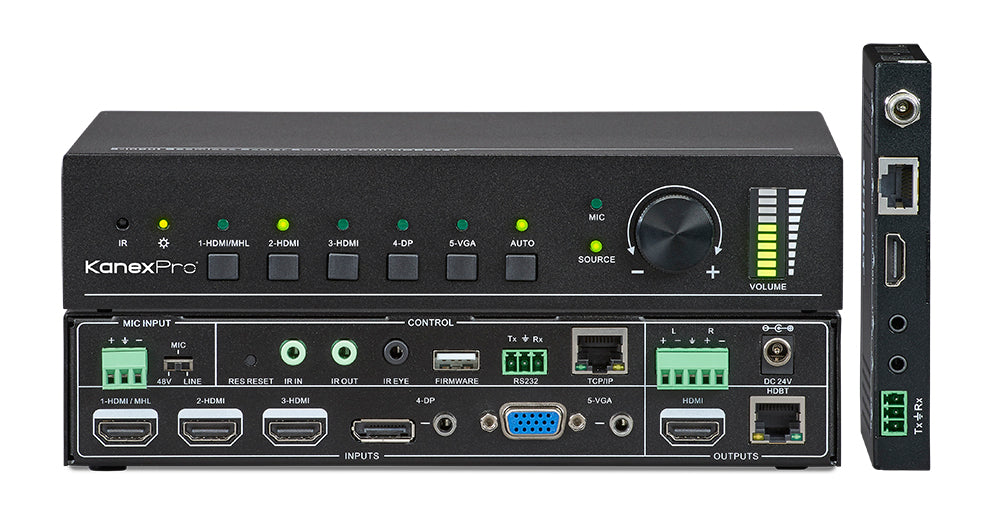

5-Input HDBaseT™ Seamless Presentation Switcher & Scaler

Meet the 5-Input HDBaseT™ Seamless Presentation Switcher & Scaler — the compact, high‑performance hub your classroom, boardroom, or event space has been waiting for. Designed to keep your presentations flowing, it quickly switches and scales five sources to two mirrored displays, so you can present with confidence without juggling cables or extra equipment.

Fast Switch & Scale Five inputs on to 2 mirrored displays — powered by HDBaseT technology, this device sends video, audio, and control signals over a single CAT5e/6 run for distances up to 230 feet (70 meters). An accompanying HDBaseT receiver with PoH support simplifies installation and reduces clutter, making this switcher ideal for rooms where layout and sightlines matter.

Why this switcher stands out

• Five inputs, two outputs with seamless, auto-switching between sources. Switch between laptops, media players, cameras, and more without missing a beat.
• HDBaseT output distance extends signal over CAT5e/6 up to 230 ft (70 m) — perfect for large conference rooms or lecture halls.
• HDMI Auto-switching and HDMI & HDCP 2.2 compatibility ensure smooth playback from protected sources while maintaining compatibility with modern displays and content.
• Built-in audio de-embedder for HDMI and VGA inputs, enabling clean extraction of audio to outputs or separate audio routing without extra boxes.
• VGA versatility supports C‑video, YPbPr, and standard VGA, broadening compatibility with legacy equipment.
• Flexible audio options with phantom power for condenser mics (48 V), a dedicated mic input with balanced/unbalanced support, and a 3‑level mic input for condenser, dynamic, or wireless mics.
• Comprehensive control Bi‑directional IR, RS232, and TCP/IP control, plus intuitive buttons, an IR remote, and a powerful web-based GUI with an integrated OSD for on‑the‑fly adjustments.

Use cases and real-world scenarios

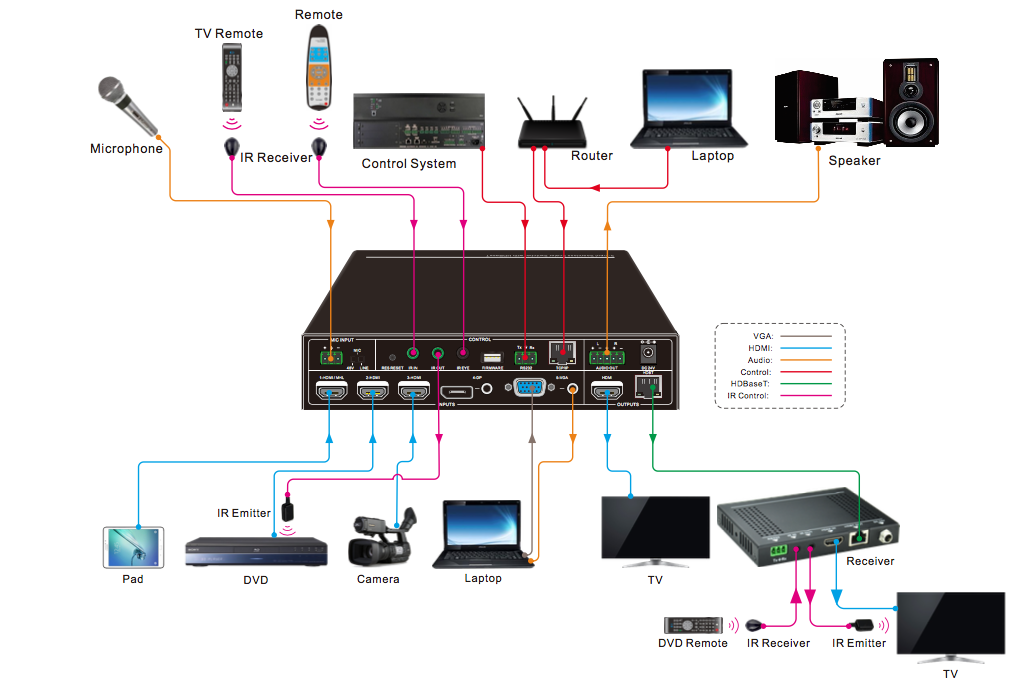

• Education: connect a laptop, document camera, and media player to two projectors, then switch sources in seconds during lectures or labs with crystal‑clear audio.
• Corporate: run a training session or board meeting from multiple presenters’ devices, pausing to switch inputs without disconnecting cables or re‑configuring displays.
• Events and venues: stage different media feeds (HDMI, DP, VGA) to two large displays while maintaining clean audio routing and reliable control from a central touch panel or remote.

Specifications at a glance

This switcher is HDCP 2.2 compliant and CEC-enabled, ensuring compatibility with modern displays while giving you simple control over what displays and how content is shown. Its robust audio and mic pathways—paired with balanced/unbalanced mic input and phantom power—make it ideal for presentations, lectures, and performances where audio fidelity matters as much as video clarity.

For installers and integrators, the device offers flexible control options: a responsive on‑device control panel, an IR remote, RS232, and a TCP/IP interface for integration into campus or corporate control systems. The included HDBaseT receiver with PoH support simplifies installation in rooms with challenging cable routing, and the web-based GUI streamlines configuration and ongoing tweaks without needing specialized software.

UPC: 813982021402 — a proven choice for organizations that demand reliable, scalable AV switching with quality audio, flexible input options, and long‑reach HDBaseT distribution.
