2×1 HDMI & Mini DisplayPort HDBaseT Wall Plate Extender Kit — 50 Meters

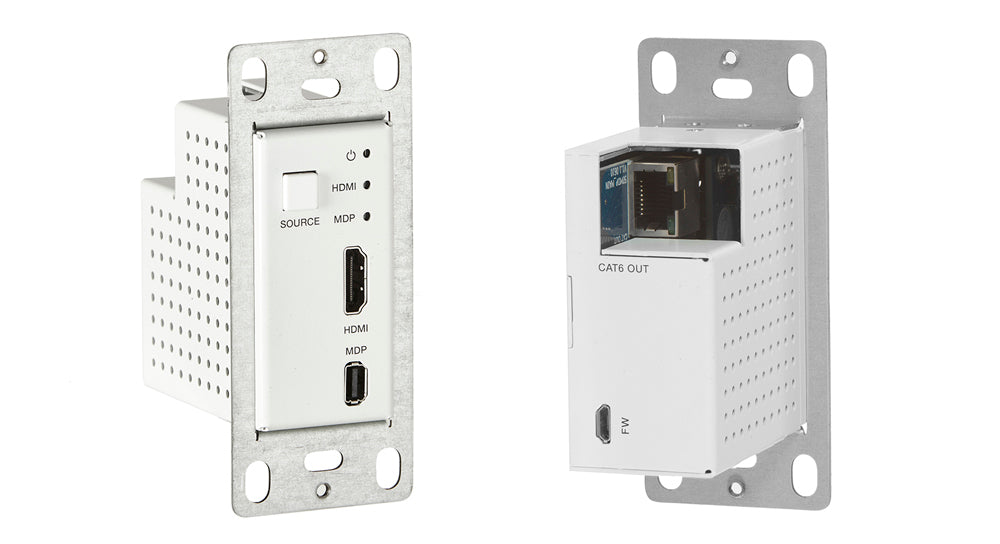

The KanexPro WP-EXTHDMDP50 is a 2×1 HDMI and Mini DisplayPort HDBaseT wall plate extender kit for environments that need to accommodate both modern HDMI sources and legacy Mini DisplayPort devices — including older MacBooks, Surface Pro tablets, and workstations — from a single clean wall plate. The single-gang Decora-style transmitter routes either input over a single CAT5e/6 cable, extending 4K@24Hz up to 50 meters and 4K@60Hz 4:4:4 up to 35 meters.

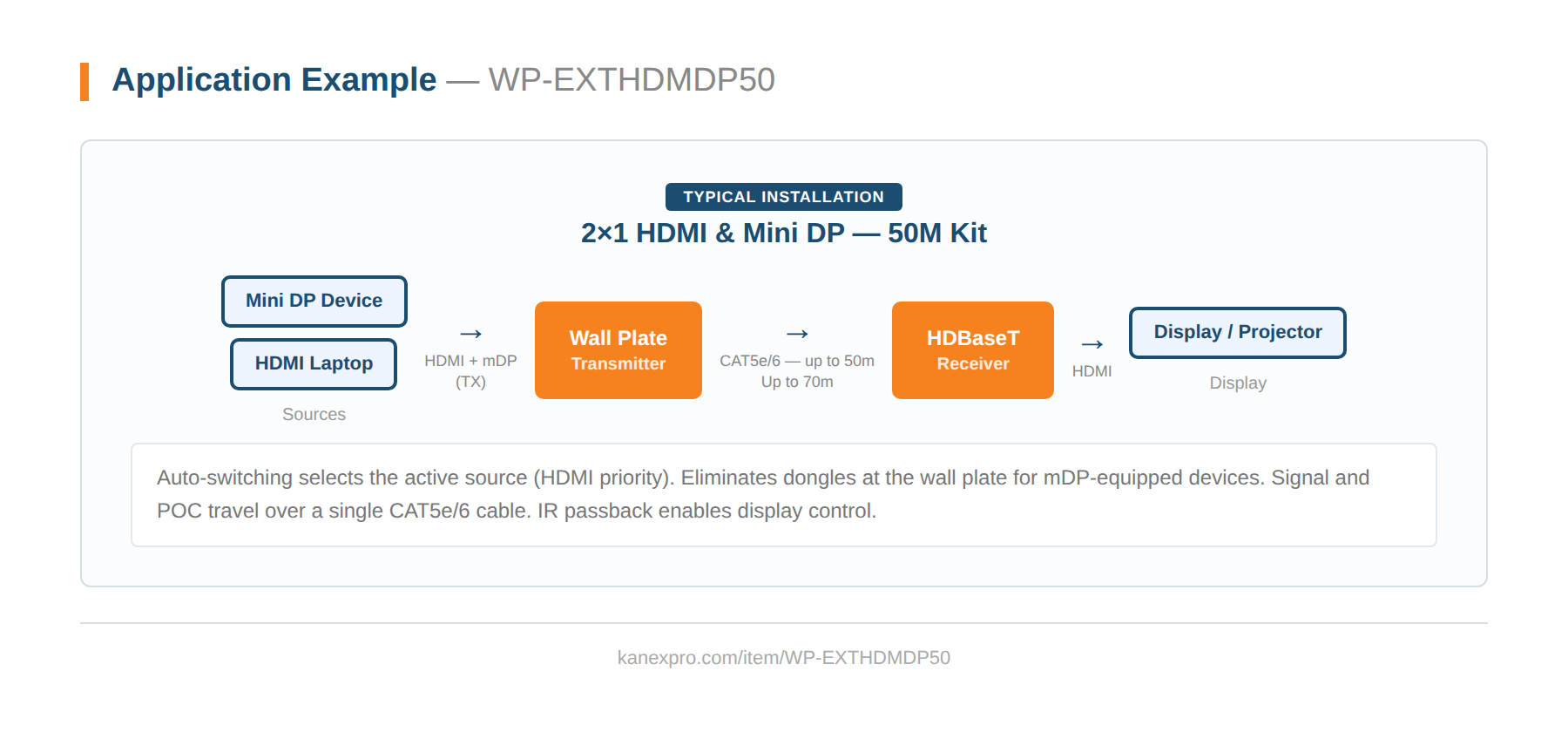

Designed for education, corporate, and government installations where mDP-equipped legacy devices must coexist alongside HDMI sources, the WP-EXTHDMDP50 removes the need for dongles or adapters at the presentation point. The wall plate is remotely powered via POC from the receiver — no local AC power required. Auto-switching selects the active source automatically; HDMI takes priority when both are active. The receiver includes an IR input for display control passback. Interchangeable white and black faceplates. 3-year KanexPro warranty.

• Compliant with HDMI 2.0b, HDCP 2.2 and DisplayPort 1.2a
• Supports 18Gbps video bandwidth (HDMI); 5.4Gbps (mDP)
• Video resolution up to 4K/UHD@60Hz 4:4:4
• CAT6 output extends up to 164ft/50m for 4K@24 or 115ft/35m for 4K@60 4:4:4 via single CAT5e/6 cable
• Supports 3D and HDR format video
• Does not support CEC control
• HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• Supports HDMI and Mini DisplayPort (mDP) input
• US one-gang enclosure for Decora-style wall plate openings
• Input signal selection supports automatic and manual mode
• Supports POC function (Receiver to Transmitter only)
• Backed by KanexPro 3-Year Parts and Labor Warranty
