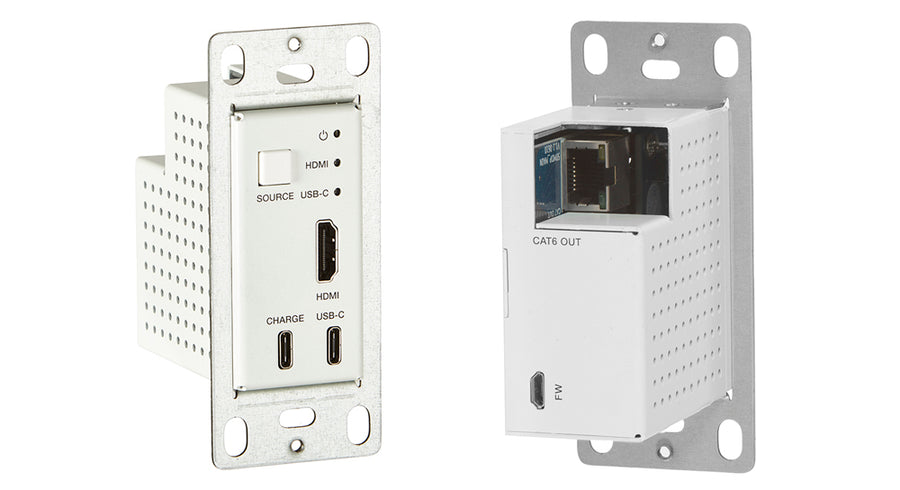

2×1 HDMI & USB-C HDBaseT Wall Plate Extender Kit — 50 Meters

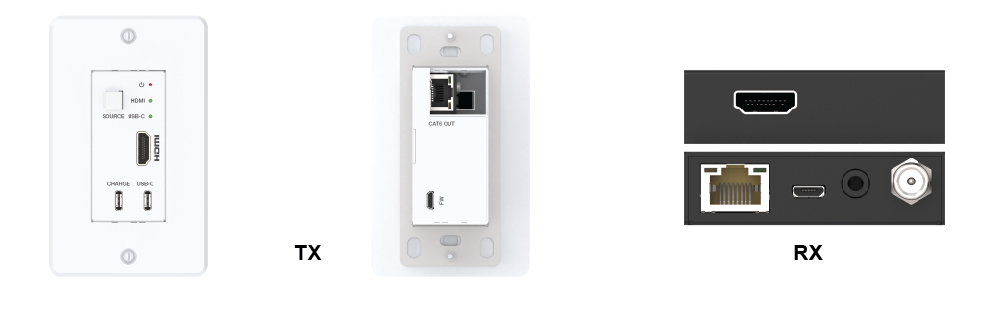

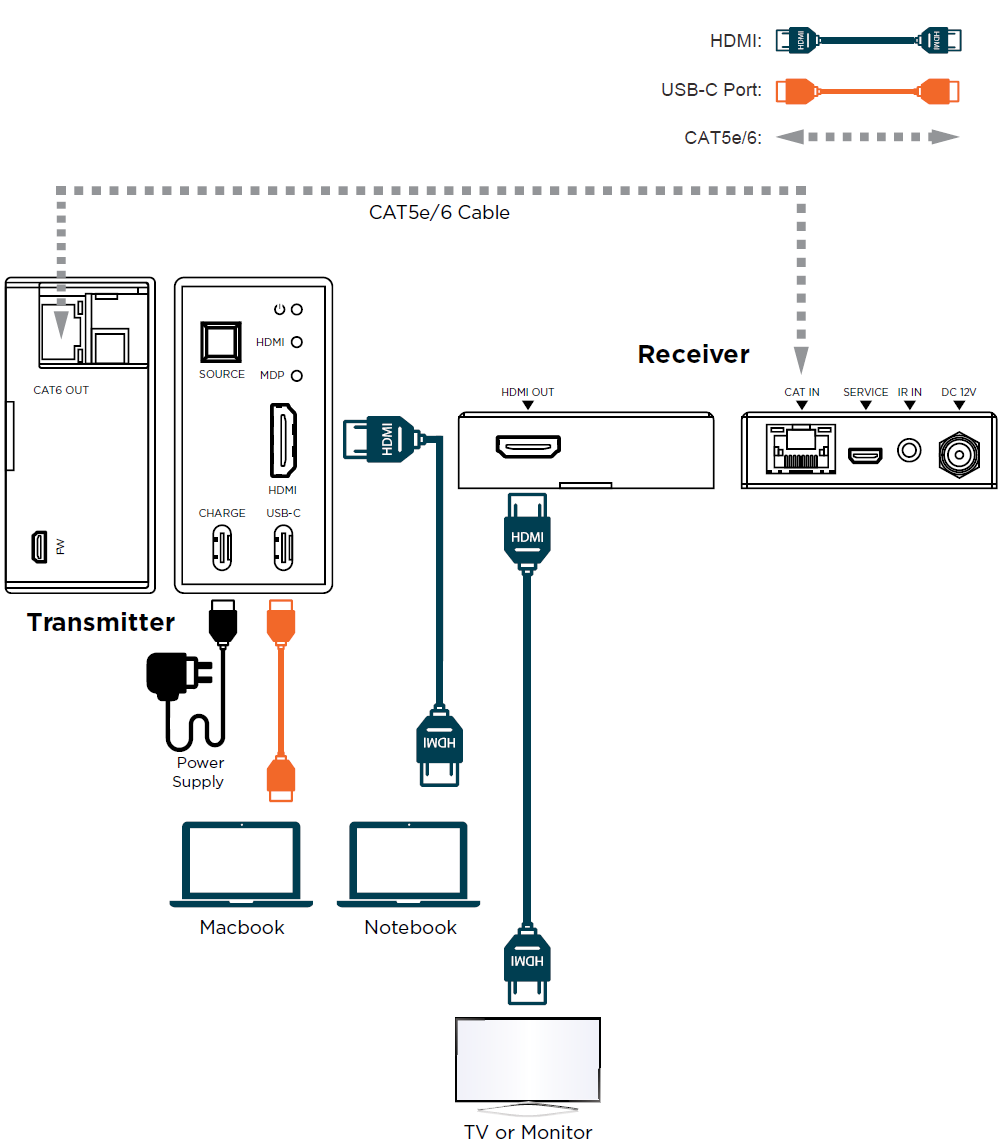

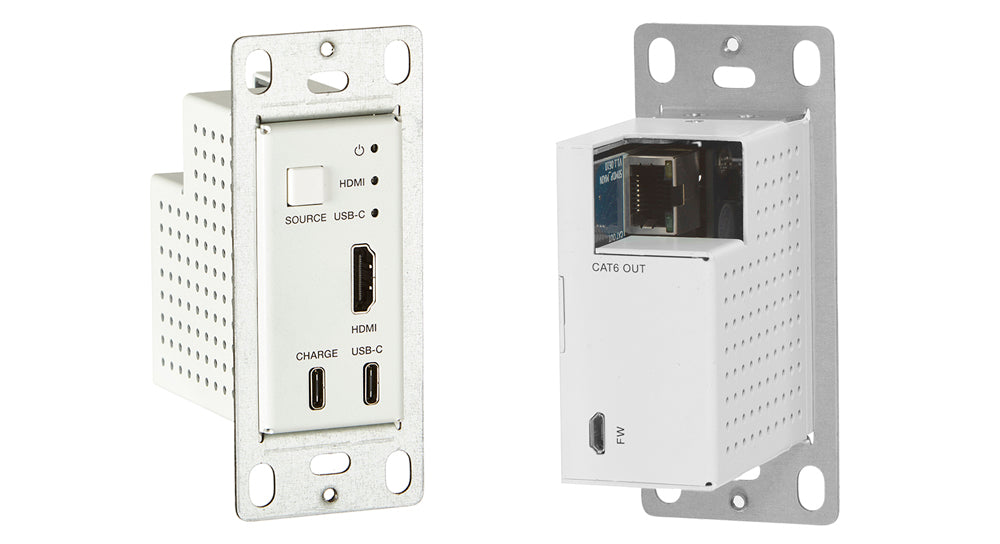

The KanexPro WP-EXTHDTC50 is a 2×1 HDMI and USB-C HDBaseT wall plate extender kit for conference rooms, classrooms, and presentation spaces that need clean 4K/60Hz signal routing without local power at the source. The single-gang Decora-style wall plate transmitter accepts HDMI 2.0b or USB-C sources — including Apple MacBooks, Windows laptops, and mobile devices — and transmits over a single CAT5e/6 cable to the included receiver. Supports 4K@24 up to 50 meters and 4K@60Hz 4:4:4 up to 35 meters.

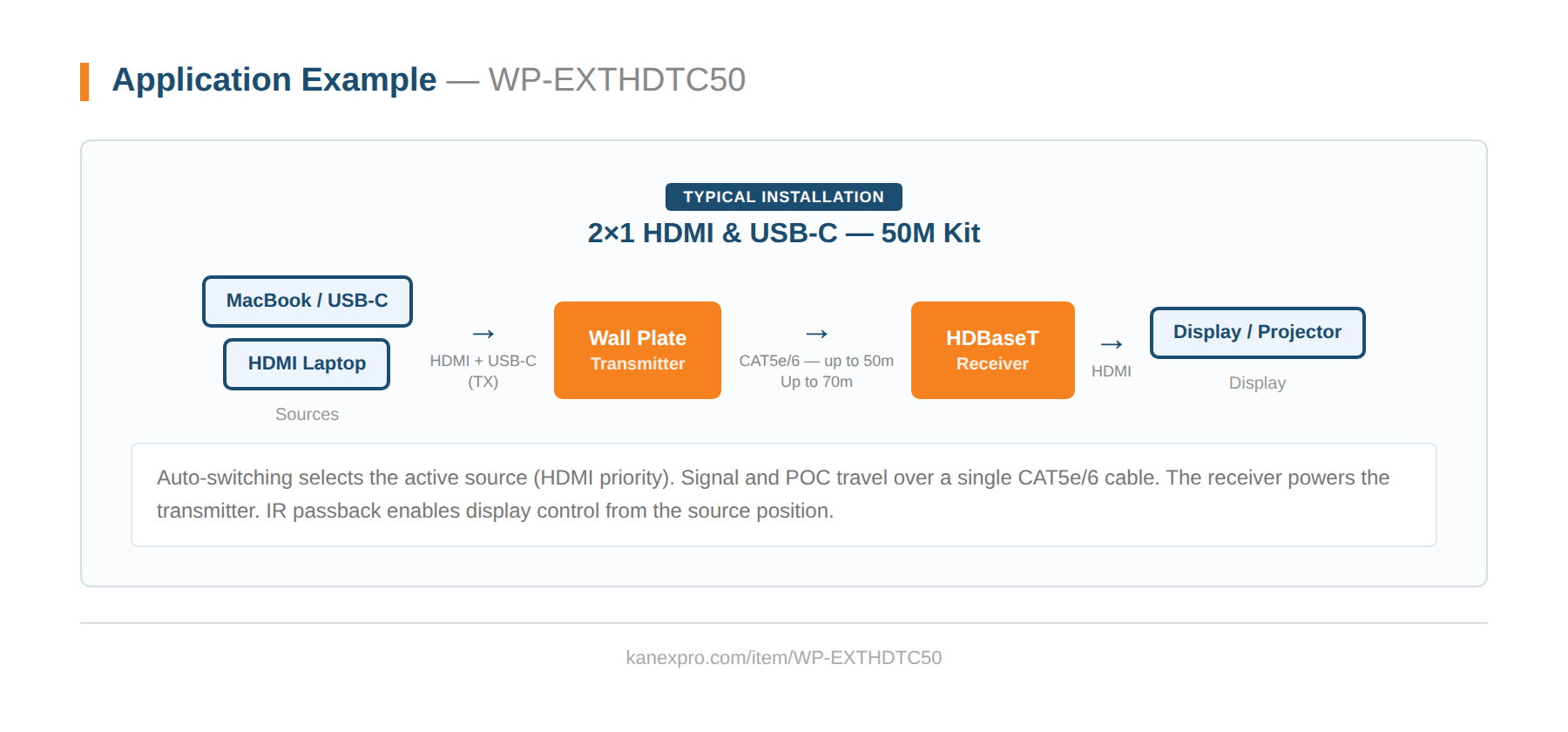

Built for integrators who need a reliable, cost-effective BYOD connection point, the WP-EXTHDTC50 includes POC so the wall plate transmitter requires no local AC power — the receiver handles power delivery over the CAT cable. An IR input on the receiver extends display control back to the source location. Auto-switching prioritizes HDMI when both inputs are active; manual source selection is available via front-panel button. Includes interchangeable white and black faceplates. 3-year KanexPro warranty.

• Compliant with HDMI 2.0b, HDCP 2.2 and DisplayPort 1.2a
• HDMI input supports 18Gbps video bandwidth
• USB-C input supports 5.4Gbps video bandwidth
• Video resolution up to 4K2K@50/60Hz 4:4:4
• CAT6 output extends up to 164ft/50m for 4K@24 or 115ft/35m for 4K@60 4:4:4 via single CAT5e/6 cable
• Supports 3D, HDR10 and Dolby Vision
• HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• Supports HDMI and USB-C input
• USB-C charging port on transmitter
• US one-gang enclosure for Decora-style wall plate openings

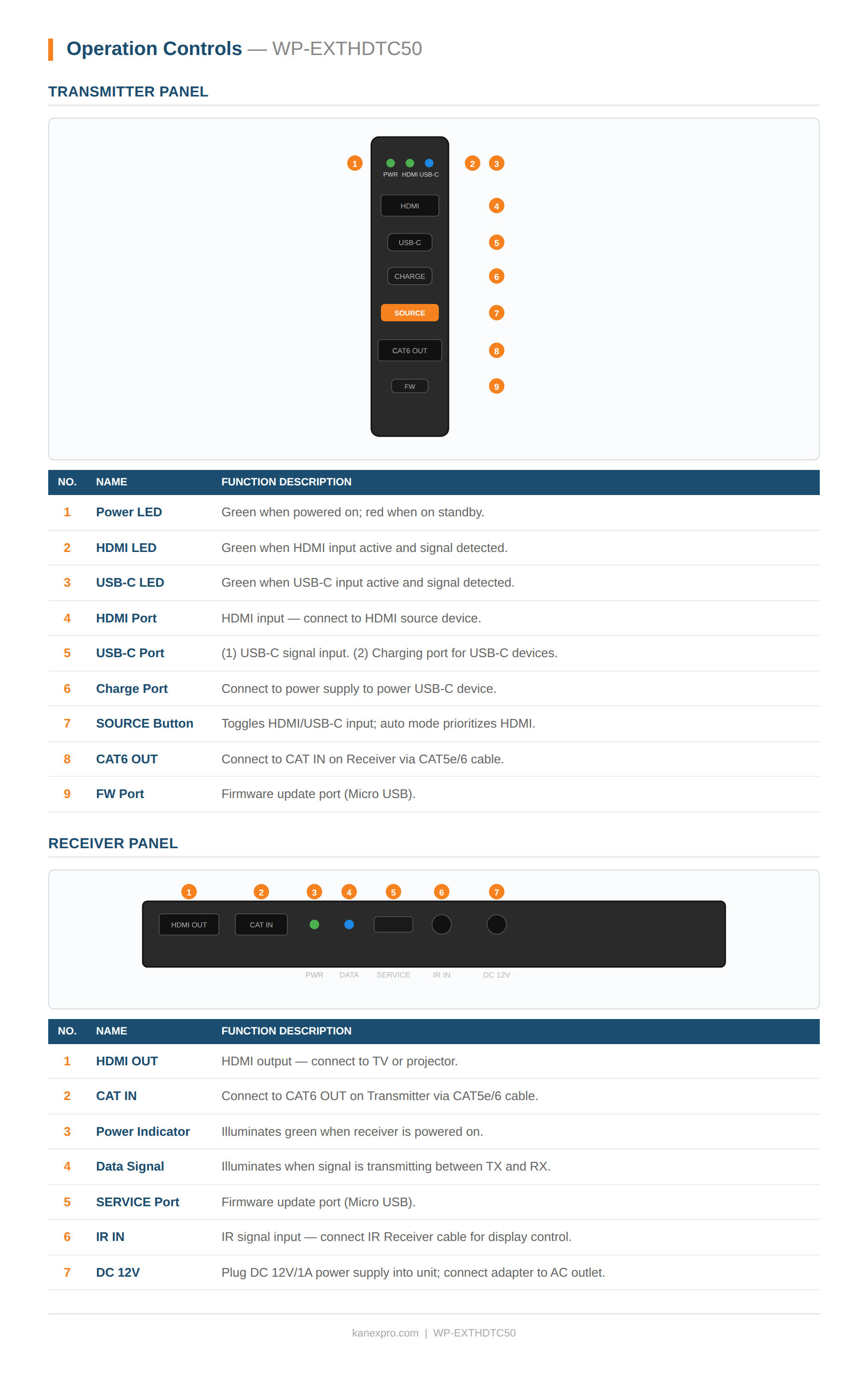

• Input signal selection supports automatic and manual mode
• Supports POC function (Receiver to Transmitter only)
• Backed by KanexPro 3-Year Parts and Labor Warranty
