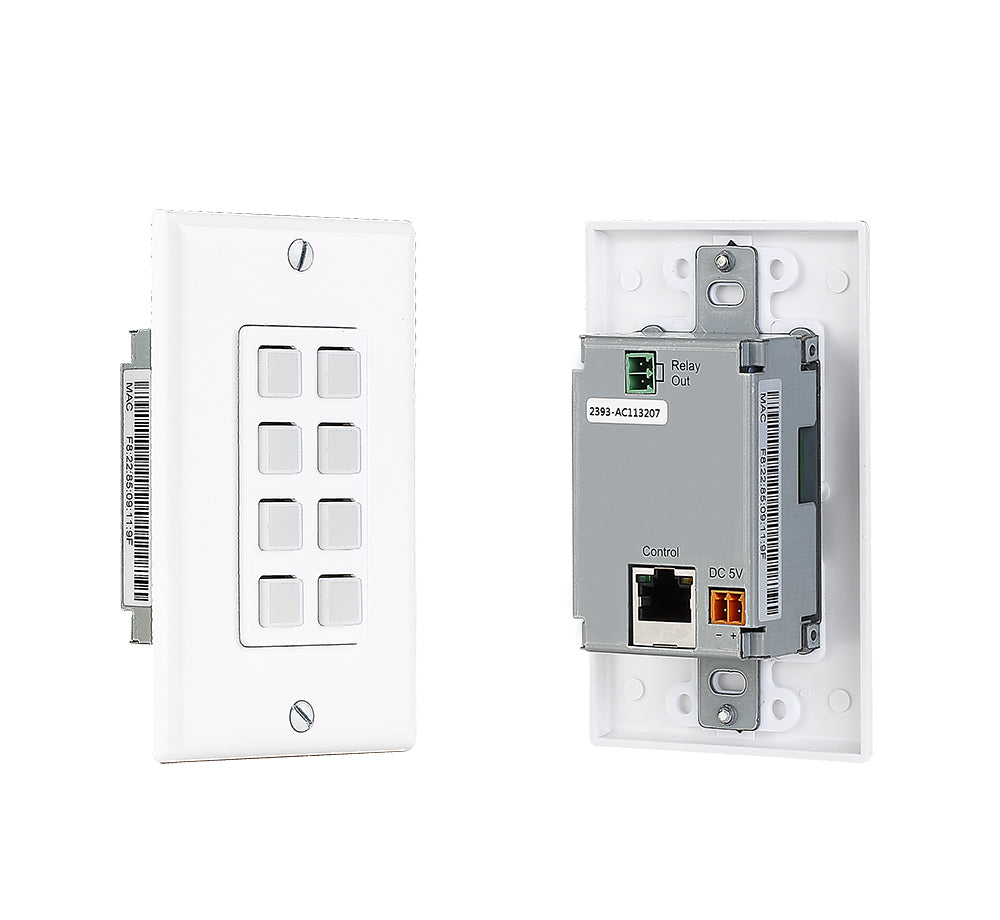

8-Button Programmable IP Wall Plate Keypad with PoE

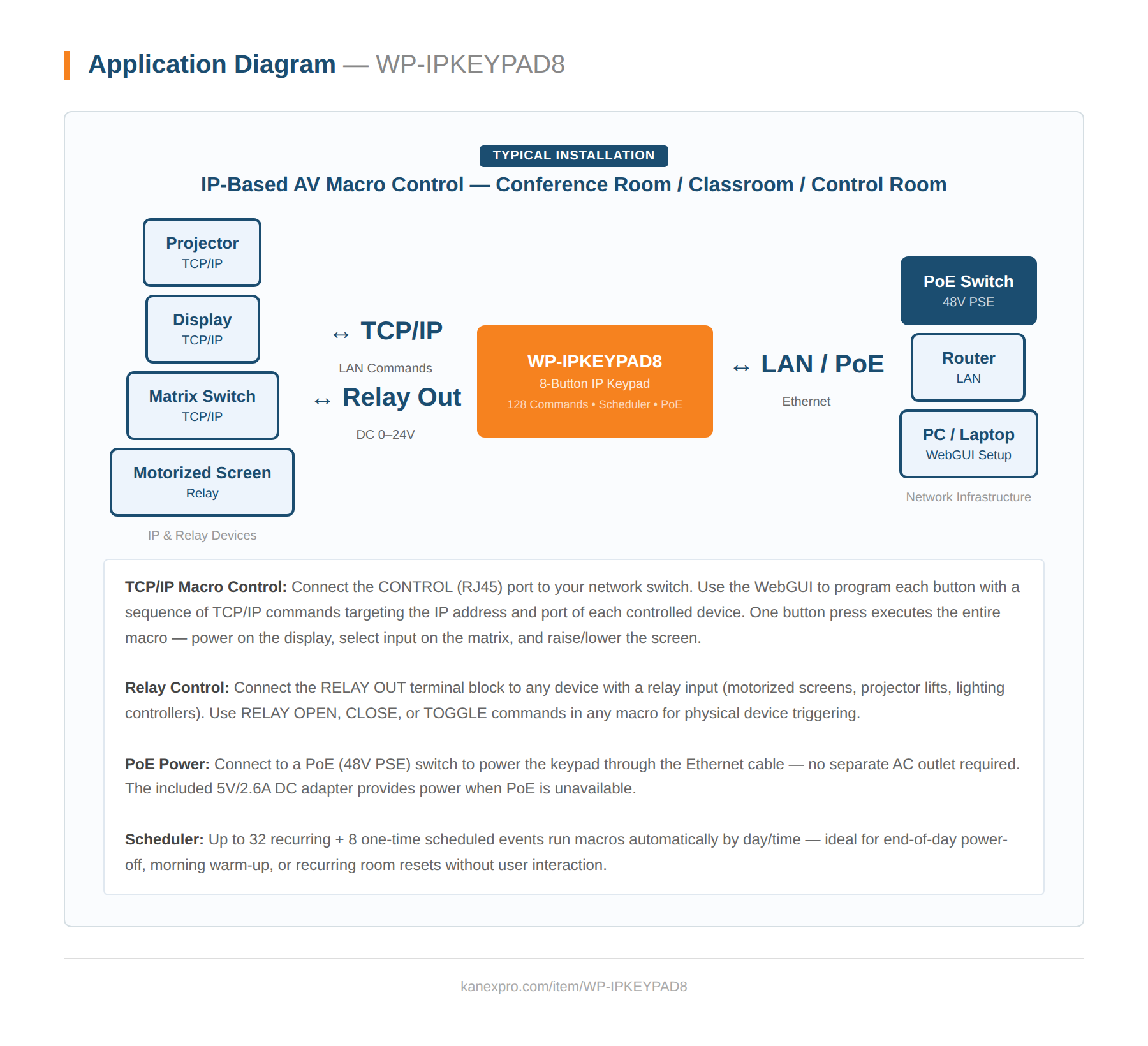

The KanexPro WP-IPKEYPAD8 is a programmable 8-button IP control keypad that fits a standard US single-gang wall plate and requires no dedicated control processor. Each of the 8 backlit buttons can trigger a fully customized macro, sending TCP/IP commands to any Ethernet-connected AV device on the network — projectors, matrix switchers, displays, relay-controlled screens, and more. With up to 128 total commands storable across all macros (up to 16 per macro) and an additional 8 software-only extension macros accessible via WebGUI, the WP-IPKEYPAD8 delivers enterprise-grade macro control at a fraction of the cost of a full control system.

Powered over Ethernet (PoE 48V PD) or via the included 5V/2.6A DC adapter, the keypad installs cleanly without a dedicated power run. The integrated clock and calendar-based scheduling engine enables time-triggered and recurring macro execution — ideal for automated display power-on/off, screen raise/lower via relay, and room mode switching on a daily or weekly schedule. Dual-color LEDs (red and blue) per button provide visual state feedback with individually adjustable brightness. Programming is handled entirely through the built-in WebGUI, Telnet, or the physical buttons — no proprietary software license required.

• US single-gang wall plate design with adjustable LED brightness
• 8 physical macro buttons — each configurable to execute multiple commands via WebGUI
• Up to 128 total commands storable across all macros (up to 16 commands per macro)
• 8 additional software-only extension macros accessible via WebGUI or Telnet

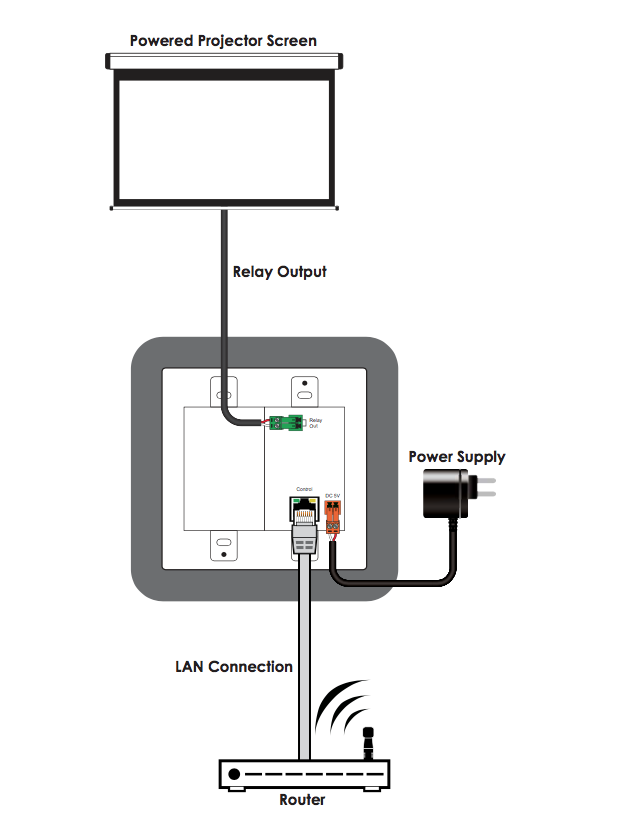

• Relay output (DC 0–24V / 5A) — open, close, or toggle for screen and device control
• Time and date macro scheduling — up to 32 recurring + 8 one-time events
• 48-hour battery backup for internal clock — protects scheduled events against power loss
• Customizable daylight saving time settings for scheduling accuracy
• Toggle mode — alternate between two macro sets on successive button presses
• Repeat mode — macro repeats continuously while button is held
• PoE powered (48V PD) — no power adapter needed with a PoE switch
• DC 5V/2.6A adapter included (CE/FCC/UL certified)
• Control via WebGUI, Telnet, or physical buttons — no proprietary software license required
• TCP/IP Ethernet control — DHCP or static IP configurable; default IP 192.168.1.50
• Mini USB port behind wall plate for direct configuration access

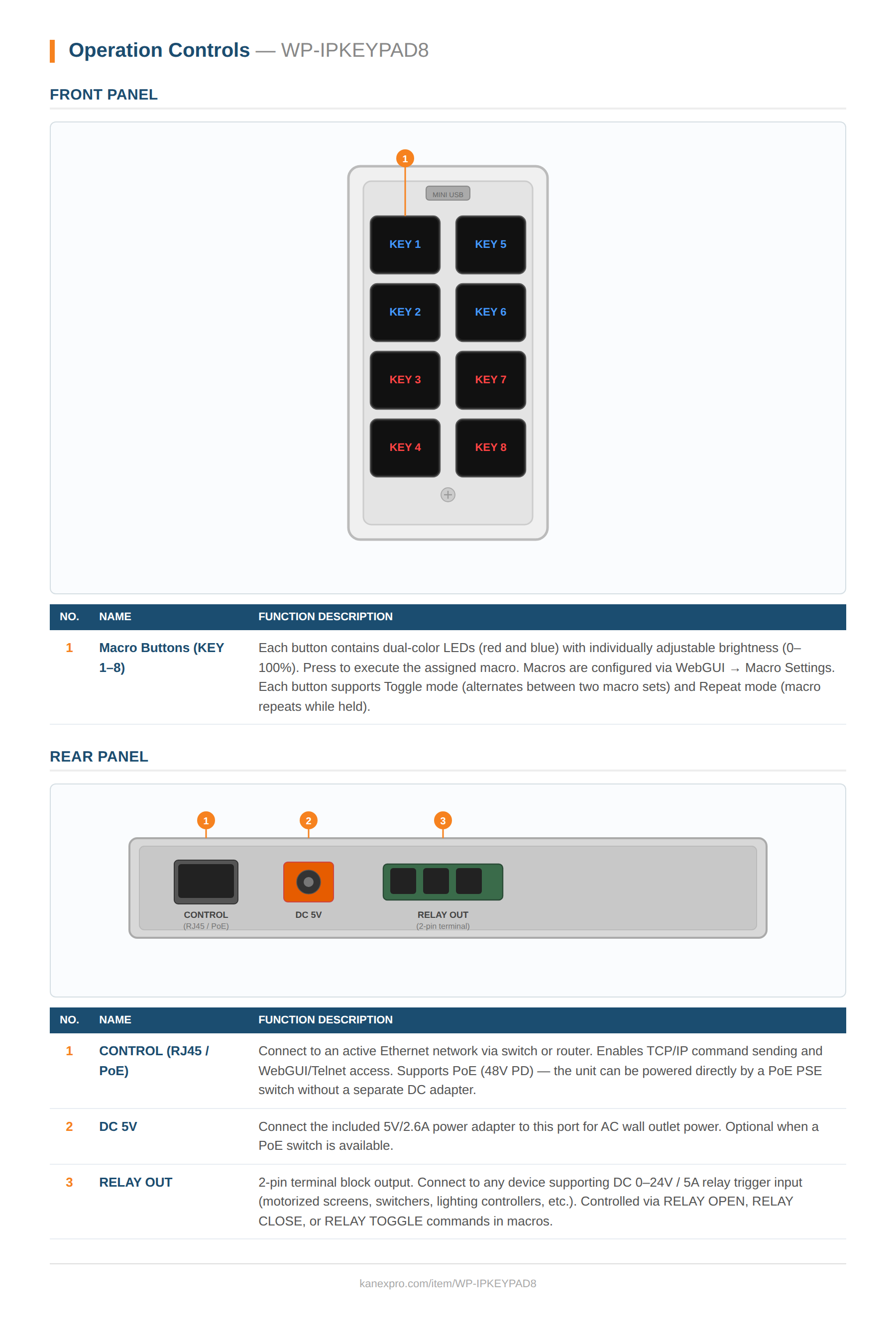

• Dual-color LEDs (red + blue) per button with individually adjustable brightness (0–100%)
• Button sticker label sheets included for custom labeling
• ESD protection: ±12kV air discharge / ±8kV contact discharge
