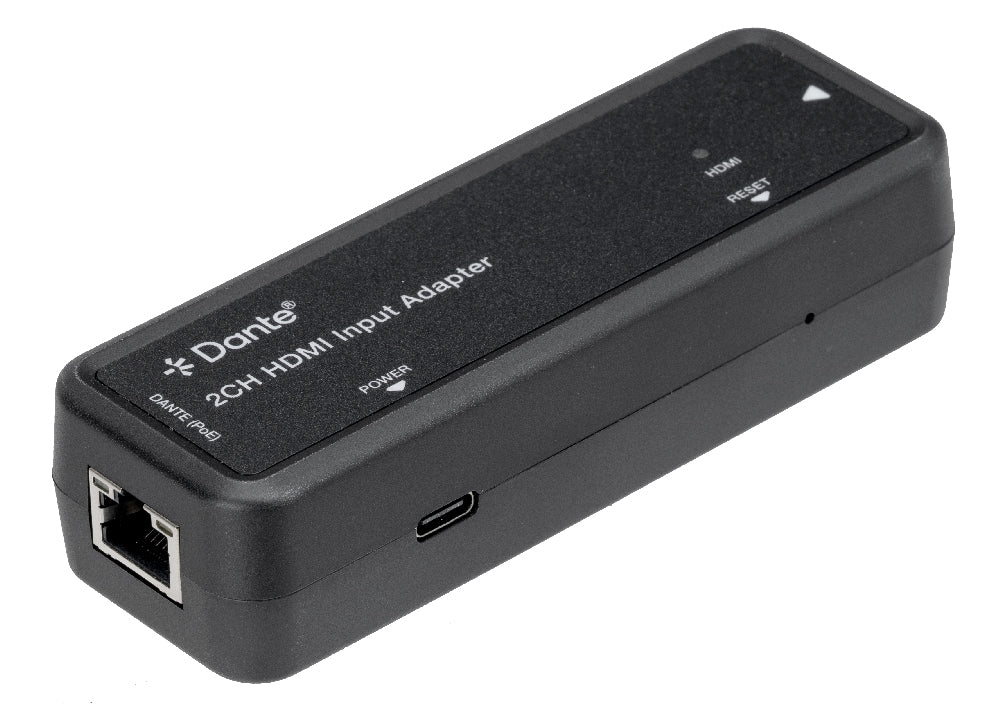

HDMI to Dante® 2CH Network Audio Encoder New

Name: HDMI to Dante® 2CH Network Audio Encoder
Brand: KanexPro
SKU: AUD-DTE-HDMI

Convert Any HDMI Source into a Dante/AES67 Network — No Analog Stage, No Signal Loss

1 1

KanexPro

SKU: AUD-DTE-HDMI

UPC: 813982024014

$199.96 $249.95 Save 20%

查看完整详细信息

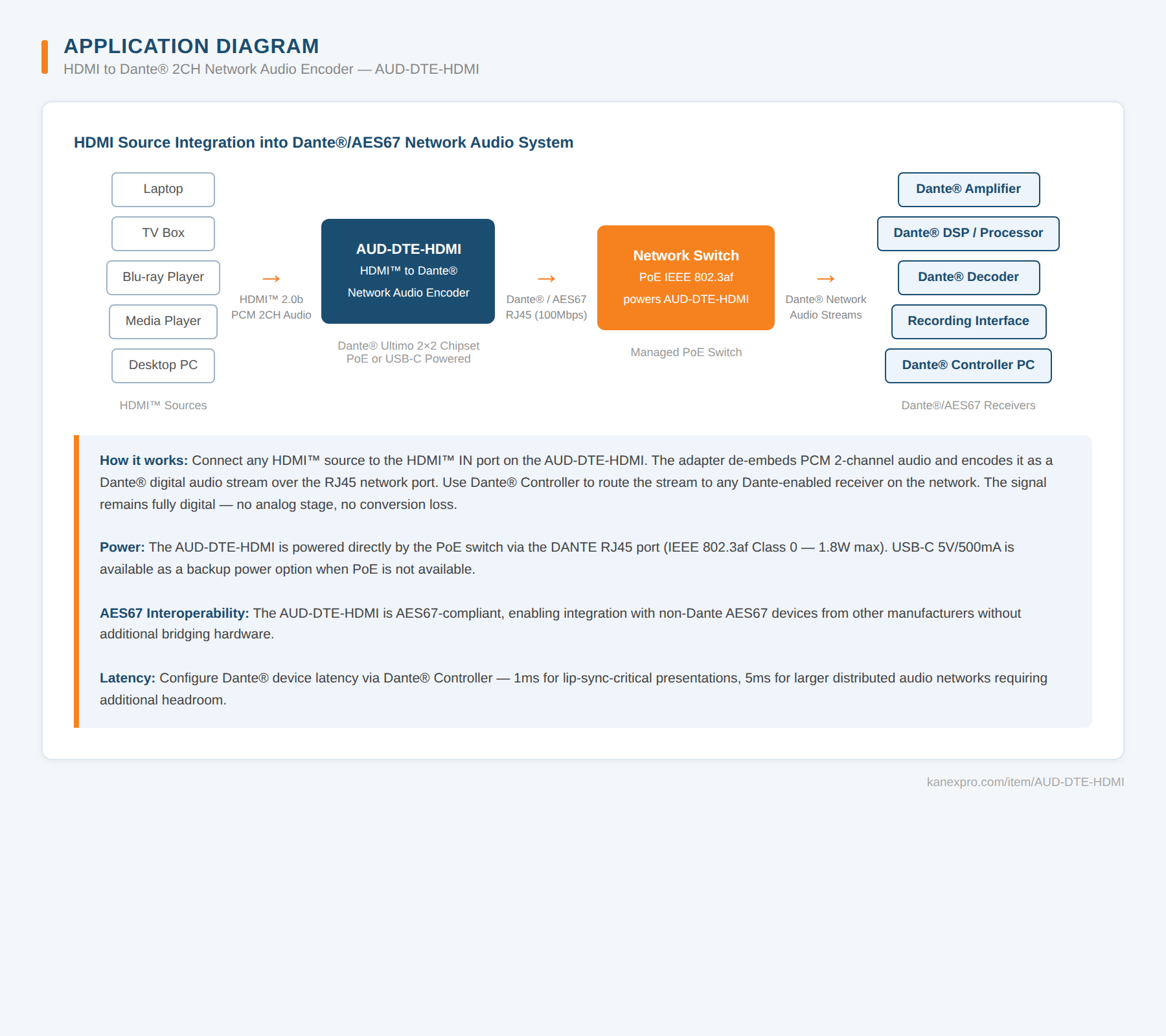

Eliminate the multi-device workaround of chaining an HDMI extractor into an analog Dante encoder. The KanexPro AUD-DTE-HDMI converts HDMI-embedded audio directly into Dante 2-channel digital audio in a single compact adapter — keeping the signal fully digital from HDMI source to Dante destination with no analog stage and no conversion loss.

Built on the Dante® Ultimo 2×2 chipset, it accepts any HDMI™ 2.0b source at up to 192kHz/24-bit and delivers Dante® output at 44.1/48/88.2/96kHz with configurable 1/2/5ms latency and full AES67 interoperability. Powered by PoE (802.3af Class 0) or USB-C, it installs anywhere without dedicated power infrastructure.

Converts 2-channel PCM HDMI™ audio to Dante® digital audio — fully digital, zero analog conversion loss
HDMI™ 2.0b input accepts PCM 2CH at 32kHz–192kHz/24-bit from any HDMI™ source (laptop, camera, player)
Dante® output supports 44.1 / 48 / 88.2 / 96kHz @ 24-bit with full AES67 cross-vendor interoperability
Configurable Dante® latency — 1ms for lip-sync-critical presentations, 5ms for network stability
Powered via PoE (IEEE 802.3af Class 0) or USB-C 5V — single-cable install with no dedicated power supply
Dante® Ultimo 2×2 chipset — SNR >130dB, THD+N <0.01%, frequency response 20Hz–20kHz (±0dB)
EDID management via API — Internal (4K60/PCM 2CH), User Defined 1, User Defined 2
API control via USB-C virtual RS-232 — EDID programming, firmware update, reboot, factory reset
Compact 115×40×28mm, 90g enclosure — installs behind displays, on rack shelves, or on desks

Specification
Technical
Input	Two-channel HDMI™ audio
Output	Dante® 2CH digital audio
Control Method	Dante® Controller
Network Bandwidth	100Mbps
HDMI™ Compliance	HDMI™ 2.0b
HDCP Compliance	HDCP 2.3
Video Bandwidth	18Gbps
Color Depth	8/10/12-bit
Color Space	RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
Input Video Resolutions	All resolutions as specified in HDMI™ 2.0b
HDMI™ Audio IN	PCM 2CH, 32kHz–192kHz @ 16/24-bit
Dante® Audio OUT	PCM 2CH, 44.1 / 48 / 88.2 / 96kHz @ 16/24-bit
Dante® Latency	1 / 2 / 5ms (configurable via Dante® Controller)
AES67	Supported
Transmission Distance	Up to 100m / 328ft (CAT6 / CAT6A / CAT7)
Audio Latency	<1ms
Frequency Response	20Hz–20kHz (±0dB)
Signal-to-Noise Ratio	>130dB @ 0dBu, 1kHz A-weighted
Dynamic Range	>130dB @ 0dBu, 1kHz A-weighted
THD+N	<0.01% at +4dBu, 1kHz
ESD Protection	IEC 61000-4-2: ±8kV (air-gap) & ±4kV (contact)

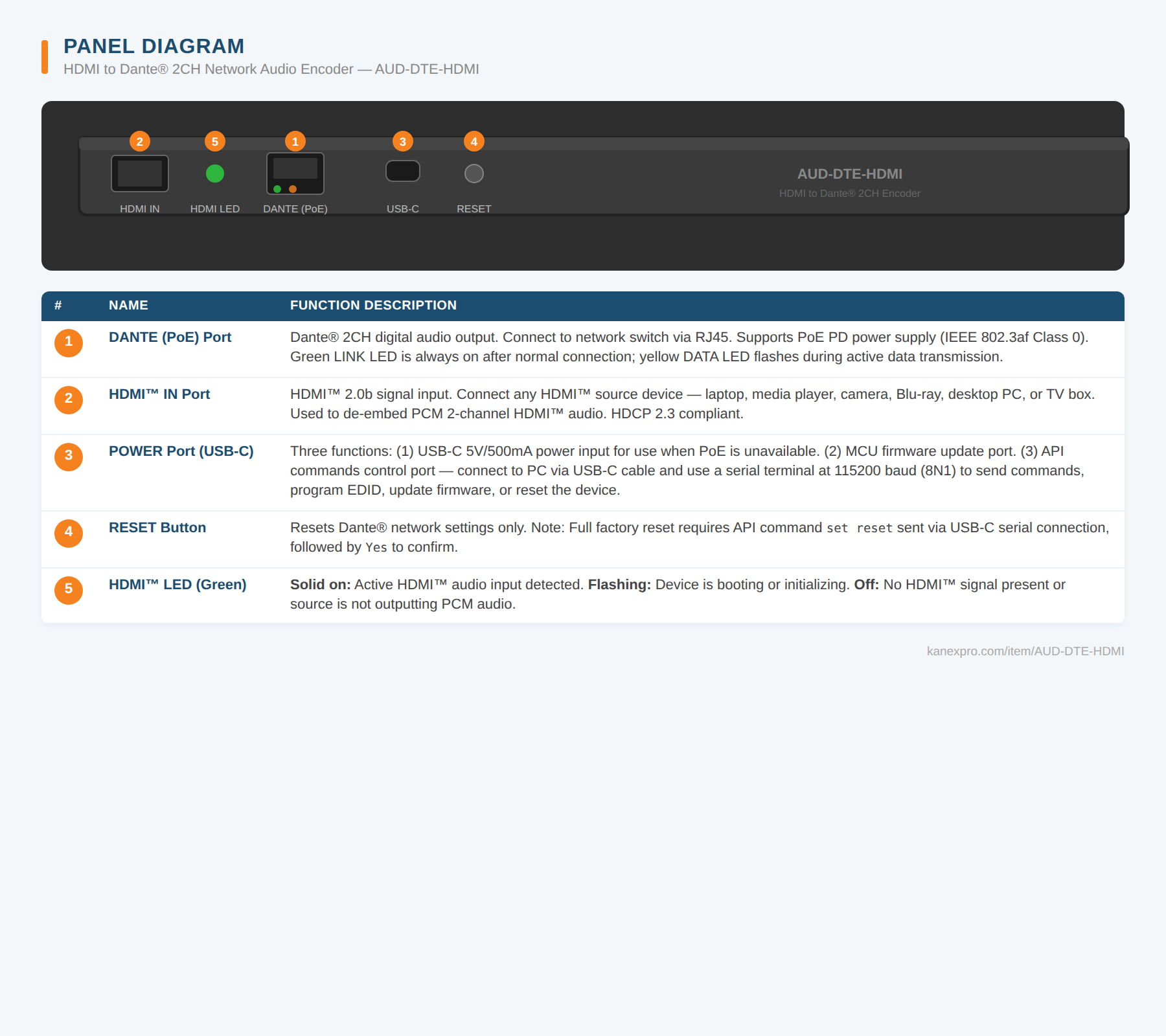

Connection
HDMI™ IN	1× HDMI™ Type A [19-pin female]
Dante® / PoE	1× RJ45 connector (PoE IEEE 802.3af Class 0)
Power / API	1× USB-C port [5V/500mA power input, MCU FW update, API control]
Reset	1× Reset button [Dante® setting reset]
Indicator	1× HDMI™ LED [Green — solid: active signal; flashing: booting]
Mechanical
Housing	Plastic enclosure, Black
Dimensions	115mm (W) × 40mm (D) × 28mm (H)
Weight	90g
Power Supply	USB-C: 5V/500mA • PoE: IEEE 802.3af Class 0
Power Consumption	1.8W (max)
Operating Temp	32°F–104°F / 0°C–40°C
Storage Temp	-4°F–140°F / -20°C–60°C
Operating Humidity	20%–80% RH (non-condensing)
Storage Humidity	10%–90% RH (non-condensing)
Package Contents
1×	Dante® 2CH HDMI™ Input Adapter
2×	Hook & Loop
1×	User Manual
