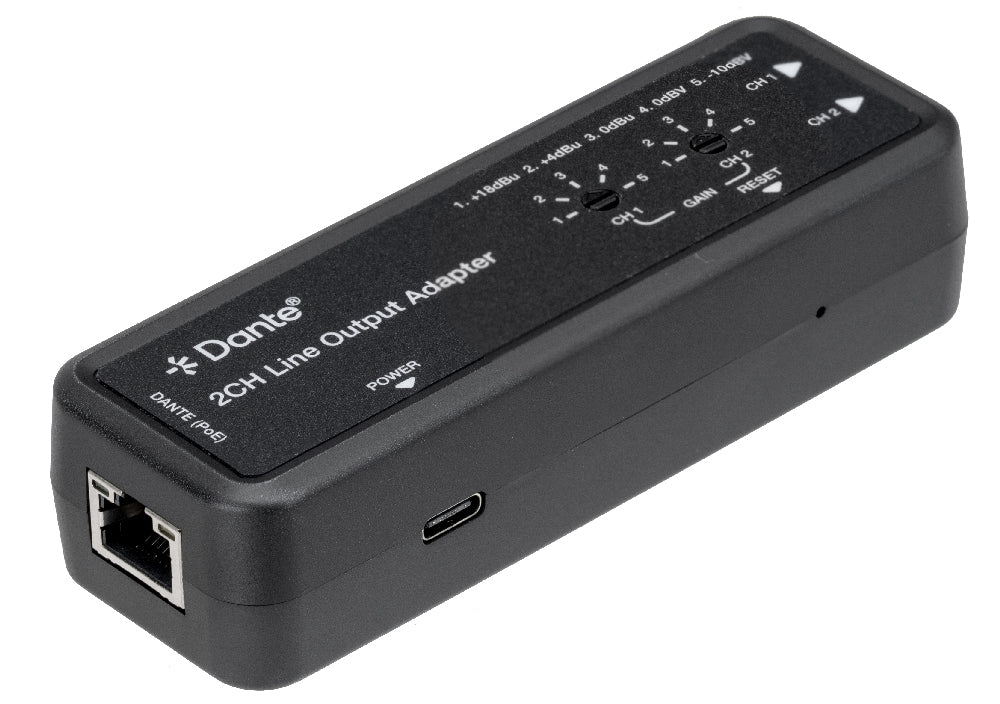

Dante® 2-Channel Line Output Adapter
2CH Dante-to-Analog Converter with 5-Level Gain Adjustment — PoE & USB-C Powered
Convert Dante digital audio to balanced or unbalanced analog line output with studio-grade fidelity. The KanexPro AUD-DTE-LINEOUT is a compact 2-channel Dante line output adapter built on the Dante Ultimo 2x2 platform. It receives Dante digital audio over a standard IP network and converts it to two channels of balanced or unbalanced analog audio through a 6-pin phoenix connector — ideal for permanent installations feeding amplifiers, powered speakers, and legacy audio equipment.
Five discrete gain levels (+18dBu, +4dBu, 0dBu, 0dBV, -10dBV) cover every professional and consumer reference standard. Dual power options — PoE (802.3af Class 0) and USB-C (5V/500mA) — eliminate the need for external power supplies.
- Dante 2CH digital audio to two-channel balanced/unbalanced analog audio output
- Built on the Dante Ultimo 2x2 platform for full Dante ecosystem interoperability
- Supports 44.1/48/88.2/96kHz sampling rates at 24-bit resolution
- 5-level discrete gain adjustment (+18dBu, +4dBu, 0dBu, 0dBV, -10dBV)
- Balanced output: +18dBu max / Unbalanced: +12dBu max
- Studio-grade audio: >100dB S/N ratio, <0.01% THD+N
- Configurable Dante device latency: 1, 2, or 5ms
- Dual power: PoE (IEEE 802.3af Class 0) and USB-C (5V/500mA)
- 6-pin 3.5mm phoenix connector for permanent installation
| Specification | Value |
|---|---|
| Technical | |
| Input | Dante 2CH digital audio |
| Output | Two-channel balanced/unbalanced analog |
| Sampling | 44.1/48/88.2/96kHz @24bit |
| S/N Ratio | >100dB |
| THD+N | <0.01% |
| Gain | 5-level: +18dBu, +4dBu, 0dBu, 0dBV, -10dBV |
| Latency | 1/2/5ms configurable |
| Network | 100m CAT6 |
| Connection | |
| Input | 1x DANTE RJ45 (PoE) |
| Output | 2x LINE OUT (phoenix) |
| Power | USB-C 5V/500mA |
| Mechanical | |
| Size | 115x40x28mm, 94g |
| Power | 1.25W max |
| Dimensions | 4.53" (W) × 1.57" (D) × 1.10" (H) |
| Weight | 0.21 lbs |
| Package Contents | |
| 1× Dante 2CH Line Output Adapter | |
| 1× 6-pin 3.5mm Phoenix Connector (male) | |
| 2× Hook & Loop | |
| 1× User Manual | |
