4×2 HDMI & USB-C Huddle Room Matrix Switcher New

Name: 4×2 HDMI & USB-C Huddle Room Matrix Switcher
Brand: KanexPro
SKU: COL-HUD-42

4K60 4:4:4, Dual HDMI Outputs, 100W USB-C PD, USB 3.2 KVM & Dual 1G Ethernet with 802.1x — For Dual-Display BYOD Rooms

1 1

KanexPro

SKU: COL-HUD-42

UPC:

查看完整详细信息

The COL-HUD-42 brings full matrix switching to the huddle room — four sources route independently to two displays, giving dual-display rooms the flexibility to show different content on each screen simultaneously. Two USB-C inputs deliver DP Alt mode 4K60 4:4:4, USB 3.2 Gen 1 KVM, 1G Ethernet, and up to 100W PD charging; two HDMI inputs handle legacy and fixed sources. All four can be routed to either output independently.

Built on the same platform as the COL-HUD-21 and COL-HUD-21D, the COL-HUD-42 adds a second HDMI output, four sources, and dual host ports — while keeping the same balanced audio I/O, dual 1G Ethernet with 802.1x/VLAN, CEC/IR/RS-232 display control, and Web GUI that IT teams rely on across the family. The step-up choice for medium conference rooms, training spaces, and any room where two independent display zones are required.

HDCP 2.3 and DP 1.4a compliant
4×2 huddle room matrix switcher — dual USB-C and dual HDMI inputs, dual HDMI outputs
USB-C inputs with DP Alt mode 4K60 4:4:4, USB 3.2 Gen 1 (5Gbps), 1G Ethernet, and up to 100W charging (50W each when both connected)
HDMI inputs up to 4K60 4:4:4 as specified in HDMI 2.0b
Independent output routing — each HDMI output selects any of the four inputs independently
Fast switching with auto and manual switching modes per output
Auto switching with signal detection and 5V detection
USB 3.2 Gen 1 (5Gbps) host and local hub — USB-C HOST3 (data only) and USB-B HOST4
USB 3.2 Gen 1 (5Gbps) device port with 5V/1.5A power output
Balanced/unbalanced analog audio embedding to USB or HDMI audio
Balanced/unbalanced analog audio de-embedding from USB or HDMI audio
Advanced EDID management — 18 presets plus 2 user-defined profiles
User-defined welcome screen and no-signal display image
Dual 1G Ethernet ports with 802.1x and VLAN support
IR eye for IR learning and control
Auto display on/off control
External device control via CEC, IR, RS-232, LAN, and GPIO
Control via front panel buttons, RS-232, TCP/IP, and Web GUI

Specification	Value
Technical
HDMI Compliance	HDMI 2.0b
HDCP	HDCP 2.3
DP Compliance	DP 1.4a (USB-C inputs)
USB Compliance	USB 3.2 Gen 1 (5Gbps)
Video Bandwidth	18Gbps
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
Color Space	RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Color Depth	8/10/12-bit (8-bit at 4K60 4:4:4)
Audio (Digital)	LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Audio (Analog)	LPCM 2CH, 32–192kHz
Audio S/N Ratio	>90dB
Audio THD+N	<0.01% at +4dBu 1kHz
ESD Protection	IEC 61000-4-2: ±8kV air / ±4kV contact
Connection

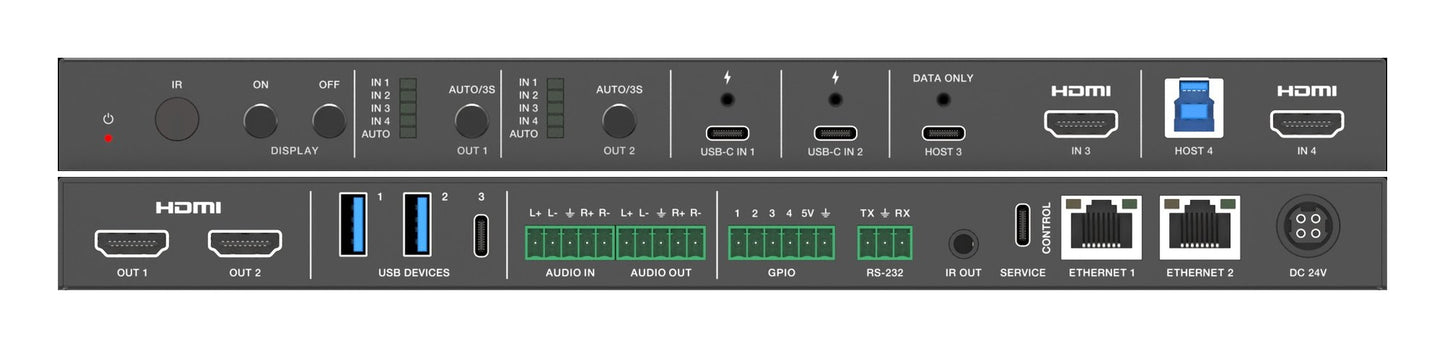

Inputs	2× USB-C IN (24-pin), 2× HDMI IN (Type A), 1× HOST USB-C (24-pin, data only), 1× HOST USB-B (9-pin)
Outputs	2× HDMI OUT (Type A), 1× USB Device (Type C), 2× USB Device (Type A)
Audio In	1× L/R Balanced/Unbalanced (5-pin 3.5mm phoenix)
Audio Out	1× L/R Balanced/Unbalanced (5-pin 3.5mm phoenix)
Control	1× RS-232 (3-pin), 1× IR Out (3.5mm), 2× Ethernet (RJ45), 1× GPIO (6-pin), 1× Service (USB-C)
Physical
Dimensions (W×D×H)	10.63? × 5.12? × 0.91? (270 × 130 × 23mm)
Net Weight	1.96 lbs (0.890kg)
Housing	Metal, Black
Power Supply	DC 24V/7.5A (AC 100–240V, 50/60Hz)
Power Consumption	41W (idle) / 149W (with 100W USB-C charging)
Operating Temperature	32°F–104°F (0°C–40°C)
Storage Temperature	-4°F–140°F (-20°C–60°C)
Operating Humidity	20–80% RH, non-condensing
Certifications
Regulatory	CE, FCC, UL
Package Contents
1×	4×2 HDMI & USB-C Huddle Room Matrix Switcher
1×	24V/7.5A Power Supply
1×	IR Blaster Cable (1.5m)
1×	3-pin Phoenix Connector (male)
2×	5-pin Phoenix Connector (male)
1×	6-pin Phoenix Connector (male)
4×	Rubber Foot
2×	Mounting Ear
1×	User Manual
