集成红外/RS-232和继电器控制器

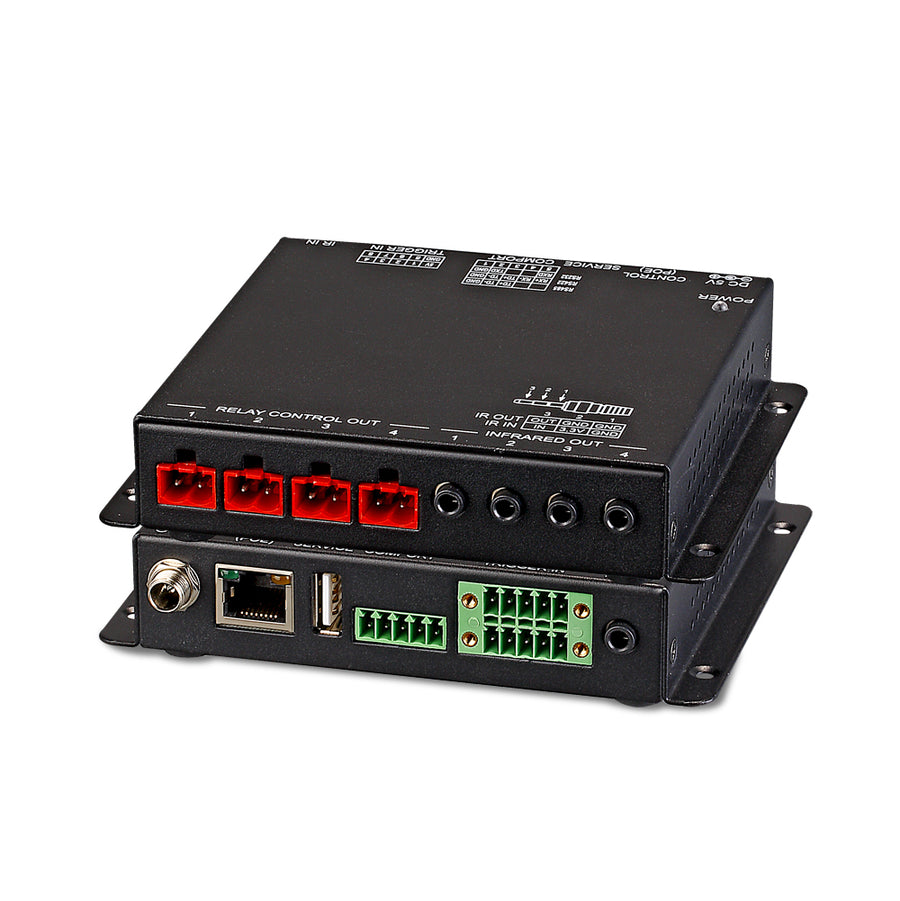

The KanexPro CR-3XCONTROL is a compact, IP-based AV control system that consolidates IR, RS-232/422/485, relay, and TCP/IP device control into a single PoE-powered unit. Sixteen user-defined macros — 8 directly linked to external trigger inputs and all 16 accessible via WebGUI or Telnet — can send commands across any combination of its 4 IR blaster outputs, 4 relay outputs, 1 RS-232/422/485 COM port, or the network. An integrated IR learning function allows the unit to capture and store IR codes from virtually any remote, eliminating the need for a separate IR database.

Powered over Ethernet (PoE) from any standard 802.3af switch, the CR-3XCONTROL requires no AC outlet at the installation point. The 8 trigger inputs — compatible with door switches, motion detectors, window alarms, and other contact-closure devices — activate their corresponding macros instantly on signal, enabling fully automated room control without user interaction. Programming is handled through the built-in WebGUI from any browser on the same network. Firmware updates are performed in the field via USB with no tools required.

• 集成红外/RS-232和继电器控制器
• 8 个触发输入直接连接到 8 个用户宏，可实现即时控制。
• 4 个继电器触发输出，用于控制投影屏幕、照明等设备。
• 4 个红外输出端口，可控制电视、蓝光播放器、媒体播放器等设备。
• 集成红外码学习功能
• 多种用户控制界面，包括 WebGUI、Telnet 和 RS-232
• 通过 WebGUI 轻松配置宏、触发器和继电器设置。
• PoE（以太网供电）支持
• 固件可通过 USB 接口轻松进行现场更新。

请注意：需要通过交换机或路由器连接到互联网才能控制以太网设备。使用 PoE 供电功能需要支持 PoE 的网络交换机或集线器，否则需要使用本地电源插座。
