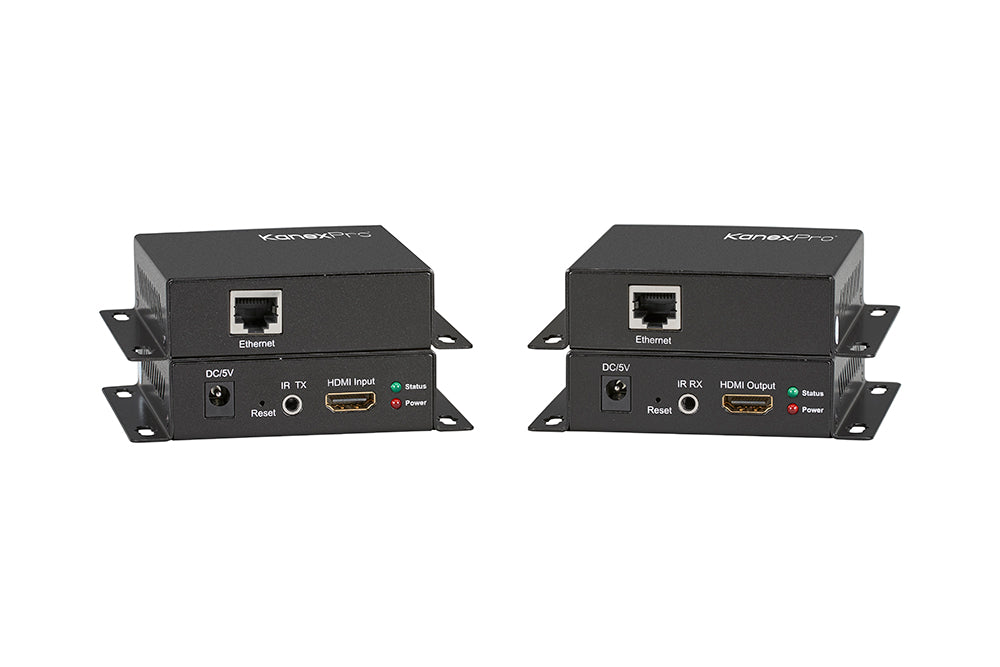

NetworkAV™ 120M 延长器套装 1080P

HDMI视频IP编码器-解码器套件,传输距离可达120米

跳至产品信息
1 / 1

KanexPro

SKU: EXT-AVIP120M

UPC: 813982021174

$199.95
查看完整详细信息

The EXT-AVIP120M delivers a simple and cost-effective path to HDMI distribution over IP — extending full HD 1080p/60 HDMI signals up to 120m (394 ft) over a single UTP CAT5e/6 cable using MJPEG compression. The included encoder/decoder kit supports point-to-point, point-to-many, and many-to-many configurations over standard TCP/IP network infrastructure, with no proprietary switching hardware required for basic deployments.

Built into a compact metal enclosure with integrated mounting ears, the EXT-AVIP120M is well suited for classrooms, lobbies, digital signage networks, and corporate AV systems where 1080p distribution is needed without the cost or complexity of a dedicated AV matrix. IR pass-through and an embedded HTTP server for IP configuration are included. For larger many-to-many deployments, VLAN configuration and a compatible 10G switch are required.

  • 通过单根UTP CATx电缆,可将1080p HDMI信号延长至120米。
  • 采用 MJPEG 压缩技术
  • 支持点对点、点对多和多对多网络配置
  • 多对多通信需要设置VLAN。
  • 通过红外线控制(套件包含在内)
  • 通过添加更多 10G 以太网交换机,可以级联成多层网络。
  • 对源进行宽带红外控制(38-56kHz)。
  • 符合HDCP标准
  • 支持 TCP/IP 协议
  • 金属外壳,带有安装耳
  • 包含 5V 直流电源

工作温度范围

-5 到 +35?(+23 到 +95?)

工作湿度范围

相对湿度5%至90%(无冷凝)

输入视频信号

0.5-1.0 伏 PP

输入DDC信号

5伏峰峰值(TTL)

支持视频格式

数字电视/高清电视:480i/576i/480P/576P/720P/1080i/1080P

视频输出

HDMI

传输距离

1080P 8 位,单根 CAT5E/6/24AWG/实心线缆传输距离最长 120 米

功耗

发射功率:3瓦;接收功率:3瓦(最大值)

红外频率

38kHz-56kHz

尺寸(长×宽×高)

103.5x93.5x24.6毫米

净重

接收器:220克,发射器:220克

德克萨斯州

默认IP地址:192.168.168.55

MAC地址:00:0b:78:00:60:01

RX

默认IP地址:192.168.168.56

MAC地址:00:0b:78:00:60:02

Product Diagram
Product Panel
