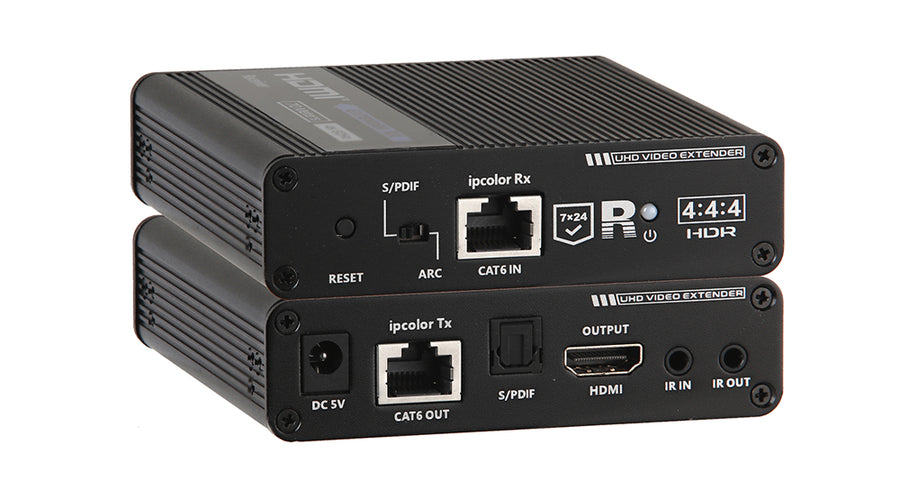

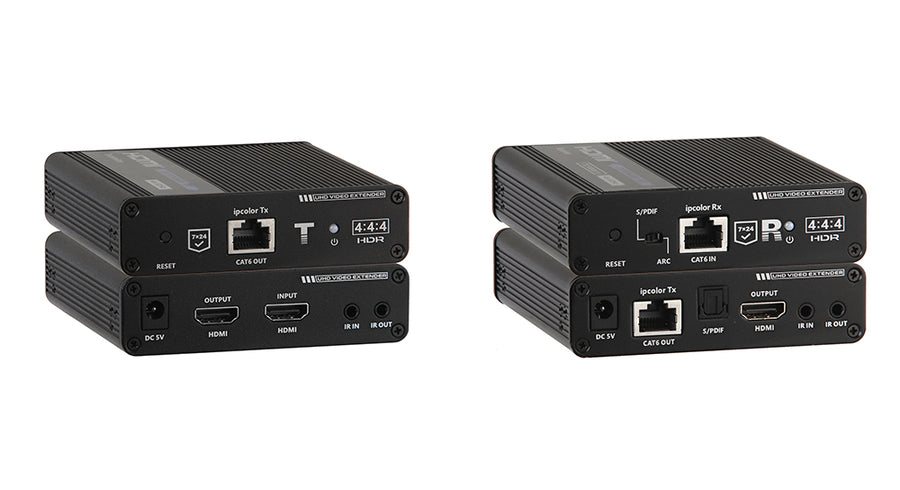

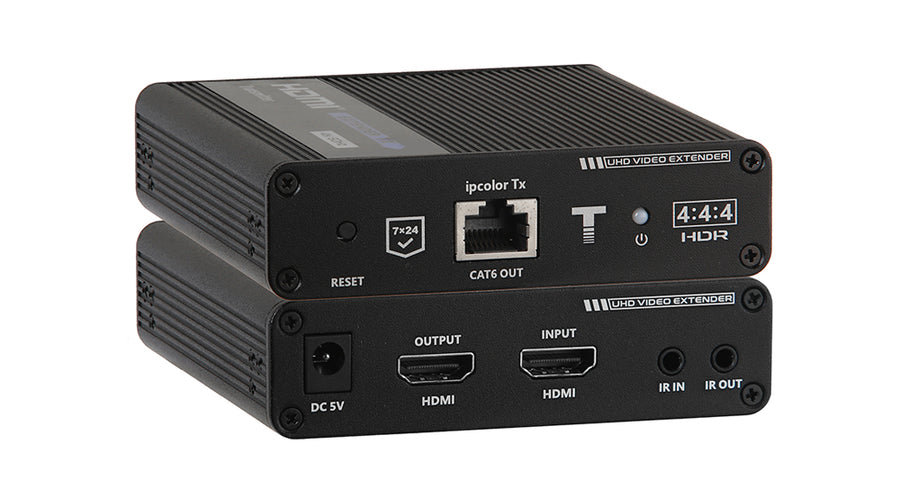

KanexPro 4K60Hz HDMI级联延长器套件，通过Cat6线缆连接，70米
4K@60Hz | Cascade up to 10 RX | Auto EDID | IR Bi-directional | 3-Year Warranty

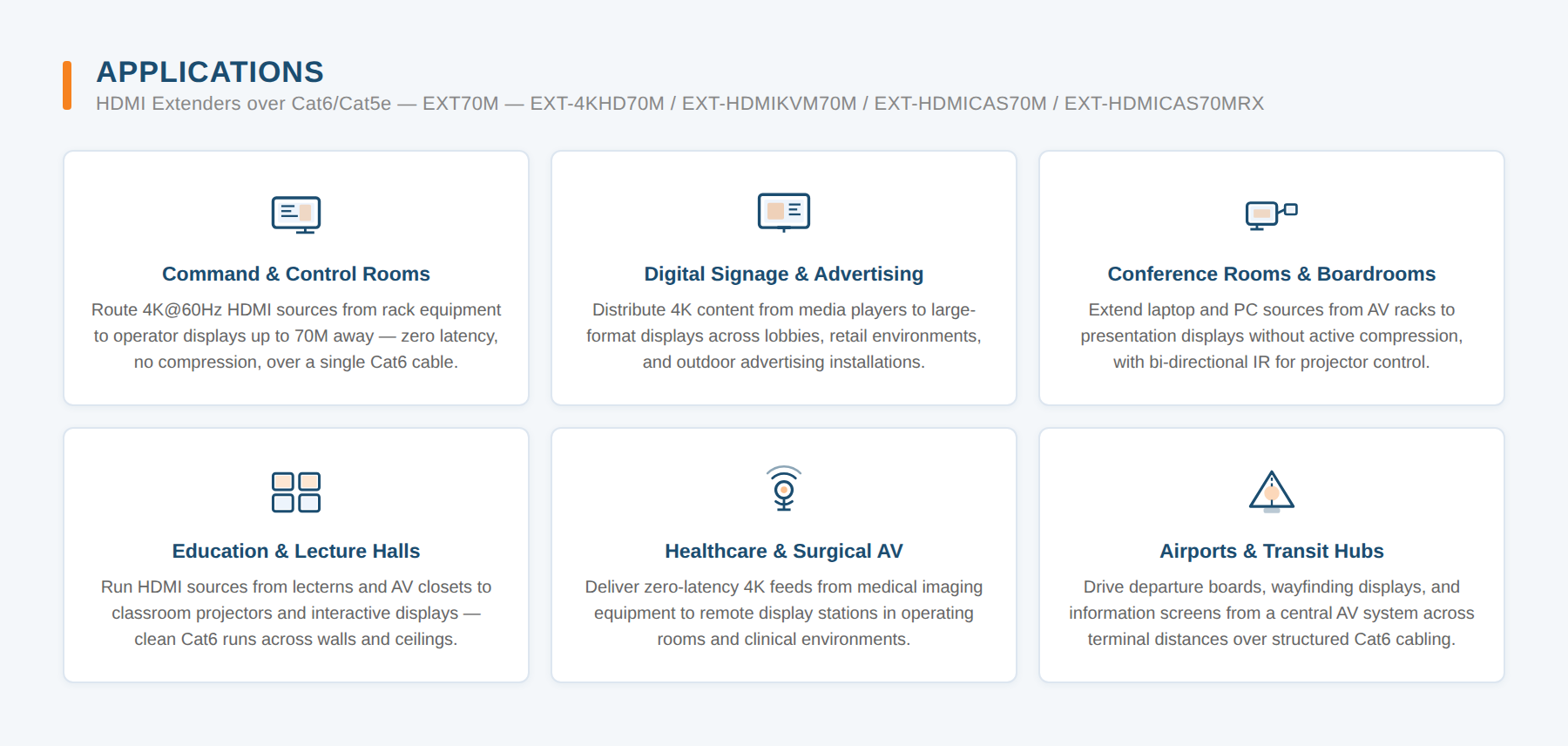

The KanexPro EXT-HDMICAS70M cascading HDMI extender distributes 4K@60Hz HDR to up to 10 displays simultaneously — each on its own Cat6 run up to 70M, each independently managing resolution and EDID. Ideal for digital signage networks, multi-room installations, and any environment where the same 4K content must reach many displays.
Scale by adding EXT-HDMICAS70MRX receiver units (sold separately) without additional transmitters. Each receiver auto-adapts to the connected display's native resolution and EDID. Bi-directional IR and ARC S/PDIF included. Backed by KanexPro's 3-year warranty.
- Zero latency 4K@60Hz HDR over single Cat6 to 70M — cascade up to 10 additional receivers
- Supports up to 10 add-on RX units (EXT-HDMICAS70MRX) for multi-display distribution
- Each receiver independently manages display resolution and EDID — auto-adapt for mixed displays
- HDCP 2.2 and EDID support
- Bi-directional IR pass-through 20-60KHz — IR blasters included
- ARC S/PDIF digital audio de-embedded output
- Plug-and-play with zero configuration
- Compact aluminum chassis: 106x99x26.2mm, 210g TX/RX
- 3-year KanexPro parts and labor warranty
| Specification | Value |
|---|---|
| HDMI / HDCP | HDMI 2.0 | HDCP 2.2 |
| Max Resolution | 4K x 2K @ 60Hz (4:4:4 HDR) |
| Cascade | Up to 10 additional receivers (EXT-HDMICAS70MRX) |
| Cable | Single Cat6 / Cat6a / Cat7 per run |
| Max Distance | 70M (230 ft.) per Cat6 run |
| EDID | Per-receiver independent management |
| IR | Bi-directional 20-60KHz (TX/RX included) |
| Audio | ARC S/PDIF de-embedded on RX |
| Power | DC 5V-12V | TX less than 4W | RX less than 4W |
| Weight | TX 210g | RX 210g |
| Operating Temp | -20 to 60 degrees C |
