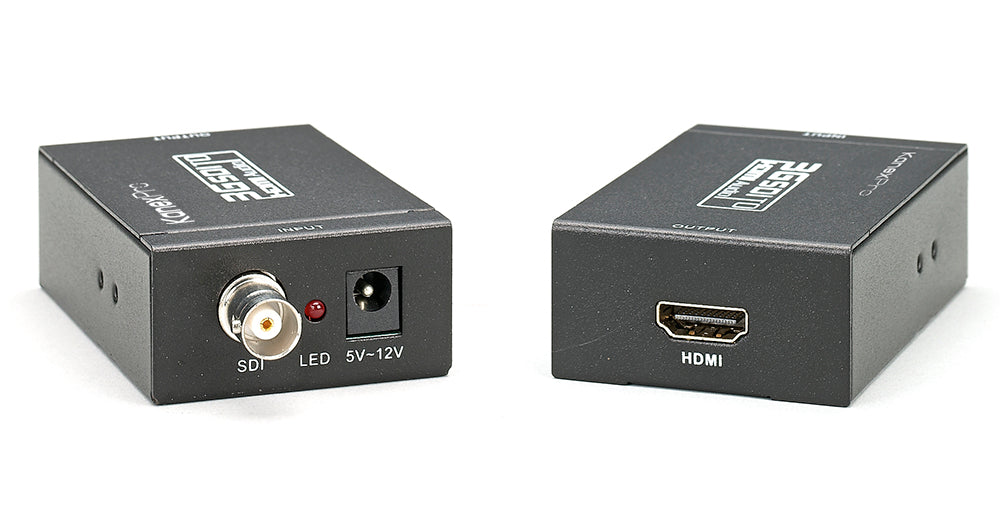

3G-SDI 转 HDMI 转换器
SDI to HDMI converter
EXT-SDHDXUPC 813982020061
Overview
- 获得最高质量的 3G-SDI 转 HDMI 转换。
- 用于 8 通道/48KHz 音频的集成音频解嵌器
- 支持多种视频分辨率：SDI 525i、625i
- 高清：720p 24、25、30、50 和 60 Hz。
- 高清：1080i 50 和 60 Hz。
- 高清：1080p 24、25、30、50 和 60 Hz。
- 数据传输速率最高可达 2.97 Gbps
- 支持转换为 SMPTE 425M A 级 1080p 50/59.94/60 4:2:2 10 位格式
- SDI 输入线缆长度支持 - 最长 300 米
- 高清模式下最长可达：130米
- 单向 SDI 输出，带时钟重整功能
- 支持应用中多个SDI的级联
- 自动在标清、高清和 3 Gb/s SDI 标准之间切换
- 尺寸紧凑，非常适合移动广播设备和用户。
注意： SDI 传输需要 RG59 电缆，我们建议使用 75 欧姆的高质量同轴电缆。
Key features
- Get the highest quality 3G-SDI conversion to HDMI
- Integrated Audio de-embedder for 8-channel / 48KHz audio
- Supports multiple video resolutions: SDI 525i, 625i
- HD: 720p 24, 25,30,50 & 60 Hz.
- HD: 1080i 50 & 60 Hz.
- HD: 1080p 24, 25,30, 50 & 60 Hz.
- Data rates up to 2.97 Gbps
- Supports conversion to SMPTE 425M Level A 1080p 50/59.94/60 4:2:2 10-bit
- SDI Input Cable Length Support - up to 300m
- HD mode length up to: 130m
- One way SDI output with re-clock function
- Supports cascading of multiple SDI's in application
- Automatically switches between SD, HD and 3 Gb/s SDI standards
- Compact in size, perfect for mobile broadcasting units and users
Note: RG59 cable is required for SDI transmission, we recommend a 75-ohm high quality coaxial cable.
Video Input
- Input: 1 x SDI
- Input Connector: 1 x BNC
- Input Video Signal: SD/HD/3G SDI
Video Output
- Output: 1 x HDMI Female
- Output connector: HDMI
- Output Video Signal: SD/HD/3G SDI/DVI/ HDMI
Resolutions (HDTV)
- 1080p,1920 x 1080
- 720p; 1280 x 720
- 1280 x 720, 480i (NTSC mode) 576i Standard PAL mode
Enviromental
- Operating Temperature: 0°C to +70°C
- Operating Humidity: 10% to 85 % RH (no condensation)
- Storage Temperature: -10°C to +80°C
- Storage Humidity: 5% to 90 % RH (no condensation)
- Regulatory Approvals Converter: FCC, CE, UL
- Regulatory Approvals Power Supply: FCC, CE, UL
Mechanical
- Size: (LWH): 3.14"x1.61"x0.98"
- Weight (net): 0.33 lbs (150g)
Power Requirements
- External power supply: 5V -12V
- Power consumption: 5 W
Waranty
- 1 year parts & labor
Package Contents:
- 3G-SDI to HDMI converter
- 5V DC power supply
- Operation manual
