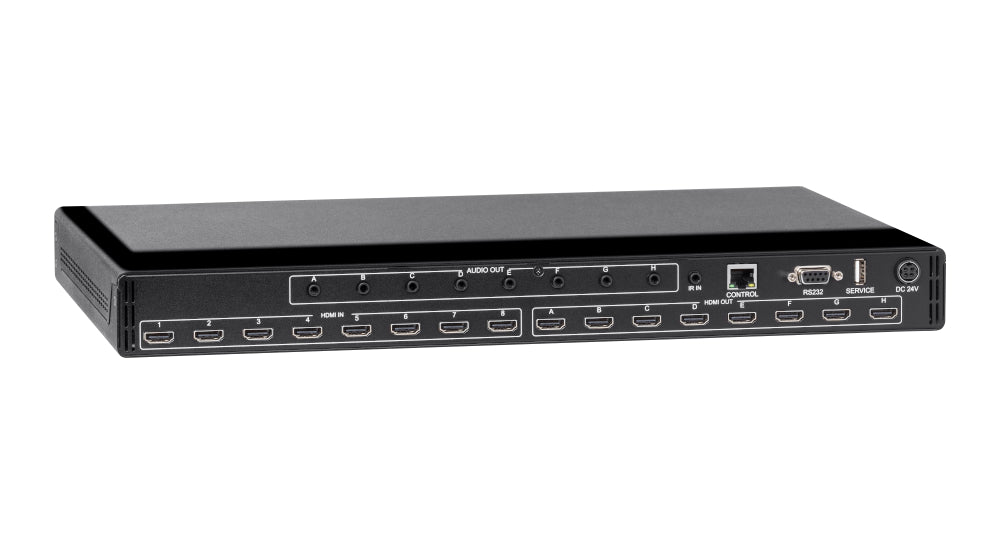

The KanexPro HDMX88A-18G is a professional 8-input, 8-output HDMI matrix featuring HDCP 2.2 with the latest HDMI 2.0 specifications supporting ultra HD resolutions up to 4K @60Hz. This matrix switcher supports switching speeds to less then 0.2 seconds. The matrix can be fully controlled via RS-232, IR and Web based GUI using Ethernet where end-users can switch, control and manage the matrix using graphical and visual indicators right from the computer or touch-panel.

Industry Standard HDCP 2.2 & 4K/60Hz

HDCP 2.2 authentication is present at all times on this matrix ensuring proper handshake of the protected content. It also maintains resolutions up to 4K UHD 3840x2160@24, 25,30, 50 or 60Hz and 2560x1080@60Hz displaying 21:9 aspect ratios. 1920 x 1200 or full HD 1080p/60 is a standard for all our matrix switchers.

Applications:

The KanexPro HDMX88A-18G matrix switcher is ideal for numerous commercial applications such as military, medical and government audio-video environments, where swift and reliable switching of high-resolution HDMI signal is critical to meet pixel-by-pixel needs.

• 将 8 个 HDMI 输入端口交叉切换为 8 个 HDMI 输出端口，支持 4K@60Hz
• 通过 HDMI 端口分配最远 5 米的 4Kx2K@60Hz 信号
• 支持标准 1080p 和 WUXGA 分辨率，最高可达 2560x1080@60Hz
• 每个 HDMI 输出通道均配备 2 声道模拟音频输出。
• 兼容HDR、杜比视界和HDCP 2.2
• 智能 EDID DIP 开关，用于正确显示输出
• 支持最新的高速 HDMI 2.0 规范
• 支持杜比数字、DTS、DTS-HD
• 可通过前面板按键、红外线、RS-232 和基于 Web 的图形用户界面进行控制。
• 前面板液晶屏提供实时I/O连接状态
• 通过Micro USB端口快速升级固件
• 1U（19英寸）机架式铝制外壳
• 通用RS-232代码，兼容任何第三方控制系统
• 锁定式 HDMI 和电源
• 内置通用电源，实现全球兼容性
