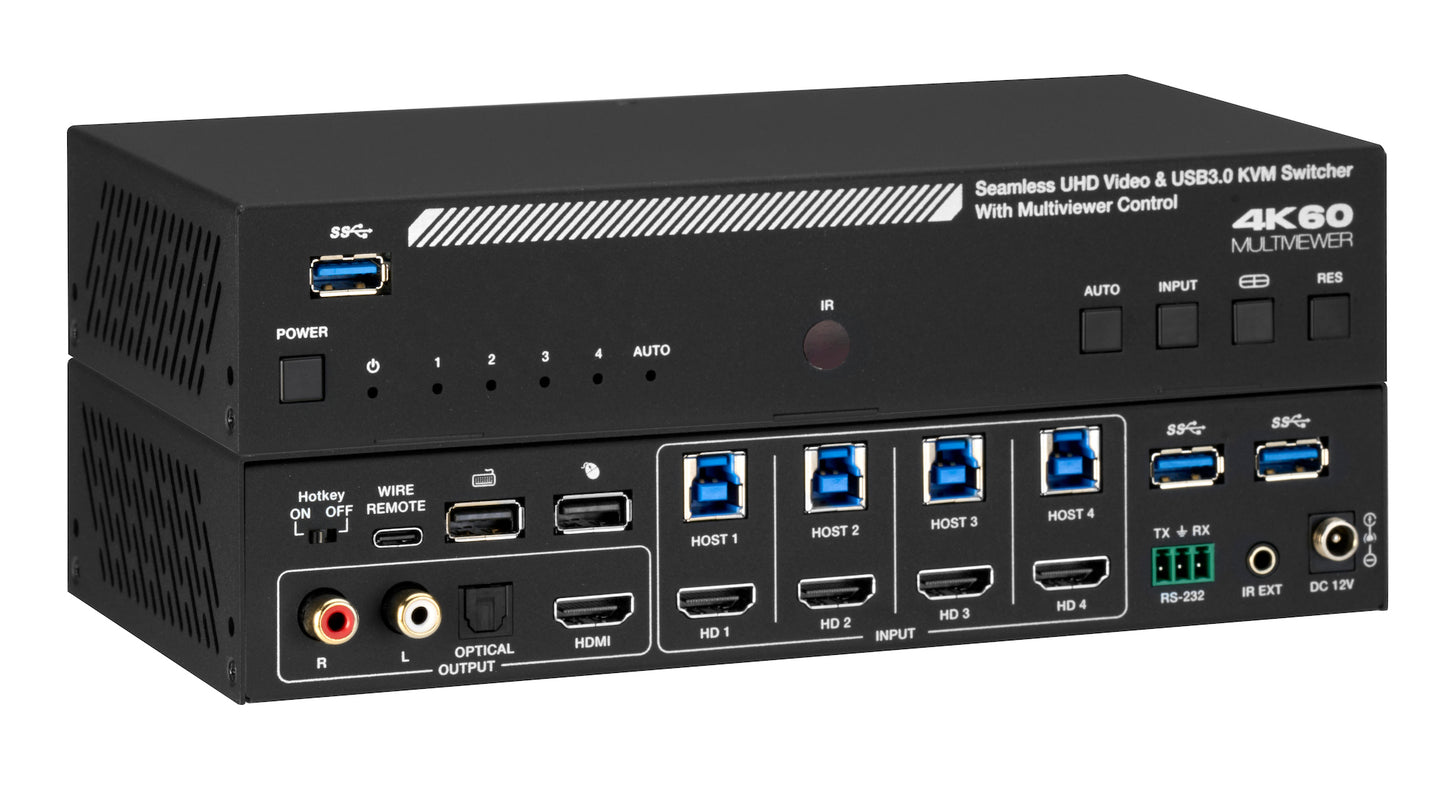

HDMI 4x1 KVM切换器，支持多画面拼接4K
Control Four PCs from One Desk with Seamless Switching, Quad-View Display & USB 3.0
Resellers, installers, schools and businesses. Approval is usually the same working day.
Combines up to four HDMI sources on a single 4K display with eight layout modes — Single, PIP, PBP, Triple, and Quad — while sharing one keyboard, mouse, and USB peripherals across all four PCs. The KVM-4X1MV4K is a seamless switcher and multiviewer in one box, eliminating the need for separate monitors per computer.
Designed for NOC/SOC monitoring, broadcast production, AV control rooms, and multi-system developers who need eyes on four machines simultaneously. Supports 4K60 4:4:4 input and output, HDCP 2.2, seamless switching in single-screen mode, and fast switching in multiview mode. Audio de-embedding via RCA analog and optical S/PDIF with independent volume control. OSD menu, controller software, RS-232, IR remote, front-panel buttons, and keyboard/mouse hotkeys provide six ways to control. Ships with 4× USB cables, IR remote, and mounting ears.
- HDMI 2.0b, HDCP 2.2/1.x compliant — 18Gbps, 4K2K@60Hz 4:4:4
- 8 display modes: Single, PIP, PBP (2), Triple (2), Quad (2) — adjustable aspect ratio
- Seamless switching in single-screen mode; fast switching in multiview
- USB 3.0 KVM sharing at 5Gbps
- Audio de-embedding via RCA analog + optical S/PDIF with volume control
- Six control methods: front panel, IR remote, hotkeys, OSD, software, RS-232
- OSD navigation for advanced multiview, resolution, audio, EDID config
- Output resolution switching via RES button
- Compact 220×100×44mm metal enclosure, 443g
| Technical | |
| HDMI / HDCP | HDMI 2.0b, HDCP 2.2/1.x |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@60Hz 4:4:4 |
| Color Depth | 8/10/12-bit |
| Color Space | RGB, YCbCr 4:4:4/4:2:2/4:2:0 |
| Audio | PCM 2.0/5.1/7.1, DD+, DTS (no HBR) |
| Analog Audio | RCA L/R — PCM 2.0 |
| Optical Audio | S/PDIF — DD/DTS 5.1, PCM 2.0 |
| ESD Protection | ±8kV (air-gap) / ±4kV (contact) |
| Connection | |
| Input | 4× HDMI Type A (19-pin female) |
| Output — HDMI | 1× HDMI Type A (19-pin female) |
| Output — Audio | 1× RCA L/R, 1× Optical S/PDIF |
| USB Host | 4× USB Type B (one per PC) |
| USB Device | 3× USB 3.0 Type A + 2× USB 2.0 Type A (KB/Mouse) |
| Control | 1× RS-232 (3-pin phoenix), 1× IR EXT (3.5mm) |
| MultiView | |
| Display Modes | Single, PIP, PBP×2, Triple×2, Quad×2 (8 modes) |
| Aspect Ratio | 16:9 / Full (selectable per mode) |
| Mechanical | |
| Housing | Metal Enclosure, Black |
| Dimensions | 220mm (W) × 100mm (D) × 44mm (H) |
| Weight | 443g |
| Power | |
| Power Supply | Input: AC 100–240V 50/60Hz, Output: DC 12V/2.5A (locking) |
| Power Consumption | 18.48W (max) |
| Environment | |
| Operating Temperature | 0°C – 40°C / 32°F – 104°F |
| Storage Temperature | -20°C – 60°C / -4°F – 140°F |
| Relative Humidity | 20–90% RH (non-condensing) |
| Certifications | |
| Regulatory | CE, FCC, UL |
| Package Contents | |
| Included | 1× KVM Switcher, 1× IR Remote, 1× 38KHz IR Receiver Cable (1.5m), 1× 3-pin Phoenix Connector, 4× USB 3.0 A-to-B Cable (1.8m), 2× Mounting Ears, 4× Machine Screws, 1× 12V/2.5A Locking PSU, 1× User Manual |
