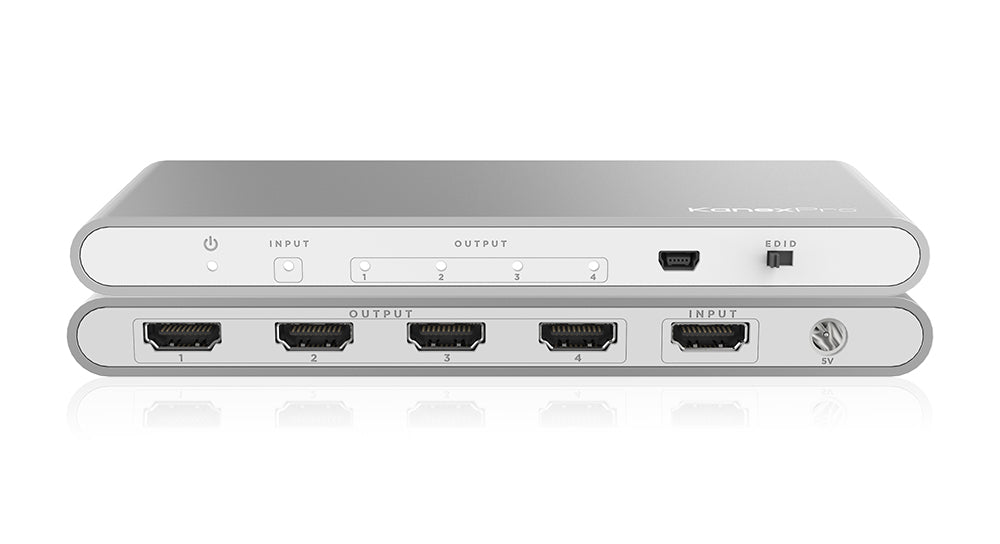

4K HDMI 1x4 分配器，支持 HDCP2.2
1x4 HDMI DA w/ HDCP2.2, 4K Cinema resolutions & Smart EDID Control
SP-HD20-1X44KUPC 813982020405
Discontinued. KanexPro no longer makes this part; remaining stock is sold while it lasts.
$41.98$104.95
Deal · 60% off MSRP
· you save $62.97
In stock
Overview
- 将真正的 4K HDMI 视频和音频信号分配到四个高清 4K 显示器
- 4K@60Hz 超高清、1080p 和 3D 分辨率
- 4Kx2K @30Hz，24 位 RGB，YCBCR 4:4:4 和 YCBCR 4:2:2
- 4Kx2K @60Hz，12 位 YCBCR 4:2:0
- 符合高速HDMI规范：
- （深色、高清无损音频格式和唇音同步）
- 符合HDCP 2.2标准
- EDID 选择器用于获得最佳分辨率
- 内置智能EDID控制
- 前面板 LED 指示灯显示输入/输出信号状态
- 包含 5V 直流外接电源
Key features
- Distribute True 4K HDMI video and audio signals to four HD 4K displays
- 4K@60Hz UHD, 1080p & 3D resolutions
- 4Kx2K @30Hz with 24bit RGB, YCBCR 4:4:4 & YCBCR 4:2:2
- 4Kx2K @60Hz with 12bit YCBCR 4:2:0
- Conforms to High Speed HDMI specifications:
- (Deep color, HD lossless audio formats & Lip Sync)
- HDCP 2.2 compliant
- EDID Selector for optimal resolutions
- Built-in Smart EDID Control
- Front-panel LED’s for input/ output signal presence
- Includes 5V DC external power supply
Signal Input/Outputs:
- Input DDC Signal: 5 Volts p-p (TTL)
- Input & Output Signal: High Speed HDMI Spec 2.0a
Input Ports: 1 x HDMI (Female)
Output Port: 4 x HDMI (Female)
Operating Frequency: Vertical Frequency Range: 50/60Hz
Supported Resolutions:
- 480i ~1080p50/60, 4Kx2K@24/30
- 4Kx2K@60Hz with 12bit YCBCR 4:2:0
- VGA~UXGA
Power Requirements:
- Power Consumption: 2W
- External Power Supply: 5V, 1A DC
Regulatory Approvals:
- Converter Unit: FCC, Ce, UL
- Power Supply: UL, Ce, FCC
Environment Operating Temperature:
- Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
Dimensions:
2.52” (W) × 6.10” (D) × .67” (H)
Weight: 180g
Package Contents:
- HDMI 1X4 Splitter
- 5V, 2A Power Supply
- Operation Manual
