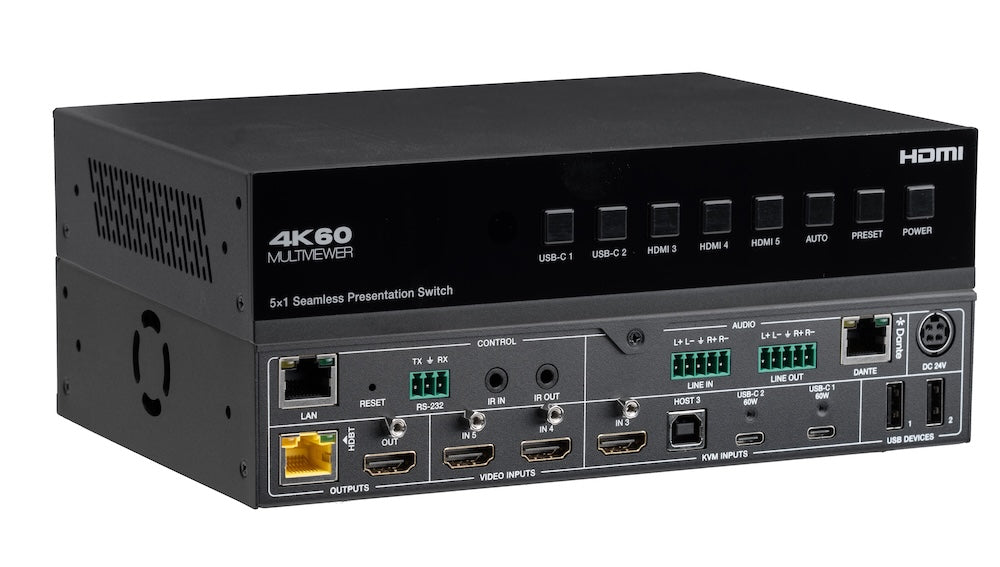

5×1 HDMI/USB-C 4K60 Seamless Presentation Switch with HDBaseT 3.0 70m Out New

Consolidate Five BYOD and Legacy Sources with Seamless Switching, KVM, Dante Audio & HDBaseT Extension

  • 5×1 HDMI/USB-C 4K60 Seamless Presentation Switch with HDBaseT 3.0 70m Out
1 1

KanexPro

SKU: SW-5X1PS-70M

UPC: 813982024229

查看完整详细信息

The KanexPro SW-5X1PS-70M is a professional-grade 5×1 seamless presentation switcher. It supports 2× HDMI, 1× HDMI with USB-B, and 2× USB-C (DP Alt-Mode) inputs with 60W charging, delivering uncompressed 4K@60Hz video over HDMI and HDBaseT extension up to 70 meters.

The receiver includes 1× HDMI, 1× USB-B for PC input, 1× HDMI output, and 2× USB-A extension ports. These USB ports allow connection of peripherals such as keyboard, mouse, USB camera, and other devices, enabling efficient USB extension and KVM functionality.

The switch supports single-screen and advanced Multiview modes (Single, PIP, PBP, Triple, Quad) with integrated USB 2.0 KVM.

It features 1× analog audio input, 1× analog audio output, Dante® 2×2 audio I/O, analogue audio embedding/de-embedding, and a built-in 3×3 audio matrix with DSP.

The device can be controlled via front panel, bi-directional IR, RS-232, RS-232 pass-through, TCP/IP, Web GUI, and Dante Controller, making it a flexible hub for professional AV environments.

The receiver can be powered either by a 24V DC adapter or PoE over HDBaseT.

  • HDMI 2.0b, HDCP 2.2 and DP 1.2 compliant
  • Supports 18Gbps video bandwidth
  • Supports video resolution up to 4K@60Hz 4:4:4
  • Uncompressed 4K@60 over HDBaseT 3.0 up to 40m (132ft) via single CAT6a (F/FTP)
  • Uncompressed 1080p & 4K@30 over HDBaseT 3.0 up to 70m (230ft) via single CAT6a (F/FTP)
  • Up to 5 multiview display modes: Single / PIP / PBP / Triple / Quad
  • 5×1 seamless switching (single screen) and fast switching in multiview mode
  • Inputs: 2× USB-C, 2× HDMI, 1× HDMI with USB-B, 1× Analog audio in, 1× Dante 2ch
  • Outputs: 1× HDMI, 1× HDBaseT (mirrored), 1× Analog audio out, 1× Dante 2ch
  • HDMI and HDBaseT (PoE) mirrored outputs
  • Dante 2×2 audio input and output
  • Supports analog/Dante audio embedding and de-embedding
  • USB-C supports DP Alt Mode for A/V, USB 2.0, 100M Ethernet and 60W charging
  • Local USB 2.0 KVM switching and USB 2.0 extension over HDBaseT 3.0
  • Supports manual and automatic input switching modes
  • CEC and RS-232 control for external device ON/OFF
  • Advanced EDID management
  • Flexible control via front panel buttons, IR remote, RS-232, TCP/IP, and Web GUI
  • Supports standard PoE power supply (TX: PSE, RX: PD)

Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
DP Version DP 1.2
Video Bandwidth 18Gbps
USB Bandwidth TX USB Devices to TX Host/USB-C: 480Mbps
RX USB Devices to TX Host/USB-C: 350Mbps
RX USB Devices to RX Host: 480Mbps
Network Bandwidth (LAN and USB-C Connection) 100Mbps
Input Video Resolution 480i ~ 1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@50/60Hz 4:4:4
Output Video Resolution Auto, 3840×2160p60, 3840×2160p50, 4096×2160p60, 4096×2160p50, 3840×2160p30, 3840×2160p25, 1920×1200p60RB, 1920×1080p60, 1920×1080p50, 1360×768p60, 1280×800p60, 1280×720p60, 1280×720p50, 1024×768p60
IR Level 12Vp-p
IR Frequency Wideband 20K–60KHz
Color Depth Input: 8/10/12-bit (8-bit at 4K60Hz 4:4:4)
Output: 8-bit
Color Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
Audio Formats LPCM 2.0
Audio Sample Rate 48KHz
Transmission Distance 1080P & 4K30 — 230ft / 70m
4K60 — 131ft / 40m
HDR Input supports HDR; Output does not support HDR
ESD Protection (Human-body Model) ±8kV (Air-gap discharge), ±4kV (Contact discharge)
TX Analog Audio
Input Impedance 10K Ohms
Output Impedance 330 Ohms
Line Input Level (Maximum) 8.2 dBu (2 Vrms), @ balanced or unbalanced audio
Line Output Level (Maximum) 8.2 dBu (2 Vrms) @ balanced audio
2.2 dBu (1 Vrms) @ unbalanced audio
Frequency Response (+0.5 dB, -1 dB) 20 Hz to 20 kHz
Audio Output Sync Delay 0 to 50 ms
Audio S/N Ratio 93 dB @ 2Vrms, 1kHz, A-weighted
Audio THD+N <0.1% @ 0dBV, 1kHz
RX Analog Audio
Output Impedance 330 Ohms
Line Output Level (Maximum) 8.2 dBu (2 Vrms) @ balanced audio
2.2 dBu (1 Vrms) @ unbalanced audio
Frequency Response (+0.5 dB, -1 dB) 20 Hz to 20 kHz
Audio Output Sync Delay 0 to 50 ms
Audio S/N Ratio 93 dB @ 2Vrms, 1kHz, A-weighted
Audio THD+N <0.1% @ 0dBV, 1kHz
Dante Audio
Audio Formats LPCM 2.0

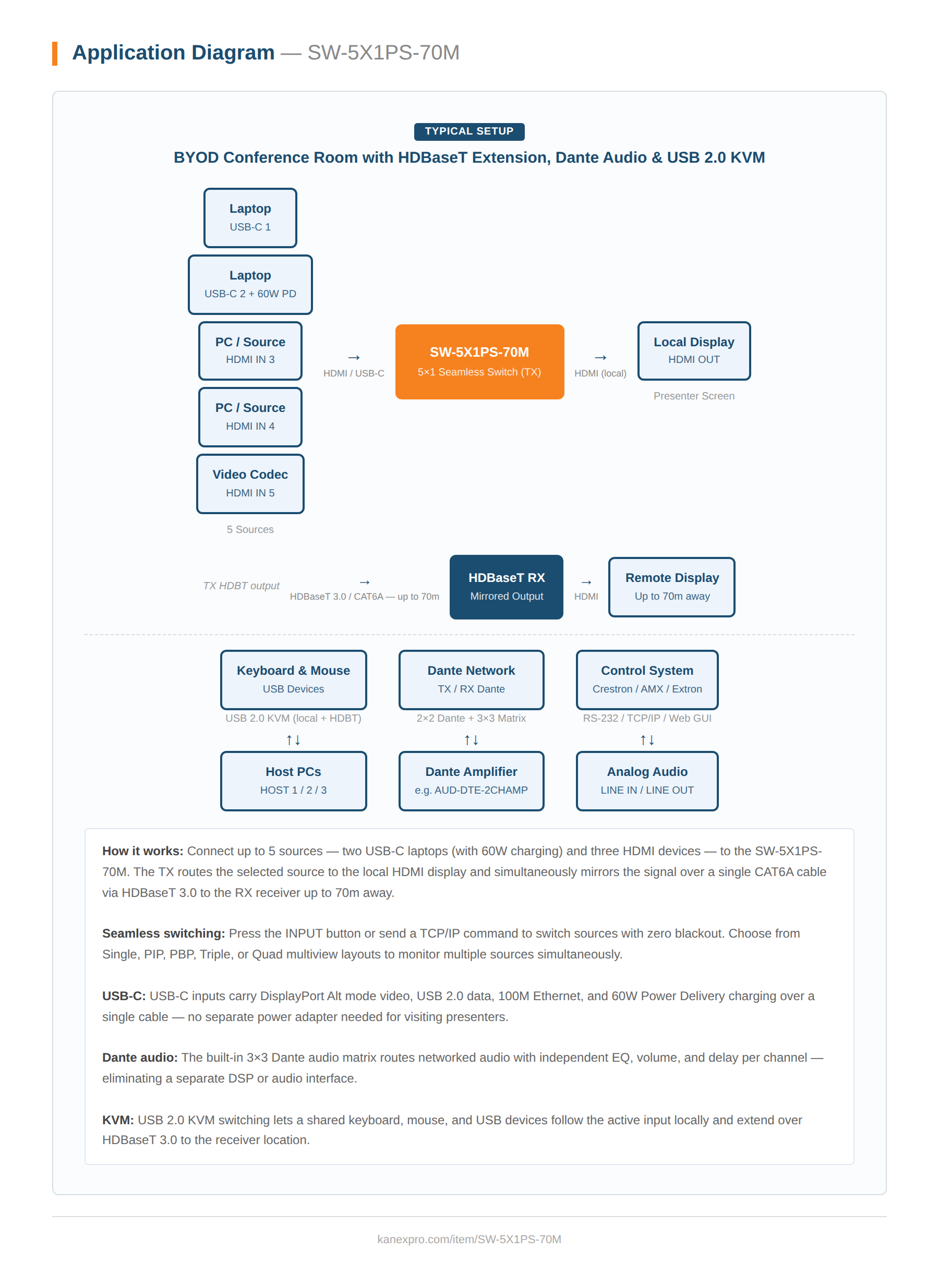

Product Diagram

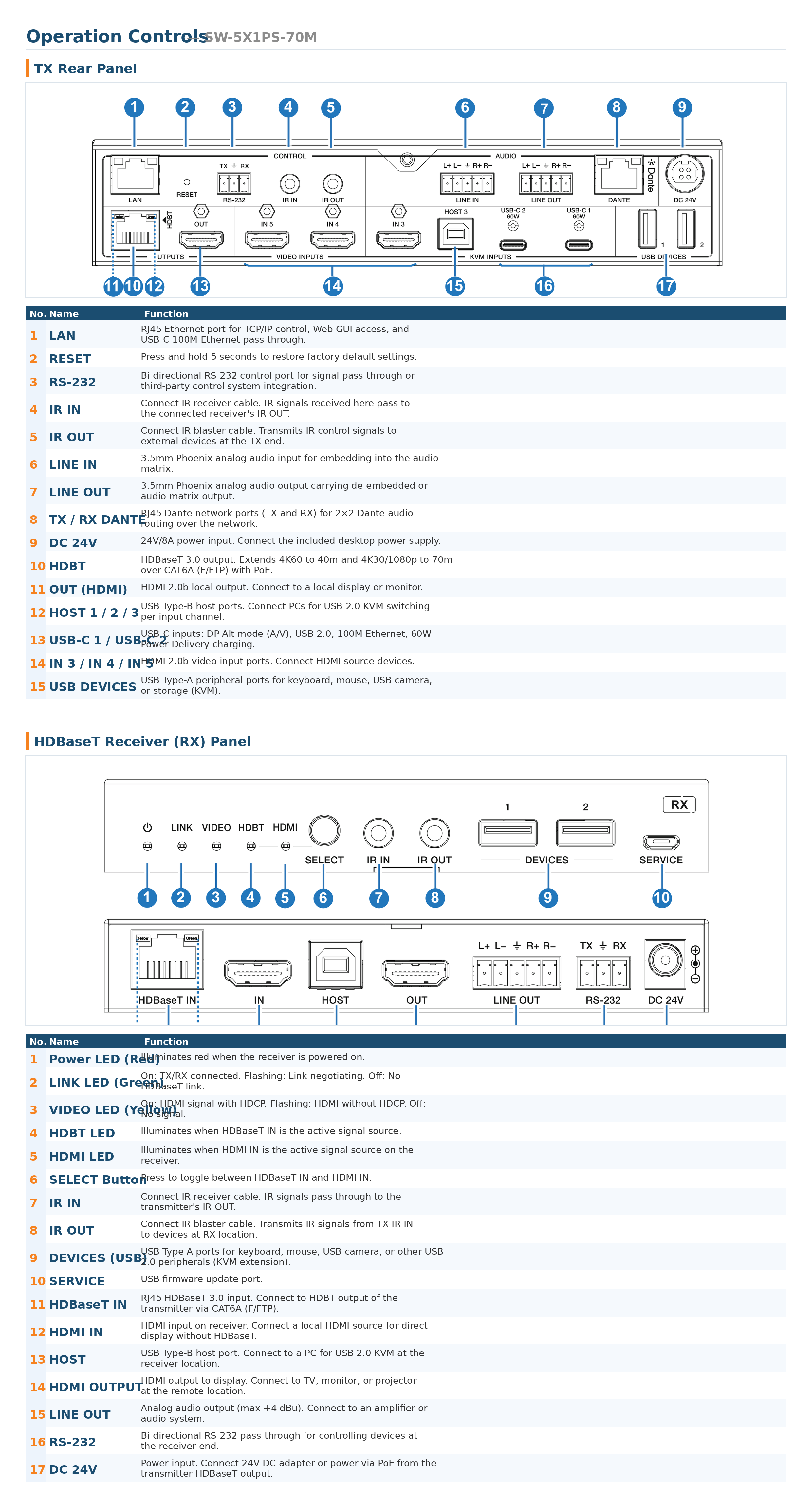

Product Panel
