HDMI/USB-C 双输入视频墙，支持 4K@60 4:4:4
Compact 4K Video Wall Processor with 8 Display Modes, Audio De-embedding & RS-232 Control

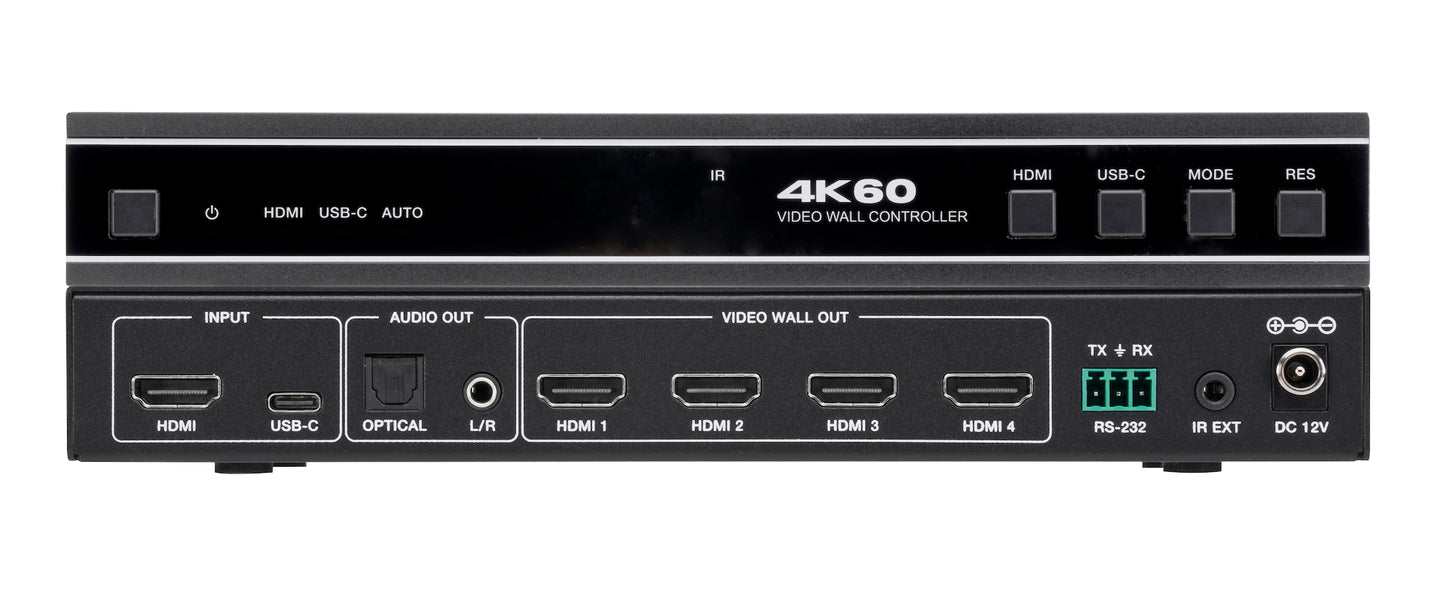

Display a single 4K source across up to four screens with pixel-perfect bezel compensation and flexible layout configurations. The KanexPro VW-HDUSBC1X4 is an 18Gbps 1×4 video wall controller that accepts HDMI or USB-C input at up to 4K@60Hz 4:4:4 and distributes it across four HDMI outputs in eight video wall modes — from 2×2 grids to 1×4 horizontal strips.
Compliant with HDMI 2.0b and HDCP 2.2, the controller supports Dolby Digital, DTS, and LPCM audio pass-through with dedicated optical and analog L/R audio de-embedding. Control via front-panel buttons, IR remote, or a full RS-232 ASCII command set for integration with third-party control systems. The compact metal enclosure (220×100×30 mm) fits any installation environment.
- Accepts 4K@60Hz 4:4:4 input via HDMI 2.0b or USB-C with 18Gbps bandwidth and HDCP 2.2 compliance
- Distributes a single source across up to four HDMI displays in 8 video wall configurations: 1×1, 2×1, 3×1, 4×1, 1×2, 1×3, 1×4, and 2×2
- Horizontal and vertical bezel compensation (0–10 range) for seamless image alignment across display bezels
- 180° image rotation per output channel for flexible display orientation in custom installations
- Optical (S/PDIF) and analog L/R (RCA) audio de-embedding supporting Dolby Digital, DTS 5.1, and LPCM up to 7.1 channels
- Full RS-232 ASCII command set (115200 baud) for integration with Crestron, Extron, AMX, and other control systems
- Six EDID modes per input for reliable source negotiation across mixed display environments
- Compact metal enclosure (220×100×30 mm) with front-panel buttons, IR remote, and IR extender port
| Specification | Value |
|---|---|
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18 Gbps |
| Video Resolution (Input) | Up to 4K@60Hz 4:4:4 |
| Video Resolution (Output) | 720p@60Hz, 1080p@60Hz, 4K@30Hz, 1024×768@60Hz (XGA) |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12-bit |
| IR Level | 5Vp-p |
| IR Frequency | 38 KHz |
| Audio Formats (HDMI IN/OUT) | LPCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, DTS, DTS-EX, DTS-96/24 |
| Audio Formats (L/R OUT) | PCM 2.0 |
| Audio Formats (Optical/S/PDIF) | Dolby Digital/Plus, DTS 5.1, PCM 2.0 |
| Audio Latency | No Latency |
| Video Latency | No Latency |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connection | |
| Input Ports | 1× HDMI INPUT [Type A, 19-pin female], 1× USB-C INPUT [Type C, 24-pin female] |
| Output Ports | 4× HDMI OUTPUT [Type A, 19-pin female], 1× Optical Audio Out [S/PDIF], 1× L/R Audio Out [RCA] |
| Control Ports | 1× RS-232 [3-pin 3.81mm Phoenix connector], 1× IR EXT [3.5mm stereo mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 220 mm (W) × 100 mm (D) × 30 mm (H) |
| Weight | 590 g |
| Power Supply | Input: AC 100–240V 50/60Hz, Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | 5.5W (max) |
| Operating Temperature | 32–104°F / 0–40°C |
| Storage Temperature | −4–140°F / −20–60°C |
| Relative Humidity | 20–90% RH (non-condensing) |
| HDMI Cable Length | |
| 4K@60Hz | 8 m / 26 ft |
| 4K@24Hz | 10 m / 32 ft |
| 1080p@60Hz | 15 m / 49 ft |
| Certifications | |
| Regulatory | CE, FCC, UL |
| Package Contents | |
| 1× | Video Wall Controller |
| 1× | 12V/1A Power Adapter |
| 1× | IR Remote Control |
| 1× | 5V IR Receiver Cable (1.5 m) |
| 1× | 3-pin 3.81mm Phoenix Connector (male) |
| 4× | Machine Screws |
| 4× | Rubber Feet |
| 4× | Screw Posts |
| 1× | User Manual |
