带红外和POC接收器的单HDMI 2.0墙面面板,支持HDBaseT 70M协议

Extend 4K/60 4:4:4 HDMI up to 130 ft (1080p up to 230 ft) over one CAT5e/6 with Bi-Directional IR, RS-232 Control & Power over Cable

WP-EXTHDBTKITUPC 813982021976

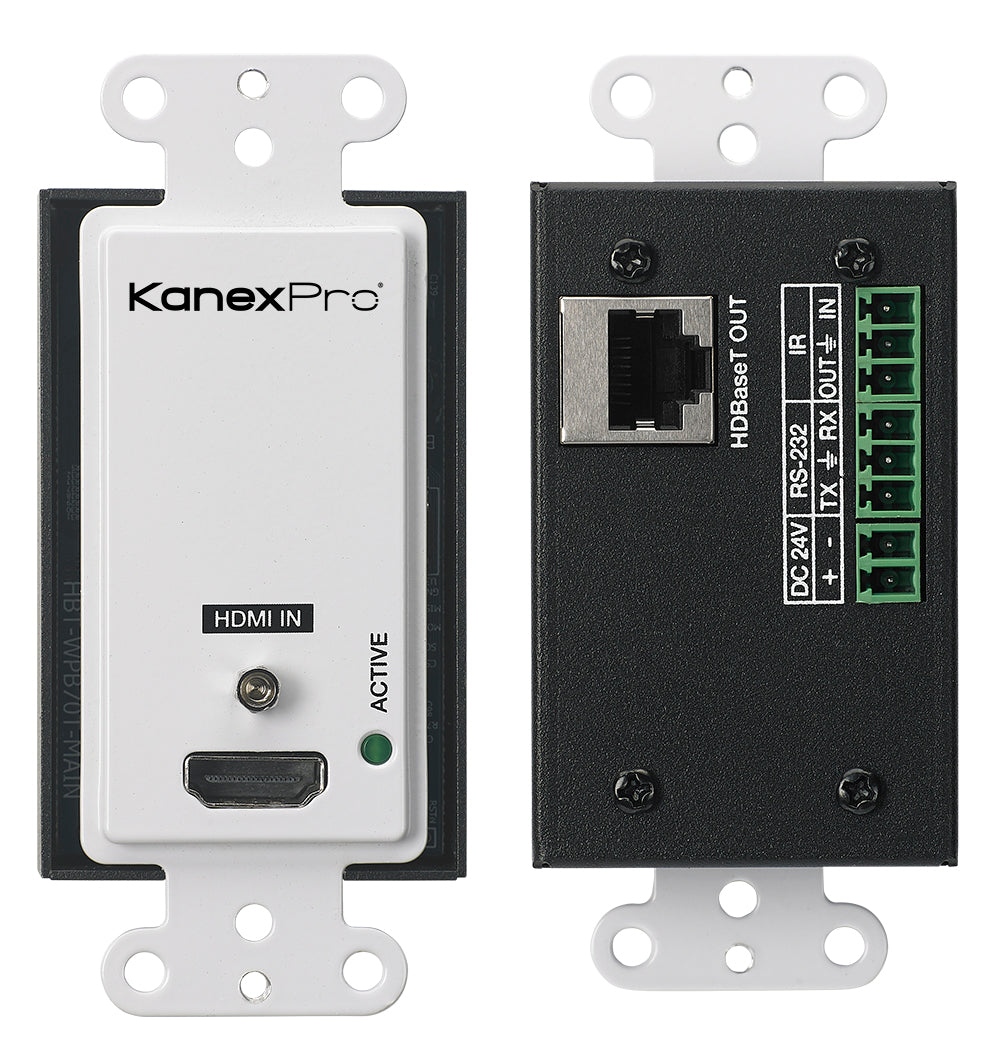

Single-Gang HDMI 2.0 HDBaseT Wall Plate Extender Kit with IR, RS-232 & PoC — 70M
Single-Gang HDMI 2.0 HDBaseT Wall Plate Extender Kit with IR, RS-232 & PoC — 70M | WP-EXTHDBTKIT - view 2
Available through our B2B portal
This part is sold to approved trade accounts.

Resellers, installers, schools and businesses. Approval is usually the same working day.

Overview

The KanexPro WP-EXTHDBTKIT is a single-gang HDMI 2.0 HDBaseT wall plate transmitter and receiver set for professional AV installations requiring robust signal extension with full bidirectional control. Supporting 18Gbps bandwidth with HDCP 2.2, it extends 4K/60Hz 4:4:4 up to 40 meters and 1080p/60 up to 70 meters over a single CAT5e/6 cable — with full bidirectional IR and RS-232 control signals riding the same cable. The included 24V HDBaseT receiver connects directly to displays or projectors.

Designed for courtrooms, boardrooms, classrooms, and control room applications where device control is as important as signal delivery, the WP-EXTHDBTKIT eliminates the need for a separate control cable run. Bidirectional IR allows display control from the source location; RS-232 enables integration with room control systems such as Crestron or AMX. Power over Cable (PoC) can be supplied from either the transmitter or receiver end, providing flexible installation options. Includes IR receiver and transmitter cables, Phoenix connectors, mounting ears, and a 24V/1A power adapter. CE, FCC, and UL certified.

Key features
  • Single-gang, one HDMI input wall plate over HDBaseT
  • Extend 4K/60 with 4:4:4 up to 40 meters (130ft)
  • Extend 1080p/60 with 4:4:4 up to 70 meters (230ft)
  • Supports HDMI 2.0 with 18Gbps bandwidth
  • Digital audio support up to 7.1 channels of HD audio
  • HDCP 2.2/1.4 compliant
  • Bi-directional IR and RS-232C control
  • Remote power via PoC (either Transmitter or Receiver)
  • POC power consumption less than 10W
  • Simple point-to-point transmission over CAT5e/6
  • Active LED status indicator
Technical
HDMI ComplianceHDMI 2.0b
HDCP ComplianceHDCP 1.4 and HDCP 2.2
Video Bandwidth18Gbps
Video Resolution4K2K@50/60Hz (YUV 4:4:4), 4K2K@30Hz, 1080p@120Hz, 1080p 3D@60Hz
Color SpaceRGB/YCbCr 4:4:4, YCbCr 4:2:2
Color Depth10-bit, 12-bit
HDMI Audio FormatsLPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
ESD ProtectionHuman body model ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection — Transmitter
Inputs1× HDMI Type A [19-pin female], 1× IR INPUT [Phoenix jack], 1× RS-232 [Phoenix jack]
Outputs1× HDBaseT Out [RJ45], 1× IR OUTPUT [Phoenix jack], 1× RS-232 [Phoenix jack]
PowerDC 24V [Phoenix jack]
Connection — Receiver
Inputs1× HDBaseT In [RJ45], 1× IR IN [3.5mm Stereo Mini-jack], 1× RS-232 [Phoenix jack], 1× Service [Mini-USB]
Outputs1× HDMI Type A [19-pin female], 1× IR OUTPUT [3.5mm Stereo Mini-jack]
Mechanical
HousingMetal Enclosure
ColorBlack
Dimensions — TX4.07? × 1.81? × 1.18? (103.5 × 46 × 30mm)
Dimensions — RX6.18? × 3.54? × 0.79? (157 × 90 × 20mm)
Weight — TX0.36 lbs (163g)
Weight — RX0.73 lbs (330g)
Power
Power SupplyInput: AC 100–240V 50/60Hz; Output: DC 24V/1A
Power Consumption9W max
Certifications
RegulatoryCE, FCC, UL
Environment
Operating Temperature32–104°F / 0–40°C
Storage Temperature–4–140°F / –20–60°C
Relative Humidity20–90% RH (no condensation)
Package Contents
1×HDMI Wall Plate Transmitter
1×HDBaseT Receiver
2×Phoenix connector (2-pin)
3×Phoenix connector (3-pin)
1×IR Receiver cable
1×IR Transmitter cable
2×Mounting ears
1×24V/1A Power Adapter
1×User Manual
