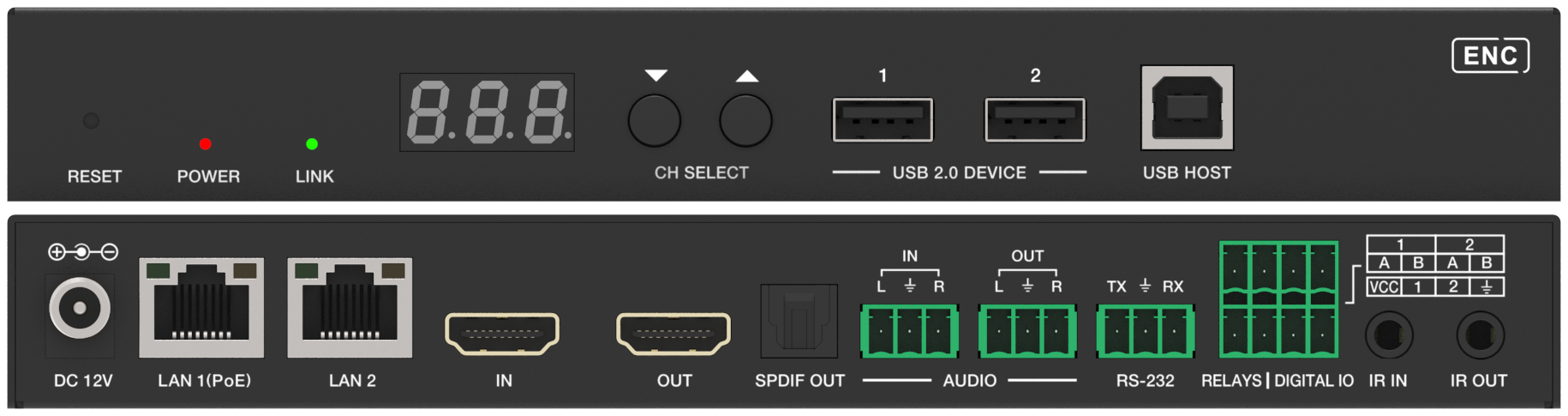

4K60 4:4:4 JPEG2000 AV over IP Encoder — Dante Dual LAN with Contact Control New
Separate Dante Audio from JPEG2000 Video on Two Copper LANs — Relay/Digital I/O, RS-232 & ARC/eARC over Standard 1G
Distributes one HDMI source as visually lossless 4K60 4:4:4 across a matrix, video wall, or KVM system over the standard 1G copper network you already run. The encoder is a black metal endpoint powered by standard PoE or local DC 12V/2.5A, drawing 9.12W maximum, and folds dual RJ45 LAN ports, an HDMI loop-out, RS-232, IR, CEC, USB 2.0, and relay/digital-I/O contact control into a single rack-mountable device. It is the right choice for corporate, higher-education, control-room, and house-of-worship installations where full-chroma 4K60, Dante audio separation, and endpoint control matter more than the cost and switch replacement of a 10GbE/SDVoE fabric.

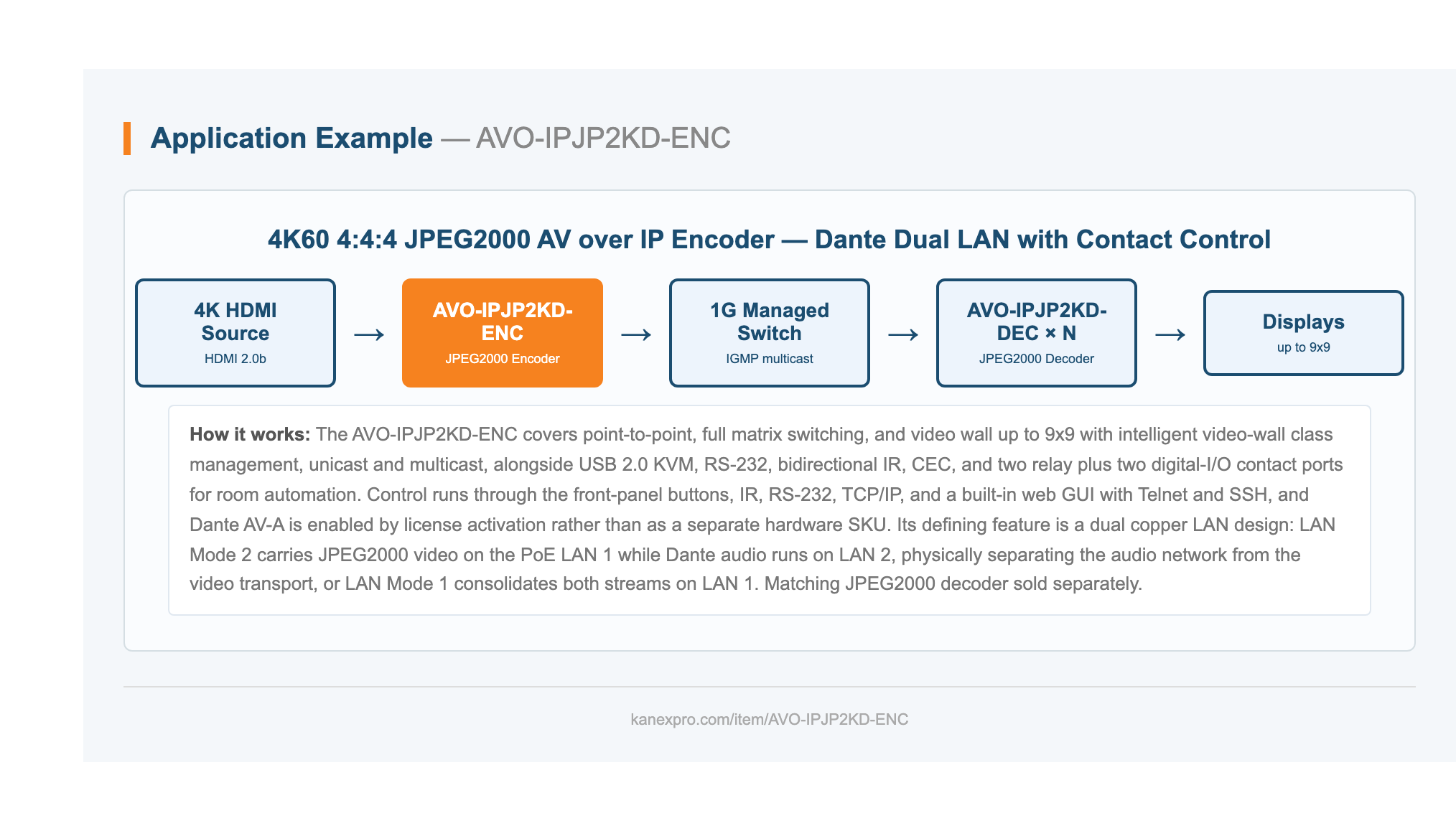

The AVO-IPJP2KD-ENC covers point-to-point, full matrix switching, and video wall up to 9x9 with intelligent video-wall class management, unicast and multicast, alongside USB 2.0 KVM, RS-232, bidirectional IR, CEC, and two relay plus two digital-I/O contact ports for room automation. Control runs through the front-panel buttons, IR, RS-232, TCP/IP, and a built-in web GUI with Telnet and SSH, and Dante AV-A is enabled by license activation rather than as a separate hardware SKU. Its defining feature is a dual copper LAN design: LAN Mode 2 carries JPEG2000 video on the PoE LAN 1 while Dante audio runs on LAN 2, physically separating the audio network from the video transport, or LAN Mode 1 consolidates both streams on LAN 1. Matching JPEG2000 decoder sold separately.
- HDCP 2.2 compliant
- Supports 18Gbps video bandwidth
- Input and output video resolution up to 4K60 4:4:4, as specified in HDMI 2.0b
- Signal transmission distance extendable up to 328ft / 100m over CAT6/6A/7 cable
- Transmits video, analog/digital audio, IR, RS-232, CEC, and USB 2.0 over Ethernet
- ARC/eARC/S-PDIF/analog audio return transmission
- Dante AV-A mode supported when license-activated
- Supports analog/Dante audio embedding and analog/Dante audio de-embedding
- Channel configuration via front-panel buttons and LED screen
- Built-in two-channel relay ports and two-channel digital-I/O ports for contact control
- Supports unicast and multicast
- Supports point-to-point, video matrix, and video wall (up to 9x9)
- Intelligent video-wall class management
- Built-in dual copper LAN ports with two working modes: LAN Mode 1 transmits both the JPEG2000 video stream and the Dante audio stream through the LAN 1 (PoE) port; LAN Mode 2 (default) transmits the JPEG2000 video stream through the LAN 1 (PoE) port and the Dante audio stream through the LAN 2 port
- MJPEG substream for real-time video preview on portable devices
- Operates on a 1G managed network switch
- Standard PoE (PD mode) power
- Built-in web-page configuration and control, plus Telnet and SSH
- HDMI audio formats: LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master
- Flexible control via front-panel buttons, IR, RS-232, TCP/IP, and web GUI
- Smart networking design for easy and flexible installation
| Video | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Compression Standard | JPEG2000 |
| Video Network Bandwidth | 1G |
| Video Resolution | Up to 4K@60Hz 4:4:4 |
| Color Depth | Input: 8/10/12-bit (1080p@60Hz); Output: 8-bit |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| HDR | Supported on both input and output |
| Audio | |
| HDMI Audio Formats | LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master, DTS:X |
| Audio Sample Rate | 44.1–192kHz |
| Dante | Dante AV-A supported when license-activated |
| Signal & Transmission | |
| USB Bandwidth | USB 2.0 device to host: 480Mbps |
| Transmission Distance | 100m over CAT6/6A/7 |
| HDMI Cable Length vs. Resolution | 4K60: 16ft / 5m; 4K30: 32ft / 10m; 1080p60: 50ft / 15m (premium high-speed HDMI recommended) |
| IR Level | 12V default, 5V optional |
| IR Frequency | Wideband 20kHz – 60kHz |
| ESD Protection | IEC 61000-4-2: ±15kV (air discharge), ±8kV (contact discharge) |

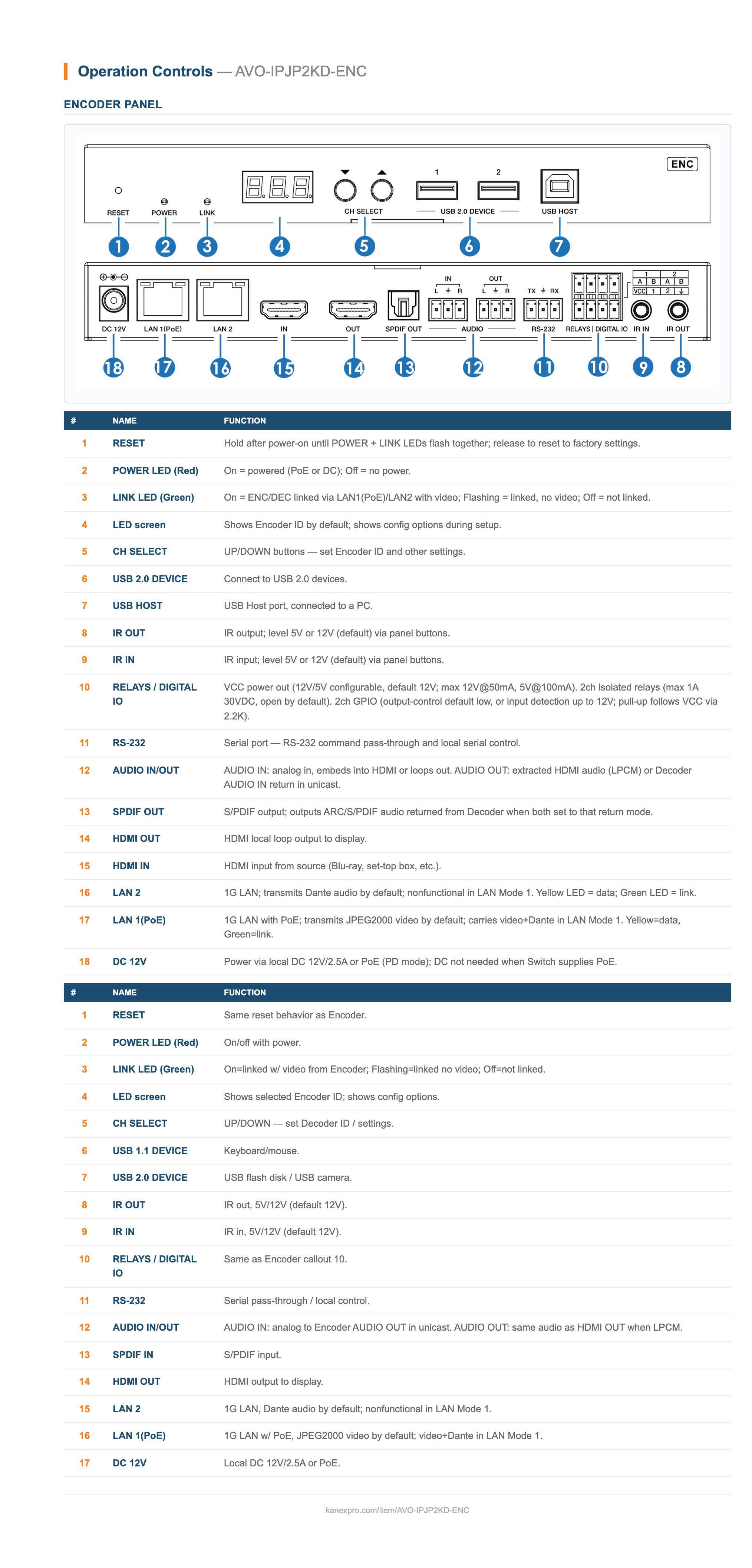

| Connections — Inputs | |
| HDMI IN | 1x HDMI Type A, 19-pin female |
| L/R Audio IN | 1x 3-pin 3.81mm Phoenix, unbalanced 2CH, max 2Vrms |
| Connections — Outputs | |
| HDMI OUT | 1x HDMI Type A, 19-pin female |
| L/R Audio OUT | 1x 3-pin 3.81mm Phoenix, unbalanced 2CH |
| S/PDIF OUT | 1x optical |
| Connections — Control | |
| RS-232 | 1x 3-pin 3.81mm Phoenix |
| LAN | 2x RJ45 (LAN 1 supports PoE) |
| USB 2.0 Host | 1x USB Type B, 4-pin female |
| USB 2.0 Device | 2x USB Type A, 4-pin female |
| Relays | 2x 3.81mm Phoenix (isolated, max 1A 30VDC, open by default) |
| Digital I/O | 2x 3.81mm Phoenix (GPIO, output or input detection up to 12V) |
| IR IN | 1x 3.5mm jack, 5V/12V |
| IR OUT | 1x 3.5mm jack, 5V/12V |
| Networking & Control | |
| Topology | Point-to-point, video matrix, video wall (up to 9x9) |
| Casting | Unicast and multicast |
| LAN Modes | Mode 1: video + Dante on LAN 1 (PoE); Mode 2 (default): video on LAN 1 (PoE), Dante audio on LAN 2 |
| Control Interfaces | Front-panel buttons, IR, RS-232, TCP/IP, web GUI, Telnet, SSH |
| Substream | MJPEG substream for real-time preview |
| Recommended Switch | L3/managed Gigabit, 8KB jumbo frame, IGMP snooping |
| Rack Mounting | 6U V2 rack (6/8/10 units vertical) and 1U V2 rack (2 units horizontal); brackets and screws included |
| Power | |
| Power Supply | Input: AC 100–240V 50/60Hz; Output: DC 12V/2.5A |
| PoE | Standard PoE (PD mode); DC adapter not needed when switch supplies PoE |
| Power Consumption (max.) | 9.12W |
| Physical | |
| Housing | Metal enclosure |
| Color | Black |
| Dimensions (W x D x H) | 8.03" x 5.35" x 1.00" (204 x 136 x 25.5 mm) |
| Net Weight | 1.39 lbs (0.63 kg) |
| Environmental | |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -4–140°F (-20–60°C) |
| Relative Humidity | 20–90% RH, non-condensing |
| Certifications | |
| Certifications | CE, FCC, UL (power supply); IEC 61000-4-2 ESD immunity |
