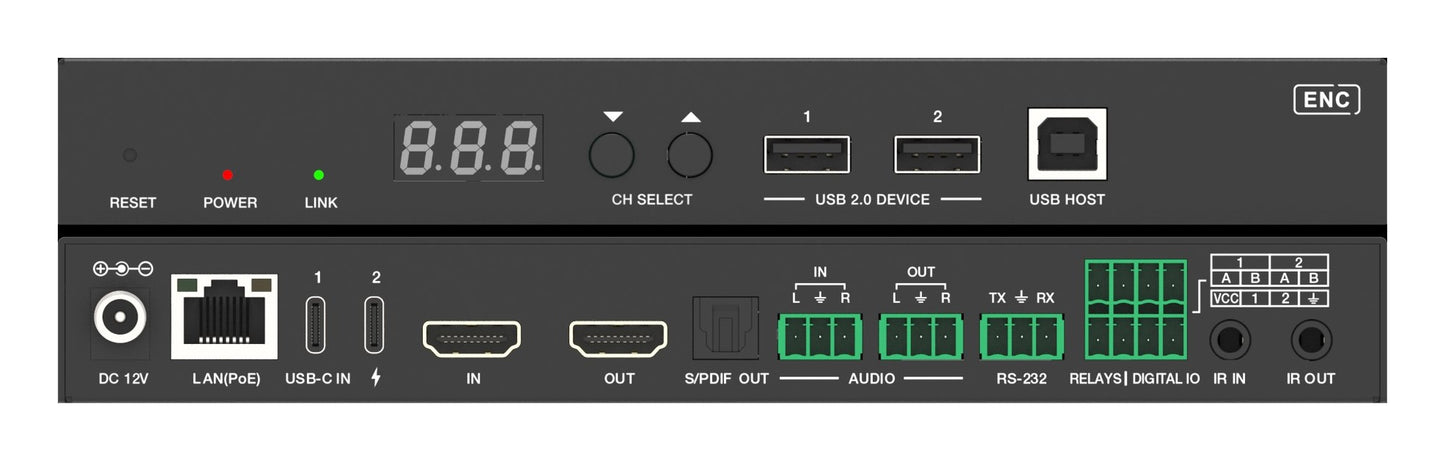

4K60 JPEG2000 AV over IP BYOD Encoder — USB-C & HDMI New

Brings visually lossless 4K60 4:4:4 JPEG2000 encoding to BYOD and UC rooms — with a dual HDMI and USB-C input that automatically switches to whichever source is connected, and a dedicated USB-C IN 2 port that delivers up to 100W of power back to the presenter's laptop. The AVO-IPJP2KUC-ENC eliminates the dongle problem in huddle rooms and conference spaces: a single USB-C cable connects the laptop, shares the display, routes USB peripherals for KVM, and keeps the laptop charged — all while distributing 4K60 video to any compatible JPEG2000 decoder on the same 1G network.

Where standard JPEG2000 encoders require a dedicated AV rack source, the AVO-IPJP2KUC-ENC is designed for presenter-driven spaces. Dolby Vision, HDR10, and HLG passthrough cover every content type a laptop or mobile workstation produces. ARC, eARC, S/PDIF, and analog audio return bring display audio back to the room without extra cabling. Optional Dante AV-A ties the encoder into professional audio infrastructure. Compatible with any AVO-IPJP2K-series decoder and the AVO-IPCTL-JP2K controller for matrix switching, video wall, and KVM roaming.

• HDMI and USB-C dual inputs with automatic source switching — connects to whichever input is active
• USB-C IN 1 carries video, audio, and USB data from laptop; USB-C IN 2 delivers up to PD 100W charging back to the source device
• JPEG2000 visually lossless 4K60 4:4:4 distribution over standard 1G managed networks — no 10G required
• HDR10, Dolby Vision, and HLG support on input and output
• LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-96/24, DTS-EX, DSD, DTS High Res, DTS-HD Master, DTS:X audio passthrough
• ARC, eARC, S/PDIF, and analog audio return
• Optional Dante AV-A integration (license activated)
• USB 2.0 KVM with two-way IR and RS-232 — centralized control of remote sources
• HDMI 2.0b with HDCP 2.2, 18Gbps bandwidth
• Unicast, multicast, matrix switching, and video wall up to 9×9
• PoE (802.3at PD) or DC 12V/2.5A — single-cable deployment
• MJPEG sub-stream preview — view encoder feed in real time
• Digital I/O and relay controls with configurable VCC output (5V/12V)
• Web GUI, Telnet, SSH, RS-232, TCP/IP, CEC, IR control
• Works with AVO-IPCTL-JP2K IP Controller (sold separately)
• Encoder only — pairs with any AVO-IPJP2K-series decoder
