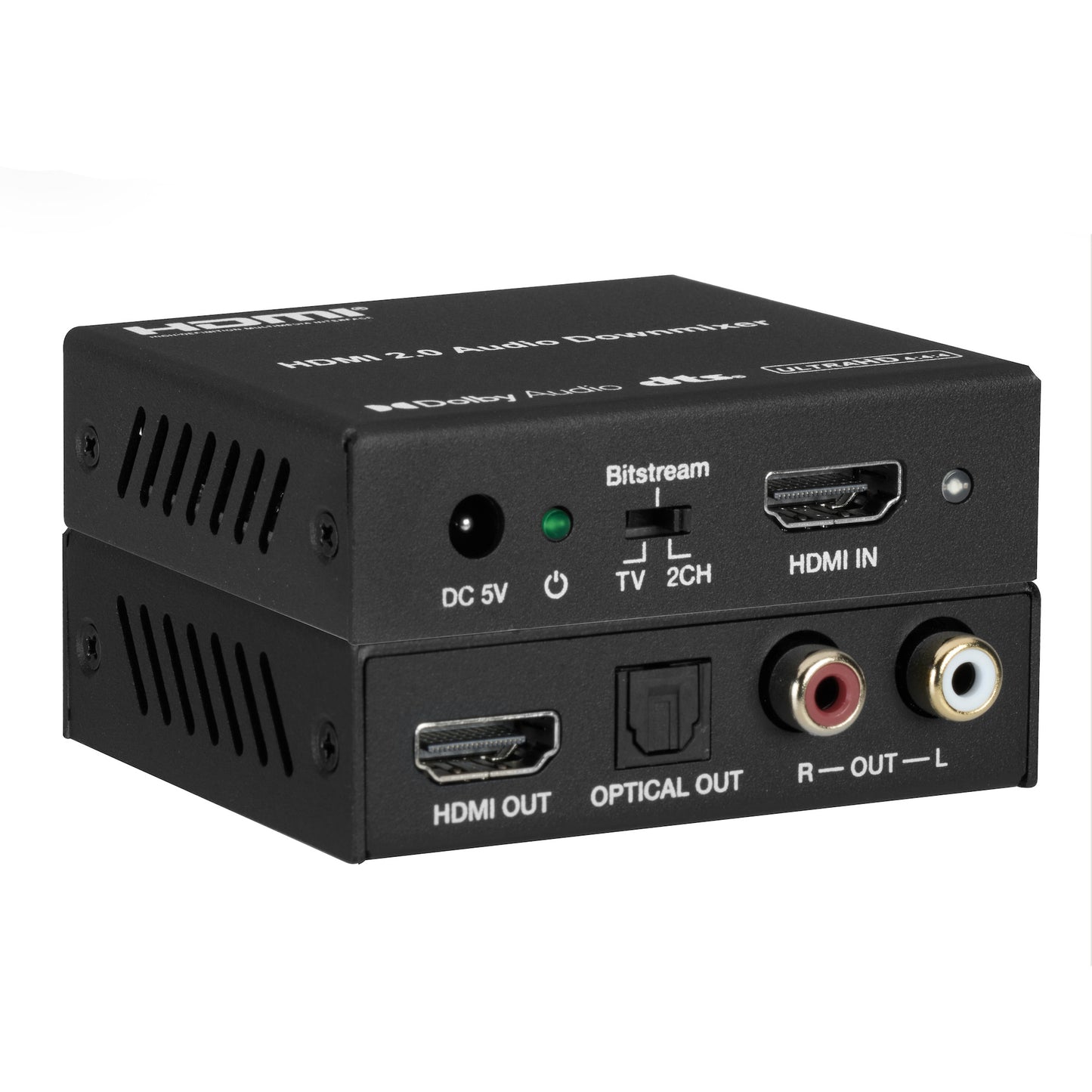

HDMI 4K HDMI Audio Down Mixer Decoder w/ DTS Dolby Optical R/L

1 1

KanexPro

SKU: AUD-DCODEHDMI-4K

UPC: 813982023925

$149.95
View full details
The KanexPro AUD-DCODEHDMI-4K HDMI 18Gbps Audio Extractor could extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs.
For maximum flexibility, this audio extractor also supports bitstream audio down-mix to analog stereo output and keeps optical and HDMI out audio passthrough.
Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444).
It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats
bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio
sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.
  • HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
  • Video resolutions up to 4K2K@50/60Hz (YUV444)
  •  Extract HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
  • HDMI Pass-through audio input to HDMI and optical audio output
  • Support bitstream audio down-mix to L/R analog output
  • Optical audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
  •  Support HDMI High Bit Rate(HBR) audio pass through
  •  Audio sample rates up to 192kHz
  • 10bits HDR (High Dynamic Range) pass through
  • Support CEC pass-through

Technical

HDMICompliance

HDMI2.0b

HDCPCompliance

HDCP2.2andHDCP1.4

VideoBandwidth

18Gbps



VideoResolutions

Up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz,

and1080P3D@60Hz

ColorSpace

RGB,YCbCr4:4:4,YCbCr4:2:2

ColorDepth

10-bit,12-bit



HDMI Audio Formats(Pass-through)

LPCM 2/5.1/7.1CH, Dolby Digital,DTS 5.1, Dolby Digital+, DolbyTrueHD,DTS-HDMasterAudio,DolbyAtmos,DTS:X

Optical AudioFormats

LPCM2CH,DolbyDigital2/5.1CH,DTS2/5.1CH

L/RAudioFormats

AnalogStereo2CH



ESD Protection

Human body model — ±8kV(air-gap discharge) & ±4kV(contactdischarge)




Connections

Inputs

1xHDMITypeA[19-pinfemale]



Outputs

1x HDMI Type A [19-pin female]1xL/RAudio Out [RCA]

1xOptical Out [S/PDIF]

Mechanical

Housing

Metal Enclosure

Color

Black

Dimensions

73.5mm[W] x 60.7mm[D] x20mm[H]

Weight

135g



Power Supply

Input:AC100-240V50/60Hz

Output: DC 5V/1A (US/EUstandards, CE/FCC/ULcertified)

Power Consumption

1.25W(Max)

OperationTemperature

32-104°F/0-40°C

Storagetemperature

-4-140°F/-20- 60°C

RelativeHumidity

20-90%RH(nocondensation)
